Tangential fan — 12V, blade material aluminum. The complete factory specification follows. Made by ACTIVA INC. (15 years on the platform, typical reply ≤4h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Tangential Fan
- Model Number: DFE25298
- Voltage: 12V
- Blade Material: aluminum
- Warranty: 1 Year
- Certification: ce
- Place Of Origin: Taiwan, China
Technical Specifications
| Voltage | 12V |
|---|---|
| Mounting | Industrial Equipment |
| Blade Material | aluminum |
| After-Sales Service Provided | Online support |
| Warranty | 1 Year |
| Place Of Origin | Taiwan, China |
| Brand Name | SYMBANG |
| Model Number | DFE25298 |
| Size | 25mm |
| Certification | ce |
| Type | CROSS FLOW FAN |
| Applicable Industries | Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use |
| Core Components | motor, Bearing |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

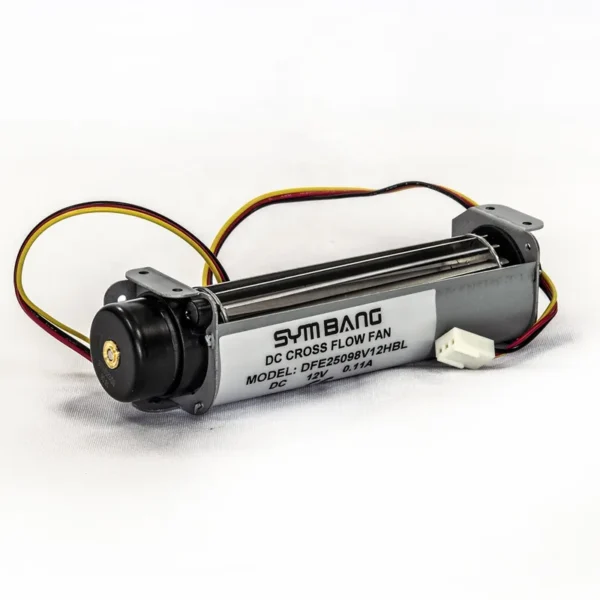

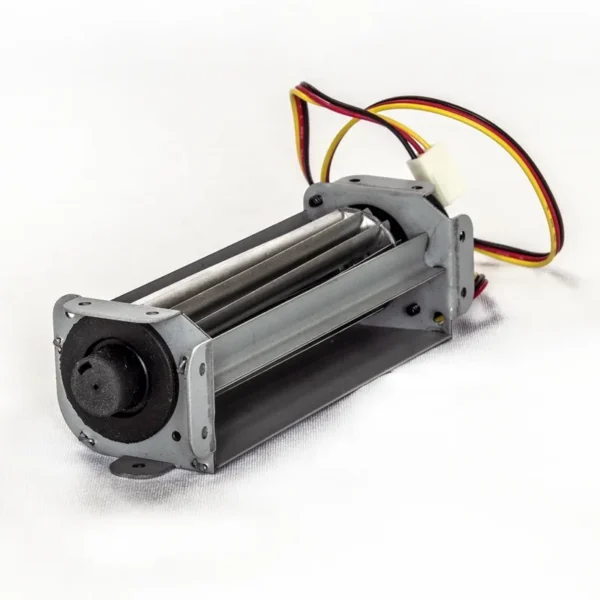

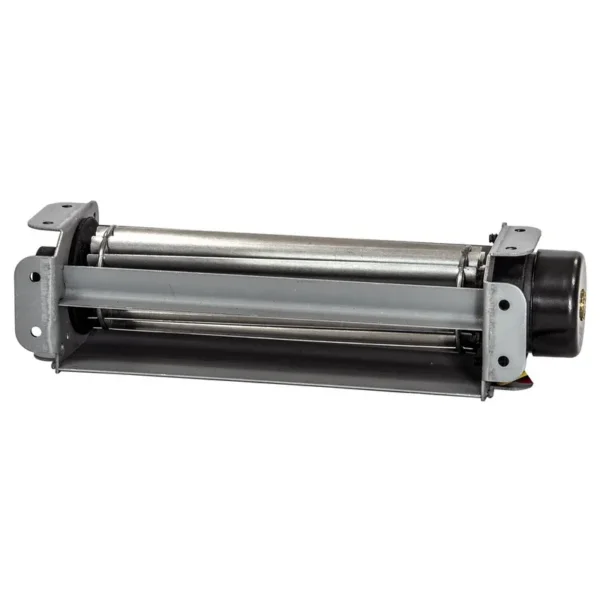

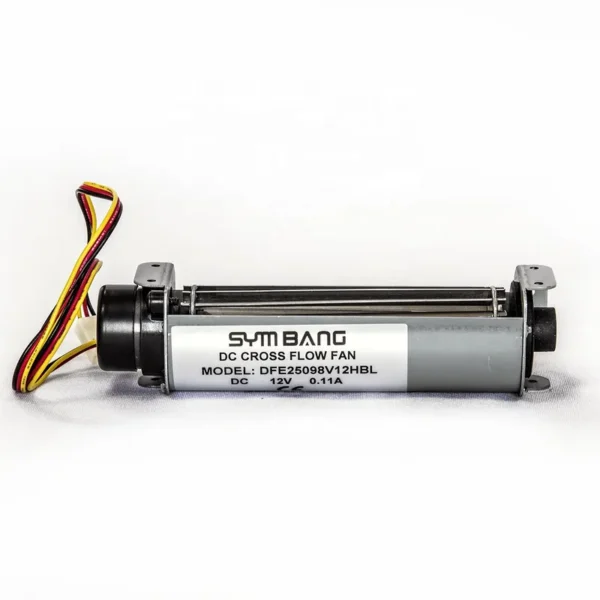

DFE25298 12V Mini Tangential Fan
| HOUSING | Metal/Aluminum |
| IMPELLER | Aluminum,Ø25mm |
| BEARING | Ball |
| OPERATING TEMPERATURE | 0°C to + 45°C |
| DIELECTRIC STRENGTH | 5mA Max. at 500 VAC for 1 minute |
| INSULATION RESISTANCE | 10MΩ min. @500 VDC |
| MOTOR TYPE | DC Brushless Motor |
| ROHS COMPLIANCE | Yes |
| IP LEVEL | IP21 (Special IP Rating On Request) |
| FAN IS FOR HORIZONTAL USE ONLY | |

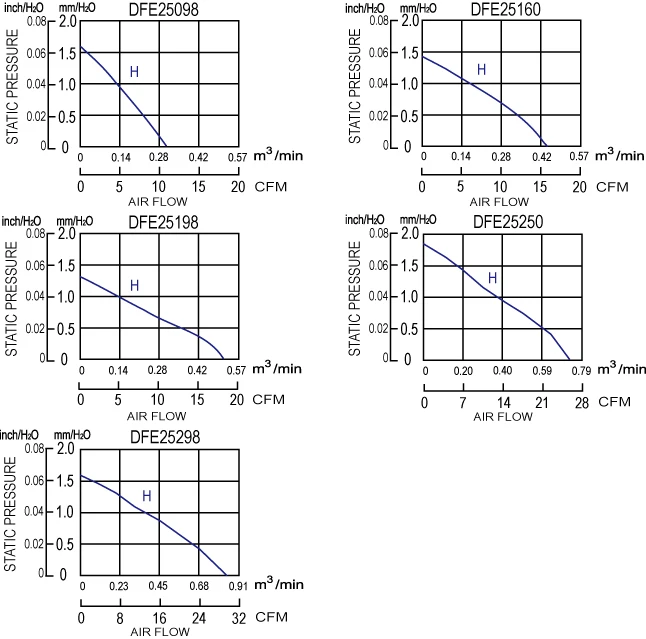

| Model No. | RATED | RATED | INPUT | SPEED | MAX. AIR PRESSURE | MAX. AIR FLOW | NOISE dB(A) | ||
| VOLTAGE | CURRENT | POWER | (RPM) | @1M | |||||
| (V) | (A) | (W) | inchH2O | mmH2O | CFM | m3/min | |||
| DFE25098V12H | 12 | 0.11 | 1.32 | 3100 | 0.06 | 1.6 | 11 | 0.31 | 32 |
| DFE25160V12H | 12 | 0.13 | 1.56 | 2700 | 0.06 | 1.4 | 16 | 0.45 | 29 |
| DFE25198V12H | 12 | 0.14 | 1.68 | 2500 | 0.05 | 1.3 | 18 | 0.51 | 28 |
| DFE25250V12H | 12 | 0.2 | 2.4 | 2600 | 0.07 | 1.8 | 25 | 0.71 | 32 |
| DFE25298V12H | 12 | 0.21 | 2.52 | 2500 | 0.06 | 1.6 | 30 | 0.85 | 33 |
Company profile :
Activa Inc. is committed to the research & development of cooling fans & motors. Based on more than 20 years of experience in mold and component plastic injection manufacturing, SYM BANG has become a specialist manufacturer of exhaust fan through its advanced technology and full line of ventilation system.
We provide following products:
| AC Axial Fans & Blower | DC Axial Fans & Blowers | AC Cross Flow Fans |
| DC Cross Flow Fans | AC Sirocco Blowers | AC Centrifugal Fans & Blowers |
| DC Centrifugal Fans & Blowers | EC Centrifugal Fans & Blowers | Air Curtain |
| EC Axial Fans | Fan Accessories | EC Stand Fan |
| Blade | Misting Fan |
|
Our factory:
Our certificate:
Ordering and Pricing
- Minimum order quantity: 20 piece
- Ships from: TW
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this tangential fan?
The standard minimum order quantity is 20 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this tangential fan carry?
It is supplied with ce documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the tangential fan be supplied for my local voltage?
The standard configuration is 12V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
