This cross flow fan is published with the manufacturer’s full specification — type Cross Flow Fan DC Motor, speed 2000. Made by ACTIVA INC. (15 years on the platform, typical reply ≤4h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Cross Flow Fan
- Model Number: DFM3325
- Speed(RPM): 2000
- Warranty: 3 months ~ 1 year
- Certification: CE;RoHS
- Place Of Origin: Taiwan, China
- Protect Feature: Totally Enclosed
Technical Specifications
| Commutation | Brushless |
|---|---|
| Speed(RPM) | 2000 |
| Efficiency | IE 2 |
| Type | Cross Flow Fan DC Motor |
| Construction | Series Wound |
| Protect Feature | Totally Enclosed |
| Usage | Fan |
| Warranty | 3 months ~ 1 year |
| Continuous Current(A) | 0.05 |
| Model Number | DFM3325 |
| Place Of Origin | Taiwan, China |
| Brand Name | SYMBANG |
| Certification | CE;RoHS |
| Size | 40x30mm |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

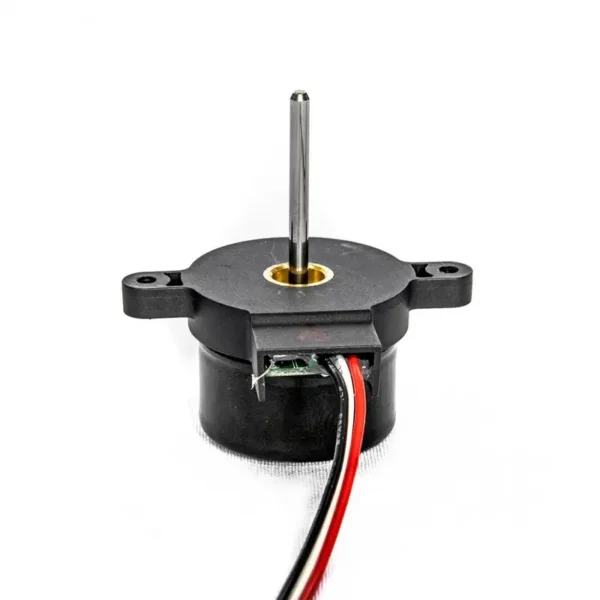

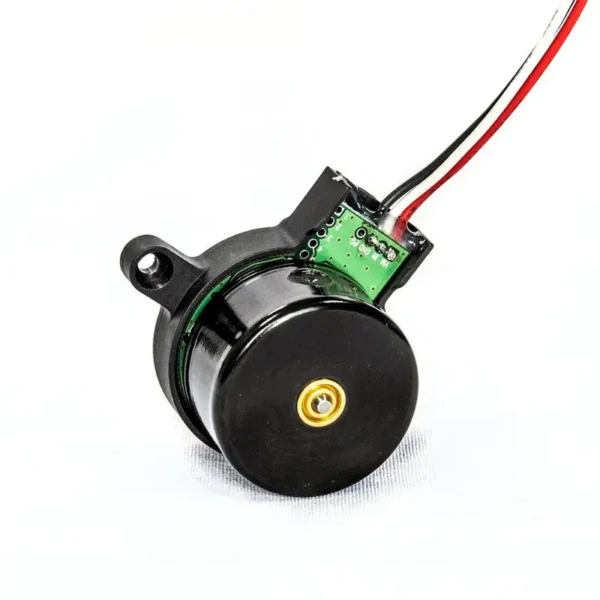

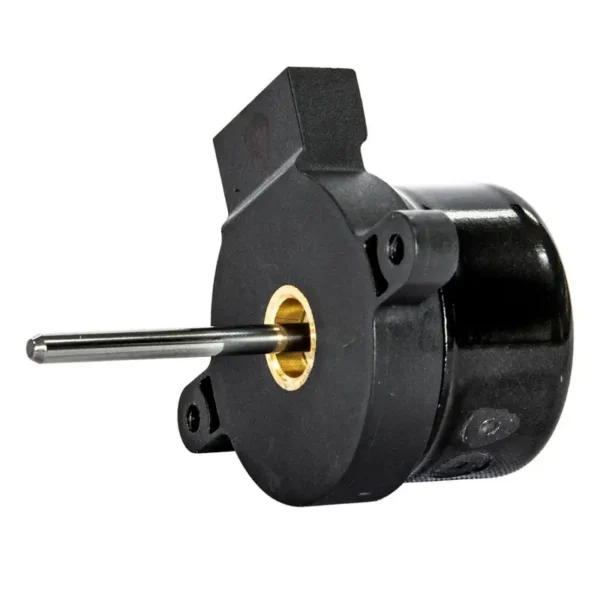

DFM3325 24V Cross Flow Fan DC Motor 33*25mm
| MOTOR TYPE | 3 PHASE BLDC MOTOR |
| BEARING | Ball Bearing |
| OPERATING TEMPERATURE | -20°C to + 70°C |
| CONTROL | IC Control |
| VIBRATION INTENSITY | 5~11.8 m/s2 Max. |
| DIELECTRIC STRENGTH | 5mA Max. at 500 VAC for 1 second |
| INSULATION RESISTANCE | 10M Ω min. @500 VDC |
| TERMINATION | Lead Wire |
| IMPELLER | Fit for diameter 30mm or 40mm impeller |
| DIAMETER OF THE STEEL SHAFT | 3mm |
| Model No. | RATED VOLTAGE (V) | SPEED(RPM) |
| DFM3325 | 24 | 2000 |
Activa Inc. is committed to the research & development of cooling fans & motors. Based on more than 20 years of experience in mold and component plastic injection manufacturing, SYM BANG has become a specialist manufacturer of exhaust fan through its advanced technology and full line of ventilation system.
We provide following products:
| AC Axial Fans & Blower | DC Axial Fans & Blowers | AC Cross Flow Fans |
| DC Cross Flow Fans | AC Sirocco Blowers | AC Centrifugal Fans & Blowers |
| DC Centrifugal Fans & Blowers | EC Centrifugal Fans & Blowers | Air Curtain |
| EC Axial Fans | Fan Accessories | EC Stand Fan |
| Blade | Misting Fan |
|
Our factory:
Our certificate:
Ordering and Pricing
- Minimum order quantity: 5 piece
- Ships from: TW
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cross flow fan?
The standard minimum order quantity is 5 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 months ~ 1 year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this cross flow fan carry?
It is supplied with CE;RoHS documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by ACTIVA INC.. The company 15 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full ACTIVA INC. range on HVACR Nexus.
See more in Cross Flow Fans on HVACR Nexus.
