Telecommunications cabinet fan — voltage 110-240V, blade material Plastic. The complete factory specification follows. Made by Wenzhou Lvshang Import & Export Co., Ltd (4 years on the platform, typical reply ≤3h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Telecommunications Cabinet Fan
- Model Number: Bl2E225PB00
- Voltage: 110-240V
- Blade Material: Plastic
- Speed: 2600RPM
- Warranty: 1 Year
- Place Of Origin: Zhejiang, China
Technical Specifications
| Type | Backward Curved Blade Radial Fan |
|---|---|
| Voltage | 110-240V |
| Speed | 2600RPM |
| Blade Material | Plastic |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | ODM, OEM, OBM |
| Place Of Origin | Zhejiang, China |
| Brand Name | Holafan |
| Model Number | Bl2E225PB00 |

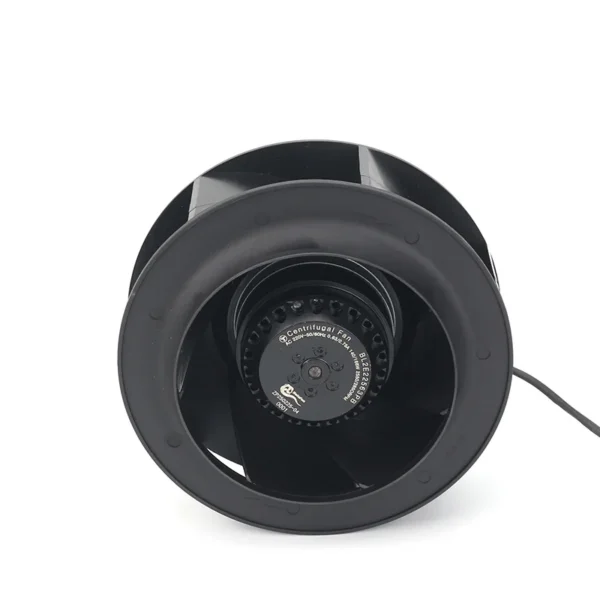

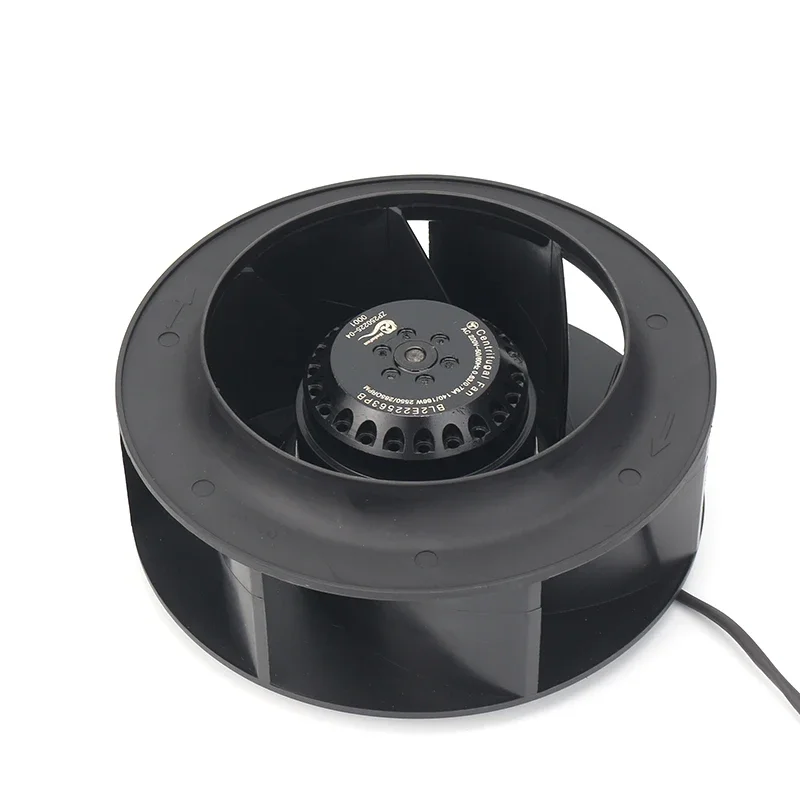

| Product Name | Centrifugal Fan |
| Motor | Outer Rotor Motor |
| Application | Industrial Equipment |
| Size | 225MM |
| Feature | Low Noise Power Saving |
| Function | Cooling System |
| Color | Black |
| Fan Type | AC Centrifugan Fan |
| Motor Type | External Rotor Motor |
| Selling Units | Single item |
| Single Package Size | 29X29X20 cm |
| Single Gross Weight | 2.5 kg |

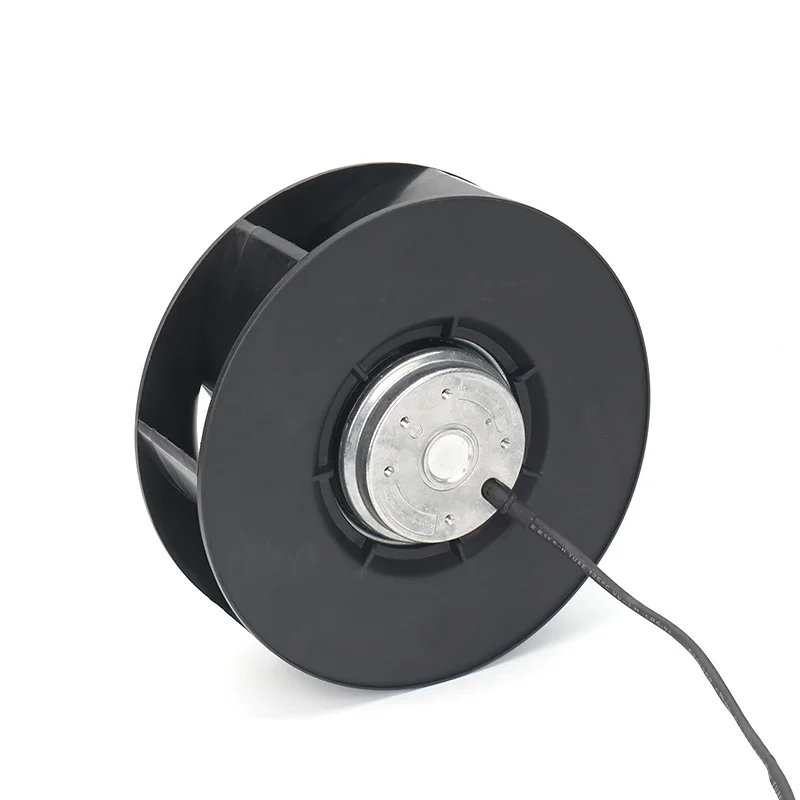

Product Details

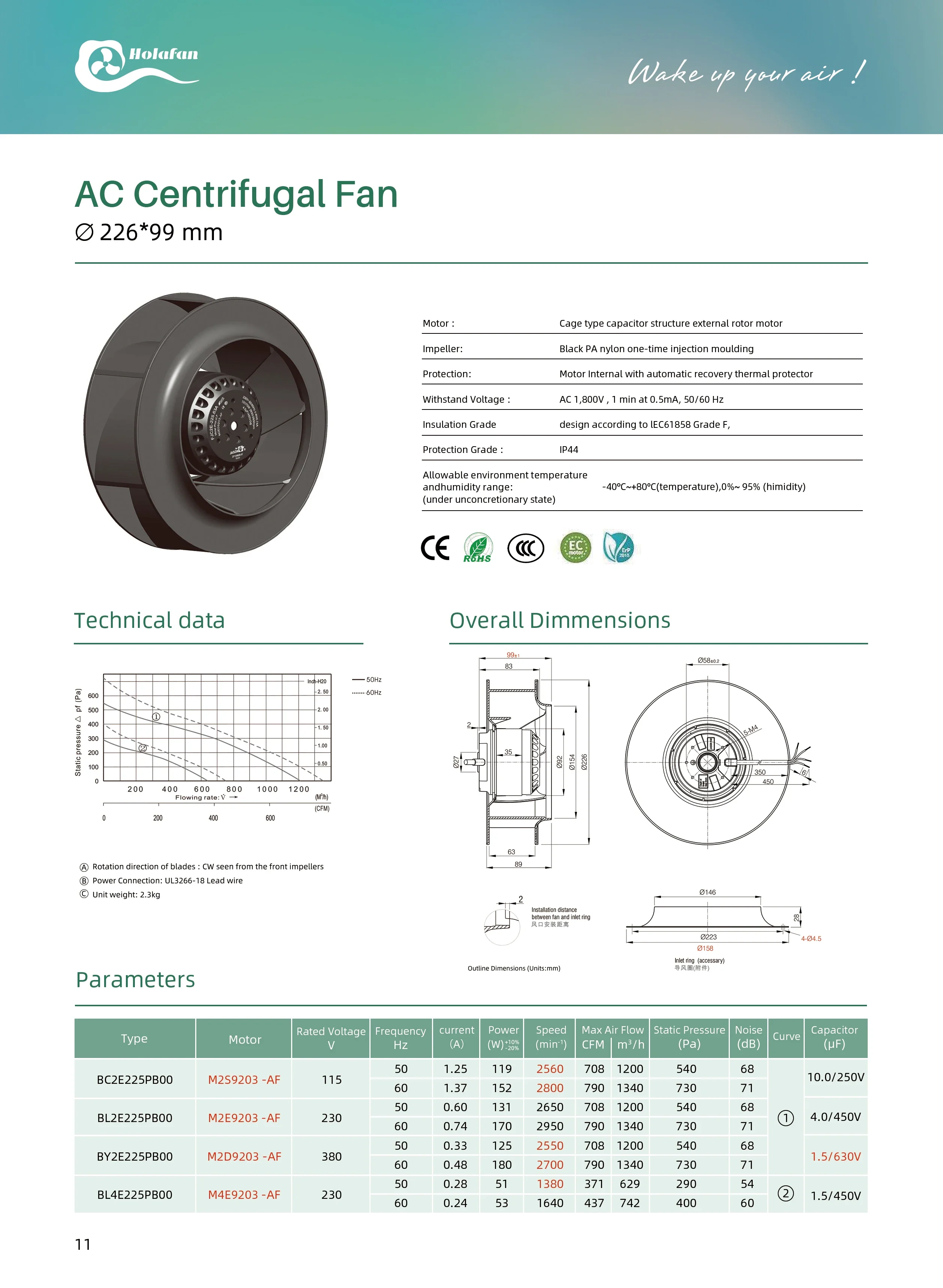

Brand | Holafan | ||||||
Product name | Centrifugal fan | ||||||
Model | BL2E225PB00 | ||||||
Rated Voltage | 110V/115V/220V/230V/380V | ||||||
Input Current | 0.6A/0.74A | ||||||
Rated Speed(RPM) | 2650RPM | ||||||
Rotation Frequency | 50Hz/60Hz | ||||||
Input Power | 131W/171W | ||||||
Static Pressure | 540Pa/730Pa | ||||||
Max. Air Flow | 790cfm | ||||||
Insulation class | F | ||||||
Degree of protection | Motor Internal with automatic recovery thermal protector | ||||||
Weight | 2.3Kg | ||||||
Impeller Diameter | 225mm | ||||||
We are based in Zhejiang, China, start from 2015,sell to North America(60.00%),Southern Europe(20.00%),South
America(10.00%),Eastern Europe(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
EC/DC/AC fan,air filter fan
4. why should you buy from us not from other suppliers?
More than 17years of supplying service for industrial fan all over the world. Experienced on professional fan development case and
customized service . We are you eyes in China for sourcing. Design, molding, tooling and testing are all we can qualify.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP,DDU；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,Credit Card;
Language Spoken:English
Ordering and Pricing
- Minimum order quantity: 20 piece
- Volume pricing:
- 20–499 piece: US $27.41 / piece
- 500–999 piece: US $27 / piece
- 1000+ piece: US $26.78 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this telecommunications cabinet fan?
The standard minimum order quantity is 20 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the telecommunications cabinet fan be supplied for my local voltage?
The standard configuration is 110-240V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Wenzhou Lvshang Import & Export Co., Ltd, based in China. The company 4 years as a verified Alibaba.com supplier, Trading Company. Browse the full Wenzhou Lvshang Import & Export Co., Ltd range on HVACR Nexus.
