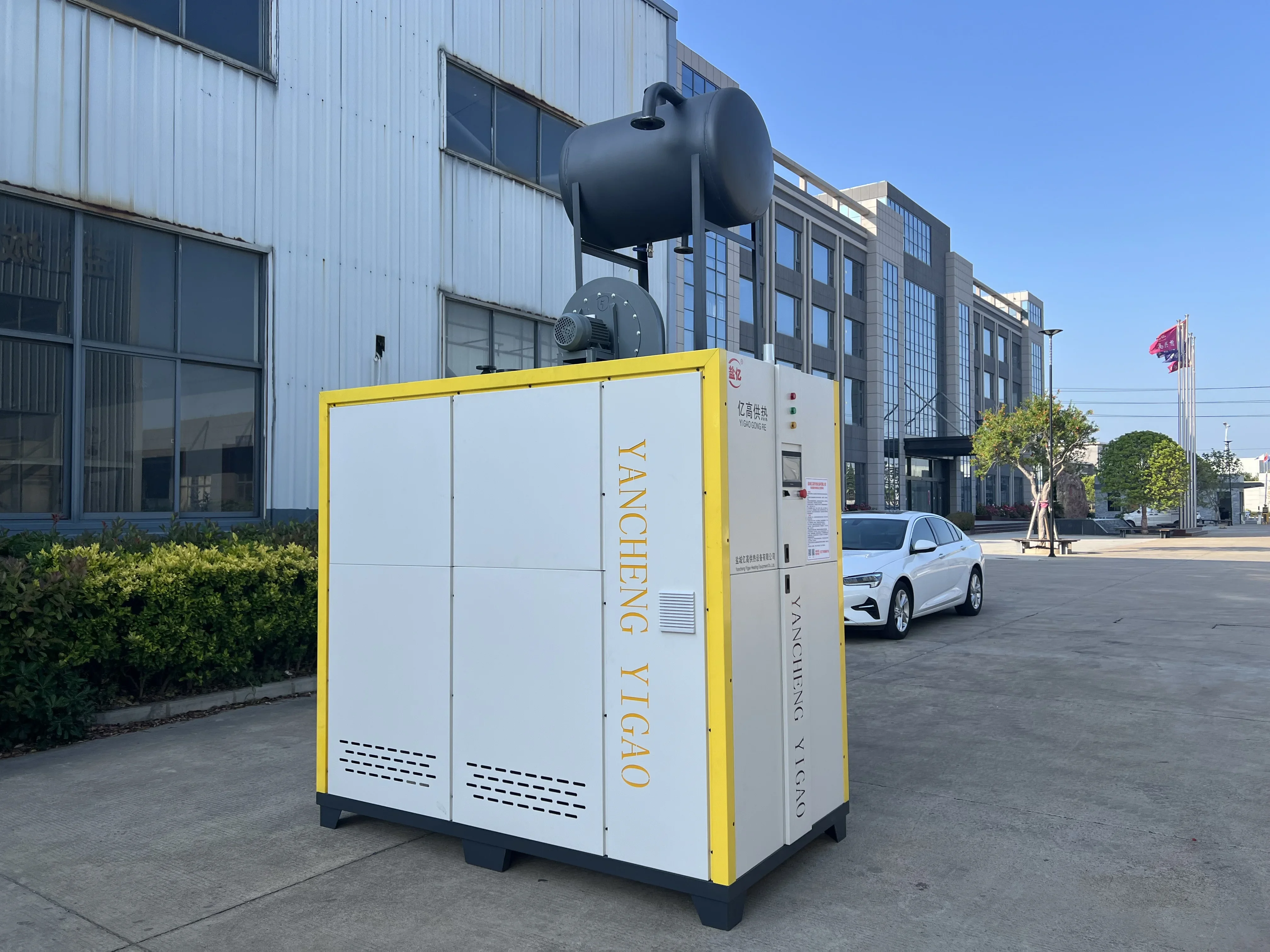

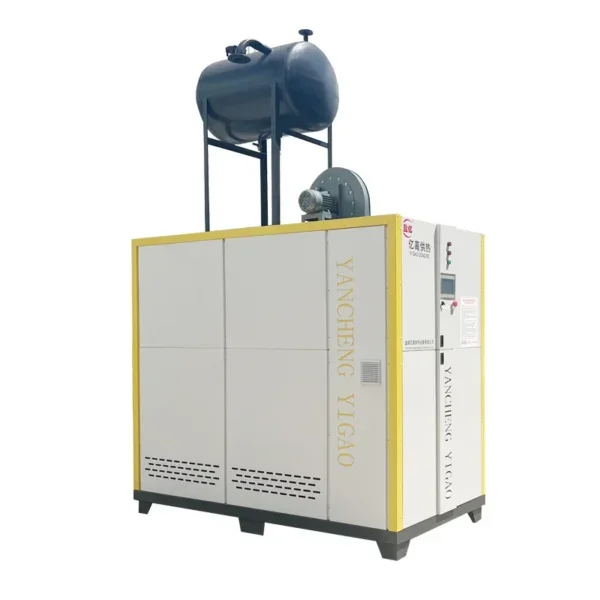

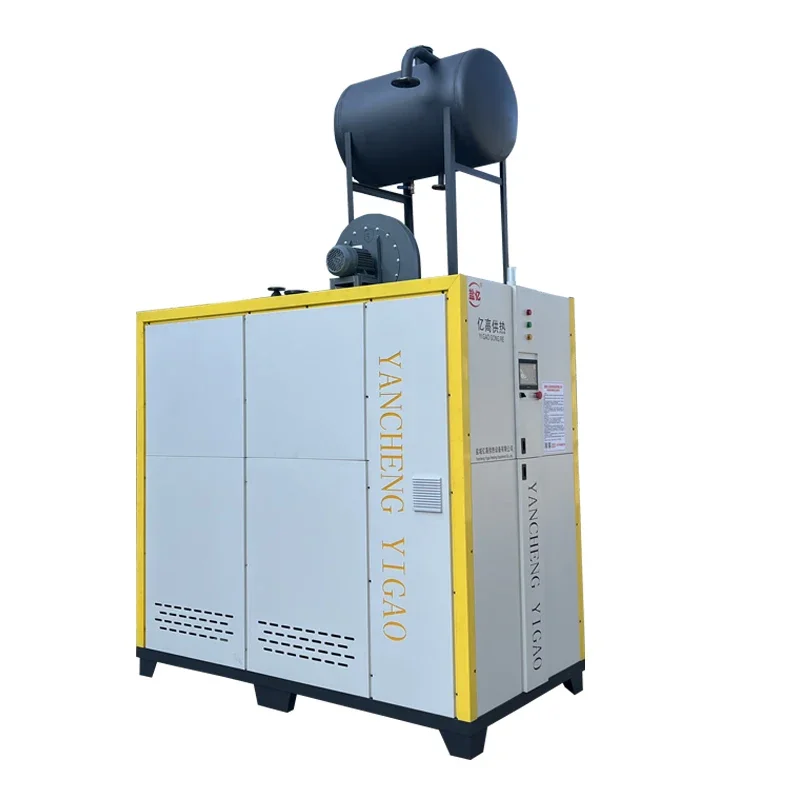

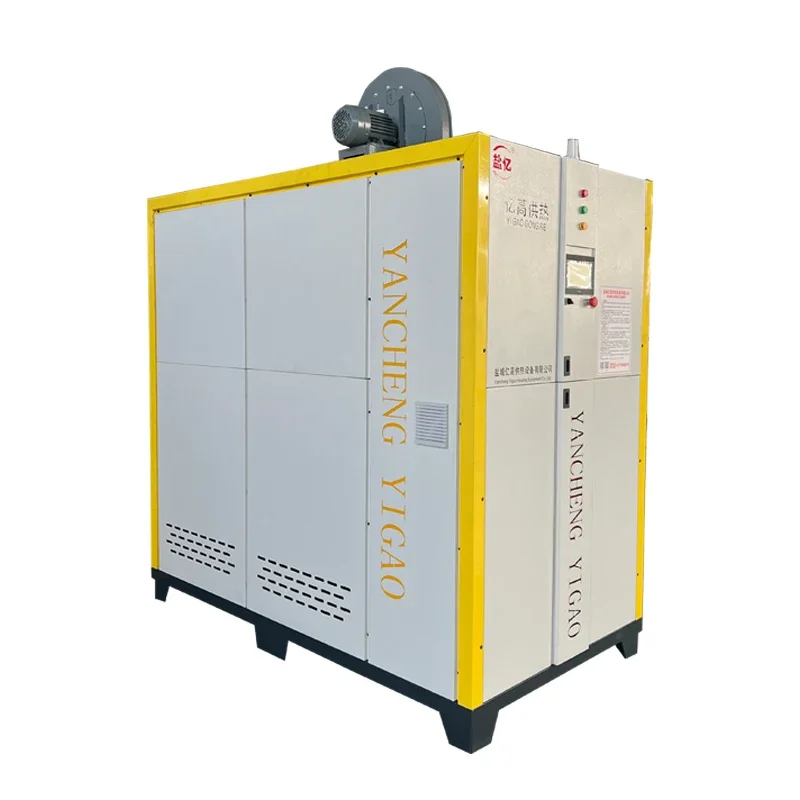

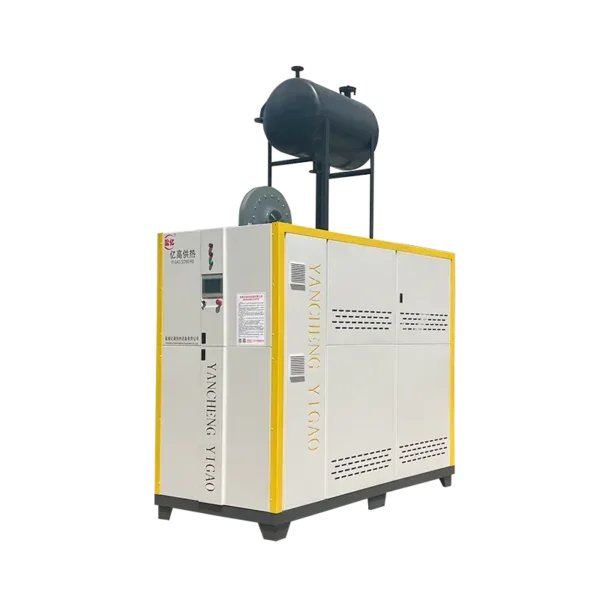

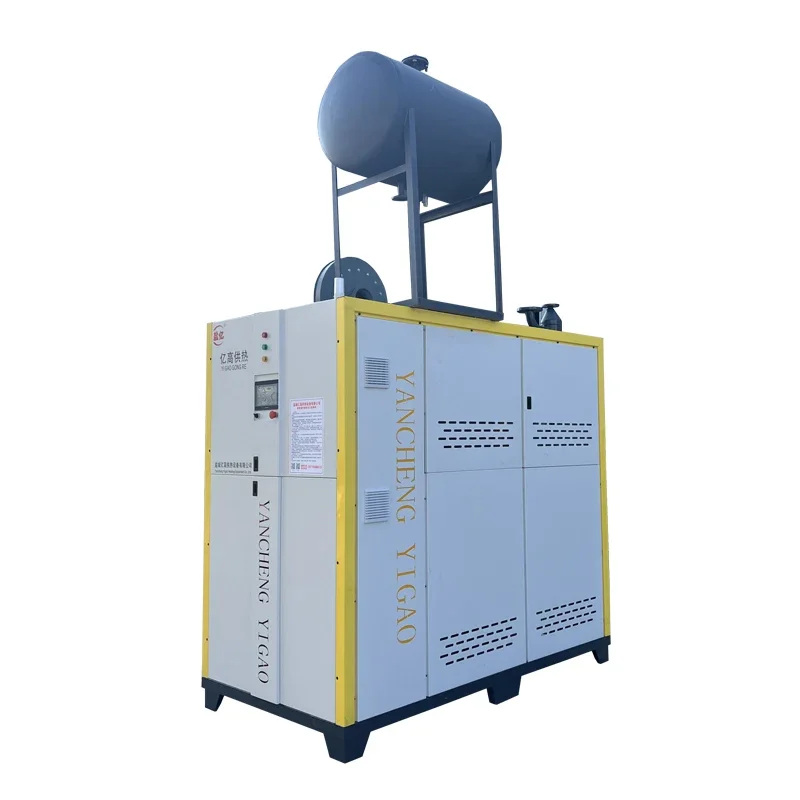

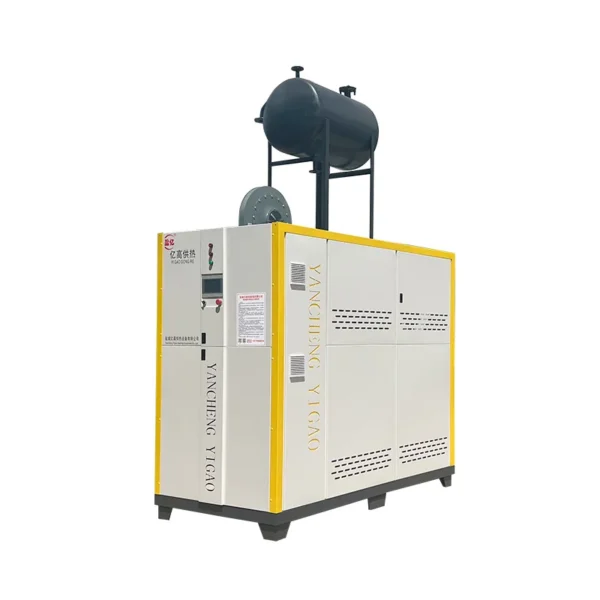

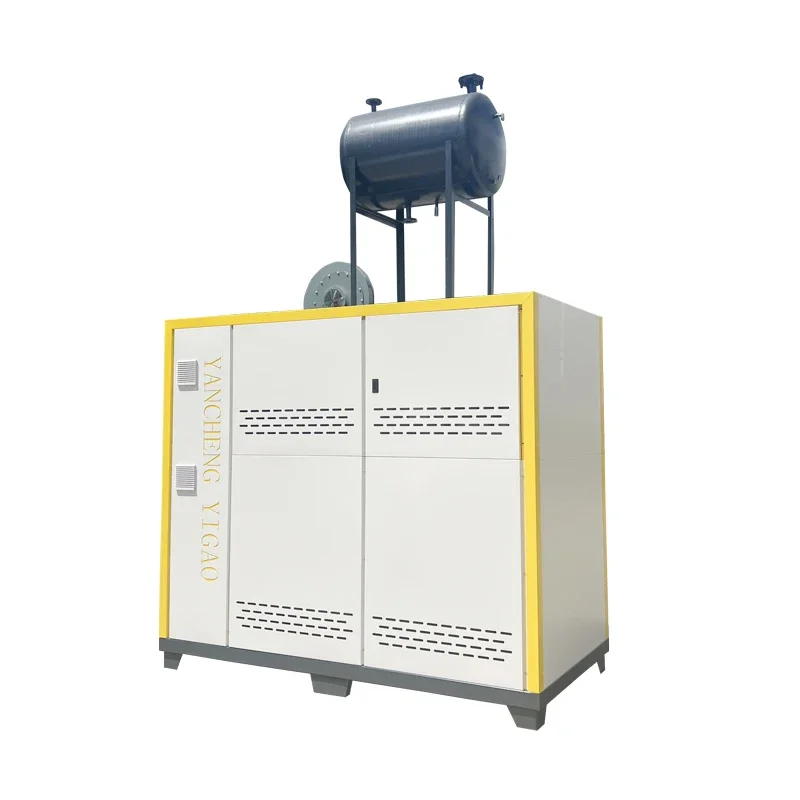

Thermal Oil Heater, 380V, PLC

Key specification for this thermal oil heater: 380 V, power source Natural Gas. Everything below is reproduced from the factory data sheet. Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Thermal Oil Heater

• Power Source: Natural Gas
• Voltage: 380 V
• Material: iron
• Warranty: 1 Year
• Place Of Origin: Jiangsu, China
• Application: Industry Heating Process

Technical Specifications

Product Details

Project name	Unit	YY-88Q	YY-20Q	YY-25Q	YY-30Q	YY-40Q
Rated power	KW	99	240	300	350	500
Intake temperature	℃	130-170	130-170	130-170	130-170	130-170
Exhaust temperature	℃	76-110	76-110	76-110	76-110	76-110
Thermal efficiency	%	96	96	96	96	96
Design pressure	Mpa	0.6	0.6	0.6	0.6	0.6
*high temperature	℃	320	320	320	320	320
Body oil capacity	Kg	110	200	250	300	350
Oil pump power	Kw	4	5.5	7.5	11	15
Oil pump flow	m/h	20	25	30	30	45
Oil pump length	m	32	35	48	35	40
Input pipe diameter	mm	32	50	50	65	80
Output pipe diameter	mm	32	50	50	80	80
	L/mm	2000	2300	2400	2500	3000
Outer diameter dimension	W/mm	900	1170	1170	1170	1200
	H/mm	2000	2000	2000	2000	2200
Equipment weight	ton	1.5	2	2.3	3	3.8

Product Overview:

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

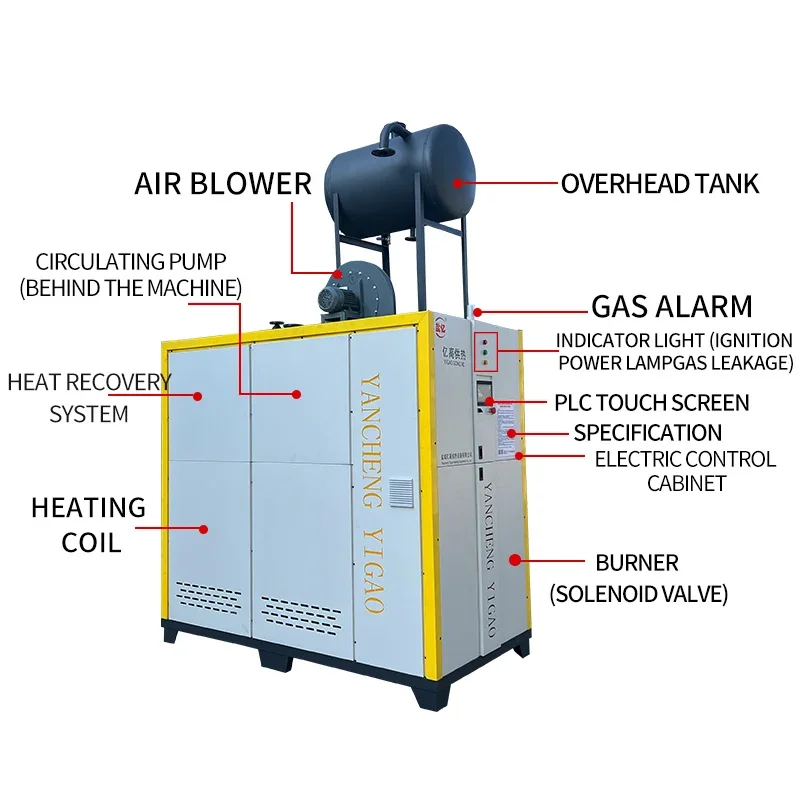

Working principle and characteristics:

1.The upper part of the equipment is heated by the heat energy recovery device through the waste gas and waste heat to the burner intake. 2.Exhaust gas discharge temperature does not exceed 110C. 3.Make the intake temperature of the burner not less than 140 C. 4.The equipment is equipped with circulation system and exhaust system,with a complete independent working system,easy to install,disassemble and use. 5.Through the reducing valve to transport combustible gas to our die temperature machine.The heat conduction oil inside the oil pipe is bumed in the equipment,and then the heat conduction oil is supplied to the heating equipment.

Q:How can I get the price?

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Q:Can I buy samples placing orders?

A:We usually quote within 24 hours after we get your inquiry(Except weekend and holidays).If you are very urgent to get the price,please email us or contact us in other ways so that we can offer you a quote.

Q:What is your lead time?

A:Yes.Please feel free to contact us.

Q:What is your payment term?

A:It depends on the order quantity and the season you place the order.Usually we can ship within 7-15 days for small quantity,and about 30 days for large quantity.

Q:What is the shipping method?

A:It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.

If you are interested, please send us your enquiry！！！

Ordering and Pricing

• Minimum order quantity: 1 set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this thermal oil heater?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the thermal oil heater be supplied for my local voltage?

The standard configuration is 380 V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Yancheng Yigao Heating Equipment Co., Ltd., based in China. The company 4 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Yancheng Yigao Heating Equipment Co., Ltd. range on HVACR Nexus.
