Screw Compressor, 100HP, 120HP, 200KW, R-404A

Screw compressor — voltage 3PH~220V/380/415V~50HZ/60HZ, 200KW. The complete factory specification follows. Made by Nantong Tobel Intelligent Controlling Equipment Co., Ltd. (9 years on the platform, typical reply ≤3h). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Screw Compressor

• Model Number: WSCW-
• Power: 42-660KW
• Voltage: 3PH~220V/380/415V~50HZ/60HZ
• Cooling Capacity: 200KW
• Refrigerant: R-404A, R134a, R-410A, R-22, R404A, R507, R410A, R-407C
• Warranty: 1 Year

Technical Specifications

Product Details

TOBEL Water-Cooled Chiller

We focus on industrial chiller refrigeration units, have supporting experience in different industries, and provide complete customized services.

Industrial water chillers are divided into types:

air-cooled and water-cooled, mainly referring to the different condensers. Technically, water cooling is 300 to 500 kcal/h higher than air cooling; In terms of price, water cooling is much lower than air cooling.
In the installation, water cooling needs to be incorporated into the cooling tower before use, and air cooling is mobile without other assistance.
However, air cooled water chiller relies on the fan to dissipate heat, which has requirements for the ambient environment: such as ventilation, humidity, air PH value and etc…

TOBEL Industrial water cooled box type industrial chillers.

Scope of application Water cooled box type chiller is a kind of refrigeration equipment which uses external cooling water source instead of fan to force heat transfer into the air. The energy efficiency ratio will be higher than air-cooled chiller. Usually water cooled chiller is used for the occasions with large cooling capacity, dust and high ambient temperature.

Characteristics

The water chiller has compact structure, small footprint and simple pipeline design, only needs to connect external water pipe. Easy installation and maintenance. With intelligent control, the chiller can automatically adjust the output of the compressor according to the load change, so that the chiller has the best work efficiency at any time. Fully sealed compressor with superior performance and strong resistance to liquid shock Man-machine interface: the chiller adopts well-known brand controller and control interface, digital display, one-click operation Water pump tank: The unit adopts the overall design and manufacture, built-in standard efficient centrifugal pipeline pump, 304 stainless steel cold storage tank. Environmentally friendly refrigerant is available, such as R407c, R134a or R410a and so on.

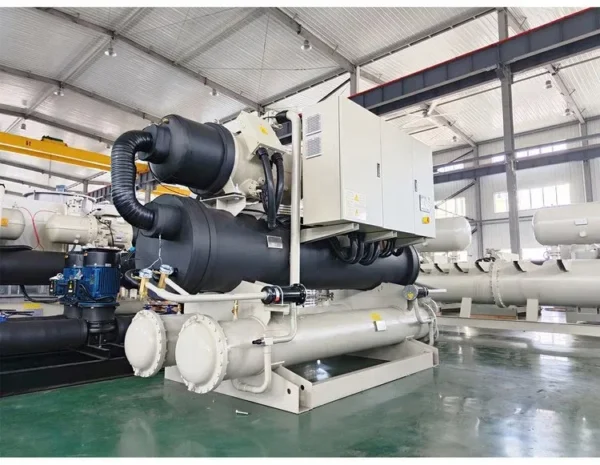

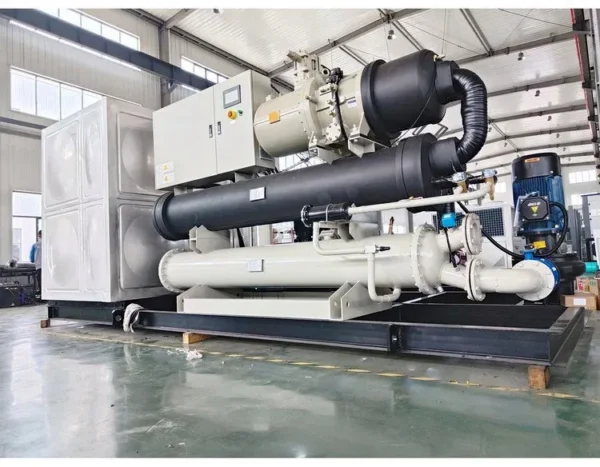

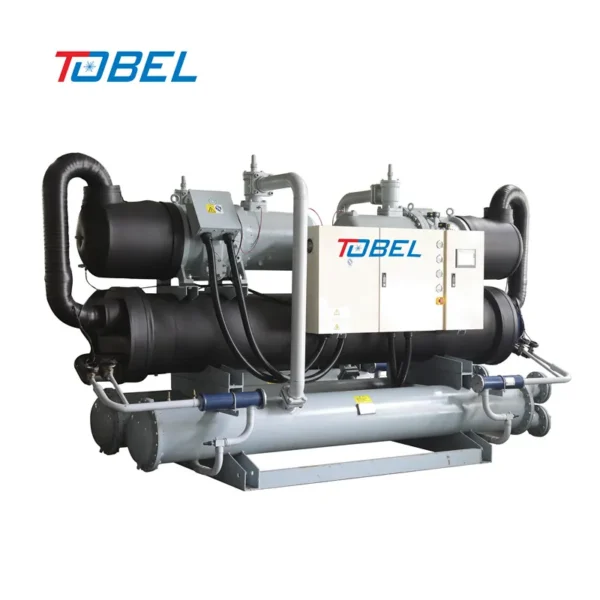

TOBEL Industrial Water cooled screw type water chiller.

* World-renowned twin-screw compressor, high efficiency, low noise, less wearing and long service life
* SIEMENS PLC controller with Chinese/English human-computer interface
* Electrical systemuses Schneider and other national brands

* Man-machine interface: the chiller adopts well-known brand controller and control interface, digital display, one-click
operation
* Perfect breakdown protection：high and low pressure protection, anti-freezing protection, water flow protection, reverse and lack phase protection
* Ultra-wide variable range of chilled water temperature

Schematic diagram

Description: 1.Compressor 2. High pressure gauge 3.Water-cooled condenser 4.Cooling water inlet 5.Cooling tower 6.Cooling water outlet 7.Drying filter 8.Expansion valve 9.Low pressure Table 10.Supply water 11.water tank 12.Drainage outlet 13.Chilled water circulation pump 14.Chilled water inlet 15.Evaporator 16.Chilled water outlet

Other Chiller Types Related With Water Chiller

Water Chiller Technical Specifications

WCW series — Water cooled box type water chiller

1.Refrigeration condition: water inlet temperature 12°C and water outlet temperature 7°C, ambient temperature 35°C.

2.Safety scope of work: inlet temperature of chilled water is 9~20°C.

3.Power supply: 3Ø 380V/50Hz(customized). Three-phase four-system is recommended, voltage fluctuation ±5%,frequency fluctuation ±2%.

4.Contact us for customized solutions.

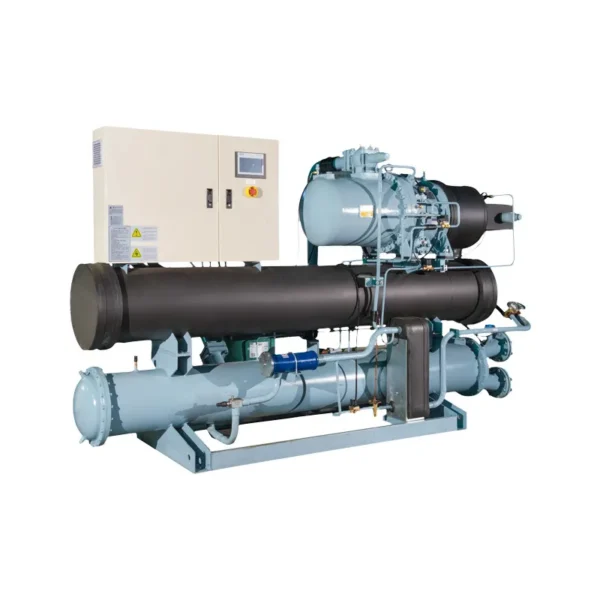

WSCW series — Water cooled screw type water chiller – Single compressor

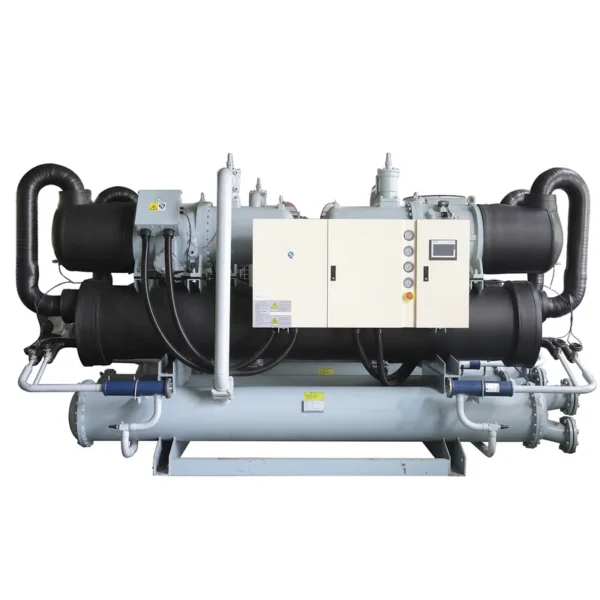

WSCW series — Water cooled screw type water chiller – Dual compressor

Technical note:1.Condition: chilled water inlet temperature 12°C and outlet temperature 7°C, cooling water inlet temperature 30°C and outlet temperature 35°C.
2.Temperature condition:chilled water outlet temperature 5°C-15°C; and cooling water inlet temperature 19°C-33°C.
3.The water side pressure of evaporator and condenser is designed to be 1.0MPa.
4.The water-side fouling factor of evaporator is 0.018m2 °C/kW, water-side fouling factor of condenser is 0.044m2 °C/kW.
5.Contact us for customized solutions.

Selected accessories

Customer Photos

Industrial chiller widely used in:

Medical industry, injection molding industry, chemical industry, textile industry, smelting industry, electroplating industry, electronics industry, construction industry, food industry and other fields

Exhibition

Nantong Tobel intelligent controlling equipment Co., Ltd. (formerly Jiangsu top Refrigeration Technology Co., Ltd) is located in Haian County, Jiangsu province. It is a modern enterprise of R & D, production and sales. The company has brought together the advanced refrigeration technology talents in the field of central air conditioning industry, which has unique resource advantages, which makes the performance of the product always in the leading position in the same industry. The company's leading industrial refrigeration series is divided into three categories, industrial cooling oil, industrial chiller and closed cooling tower, more than ten series and hundreds of specifications, which have successfully solved the heating problems of many large and medium domestic enterprises in the process of production. At present, products are widely used in many industries such as machine processing, textile processing, communication and electronics, automation control system and so on.

FAQ

1. What is a Water Chiller?
Water Chiller is a specifically designed chilling unit that releases extra heat from industrial machines by using chilled water. It is used in various business applications and industries worldwide.

2. How Does a Water Chiller Differ from an Air Chiller?
A Water-cooled Chiller differs from an air-cooled chiller based on efficiency, usage of water, cooling load, capacity, and many other factors.

3.How to Choose a Suitable Size Water Chiller for your Industry?
To choose the right Water Chiller for your application, consider the following factors: Power:The most common power categories are 208-230V, 380-420V,440-480V,50Hz or 60Hz, 3phase. Although it changes with different nations and each one has its scale. Water Pump:The water pump has to be proportional to the size of the system so that you can obtain maximum productivity. Size Connection:The higher the flow rate, the greater is the efficiency. Therefore, the radius of the pipelines shall be per the size and the demand. Refrigerant:R22, R410A, R407C, R404A, R134A are the most advised choices.

4. How to choose refrigerant？
R22, although it is very efficient, it is illegal in many countries due to its damaging effects on the ozone layer. R410A is highly eco-friendly and is being extensively used in many countries worldwide. R407C, due to the great cooling impact, is preferred on R22. R404A is ideal for low-temperature applications. R134A is preferably used at a higher temperature.

5. What are the Additional Accessories of a Water Chiller?
The evaporator, condenser, compressor, and expansion valves are present in the air and water type chiller. Still, the cooling tower and the water pump are exclusive and unique to the Water Chiller.

6. What is the Temperature Ranges for a Water Chiller? A Water Chiller is capable enough to control the range from 5 to 35 degrees Celsius. Talking about low temperatures, it can go as low as -40 degrees.

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1–49 set: US $6400 / set
  • 50–999 set: US $6000 / set
  • 1000+ set: US $5500 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this screw compressor?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this screw compressor carry?

It is supplied with ce documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Can the screw compressor be supplied for my local voltage?

The standard configuration is 3PH~220V/380/415V~50HZ/60HZ. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
