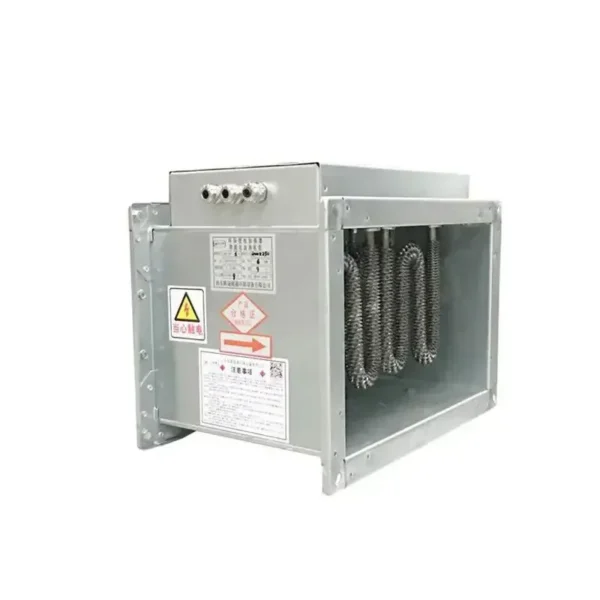

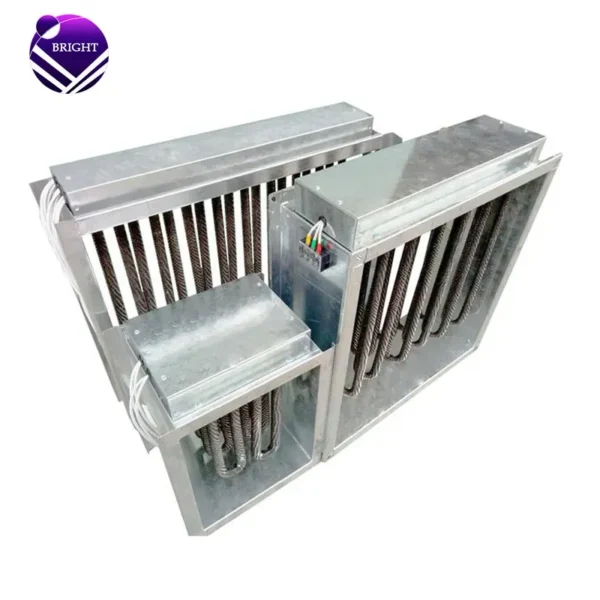

Tubular rectangular duct heater — 220 V, 380 V, heating capacity high efficiency. The complete factory specification follows. Made by Jiangsu Bright Electric Heating Technology Co., Ltd. (4 years on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Tubular Rectangular Duct Heater
- Power Source: Electric
- Voltage: 220 V, 380 V
- Heating Capacity: high efficiency
- Material: other
- Material Heating Element: high temperature alloy
- Warranty: 1 Year
Technical Specifications
| Type | Air Heater |
|---|---|
| Power Source | Electric |
| Voltage | 220 V, 380 V |
| Material | other |
| Core Components | Heating Element |
| Key Selling Points | Competitive Price |
| Temperature Range | High-Temperature |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Heating Capacity | high efficiency |
| Place Of Origin | Jiangsu, China |
| Weight (Kg) | 50 |
| Brand Name | BRIGHT |
| Dimension(L*W*H) | customized |
| Working Temperature Range | 20 – 500 ℃ |
| Product Name | Process air duct heater with flanged inlet/outlet for high pressure |
| Usage Time | 7000h |
| Material Heating Element | high temperature alloy |
| Temperature Raise Rate | 10 degree Celsius per second during working |
| Thermal Efficiency | More than 95% |
| Pressure | MAX 0.6 Mpa |
| Max Temperature | 500℃ |
| Experience In Making | 18 Years |
| Optional | air fan , temperature controller |
| Selling Units | Single item |
| Single Package Size | 50X60X70 cm |
| Single Gross Weight | 50.0 kg |
Product Details
Products Description

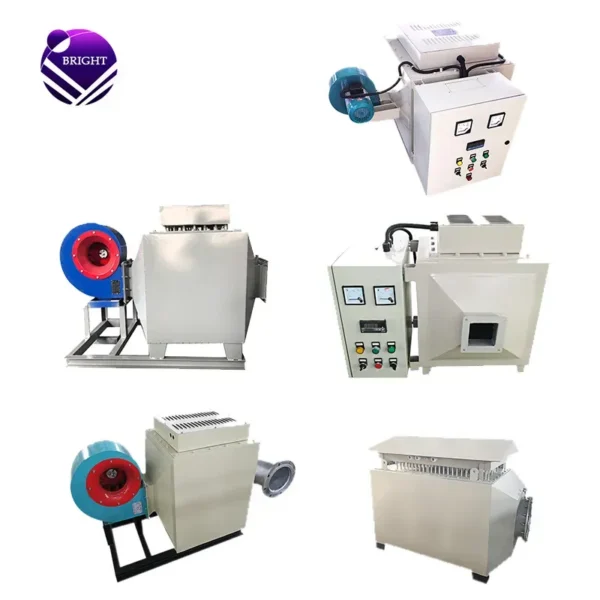

Electric Air Duct Heaters

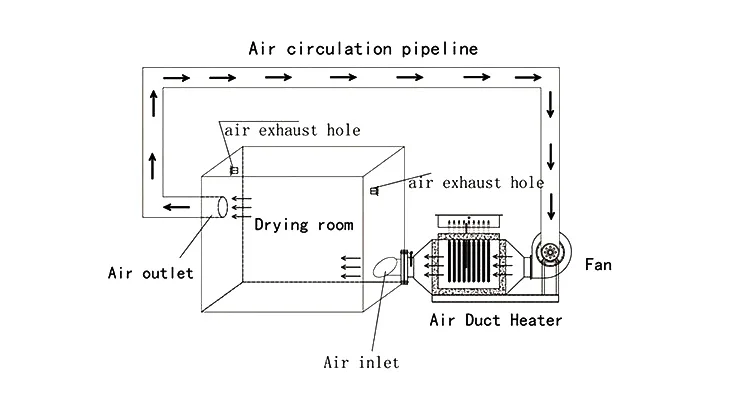

Electric Air Duct Heaters uses electric power as energy to convert electric energy into heat energy via electric heating element. Hot Air is circulated in the system through Air Blower, and circulating Air heating is used. Electic Air Duct heaters are energy efficient alternative to conventional Wood/Coal/Gas heaters.
Conventional Wood/Coal/Gas heaters need large storage space for heating equipment, manual labor area and large storage area (for wood or Coal) whereas Electric Air Duct Heaters are smaller in size and can be implemented/used in small spaces.
Conventional Wood/Coal/Gas heaters need large storage space for heating equipment, manual labor area and large storage area (for wood or Coal) whereas Electric Air Duct Heaters are smaller in size and can be implemented/used in small spaces.

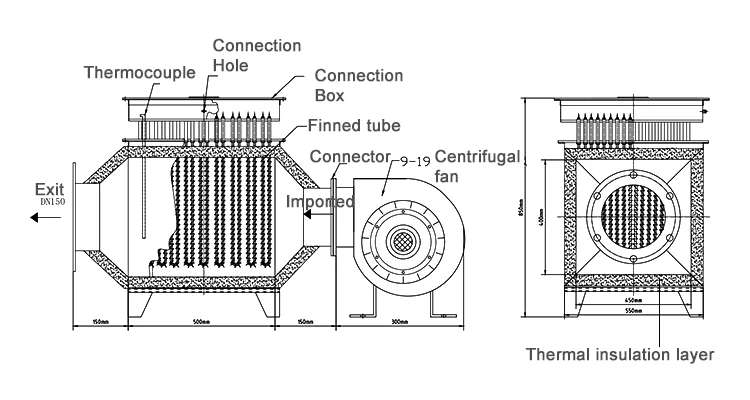

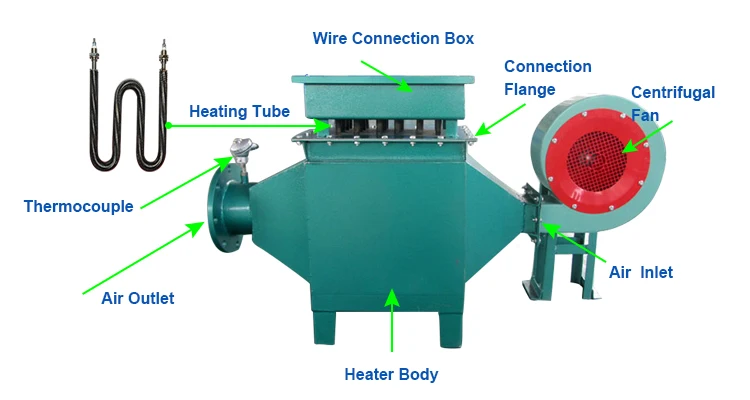

Composition structure
Sheath house ( steel alloy, stainless steel ,or other material as your design)
Finned heating elements
Thermal insulators for keeping air temperature
Wire connection box

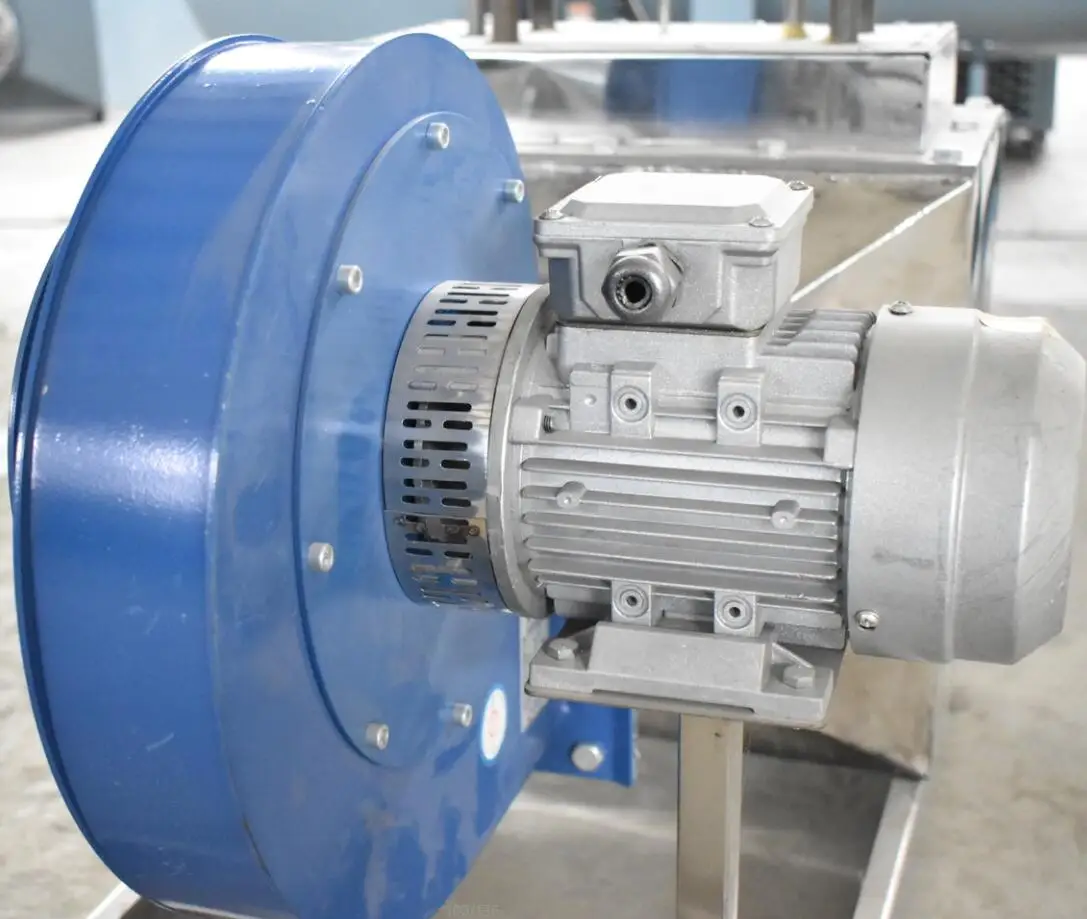

Centrifugal fan
Thermocouple
Inlet/Outlet hole
Temperature controller
Fuse
Finned heating elements
Thermal insulators for keeping air temperature
Wire connection box
Centrifugal fan
Thermocouple
Inlet/Outlet hole
Temperature controller
Fuse
Product Paramenters
Temperature raise rate | 10 degree Celsius per second during working |
Heat efficient | more than 95% |
Usage time | standard more than 10 years |
Thermal insulation layer | 50-100mm |
Heating element | open coil, tubular, finned tubular |
Tube diameter | 6.5 / 8.5 / 10 / 13.5 / 16 mm |
Tube material | Stainless steel: AISI 321 (1.4541) / AISI 316L (1.4404) / AISI 309 (1.4828) |
Others: Incoloy 800 (1.4876) / Incoloy 825 (2.4858) / Inconel 600 (2.4816) | |
Specific coating | PTFE |
Tube type | Sealed tube, seamless tube (on request) |
Insulation | magnesia oxyde (Mg O) |
Resistance wire | Nickel Chrome 80/20 |
Sealing material | Keeps out external moisture |
Output insulation | Made of steatite ou corundumOutput insulation |
Connecting box | Non ATEX connecting box, Explosion-proof connecting box |
Accessories | Thermocouple Sensors, 3-phase motor, Control Panel, Stainless Steel Insulation Housing, Stainless Steel Support Plate and Corner Posts, Single- and Three-Phase Wiring, 1" (25 mm) Insulation |
What we usually need
1) What's the initial temperature and needed heat temperature?
2) What's the air speed? m³/h or how big of the heating room?
3) Whether the space contains corrosion?
4) Do you need Temperature controller cabninet?
5) What's the voltage?
Main Features
1) During heating, air max temperature can reach 500 degree Celsius or higher temperature, but the surface temperature of the sheath is just around 50 degree Celsius
2) Heat efficient is more than 95%
3) Temperature raise rate : 10 degree Celsius per second during working
4) The heating elements is made of high temperature alloy with good mechanical character
5) Usage time: standard more than 10 years
6) Clean air, small volume
7) Made as client design (OEM)
8) After reached the max temperate, the working wattage can reduce to half

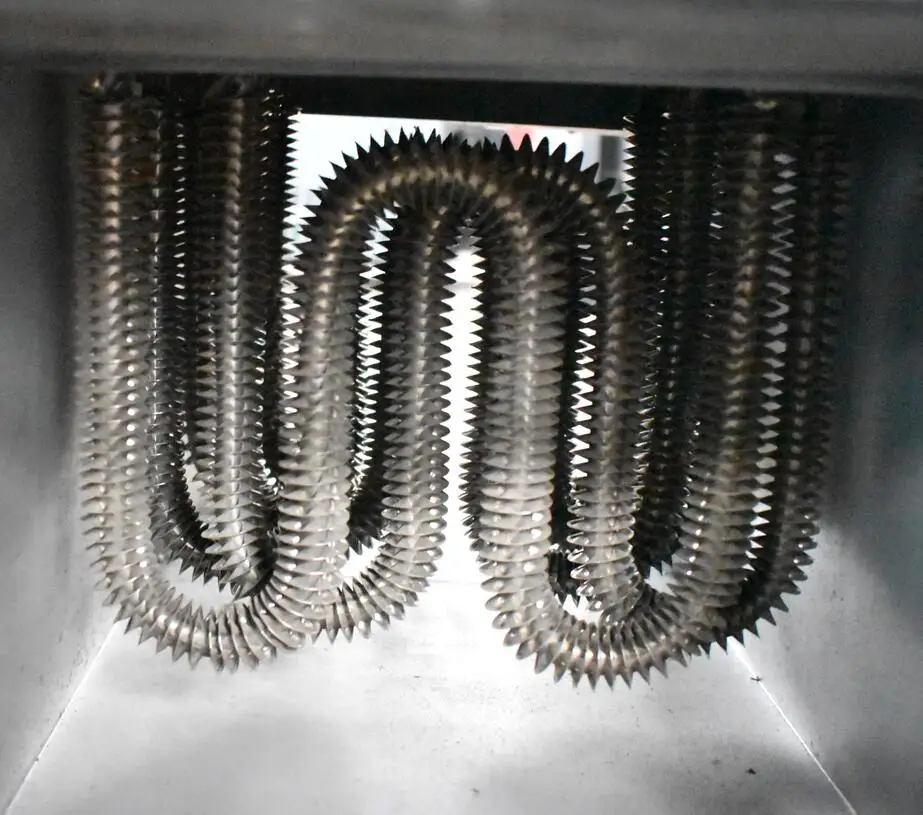

9) The electric heating pipe is made of corrugated stainless steel strip, which increases the heat dissipation area and greatly improves the heat exchange efficiency.
10) Reasonable design of heater, small wind resistance, uniform heating, no high or low temperature dead angle.
11) Double protection, good safety performance. Temperature controllers and fuses are installed on the heater, which can be used to control the temperature of the air in the air duct and work without wind, so as to ensure that there is no mistake.
3) Temperature raise rate : 10 degree Celsius per second during working
4) The heating elements is made of high temperature alloy with good mechanical character
5) Usage time: standard more than 10 years
6) Clean air, small volume
7) Made as client design (OEM)
8) After reached the max temperate, the working wattage can reduce to half
9) The electric heating pipe is made of corrugated stainless steel strip, which increases the heat dissipation area and greatly improves the heat exchange efficiency.
10) Reasonable design of heater, small wind resistance, uniform heating, no high or low temperature dead angle.
11) Double protection, good safety performance. Temperature controllers and fuses are installed on the heater, which can be used to control the temperature of the air in the air duct and work without wind, so as to ensure that there is no mistake.
Applications
1) Heat treating
2) Air drying operations
3) Air handling equipment
4) Forced air comfort heating
5) Core drying
6) Fan coils
7) Booster air heater
8) Air pre-heating
9) Terminal reheating
10) Multizone reheating
11) Heat pump auxiliary systems
12) Return air heating
13) Resistor load banks
2) Air drying operations
3) Air handling equipment
4) Forced air comfort heating
5) Core drying
6) Fan coils
7) Booster air heater
8) Air pre-heating
9) Terminal reheating
10) Multizone reheating
11) Heat pump auxiliary systems
12) Return air heating
13) Resistor load banks
14) Annealing
15) In Air Handling Units
16) Heat treating
17) Forced air comfort heating
18) Booster air heater
19) Air drying operations
20) Core drying
21) Air pre-heating
22) Air handling equipment
23) Terminal reheating
24) Multizone reheating
25) Heat pump auxiliary systems
26) Resistor load banks
15) In Air Handling Units
16) Heat treating
17) Forced air comfort heating
18) Booster air heater
19) Air drying operations
20) Core drying
21) Air pre-heating
22) Air handling equipment
23) Terminal reheating
24) Multizone reheating
25) Heat pump auxiliary systems
26) Resistor load banks
Packaging and Delivery

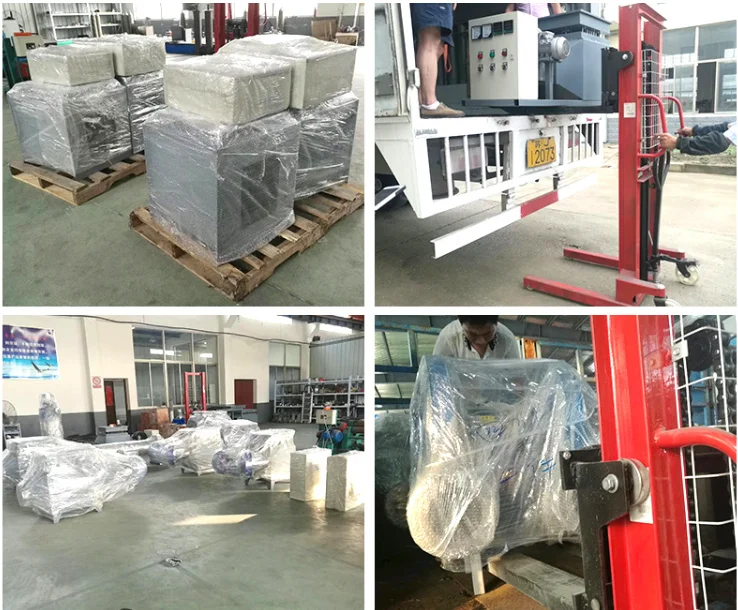

Packaging
Brown box with shock-proof sponge. Custom package is available, but the price need to be negotiated.
Delivery
FCA shipping method. Generally most countries needs about 7-15 days, detailed shipping time will be according to the address and other force majeure factors.
Delivery
FCA shipping method. Generally most countries needs about 7-15 days, detailed shipping time will be according to the address and other force majeure factors.
About Bright

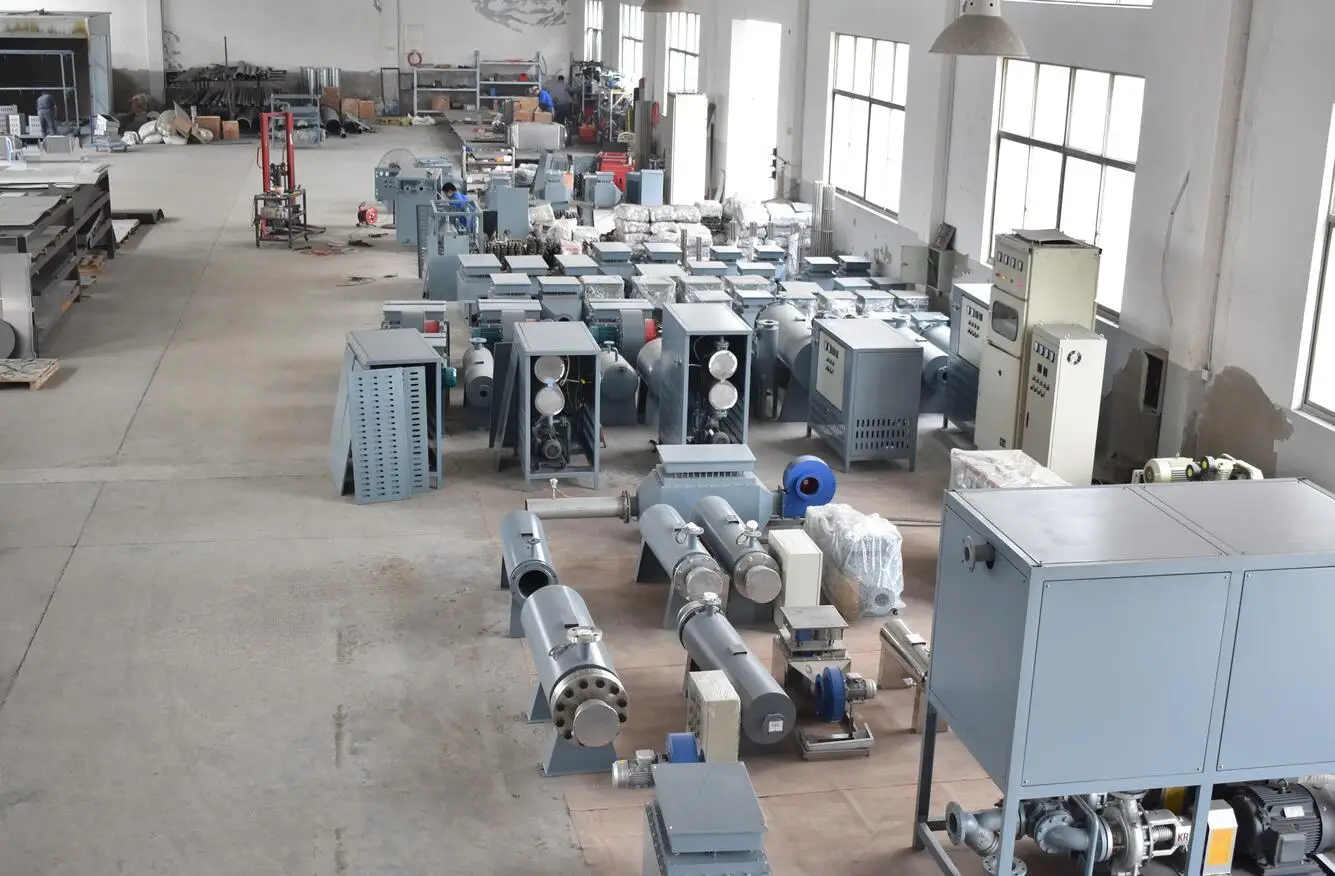

Company Profile
Jiangsu Bright Electric Heating Technology Co., Ltd.was founded in 1985, Which is a research, design,
manufacture,installation and consulting services for the integration of the industrial manufacturing company.we have 28,000 ㎡ non-dust work shop,35 years manufacture and export experience.Near Shanghai port. Main products are environmentally friendly air duct heater,pipeline heater, and energy-saving heat-conducting oil heating equipment, water circulation constant temperature machines, hot air furnaces, vacuum calcination furnaces and other electric heating devices.
manufacture,installation and consulting services for the integration of the industrial manufacturing company.we have 28,000 ㎡ non-dust work shop,35 years manufacture and export experience.Near Shanghai port. Main products are environmentally friendly air duct heater,pipeline heater, and energy-saving heat-conducting oil heating equipment, water circulation constant temperature machines, hot air furnaces, vacuum calcination furnaces and other electric heating devices.
FAQ
Q: How long is your shipping time?
A: Generally it is 7-15 days if the goods are in stock. or it is 15-40 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples? Is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment?
A: Negotiation.
Q:Do you provide OEM/ODM services?
A:Yes, we provide, but need detailed specifications, and the price will be changed.
If you have other questions, please feel free to contact us.
A: Generally it is 7-15 days if the goods are in stock. or it is 15-40 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples? Is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment?
A: Negotiation.
Q:Do you provide OEM/ODM services?
A:Yes, we provide, but need detailed specifications, and the price will be changed.
If you have other questions, please feel free to contact us.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–4 piece: US $400 / piece
- 5+ piece: US $300 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this tubular rectangular duct heater?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the tubular rectangular duct heater be supplied for my local voltage?
The standard configuration is 220 V, 380 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
