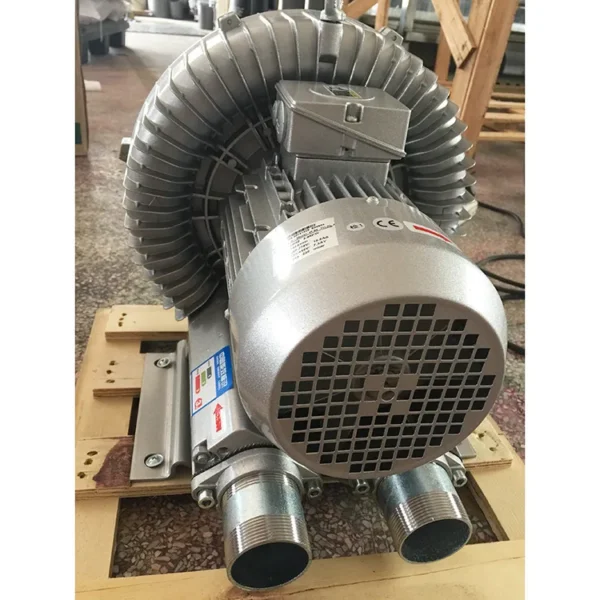

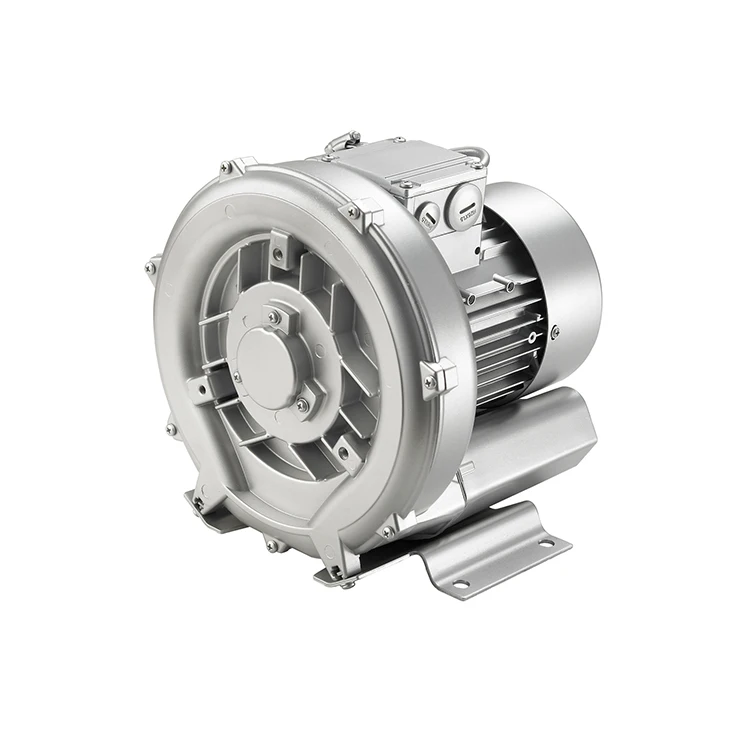

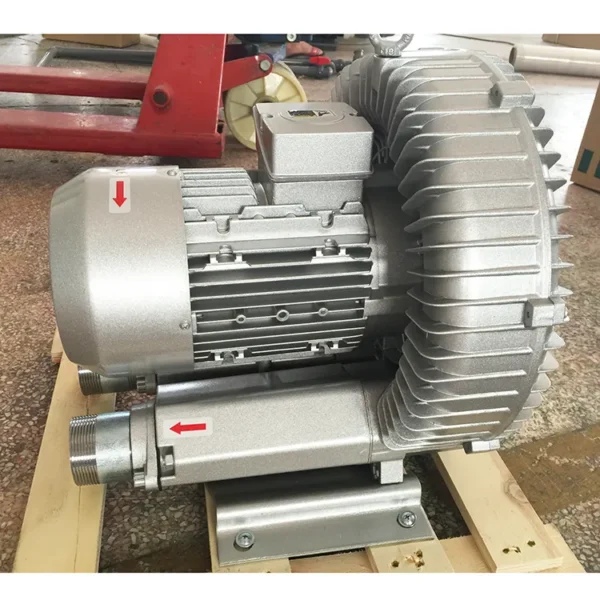

This turbine blower is published with the manufacturer’s full specification — voltage 200-450V, airflow 80 (m³/h). Made by Liwo Industrial Technology (shanghai) Co., Ltd. (4 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Turbine Blower
- Model Number: 2RB210-7AT16
- Power Source: Electric Blower
- Voltage: 200-450V
- Airflow: 80 (m³/h)
- Warranty: 1
- Place Of Origin: Zhejiang, China
Technical Specifications
| Application | Fan Blower |
|---|---|
| Power Source | Electric Blower |
| Pressure | High Pressure |
| Warranty | 1 |
| Customized Support | OEM |
| Place Of Origin | Zhejiang, China |
| Brand Name | LIWO |
| Model Number | 2RB210-7AT16 |
| Weight | 10kg |
| Freq | 50(Hz) |
| Voltage | 200-450V |
| Airflow | 80 (m³/h) |
| Stage | Single Stage |
| Vacuum | -120 (mbar) |
| IN.CL | F or H |
| Sound | 53 dB(A) |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

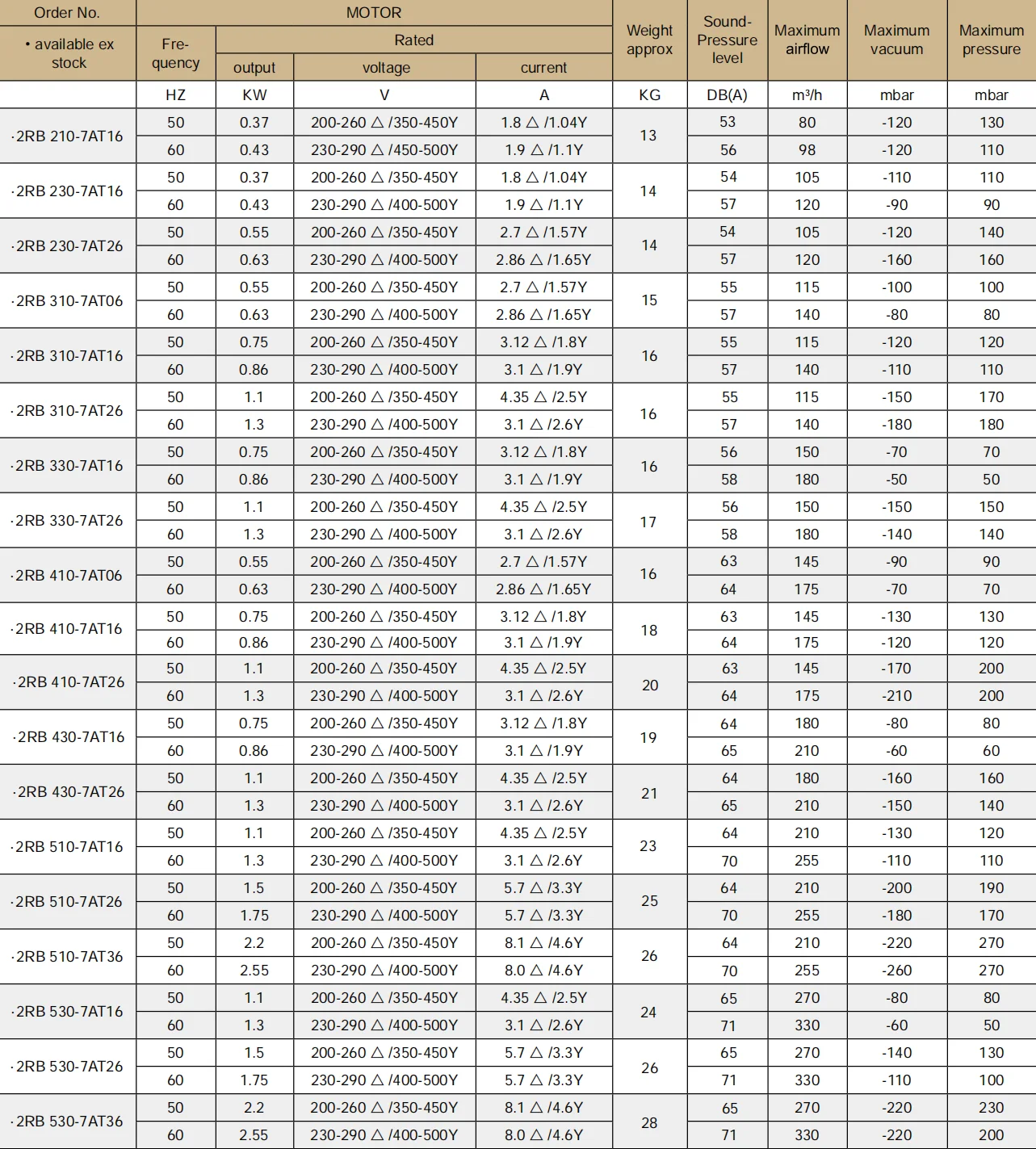

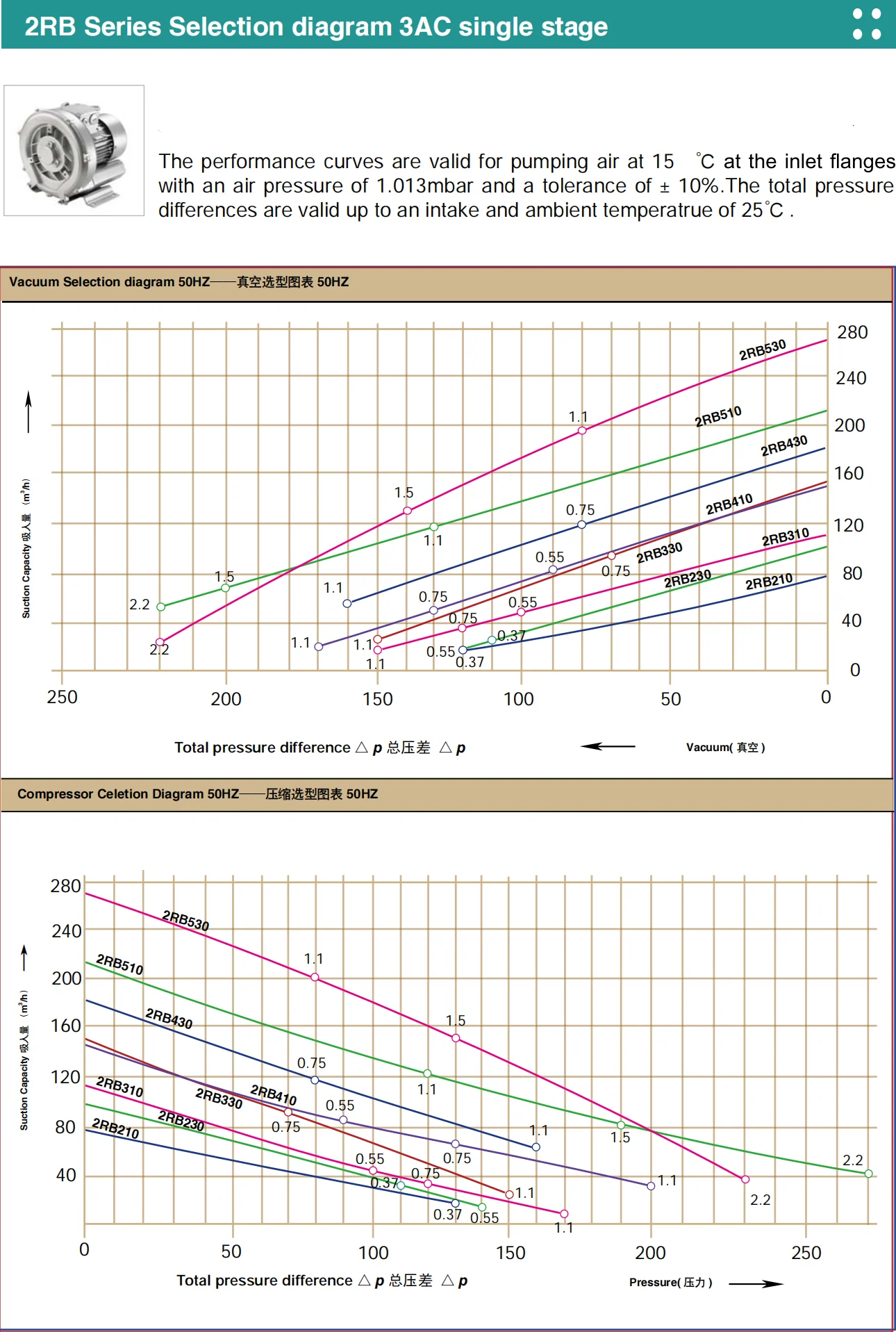

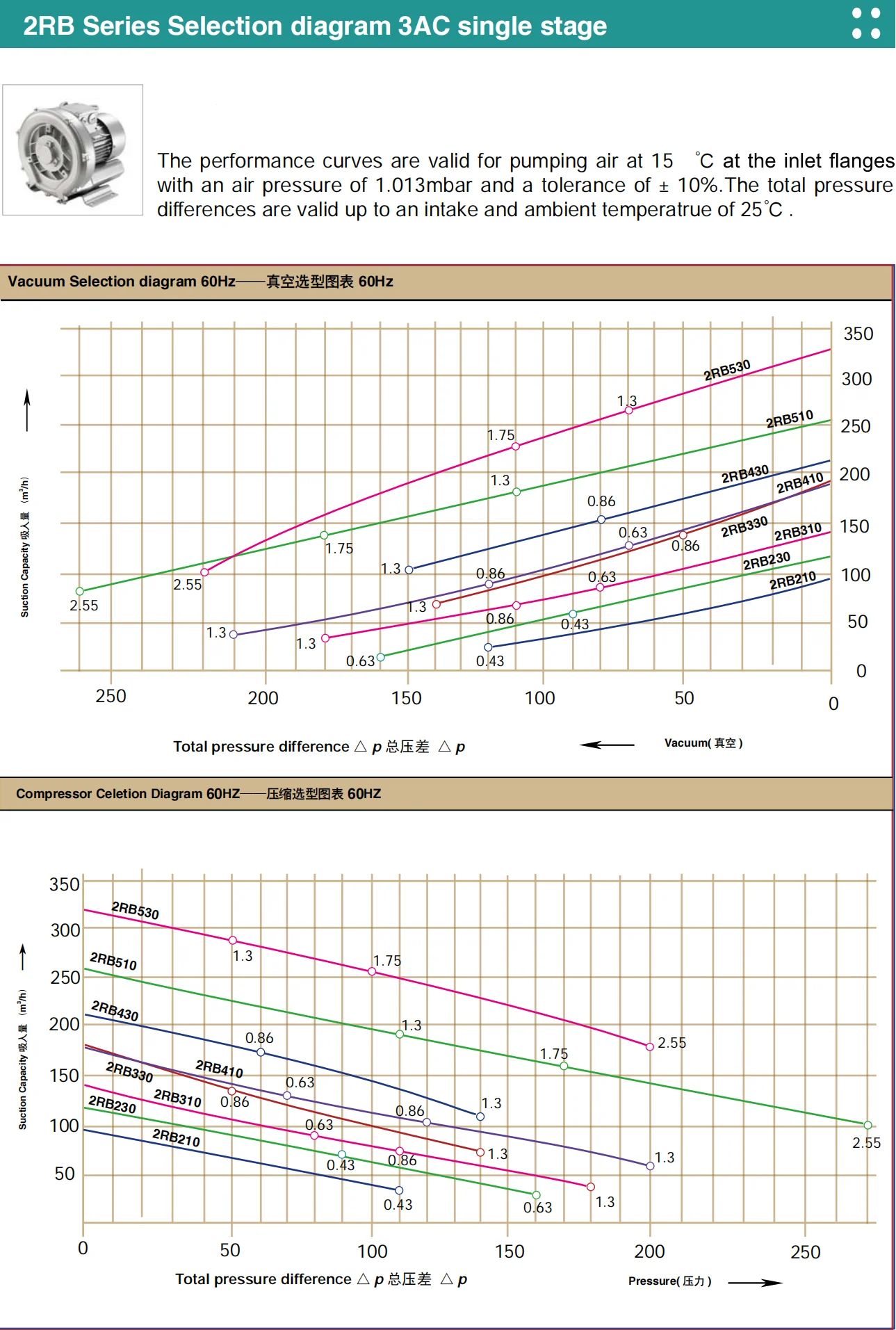

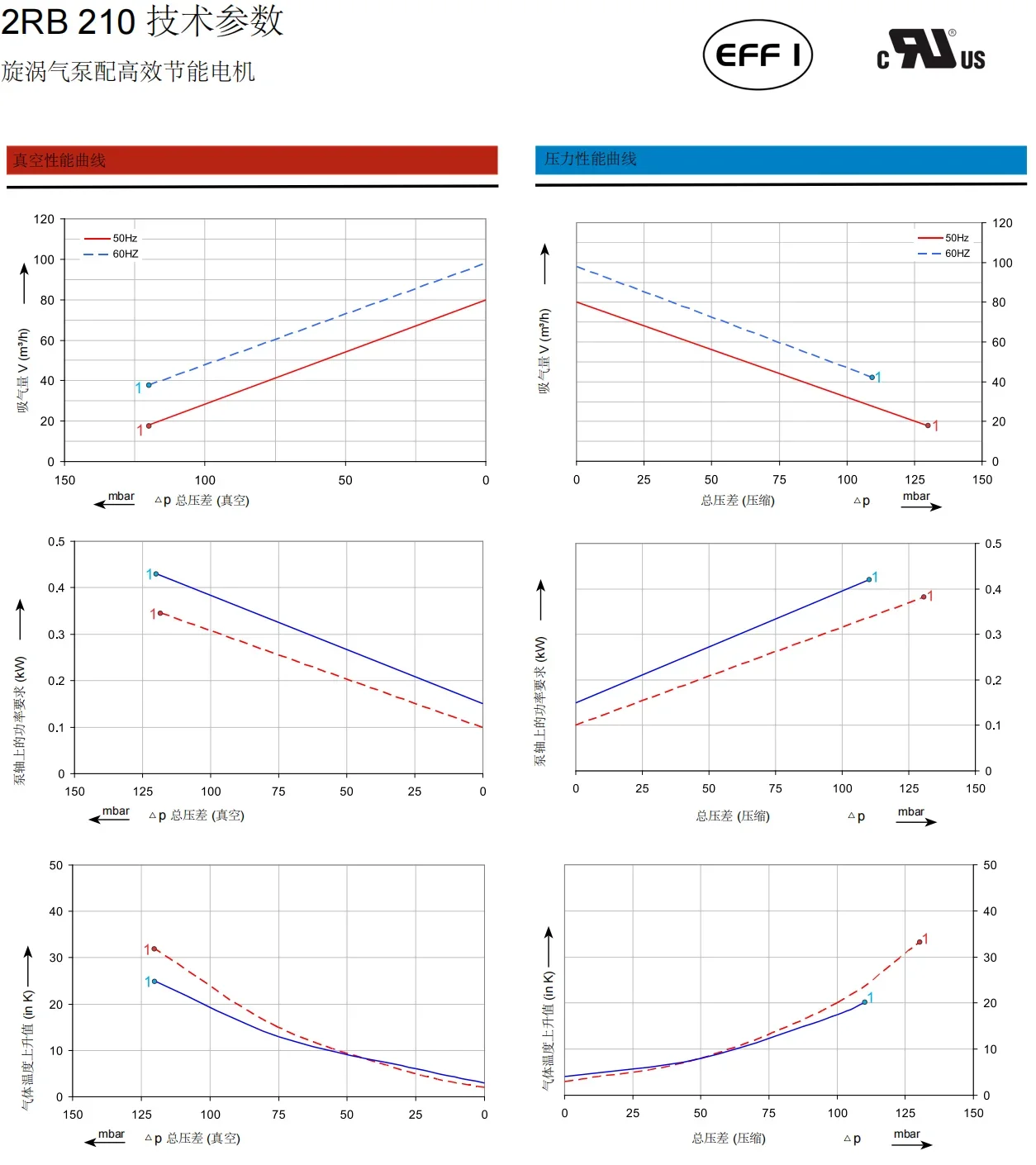

2RB Single Stage Fan Blower List | ||||||||||
2RB 210-7AT16 | 2RB 230-7AT26 | 2RB 310-7AT06 | 2RB 310-7AT06 | |||||||
Freq: 50(Hz) | Freq: 60(Hz) | Freq: 50(Hz) | Freq: 60(Hz) | Freq: 50(Hz) | Freq: 60(Hz) | |||||
voltage：200-450V | voltage：230-500V | voltage：200-450V | voltage：230-500V | voltage：200-450V | voltage：230-500V | |||||
Power: 0.37 (Kw) | Power: 0.45 (Kw) | Power: 0.55 (Kw) | Power: 0.63 (Kw) | Power: 0.55 (Kw) | Power: 0.63 (Kw) | |||||
Airflow: 80 (m³/h) | Airflow: 96 (m³/h) | Airflow: 101 (m³/h) | Airflow: 121 (m³/h) | Airflow: 100 (m³/h) | Airflow: 120 (m³/h) | |||||
TH.CL: IP55 | TH.CL: IP55 | TH.CL: IP55 | TH.CL: IP55 | TH.CL: IP55 | TH.CL: IP55 | |||||
Pressure: 130 (mbar) | Pressure: 110 (mbar) | Pressure: 140 (mbar) | Pressure: 160 (mbar) | Pressure: 100 (mbar) | Pressure: 80 (mbar) | |||||
IN.CL: F or H | IN.CL: F or H | IN.CL: F or H | IN.CL: F or H | IN.CL: F or H | IN.CL: F or H | |||||
Vacuum: -120 (mbar) | Vacuum: -120 (mbar) | Vacuum: -120 (mbar) | Vacuum: -160 (mbar) | Vacuum: -100 (mbar) | Vacuum: -100 (mbar) | |||||
N.weight: 10 (kg) | N.weight: 10 (kg) | N.weight: 12 (kg) | N.weight: 12 (kg) | N.weight: 13 (kg) | N.weight: 13 (kg) | |||||
Inlet/outlet: G 1 ¼ (inch) | Inlet/outlet: G 1 ¼ (inch) | Inlet/outlet: G 1 ¼ (inch) | Inlet/outlet: G 1 ¼ (inch) | Inlet/outlet: G 1 ¼ (inch) | Inlet/outlet: G 1 ¼ (inch) | |||||
Sound: 53 dB(A) | Sound: 56 dB(A) | Sound: 54 dB(A) | Sound: 57 dB(A) | Sound: 63 dB(A) | Sound: 64 dB(A) | |||||
Dimension for Side Channel Blower(L*W*H): 256 × 246 × 247 (mm) | Dimension for Side Channel Blower(L*W*H): 256 × 246 × 247 (mm) | Dimension for Side Channel Blower(L*W*H): 267 × 246 × 247 (mm) | Dimension for Side Channel Blower(L*W*H): 267 × 246 × 247 (mm) | Dimension for Side Channel Blower(L*W*H): 260 × 268 × 272 (mm) | Dimension for Side Channel Blower(L*W*H): 260 × 268 × 272 (mm) | |||||
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–9 set: US $155 / set
- 10+ set: US $105 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this turbine blower?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 warranty. Spare parts and technical support remain available after the warranty period.
Can the turbine blower be supplied for my local voltage?
The standard configuration is 200-450V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Liwo Industrial Technology (shanghai) Co., Ltd., based in China. The company 4 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Liwo Industrial Technology (shanghai) Co., Ltd. range on HVACR Nexus.
