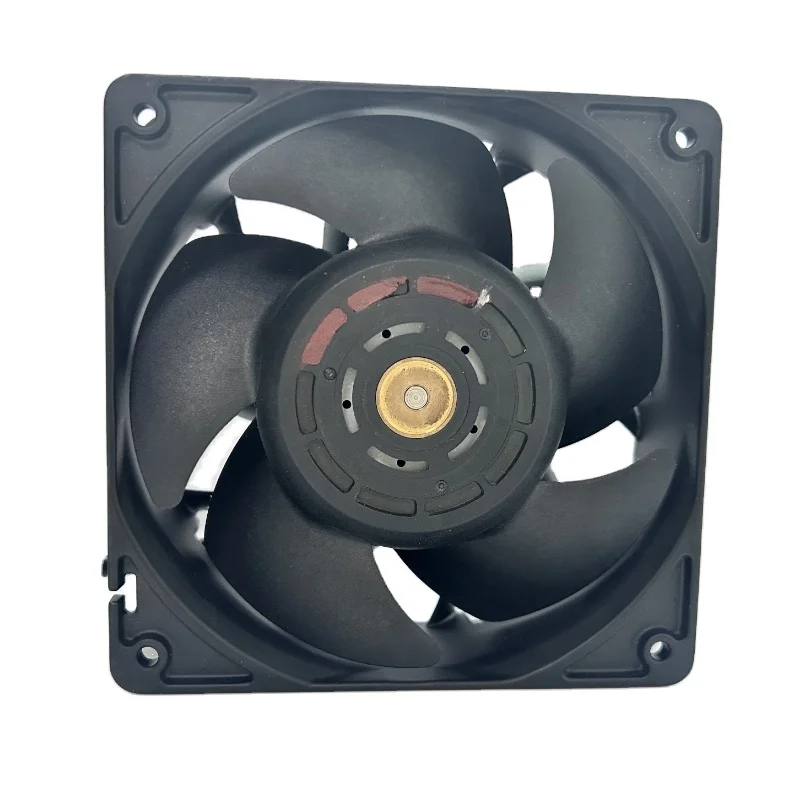

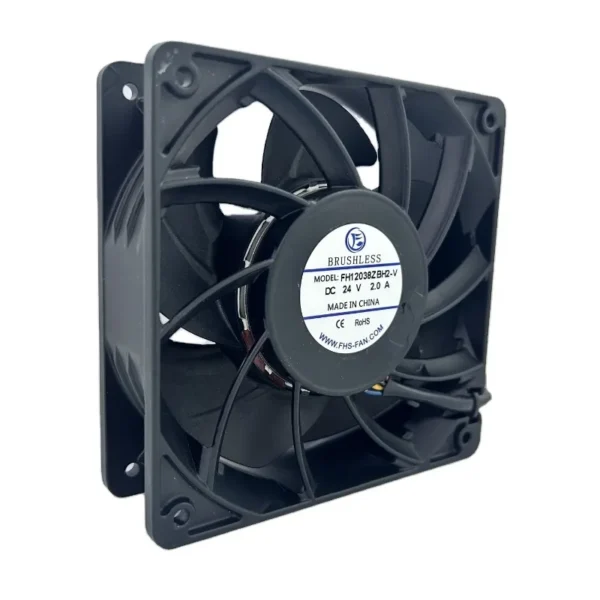

Axial Fan, 12038, 11000RPM, 120x120x38, 12V

The axial fan listed here carries 12V, 24V, 48V, power source Electric, documented exactly as the manufacturer publishes it. Made by Shenzhen Feng Huishun Technology Development Co., Ltd. (4 years on the platform, typical reply ≤1h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Axial Fan

• Model Number: FH12038ZBU1-V
• Power Source: Electric
• Voltage: 12V, 24V, 48V
• Blade Material: Plastic
• Material: Aluminum Alloy Frame + Plastic Blade
• Speed: 11000 rpm

Technical Specifications

Product Details

Product Description

Product Name	DC Brushless Fan
Product Dimension	120x120x38mm(Length* Width *Thickness)
Material	Aluminum Alloy Frame and Plastic Blade
Voltage	DC 24V (12V/48V Optional)
Bearing Type	Double ball bearing
Rated Speed	11000RPM
Fan Air Flow Rate	293CFM
Max Static Pressure	155.6 mm-H2O
Noise Level	75 dB-A
Function (optional)	PWM Control / FG Tacho / RD Alarm
Operating Temperature & Life Expectancy	Ball bearing: -30°C to +75°C @ 50000hours at 25°C Sleeve bearing: -10°C to +70°C @ 30000hours at 25°C
Package	Carton box,we can also according to the requirements of customers.
Remarks	Other RPM/CFM/Voltage/Current…please contact us see the specification for more details. All models could be customized on voltage or any other requirements to fit your needs

Details Images

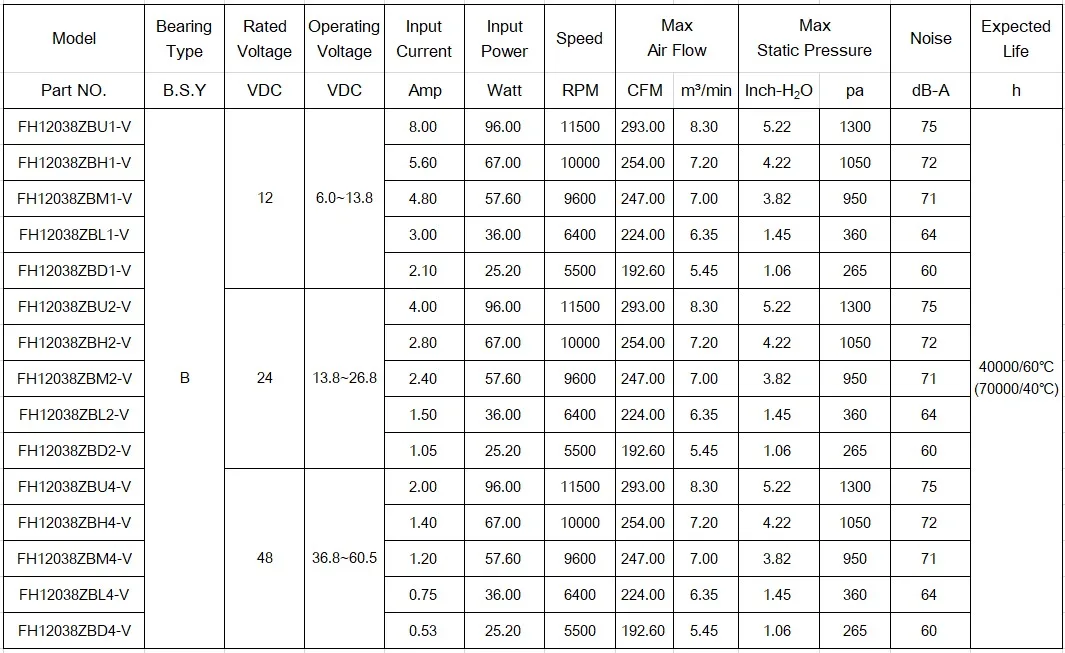

Product Specification

The specifications of some models are as follows:

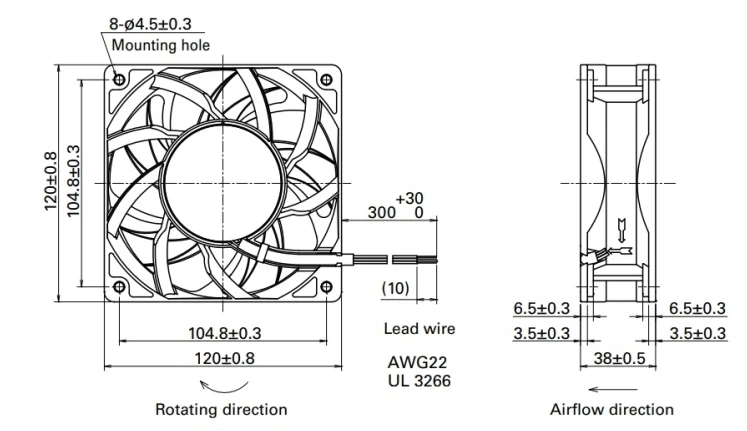

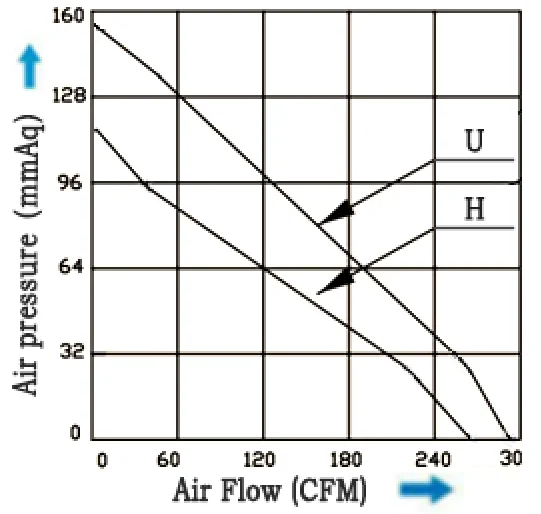

Dimensions(Unit：mm) Fan Performance Curve

Fan parts: The main components of a fan are as follows：

Others products：

The DC fan sizes from 15mm to 254mm are available for your choice. We can aslo deisgn and developm customized product.

Recommend Products

Company Introduction

Shenzhen Feng Huishun Technology Development Co., Ltd. (Funfan) is a professional manufacturer of brushless cooling fans, including dc axial-flow fans, blower fans, centrifugal fans, cross flow fans, AC/EC fans etc.The products are widely used in the computer information industry, network communication industry, industrial production equipment, air purification, automobile, Commercial household appliances and other fields.

The fan of our company has stable quality, good heat dissipation effect, strong air flow, low noise, high temperature resistance, low temperature resistance, long service life, low consumption, beautiful appearance and other advantages. Feel free to contact us for any customized fans solutions. Thank you!

Factory

Sales department

Workshop Quality control

Assembly line 1

Assembly line 2

Product test

Warehousing

Production Equipment

Wind Tunnel

Salt Spray Machine

Automatic Welding Machine

Fully Automatic Winding Machine

Fan Aging Test Bench

Injection Molding Machine

Salt Spray Test

Vibration Tester

Wave Soldering

Certification

Customer Photos

Packing&Shipping

1. Standard Packaging, inside single package, out carton package.

2. Upon customers' request, but the price is different with neutral packing.

Usually we deliver the goods to express by DHL/UPS/FEDEX,ect. If you have any questions, you can also consult The Customer Service Center or our sales for details,thanks for your cooperation.

Our Advantages

Our Services & Strength

Our products has the following advanges:

1. Fan with large air volume,low noise, long life (according to your requirements) fire,water,corrosion-resistant and so on.

2. We have a strong design capability,according to customer requirements design and manufacture of special fan.

3. We understand te specific needs of fans in various industries and can provide you with a variety of standard products to choose from.

4. Our fans using high-quality bearings, silicon steel, enameled wire, with higher reliability.
5. We have a complete quality control system. We have a series of inspections from raw materials to production to shipment, as shown below.

5.1 Incoming inspection (including inspection of frame blade, fan blade and other parts).

5.2 Semi finished products (mainly motor stator assembly test).

5.3 OQC test / Complete inspection of finished products (including performance test, appearance inspection, etc.)

5.4 Aging test (about 2-3 days).

5.5 Random sampling inspection.

5.6 Double layer customized packaging (mainly to ensure that customers can receive goods intact)

6. We provide thoughful and meticulous service,as well as fast on-time delivery.

7. We can deisgn and developm customized product.We are able to research best solutions for customers if needs.

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1–499 piece: US $22 / piece
  • 500–4999 piece: US $21 / piece
  • 5000+ piece: US $19.5 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this axial fan?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the axial fan be supplied for my local voltage?

The standard configuration is 12V, 24V, 48V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Shenzhen Feng Huishun Technology Development Co., Ltd., based in China. The company 4 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shenzhen Feng Huishun Technology Development Co., Ltd. range on HVACR Nexus.
