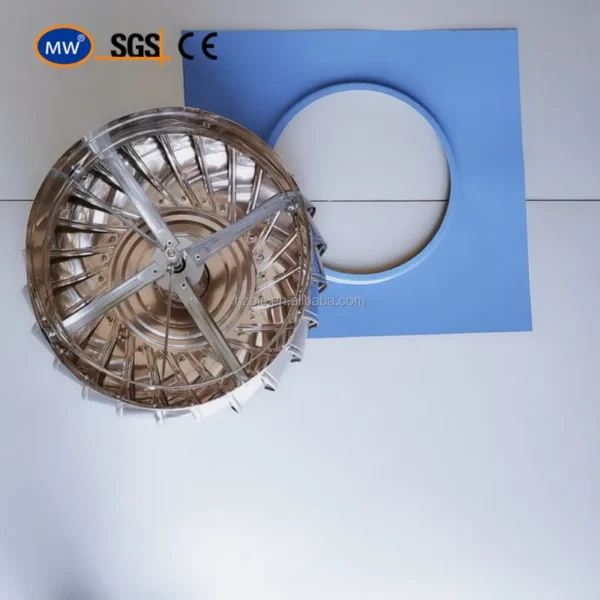

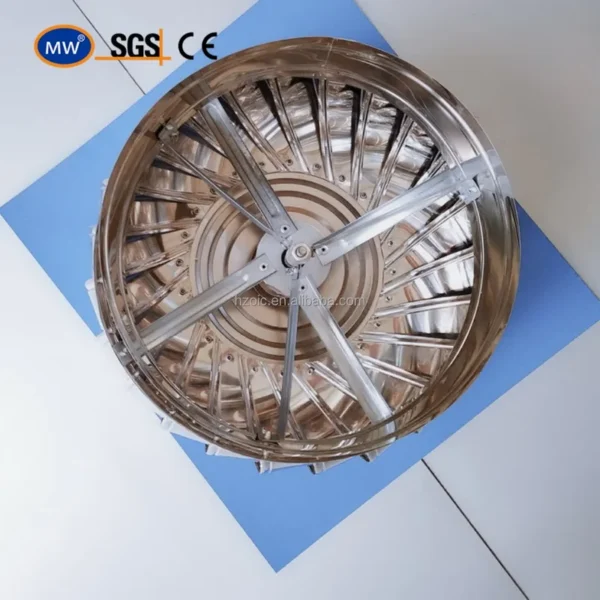

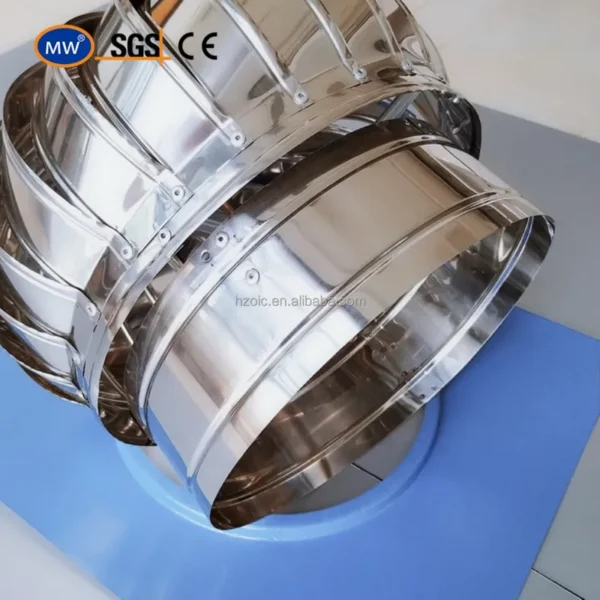

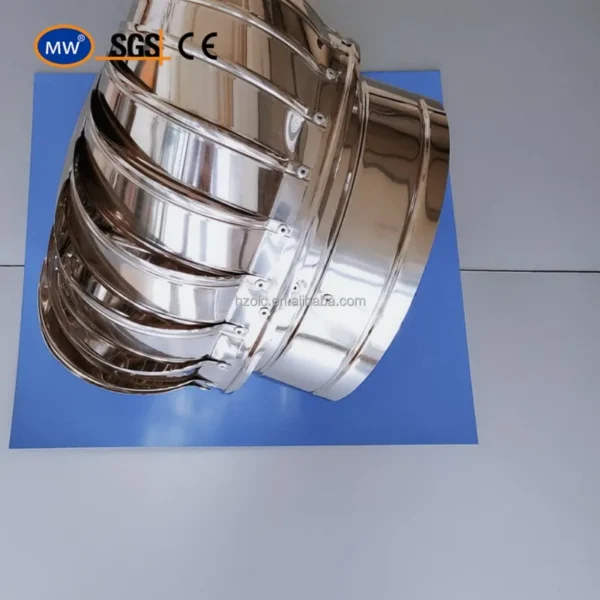

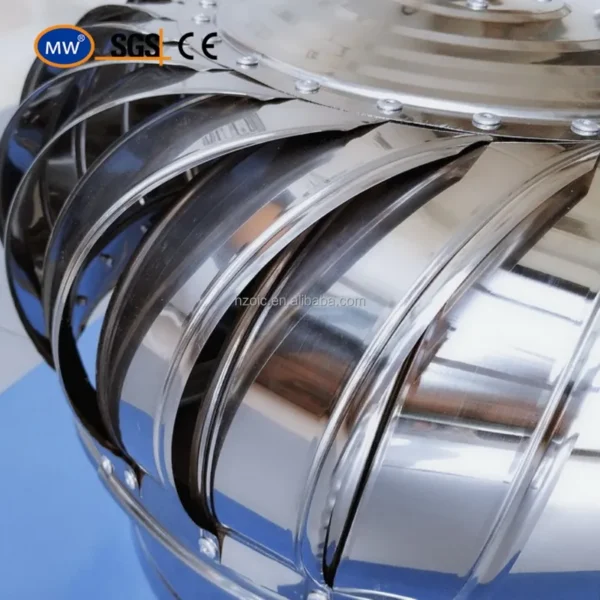

Unassembled Roof Exhaust Fan, Stainless, Steel, 201, 304

This unassembled roof exhaust fan is published with the manufacturer’s full specification — voltage 0, power source wind energy. Made by Hangzhou Ocean Industry Co., Ltd. (20 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Unassembled Roof Exhaust Fan

• Model Number: 100MM, 200MM, 300MM
• Power Source: wind energy
• Voltage: 0
• Material: Stainless Steel
• Blade Material: Stainless Steel
• Warranty: 1 Year

Technical Specifications

Product Details

Factory Price High Quality Stainless Steel 201 304 316 100/200/300mm Powerless Unassembled Roof Exhaust Fan Ventilation

No-power Roof Turbine Ventilator is to make use of the air free convection that natural wind power and the interior outside temperature difference bring about, the effect driving a turbine to rotate making use of centrifugal force and negative pressure thereby discharge the interior stale hot-air.It makes the fresh air flow in, thus the purpose of cleaning air can be reached

UNCTIONS &FEATURE:
1.It can absorb the hot air, moisture, dust, foul smell, smoke from residence and from kitchen chimneys of workshops
automatically, also it can decrease indoor noise, increase light.
2.It runs automatically all the time and no stop according to natural weather; It doesn't need any power, saving energy and cost.
3.It is installed on the top of buildings or on the wall with good appearance.
4.Simple and convenient installation, No Operational and Maintenance Cost.
5.No roof leaking, 100% waterproof result with raining or snowing weather.
6.Enhances the architectural and aesthetic appearance of buildings.
7.It suits all roof types with slopes from zero to 22.5degree.
8.Precision steel bearings imported from abroad.
9.Improves efficiency of air conditioning. Where ducted air conditioning is installed at home. It will lower roof space temperatures, thereby reducing the level of heat exchange occurring between air in the attic and the cool air carried within the ducting system. This in turn causes less strain on the air-conditioner unit

How to calculate and determine the number of ventilators 1. Determine the indoor volume of the building vol (length x width x height) 2. According to the type of building, the air rate required per hour is determined by table 1 a/c 3. Determine standard wind speeds based on local meteorological records (6, 8, 10, 12, and 16 km/h) 4. Calculation formula for the number of ventilators: number of ventilators =volxma/c/ the ventilation capacity (m3/h) is determined by table 2

No power ventilator specification model:

MODEL	BLADE	HEIGHT (MM)	VENTILATION DIAMETER (MM)
OIC-100	12	200	100
OIC-160	16	250	160
OIC-200	20	250	200
OIC-300	24	330	300
OIC-360	24	400	360
OIC-400	26	390	400
OIC-450	32	500	450
OIC-A500	25	500	500
OIC-500	32	480	500
OIC-600	32	600	600
OIC-680	32	610	680
OIC-800	42	660	800
OIC-900	48	700	900
OIC-1000	48	700	1000

Ventilators used in different states reference value summary table. Different types of building air changes recommended ualue （a/c)

BUILDING TYPE	SQUARE	SELECT MODEL	BUILDING TYPE	HOURLY EXHAUSTS
STEAM WORKSHOP	20-40M2/SET	MAIN OIC-500-1000	WAREHOUSE	4-8
CHEMICAL ODOR WORKSHOP	30-80M2/SET	MAIN OIC-600-1000	GARAGE	4-10
DUST WORKSHOP	40-80M2/SET	MAIN OIC-500-1000	PRINTING HOUSE	5-12
BREEDING WORKSHOP	60-100M2/SET	MAIN OIC-400-1000	ASSEMBLY HALL	6-12
VENTILATION VENTILATION WORKSHOP	50-100M2/SET	MAIN OIC-500-1000	CHEMICAL WORKSHOP	8-14
PUBLIC BUILDINGS, RESIDENTIAL BUILDINGS	40-100M2/SET	MAIN OIC-600-1000	HIGH TEMPERATURE WORKSHOP	10-16
OTHER	80-120M2/SET	GENERAL PURPOSE	GYMNASIUM, TENNIS HALL	3-10

Hangzhou Ocean Industry Co., Ltd.

Our ventilator factory is the professional suppliers for solutions to skylight, ventilation and firefighting smoke ventilation for different kinds of construction buildings. We have a great team that own leading and professional technique, standard management and perfect service. We have built long-term and steady business relationship with hundreds of customers all over the world.
With spirit of Honest, Specialty, High quality and Efficiency, we always developing advantages of technology, innovation, energy saving and environmental protection to make sure high quality of products, to enlarge scale, and to actively improving product core competitiveness and persisting in specialty, branding and internationalization.

Powerless roof ventilator,roof turbine ventilator , roof smoke ventilator, roof mount ventilator, roof ventilator for factory, roof wind ventilator, wind driven roof ventilator, roof turbo ventilator, industrial roof ventilations, roof centrifugal ventilator, powerless roof ventilator, automatic roof ventilator, roof ridge ventilator, roof ventilation.roof exhaust fan, city roof fan wind ventilator, roof fan fan part ventilation fan, powerless roof ventilator,garage ventilation operate use the slight energy of the wind, so it save power cost.
It work without the electricity power,they can change our air condition indoor,leave us a comfortable environment.
The turbine alway rotate in the same direction no matter of the wind strength or its direction.
It is to be mounted on gravitation based ventilation chimney duct ending.Roof turbine ventilator can exhaust the hot air, waste gas, dust and other harmful gas; meanwhile Beautify our living and surrounding.
It is widely used in home and factory.

You can let me know your warehouse area and temperature and so on and then we can help you to choose the right item and quantity wind-driven ventilator that is installed on the roof top or on the wall to provide effective ventilation for all kinds of building. A good choice to get clean air, to increase working effect and to get good working environment.

FAQ

Q1: Are you trading company or manufacturer ?
A: We are factory.

Q2: How long is your delivery time and shipment?
1.Sample Lead-times: generally 15 workdays.
2.Production Lead-times: 30 workdays after getting your deposit.

Q3. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
We'll show you the photos of the products and packages before you pay the balance.

Q4: What is your advantages?
1. Manufacturer,the most competitive price and good quality.
2. Perfect technical engineers give you the best support.
3. OEM is available.
4. Rich stock and quick delivery.

Q5. If you can’t find the product on our website,what do you next?
Please send us inquiry with product pictures and drawings by email or other ways and we'll check

Ordering and Pricing

• Minimum order quantity: 10 piece
• Volume pricing:
  • 10–99 piece: US $20.55 / piece
  • 100+ piece: US $17.75 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this unassembled roof exhaust fan?

The standard minimum order quantity is 10 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the unassembled roof exhaust fan be supplied for my local voltage?

The standard configuration is 0. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
