The ventilation axial air fan listed here carries 380 V, power source Electric, documented exactly as the manufacturer publishes it. Made by Chongqing Eran Hvac Equipment Co., Ltd. (12 years on the platform, typical reply ≤5h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Ventilation Axial Air Fan
- Power Source: Electric
- Voltage: 380 V
- Material: galvanized Sheet
- Blade Material: galvanized Sheet
- Speed: 2900rpm
- Warranty: 1 Year
Technical Specifications
| Voltage | 380 V |
|---|---|
| Speed | 2900rpm |
| Type | Duct Axial Fan |
| Material | galvanized Sheet |
| Blade Material | galvanized Sheet |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM |
| Place Of Origin | Chongqing, China |
| Brand Name | eran |
| Certification | CCC |
| Welding | Full welding connection |
| Size | Any size according to customer’s request. |
| Color | Any color according to customer’s request. |
| Working Temperature | -20 degrees to 40 degrees |
| High Temperature Resistance | working 20 hours under 100 degrees; 60 min under 300 degrees |
| Fan Blower Series | Axial fan blower, centrifugal fan blower |
| OEM | Valid |
| Selling Units | Single item |
| Single Package Size | 80X80X70 cm |
| Single Gross Weight | 100.0 kg |
Product Details

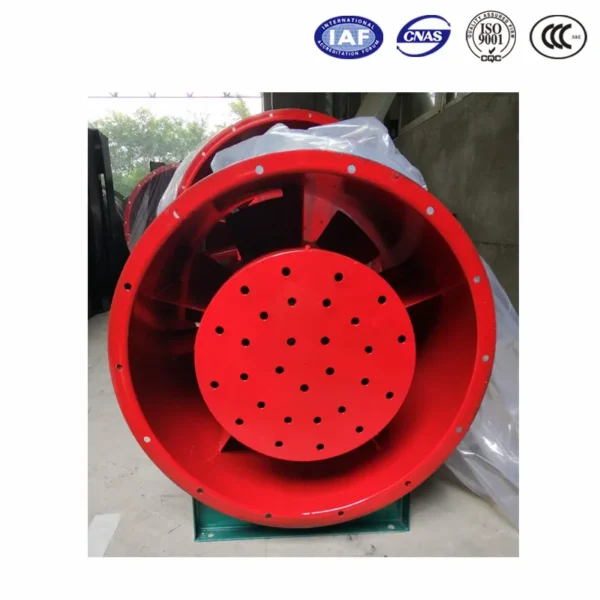

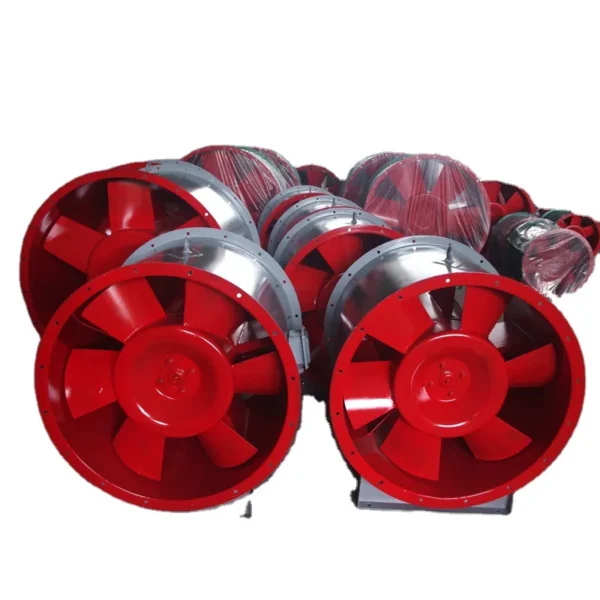

Industrial ventilation axial air fan manufacturer
Product Profile: Axial-flow type ventilator, Carbon Steel Smoke Exhaust Axial Fan Blower , assembled with high-temperature resistance motor and motor cooling system. Compared with HTFC centrifugal blower, it is affordable and suitable for the places where do not demand low noise and special outlet angle.
Products advantages: Using pipelined professional mold production methods, so we can meet the production needs of large orders and guarantee our products are reliable quality. Complete accessories production and distribution make it easier to install.
Good quality control processes, all products have been inspected strictly. The balance precision of impellers is less than G5.6. Wind speed, electric current, voltage and noise control all achieve CNS.
Structure:
- Wheel hubs and blades are molded by hydraulic tensioning
- Full welding connection
- Flanges of cylinder are made of spinning flanging process.
Features:
- High quality carbon steel, Cost-effective
- Customized paint color
- 100 degrees (Can run 20 hours continuously), 300 degrees (Can run 60 minutes continuously)
Application:
This series of products are widely used in high-rise building, industrial and mining enterprises, underground garage and warehousing workplace ventilation.
Standard: impeller, chassis (cylinder, guide vanes, the inner cylinder, motor bracket); motor; chassis; cooling duct
Optional accessories: damping device; control box; grille; mating flange;muffler

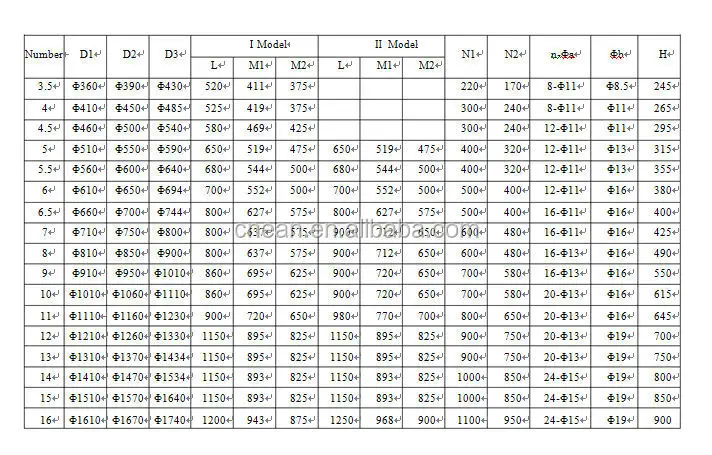

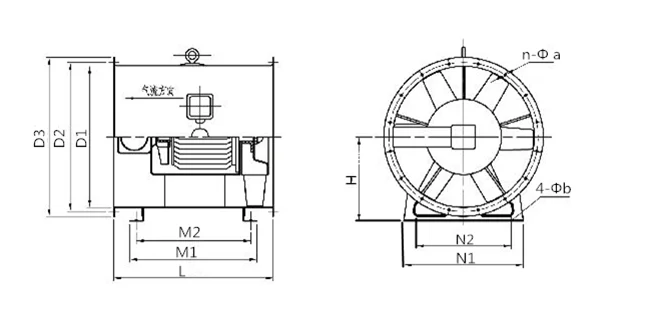

Appearance and Installation Dimension fan manufacturer axial air fan ventilation air fan

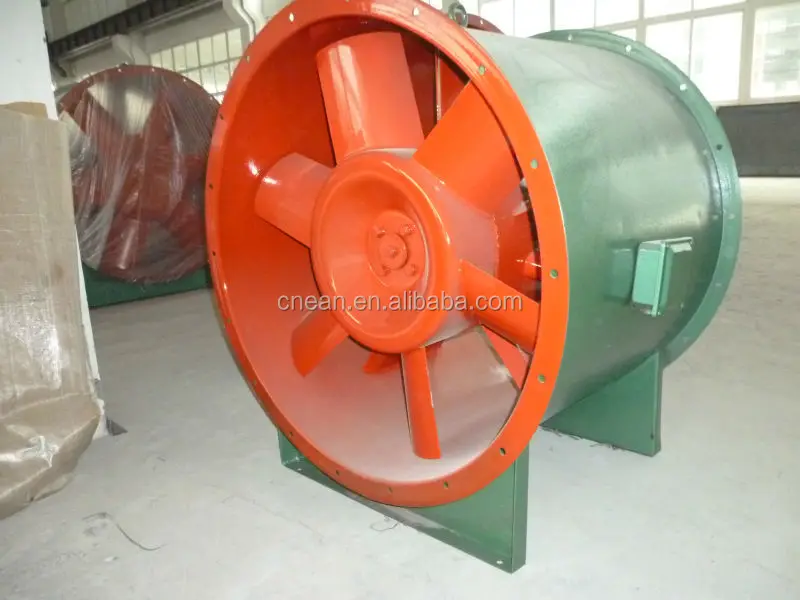

Ventilation axial fan blower
Performance Table fan manufacturer axial air fan ventilation air fan
| Device Number | Rotating Speed(r/min) | Air Volume(m³/h) | Total Pressure(Pa) | Motor Model | Power(kw) | Weight(kg) |
| 3.5 | 2900 | 6122 | 205 | Y802-2 | 1.1 | 65 |
| 5500 | 350 | |||||
| 5008 | 368 | |||||
| 4268 | 482 | |||||
| 3500 | 552 | |||||
| 8 | 1450 | 31421 | 600 | Y132M-4 | 7.5 | 216 |
| 30364 | 635 | |||||
| 29172 | 661 | |||||
| 28598 | 692 | |||||
| 26012 | 723 | |||||
| 16 | 960 | 120233 | 652 | Y225M-6 | 30 | 740 |
| 113498 | 704 | |||||
| 109686 | 762 | |||||
| 99506 | 842 | |||||
| 91210 | 912 |
The above table is just part of the performance of our product. We can provide customized product, so please make your performance requirements.
Your inquiry and question will be replied within 24 hours.
Professional foreign sales staff gives you best service.

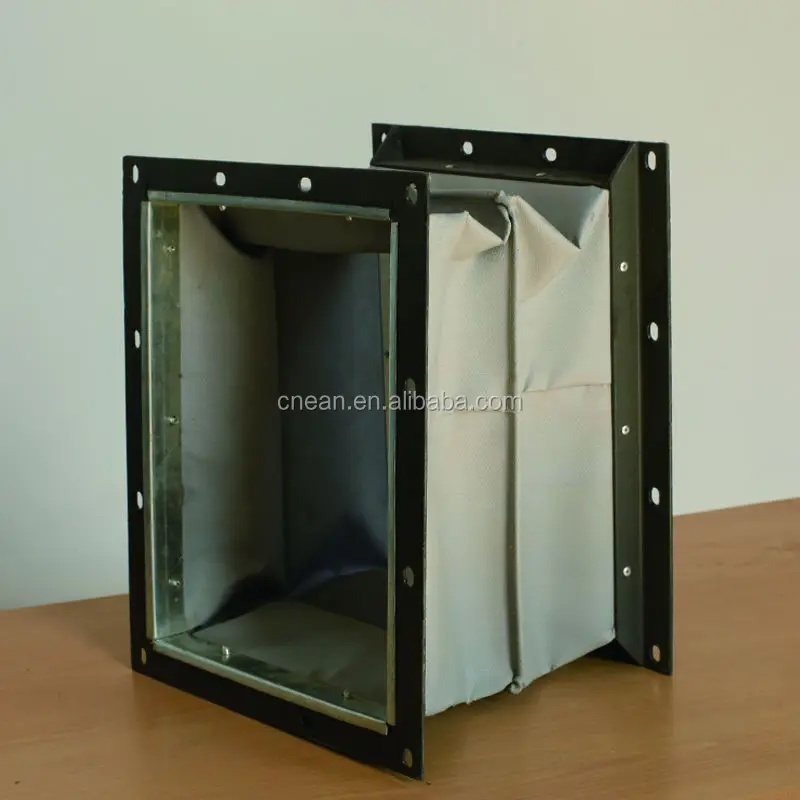

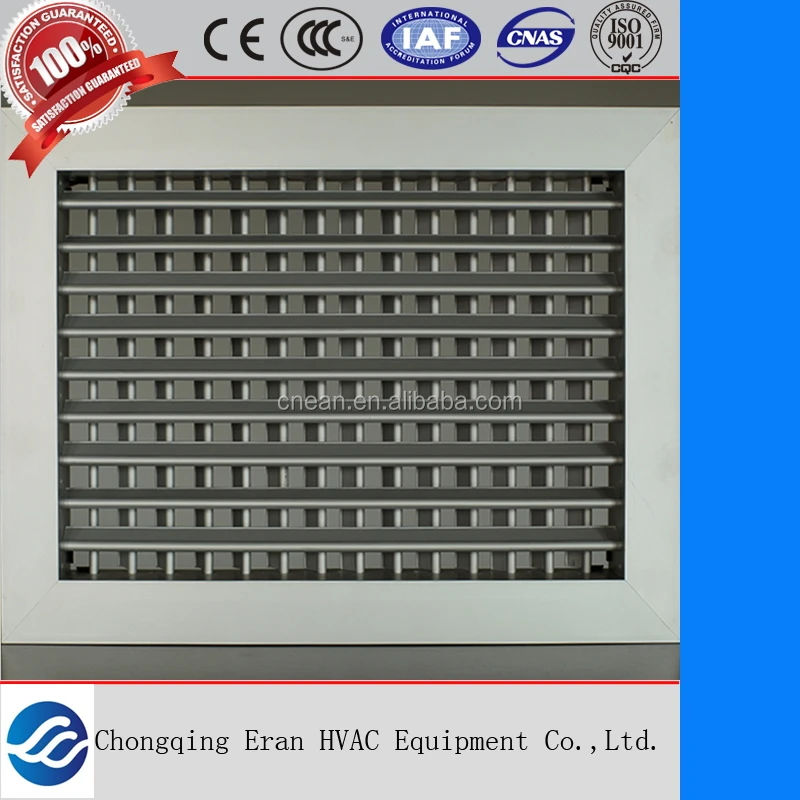

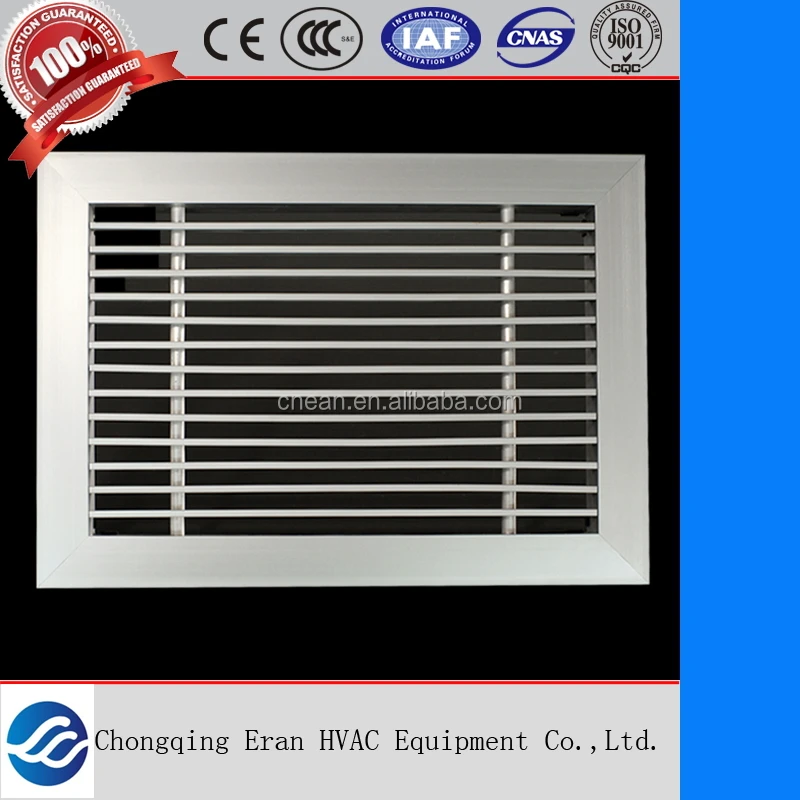

Our products include: ventilation fan, air duct, air valve, air vent, plenum chamber, muffler, soft connecter and accessories
All our products will be provided with best quotation, excellent quality and prompt delivery.
Sample is available by express.
OEM is available.
Other series products on HVAC systems:
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–19 set: US $185 / set
- 20–99 set: US $168 / set
- 100+ set: US $150 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ventilation axial air fan?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this ventilation axial air fan carry?
It is supplied with CCC documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the ventilation axial air fan be supplied for my local voltage?
The standard configuration is 380 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Chongqing Eran Hvac Equipment Co., Ltd., based in China. The company 12 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Chongqing Eran Hvac Equipment Co., Ltd. range on HVACR Nexus.
