The ventilation fan listed here carries 16V~21V, power source Solar, documented exactly as the manufacturer publishes it. Made by Jiangmen Sunny Photoelectricity Technology Limited (13 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Ventilation Fan
- Model Number: SN2016024
- Power Source: Solar
- Power Options: fan with solar panel (+ AC/DC adapter) or (+solar battery)
- Voltage: 16V~21V
- Blade Material: Plastic
- Material: Plastic
Technical Specifications
| Fan Type | Axial Fan |
|---|---|
| Type | Wall-Mounted Axial Fan |
| Blade Diameter | 12 in |
| Voltage | 16V~21V |
| Speed | 1400RPM motor speed |
| Blade Material | Plastic |
| Material | Plastic |
| Bearing Type | Ball Bearing |
| Power Source | Solar |
| Control Methods | Button Control |
| Customized Support | OEM, ODM, OBM |
| Mounting Type | Wall / Window / Gable / Attic / Basement Fan |
| Warranty | More Than 5 Years |
| After-Sales Service Provided | Online support |
| Place Of Origin | Guangdong, China |
| Brand Name | SIPL |
| Model Number | SN2016024 |

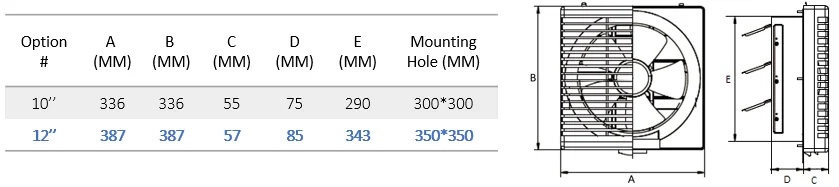

| Fan Size | 12”: host 387x387x142mm, opening 343x343mm |

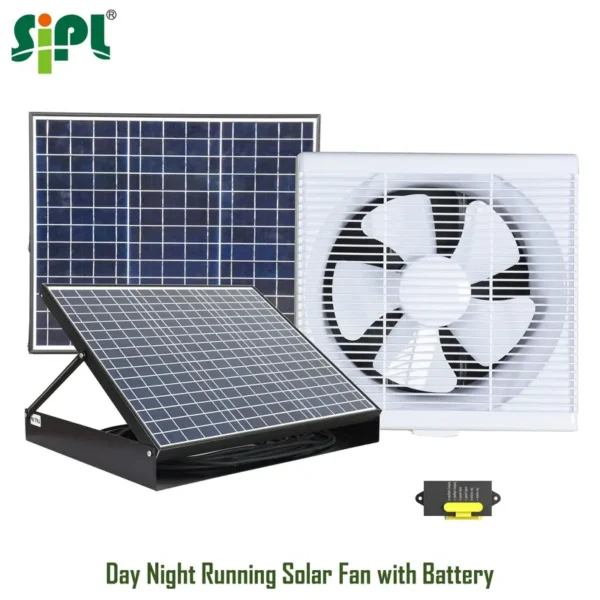

| Solar Panels | 80W = 40W/21V + 40W+19.5V, with mounting kits |
| Battery | inbuilt 16V 9.6Ah, be charged by the 40W/19.5V solar panel |

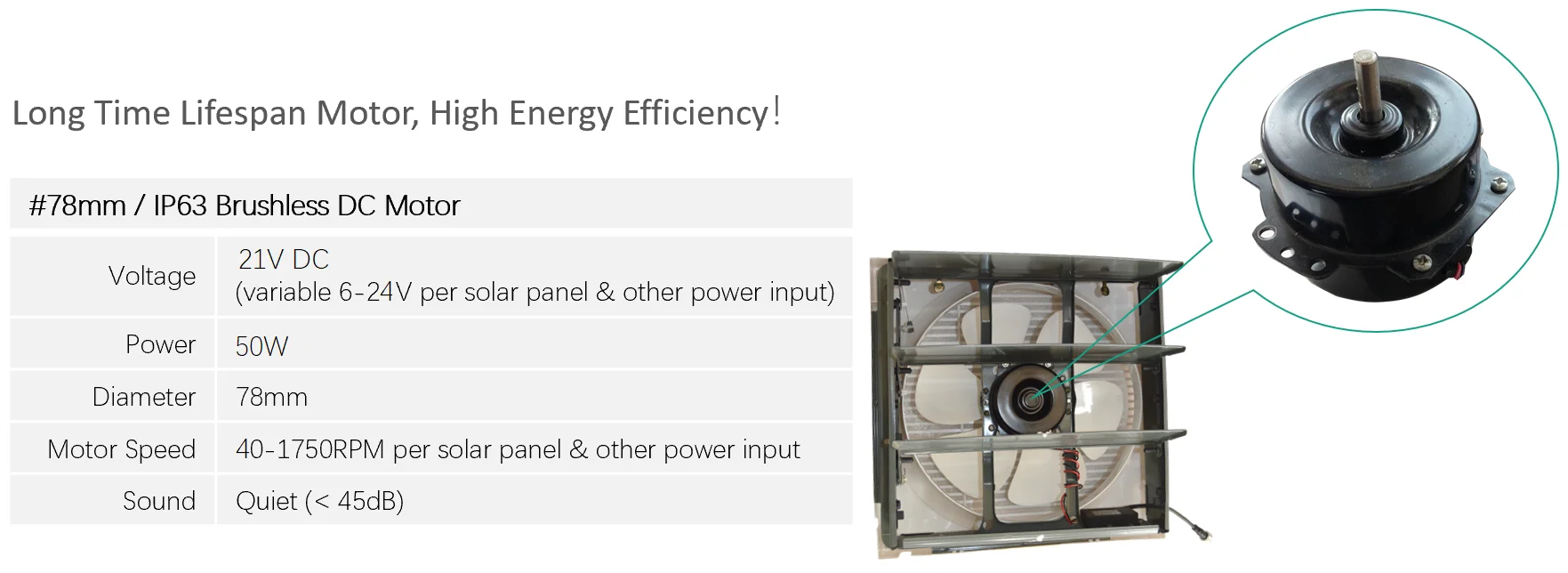

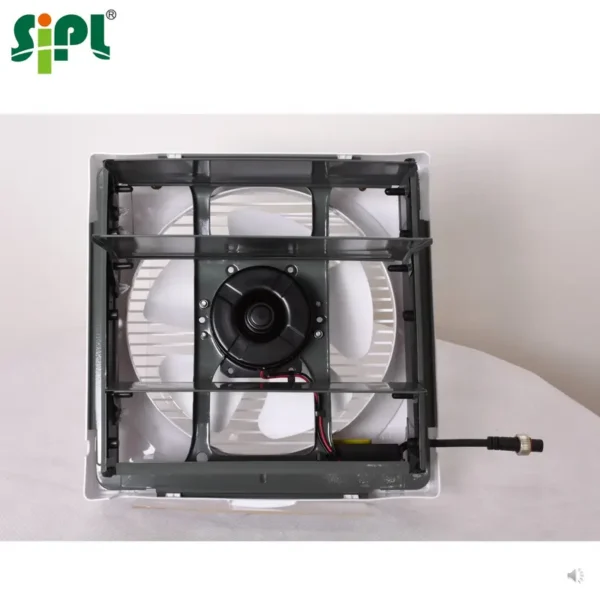

| Fan Motor | ball bearing brushless DC motor |
| Fan Blades | 12 inch, ABS plastic quality, 5 blades |

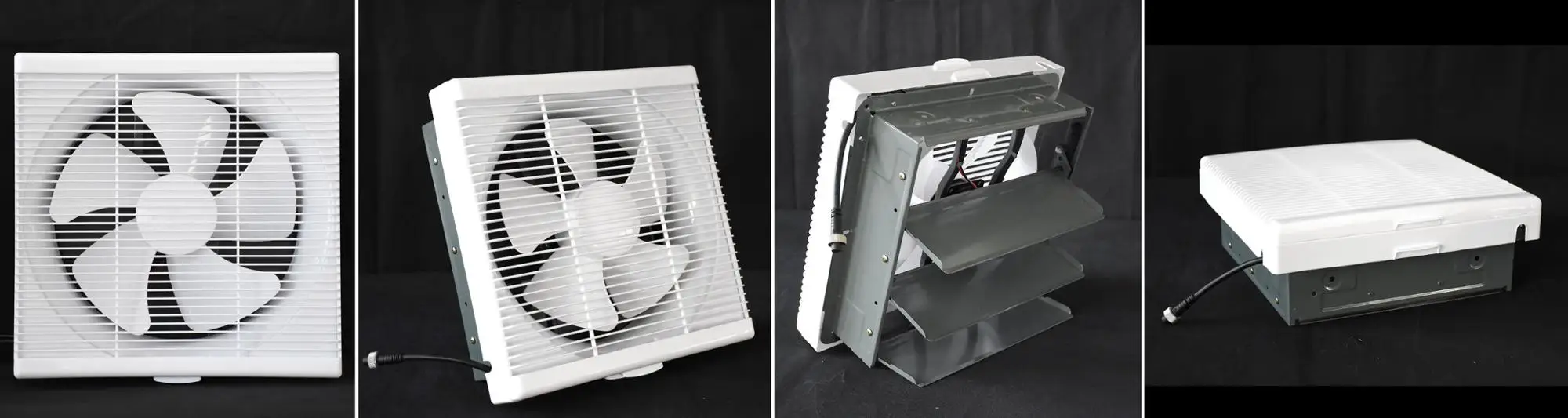

| Fan Surface | ABS front louver + plastic fan housing |
| Fan Body | galvanized steel, with anti-corrosive coating rear shutter |
| Wire Connection | 10m 4-core cable to connect fan host & solar panels |
| Power Options | fan with solar panel (+ AC/DC adapter) or (+solar battery) |
| Selling Units | Single item |
| Single Package Size | 58X49X38 cm |
| Single Gross Weight | 22.000 kg |
Product Details
This is an off grid & energy sufficient wall mounted commonly use hot air exhaust fan ventilation fan, be powered by solar panel to automatically start running when there is sunshine, and at no operation cost. Moreover, it is made with backup battery to keep running nonstop even at night. Such easy DIY solar device makes it convenient for you to take advantage of free solar energy entirely during daily life and work, allowing savings of up to 100%.
This solar powered wall exhaust fan (also kitchen air exhaust fan blower / industrial solar panel extractor fan / exhaust fan with solar panel / ventilation fan bathroom solar panel fan / battery-powered construction tool wall mounted exhaust fan / solar panel window building badkamer ventilator bathroom fan / solar battery fan wall hang fresh air supplying ventilation fan / bearing motor wall mounting tools solar wall fan, etc.) would strengthen indoor air circulation, deduct harmful mildews, remove heat, moisture, dust, odor… It can be widely applied in Living-room, Bathroom, Bedroom, Office, Hotel, Restaurant, Conference Center, Greenhouse…
It Serves Well Everywhere, Suits All Kinds of Building Installation, and Go Green Life throughout 24 hours!
* wire with connnector, for plug-and-play easy operation

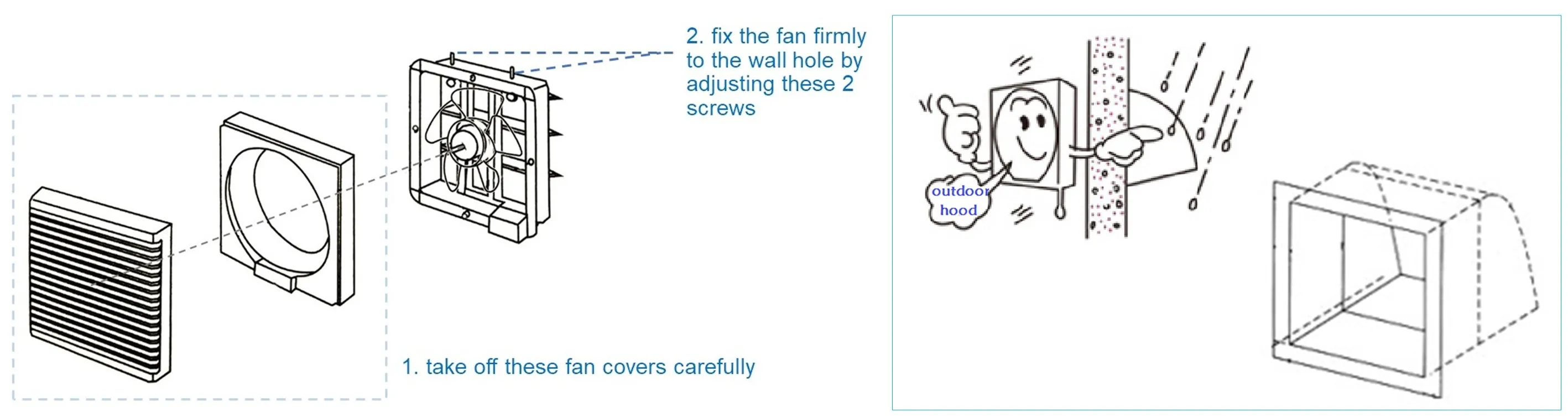

1) take off the ABS fan covers carefully
2) fix the galvanized steeling shutter body into the wall hole by fitting its 2 screws
3) put back the fan housing covers
* You may also put an outdoor hood to prevent water leakage from rainy days!

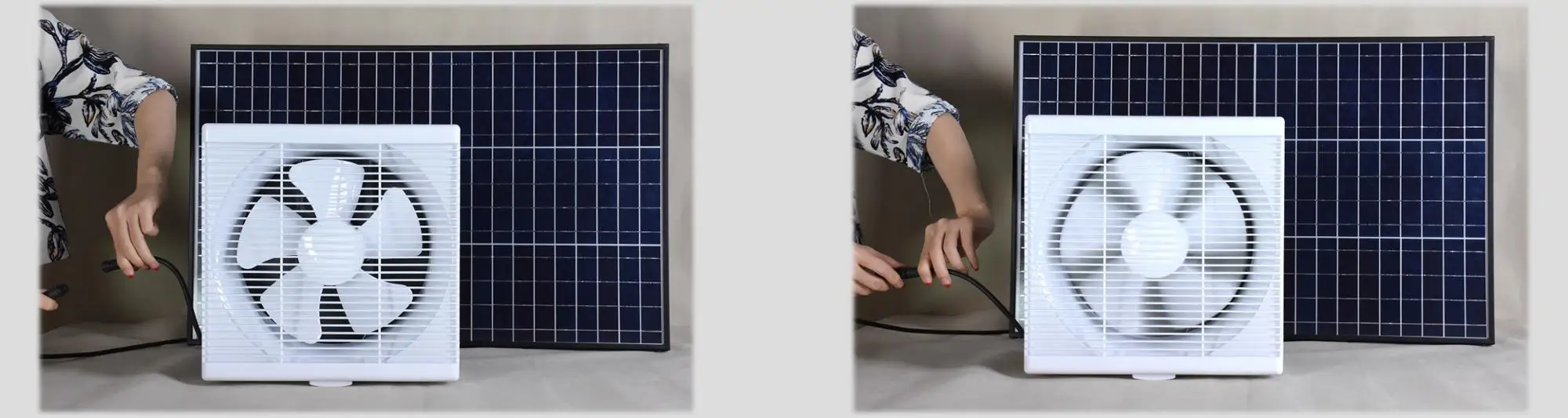

* the motor starts running immediately once sunlight presents
* the motor speed will vary: fast when sunlight is strong, slow when sunlight is weak

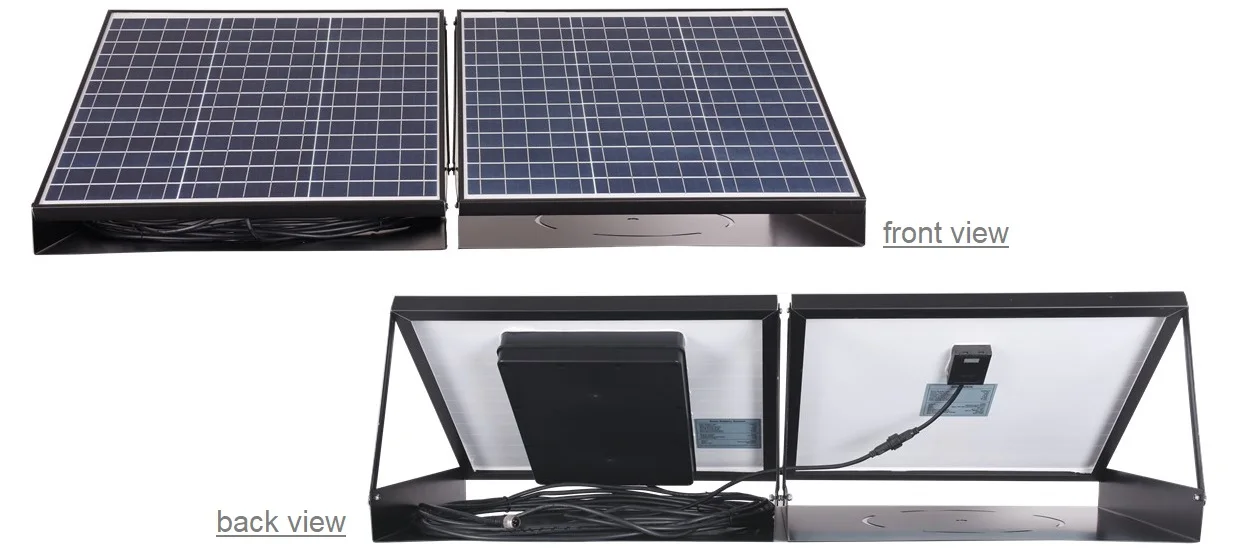

* 2pcs solar panel combining for 1 power output

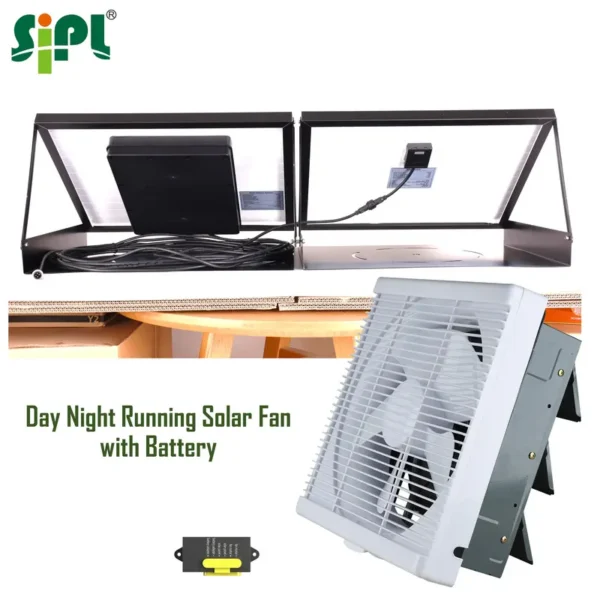

* one solar panel includes battery, another solar panel does not, so the fan is powered by sole solar panel in sunny hours, while is powered by battery in sunless periods
* smartly, as long as sunshine is sufficiently there, battery will not supply power, which means battery will not be consumed in sunny moments
battery will be at (100-X)%

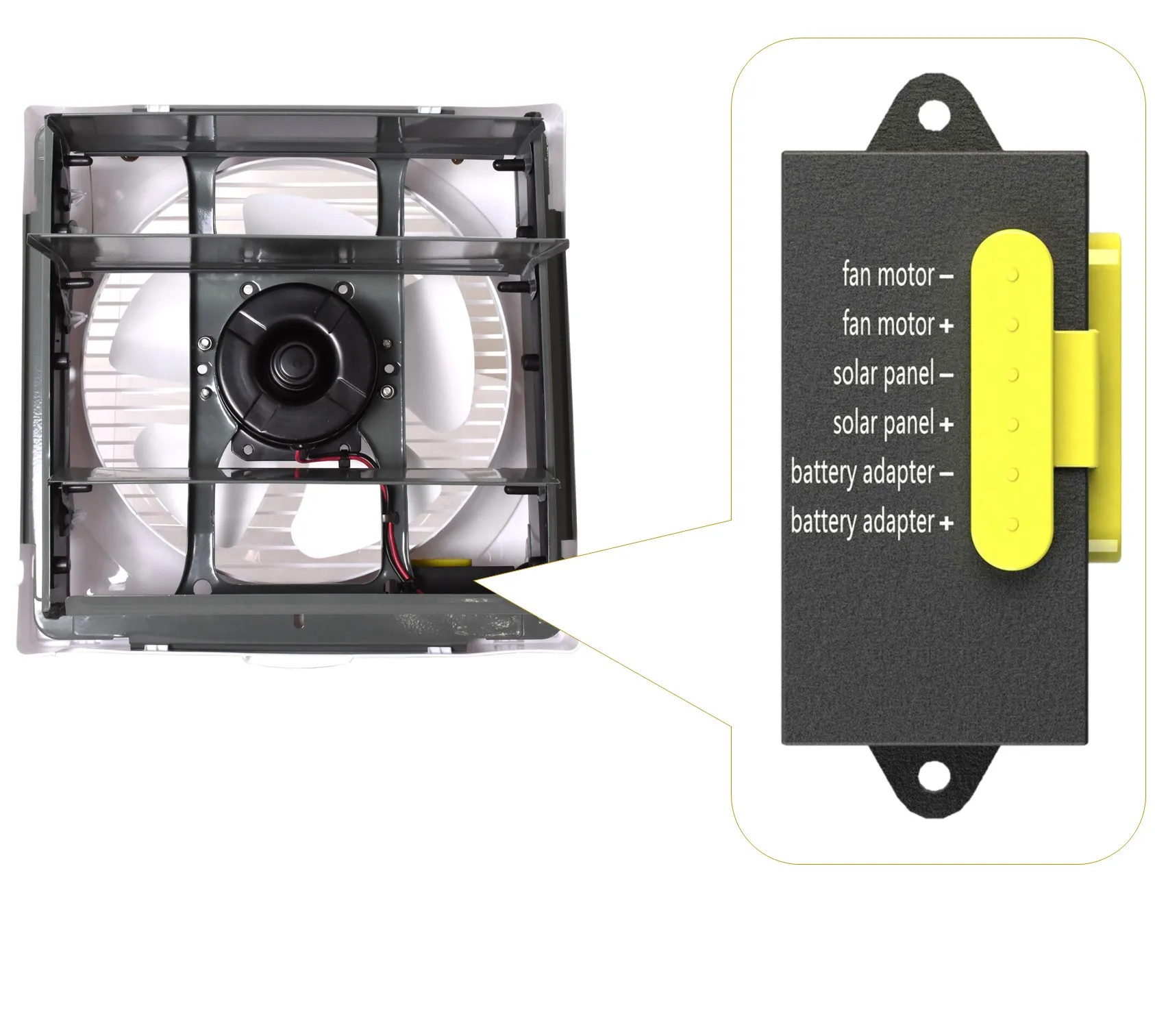

* there is an inbuilt controller inside the junction box to take care of the power supplies between solar panel & battery
This wall mounted solar fan DC appliance will run nonstop all the time, if you want to run/stop it, 3 optional "Switch" is available to be added: Remote Controller / Snap-Action Thermostat / Hand Switch!
Fan Motor & Fan Blades | designed lifespan > 10 years | warranty: 5 years |
Fan Host | designed lifespan > 15 years | warranty: 10 years |
Solar Panel | designed lifespan > 25 years | warranty: 15 years |
Battery | designed lifespan > 10 years | warranty: 2 years |
if AC/DC Adapter | designed lifespan > 10 years | warranty: 2 years |
other electronic components | designed lifespan > 10 years | warranty: 5 years |
Email: info @ sunnyintlpowerltd.com
Mobile / Wechat: +86 15917347085
Skype: sunny-cindy87
QQ: 1336199008
website: https://www.sunnyintlpowerltd.com
Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ventilation fan?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a More Than 5 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the ventilation fan be supplied for my local voltage?
The standard configuration is 16V~21V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Jiangmen Sunny Photoelectricity Technology Limited, based in China. The company 13 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Jiangmen Sunny Photoelectricity Technology Limited range on HVACR Nexus.
