Key specification for this ventilation system industrial blower: 120 V, 110V, 220V, 380V, 410V, 415V, 480V, power source Electric. Everything below is reproduced from the factory data sheet. Made by Dongguan Minxin Industry Co., Ltd. (7 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Ventilation System Industrial Blower
- Model Number: 1750mm, 1530mm, 1380mm, 1220mm, 1100mm, 1060mm, 1000mm, 900mm, 800mm, 700mm, 600mm, 500mm, 400mm, 300mm, 200mm
- Power Source: Electric
- Voltage: 120 V, 110V, 220V, 380V, 410V, 415V, 480V
- Rated Voltage: AC 110/120V, 220/240V, 380V/415V
- Blade Material: Cast Iron
- Material: Galvanized Steel/ Stainless Steel/ or Customized
Technical Specifications
| Voltage | 120 V, 110V, 220V, 380V, 410V, 415V, 480V |
|---|---|
| Type | Wall-Mounted Axial Fan |
| Blade Material | Cast Iron |
| Mounting Type | Wall Fan |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Free Spare Parts |
| Customized Support | OEM, ODM, OBM, Private Labeling |
| Place Of Origin | Guangdong, China |
| Brand Name | MINXIN |
| Model Number | 1750mm, 1530mm, 1380mm, 1220mm, 1100mm, 1060mm, 1000mm, 900mm, 800mm, 700mm, 600mm, 500mm, 400mm, 300mm, 200mm |
| Fan Type | Industrial Exhaust Ventilation Box Cooling Fan |
| Motor | 100% Full Copper Motor |
| Size | 1380mmx1380mm / 55inch |
| Material | Galvanized Steel/ Stainless Steel/ or Customized |
| Rated Voltage | AC 110/120V, 220/240V, 380V/415V |
| Function | Ventilation, Exhaust and Cooling |
| Mount Type | Through wall mount/ window mount |
| Product Keywords | shutter exhaust fan, poultry fan, ventilation fans |
| Item | Industrial Window Ventilation Exhaust Fan for Poultry Chicken Factory |
| Application | Warehouse, Data Center, Greenhouse |
| Selling Units | Single item |
| Single Package Size | 138X138X40 cm |
| Single Gross Weight | 50.000 kg |
Product Details
Related Products
Product Description

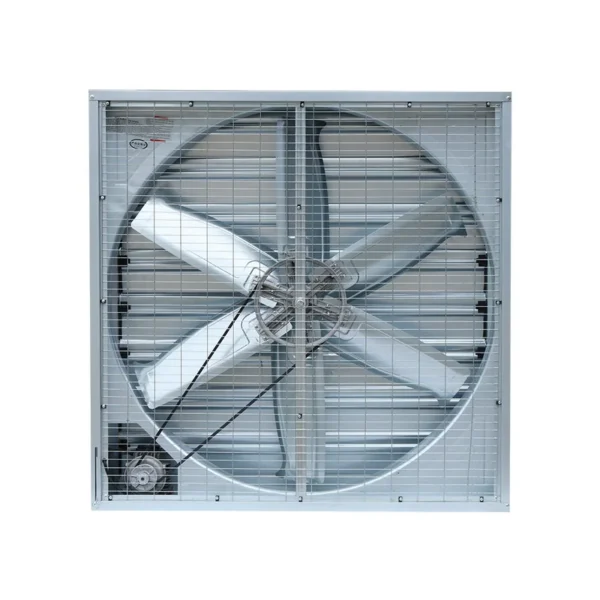

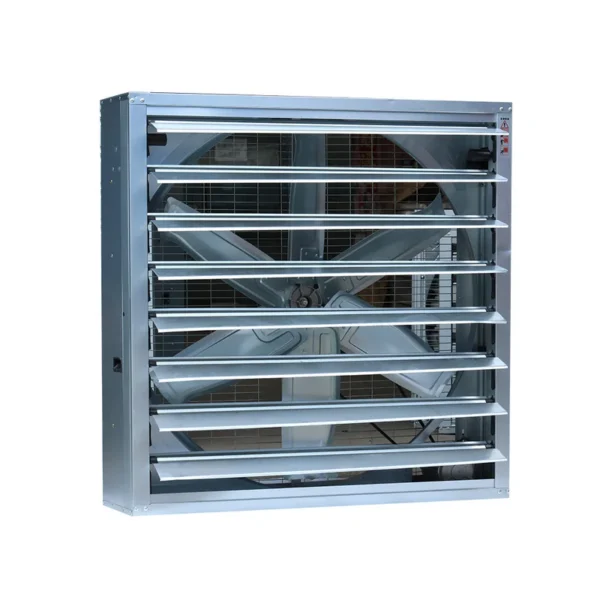

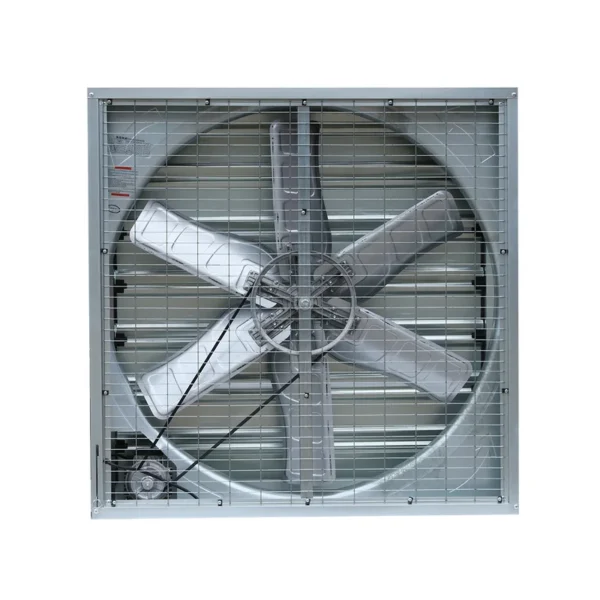

This 60 inch Best Selling High Quality Industrial Window Ventilation Axial Flow Exhaust Fan for Poultry Chicken Factory features 1530mm galvanized steel fan frame, with 6 stainless steel blades, and shutters with swung drop hammers for anti-dust and anti-rain purpose
Industrial Fan Big Air Volume Extractor Box Fan for Hosting Center Data Center Ventilation Exhaust Fan Technical Details
Type: | Standard | OEM |
Fan Size | 1530mmx1530mmx400mm (60" x 60"x 16") | Any size |
Fan Diameter(inch) | 56 | 56 |
Fan Color | Silver | Painted or coating in any color |
Fan Blade Material: | 1.2mm/18 gauge stainless steel | as per customers’ requirements |
Fan Frame Material: | 0.7mm/24 gauge galvanized steel | 0.7mm, or higher thickness galvanized steel, fiberglass, or stainless steel |
Details Images

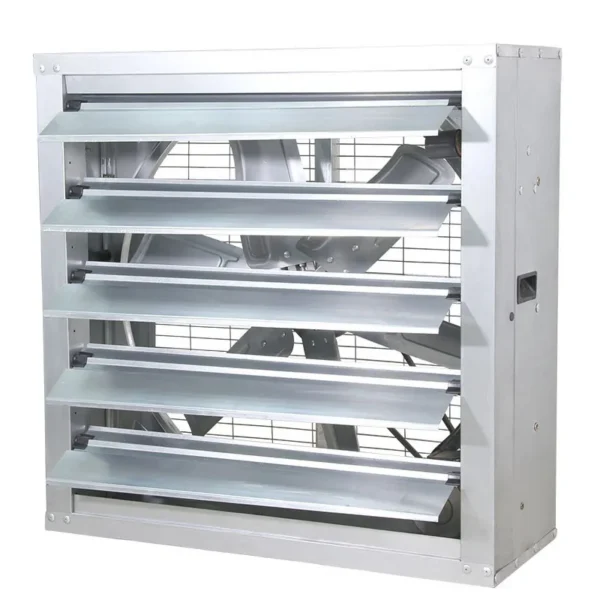

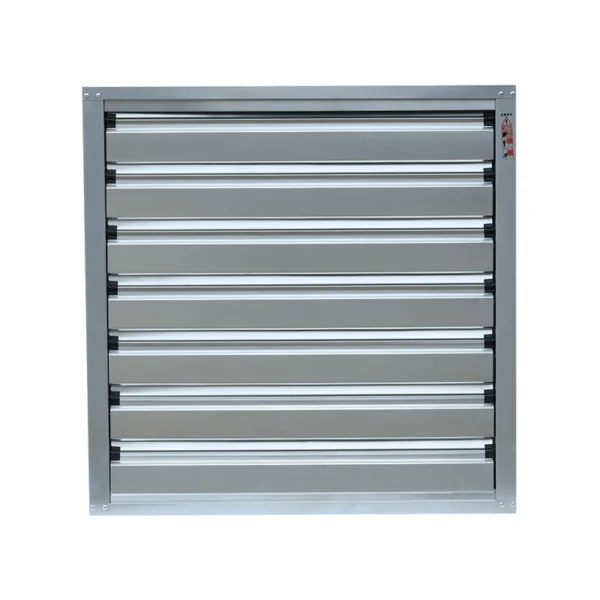

Exhaust Fan Shutter
Fan shutters can be fully closed to keep out the rain, dust, pest and light.
90° Fully Open Fan Louver
The fan louvers can be fully opened to intake the largest amount of fresh air.
Higher Blade Curved Braket, higher airflow volumn
Ultra-thick galvanized steel or stainless steel fan blade

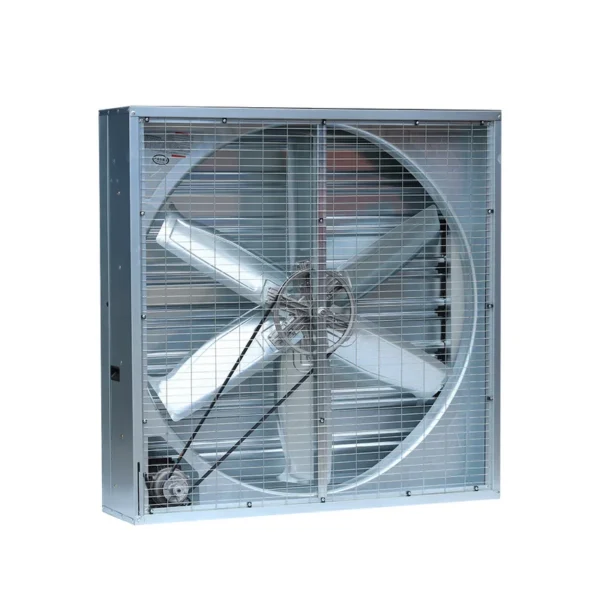

Rugged aluminum alloy pulley system for higher durability
One Piece Durable Automatic Bearing
Hign Efficiency 100% Copper Motor
Durable and Heat-Resistant Motor
Size Information
Model | Dimensions | Air Flow | Power | Workable Areas | Fan Speed | Noise |
200# | 200mmx200mmx170mm | 588CFM | 150W | 5~20㎡ | 2000rpm | <45db |
300# | 300mmx300mmx200mm | 1200CFM | 150W | 5~20㎡ | 2200rpm | <50db |
400# | 400mmx400mmx300mm | 1500CFM | 250W | 20~40㎡ | 1400rpm | <55db |
500# | 500mmx500mmx300mm | 3000CFM | 250W | 25~50㎡ | 1400rpm | <55db |
600# | 600mmx600mmx300mm | 4700CFM | 250W | 50~60㎡ | 960rpm | <55db |
700# | 700mmx700mmx300mm | 6000CFM | 250W | 60~70㎡ | 960rpm | <60db |
800# | 800mmx800mmx300mm | 7650CFM | 250W | 70~80㎡ | 960rpm | <60db |
800# | 800mmx800mmx350mm | 13000CFM | 370W | 70~80㎡ | 450rpm | <60db |
900# | 900mmx900mmx350mm | 16000CFM | 370W | 80~90㎡ | 450rpm | <55db |
1000# | 1000mmx1000mmx350mm | 17650CFM | 550W | 90~100㎡ | 450rpm | <60db |
1060# | 1060mmx1060mmx350mm | 19000CFM | 550W | 100~120㎡ | 450rpm | <60db |
1100# | 1100mmx1100mmx350mm | 20000CFM | 550W | 110~130㎡ | 450rpm | <60db |
1220# | 1220mmx1220mmx350mm | 22000CFM | 750W | 120~140㎡ | 450rpm | <60db |
1380# | 1380mmx1380mmx350mm | 26000CFM | 1100W | 140~160㎡ | 450rpm | <65db |

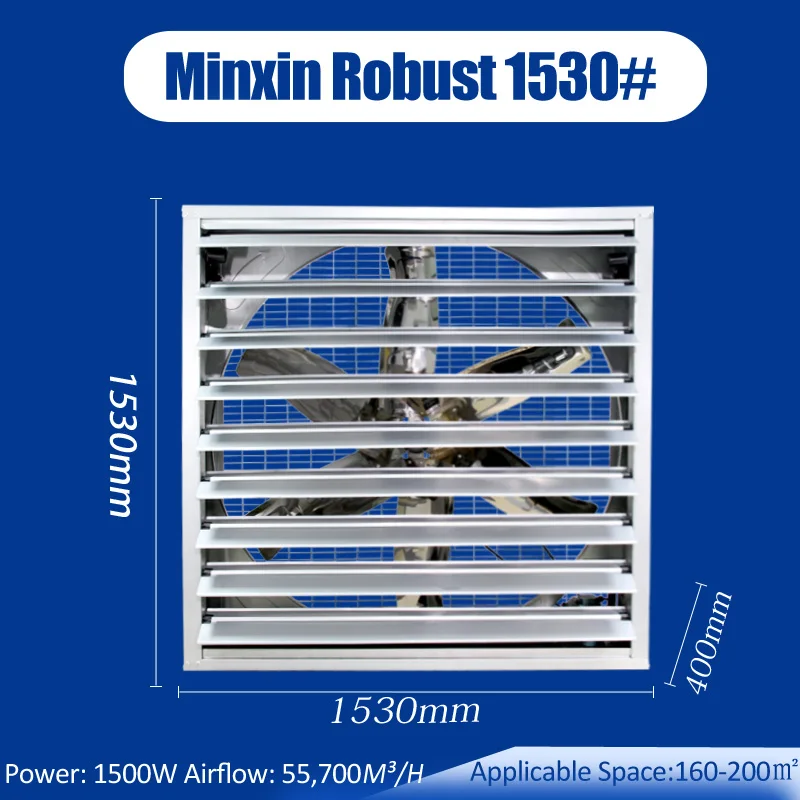

1530# | 1530mmx1530mmx400mm | 32800CFM | 1500W | 160~200㎡ | 450rpm | <70db |
1750# | 1750mmx1750mmx450mm | 40000CFM | 1800W | 180~220㎡ | 350rpm | <70db |

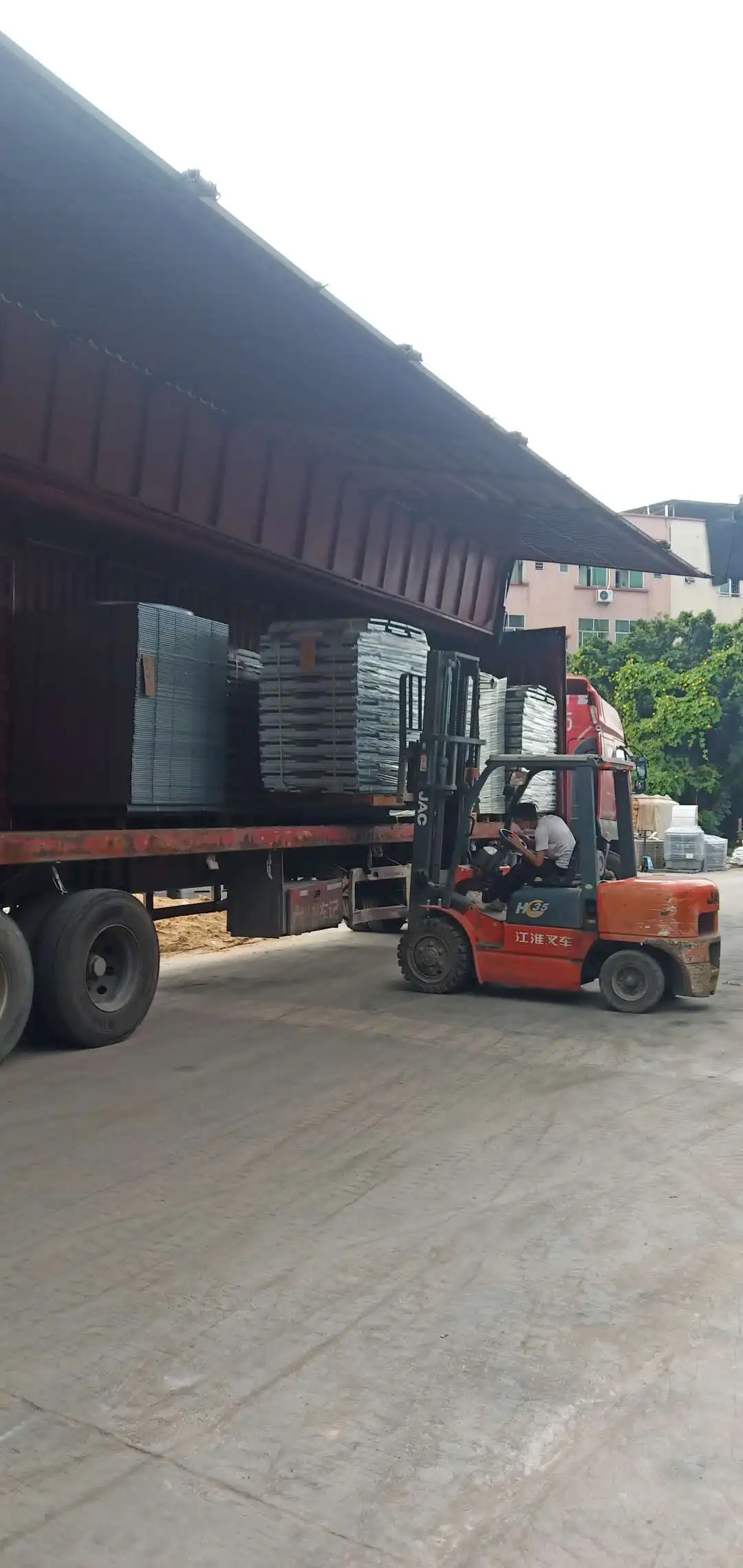

Packing&Shipping
The exhaust fans can either be shipped in unassebled way to save space and shipping cost, or shipping the assembled exhaust fans to save trouble and time.
Unassembled Exhaust Fan Parts
The unassembled fan parts can be shipped to customers for assembly, it will help to save shipping cost.
Assembled Exhaust Fans
The assembled exhaust fans can be sent to customers for immediate installation.
After Sales Service
One Year Warranty, Lifetime Aftersale Service
We offer 1 year warranty on the motors and the entire fan, and we will provide free spare parts for any defective models within the warranty period.
Why Chose Us
Long Standing History
10 years' OEM experience of industrial exhaust fans, over 200 skilled employees.
Well Equipped
Equipped with over 100 automatic machines and 10 production lines, lower product cost for our customers
Fully Customizable
Full customization on voltage, materials, dimensions, design and private labeling to meet your unique request.
Most Complete Fan Sizes
10 years' OEM experience of industrial exhaust fans. Exhaust fans sizes range from 200mm to 1750mm, ventilation capacity ranges from 600CFM to 40000CFM
Fast Delivery
Highest production capacity in China, our daily output is 3,000pcs. Most of our customer can be delivered within 7 days, some can be delivered some day or 3 days
Complete Product Line
95% of the fan parts are produced in our own facility, we handle from coil sliding and folding, laser welding, die casting and stamping, motor cooper coil winding, CNC machining and assembly to ensure high precision of each part and higher performance of
the exhaust fans
the exhaust fans
Company Introduction
MINXIN INDUSTRIAL is well known for its most complete production line for industrial exhaust fans, evaporative air conditioners, and mobile air coolers.
Our Services & Strength
Minxin Industrial was founded in 2015, since then Minxin has been specialized in manufacturing industrial exhaust fans and evaporative air coolers of all sizes, such as:
1. Minxin Belt drive ventilating exhaust fans
2. Minxin Direct drive ventilating exhaust fans
3. Yihoo Water-cooling evaporative air conditioner
4. Yihoo Mobile evaporative air cooler
1. Minxin Belt drive ventilating exhaust fans
2. Minxin Direct drive ventilating exhaust fans
3. Yihoo Water-cooling evaporative air conditioner
4. Yihoo Mobile evaporative air cooler
MINXIN Headquater
Space: 20,000㎡
Production: Fan parts production, motor production
MINXIN Plant 2
Space: 6,000㎡
Production: Air cooler and cooling pad production and assembly
MINXIN Plant 3
Space: 6,000㎡
Production: Exhaust fan and circulation fan assembly
MINXIN Plant 4
Space: 5,000㎡
Production: Exhaust fan and circulation fan assembly
Our Production Lines
Supporting 120 employees, our 20,000 square meter factory is top-notch, Minxin Industrial equipped itself with all the production equipment processes in house for better control of the quality and delivery time:
1. Steel coil sliding and cutting line, steel pipe cutting line
2. Aluminum Die Cast Tooling & Casting
3. Plastic Molding & Injection workshop
4. Metal Stamping & Laser Cutting
5. Motor Copper Coil Winding Line
6. Motor Assembly Workshop
7. Exhaust Fan Assembly Workshop
8. Water Air Cooler Assembly Workshop
1. Steel coil sliding and cutting line, steel pipe cutting line
2. Aluminum Die Cast Tooling & Casting
3. Plastic Molding & Injection workshop
4. Metal Stamping & Laser Cutting
5. Motor Copper Coil Winding Line
6. Motor Assembly Workshop
7. Exhaust Fan Assembly Workshop
8. Water Air Cooler Assembly Workshop
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–1 set: US $88 / set
- 2–99 set: US $87 / set
- 100+ set: US $86 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ventilation system industrial blower?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the ventilation system industrial blower be supplied for my local voltage?
The standard configuration is 120 V, 110V, 220V, 380V, 410V, 415V, 480V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Dongguan Minxin Industry Co., Ltd., based in China. The company 7 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Dongguan Minxin Industry Co., Ltd. range on HVACR Nexus.
