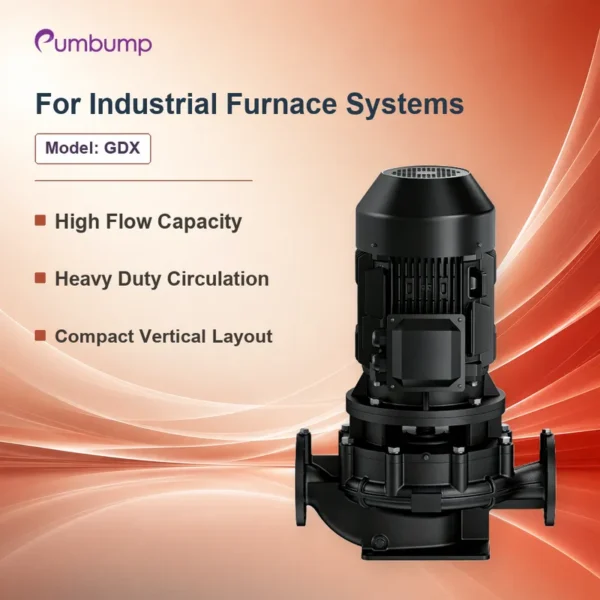

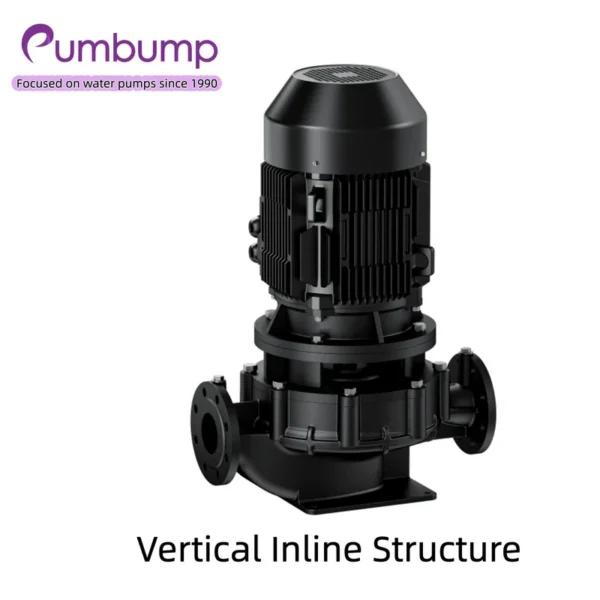

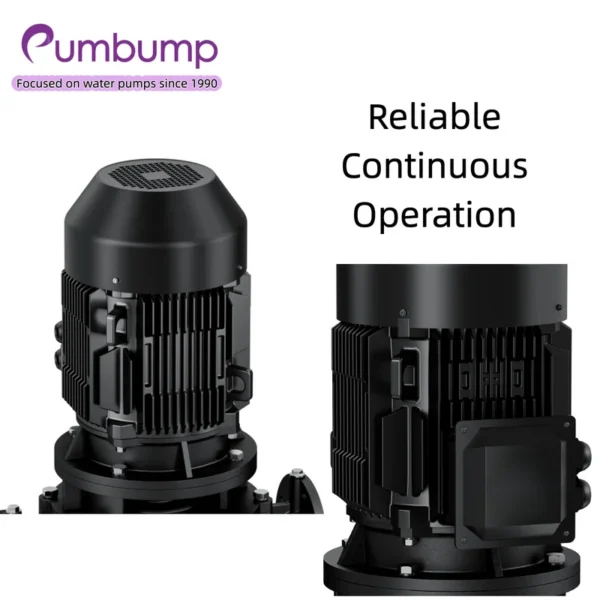

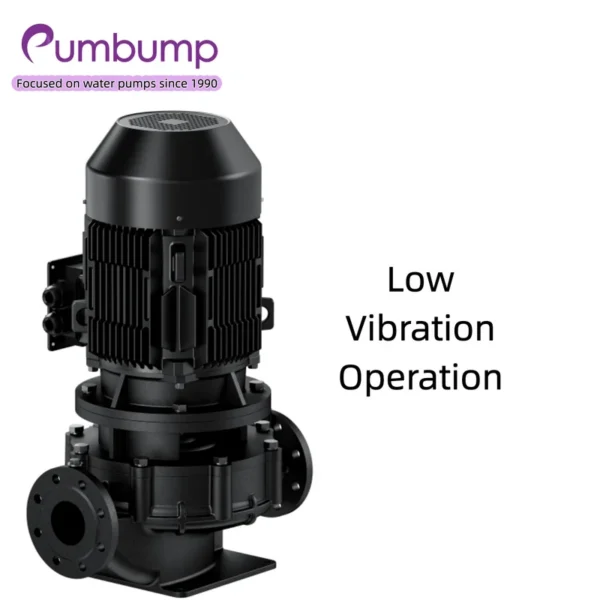

This vertical inline centrifugal pump is published with the manufacturer’s full specification — power source Electric, material Cast iron. Made by MINAMOTO PUMP CO., LTD. (1 year on the platform, typical reply ≤5h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Vertical Inline Centrifugal Pump
- Model Number: GDX
- Power Source: Electric
- Horsepower: 1-150HP
- Sealing Material: Mechanical seal
- Impeller Material: Cast iron
- Material: Cast iron
Technical Specifications
| Application | For Industrial Furnace Systems |
|---|---|
| Structure | Single-stage Pump |
| Max Flow Rate | 720 m³/h |
| Max Pressure | PN16 |
| Power Source | Electric |
| Chemical Compatibility | Water |
| Sealing Material | Mechanical seal |
| Impeller Material | Cast iron |
| Applicable Temperature | -20°C to 120°C |
| Outlet Size | DN32-DN250 |
| Connection Type | Vertical inline |
| Suction Head | 7-55 m |
| Outlet Type | Flange |
| Discharge Pipe Size | DN32-DN250 |
| Material | Cast iron |
| Control Method | Manual Control |

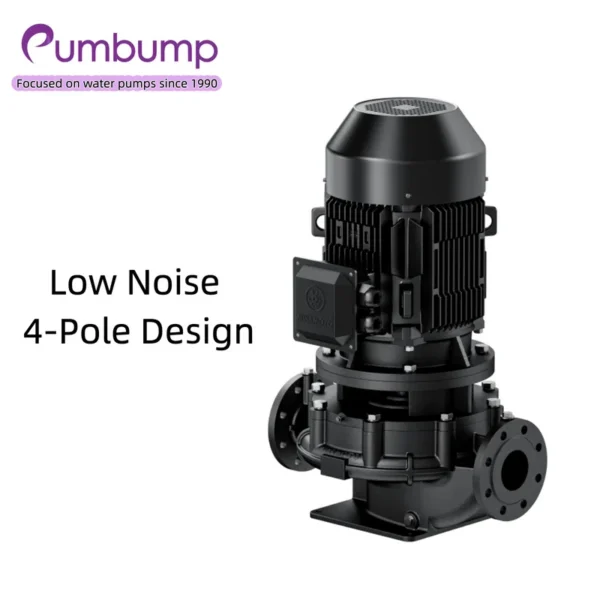

| Motor | 4-pole motor |
| Surface Treatment | Electrophoresis coating |
| Warranty | 1 Year |
| Customized Support | ODM, OEM |
| Horsepower | 1-150HP |
| Pressure | PN16 |
| Model Number | GDX |
| Place Of Origin | Fujian, China |
| Brand Name | Pumbump |
| Flow Rate | 3.5-720 m³/h |
| Selling Units | Single item |
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–9 piece: US $492.7 / piece
- 10–49 piece: US $489.7 / piece
- 50+ piece: US $482.7 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this vertical inline centrifugal pump?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by MINAMOTO PUMP CO., LTD., based in China. The company 1 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full MINAMOTO PUMP CO., LTD. range on HVACR Nexus.
