Key specification for this vrcooler glycol evaporator: 220V/380V-Custom made, heating capacity 8.-169kw. Everything below is reproduced from the factory data sheet. Made by Changzhou Vrcoolertech Refrigeration Co., Ltd. (11 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Vrcooler Glycol Evaporator
- Power Supply: 220V/380V-Custom made
- Heating Capacity: 8.-169kw
- Material: aluminum, copper, SS304/316
- Refrigerant: Ammonia, Glycol, CO2
- Warranty: 1 Year
- Place Of Origin: China
Technical Specifications
| Type | Air Cooler |
|---|---|
| Refrigerant | Ammonia, Glycol, CO2 |
| Mounting Type | Ceiling Mount |
| Compressor Brand | / |
| Fan Motors Type | AC |
| Key Selling Points | Competitive Price |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Pressure Vessel |
| Place Of Origin | China |
| Weight (Kg) | 150 |
| Brand Name | VRcooler |
| Dimension(L*W*H) | 1300*510*740 |
| Product Name | Glycol Custom Evaporator |
| Power Supply | 220V/380V-Custom made |
| Heating Capacity | 8.-169kw |
| FIn Type | Wave fin, flat fin |
| FPI | CUstom made |
| Tube Diameter | 9.52/12.7/15.8, according to the mold |
| Material | aluminum, copper, SS304/316 |
| Fan Brand | Custom made |
| Selling Units | Single item |
| Single Package Size | 100X32X65 cm |
| Single Gross Weight | 125.0 kg |
Product Details
Application and Models

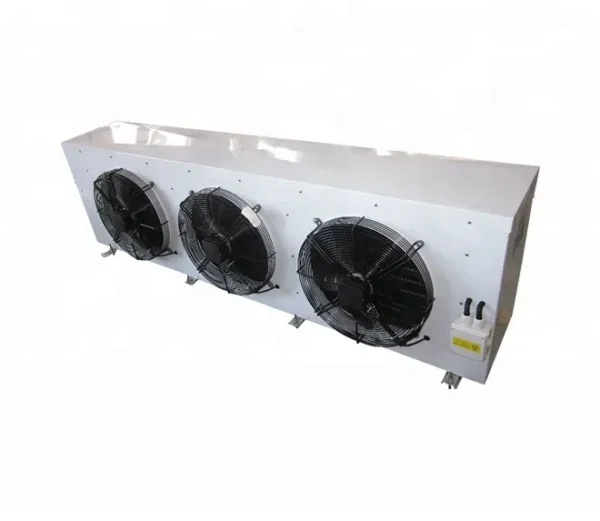

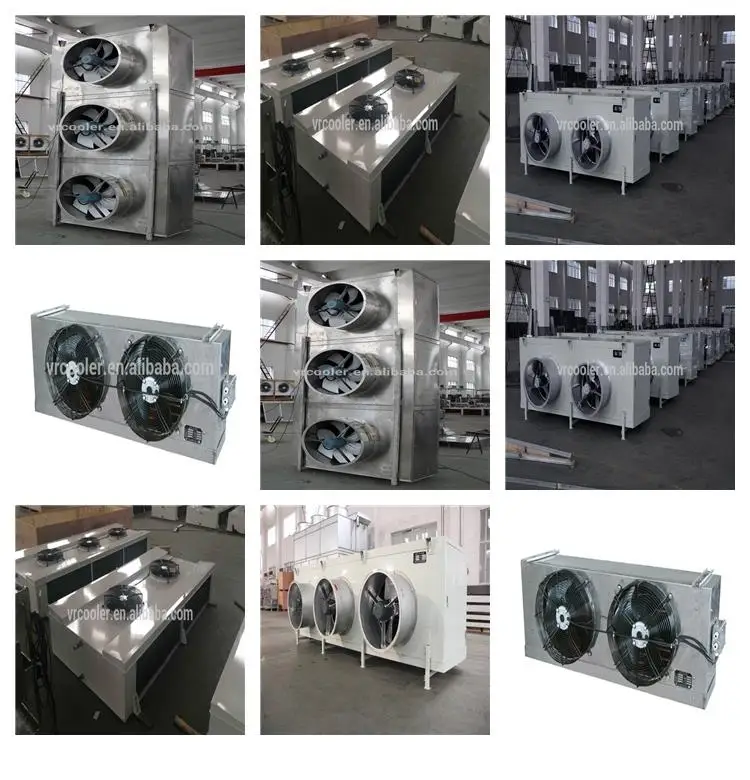

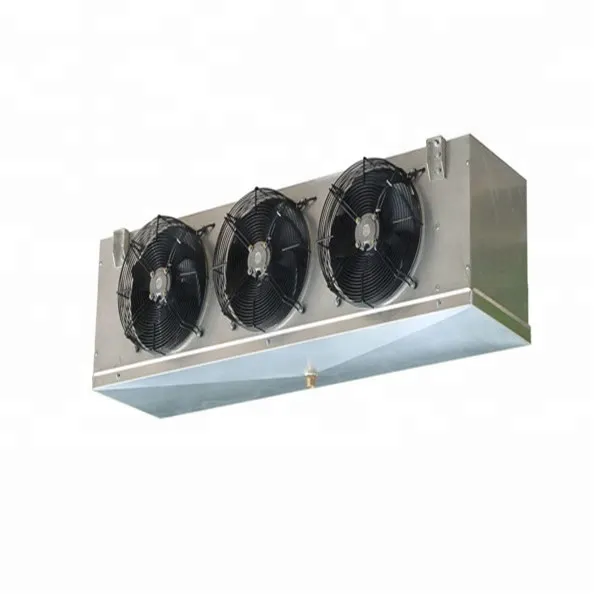

Cubic, top and floor standing units for installation in the ceiling and the floor of cold rooms for preservation and the cooling of all kind of products.
The ammonia units coolers cubic series, includes 4 main different series, for high INHA, medium INHM, low INHB and extra low temperatures INHT..
By the way the TOP version includes another 4 main series, for high IPHA, medium IPHM, low IPHB and extra low temperatures IPHT.
General features
Coils
High performance finned coils, built in stainless tube AISI-316 with welding TIG ORBITAL and corrugated aluminium with 4,2 mm., 6 mm., 8 mm. and 10 mm. fin spacing. The frame is manufactured in aluminium sheet, protected by collars. Headers with steel connections.
External structure
Manufactured in RAL-9018 white colour polyester high resistance aluminium. The whole structure is compact and highly rigid to avoid vibrations. All pieces are easily dismantled for maintenance.
Fans
Helicoidal fans with high performance protection grids and 400 V / 50 Hz three phase motor fans diameters 400, 500, 630 & 800 mm., with IP-54 protection grade, external rotor and low power consumption. Ball bearing are supplied with low temperature grease for -50º C. All the motors can be wired to the centralized waterproof junction box, according to IP-55 standards.
Defrosting heaters
Defrosting is carried out by 230 V electric heaters, built in shielded stainless steel tube, with vulcanized ends avoiding shunts, inserted in the coil and tray and wired to the waterproof junction box.
All the models may be supplied with defrosting heaters.

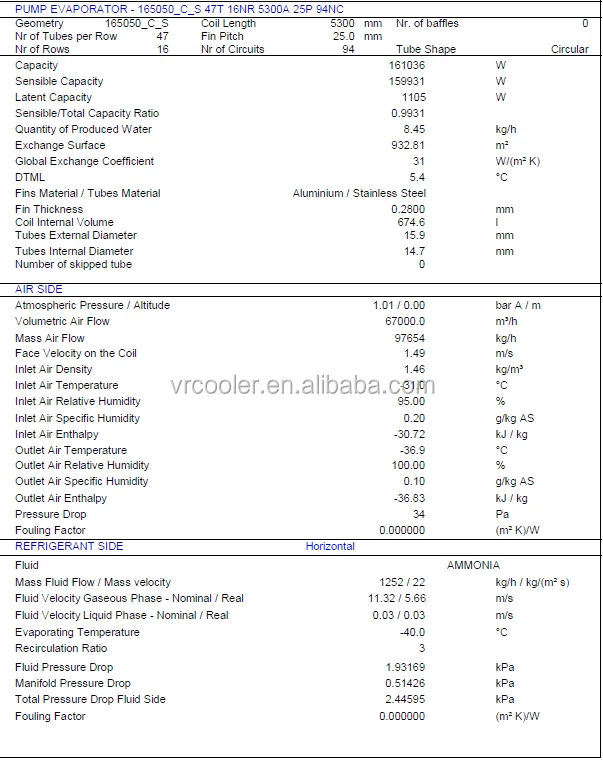

Compared with other competitors, our advantage is that we have heat exchanger design software which Guentner and Cabero are using, Vrcooler offers tailor-made heating and cooling product.
Lead Time: 20 – 40 days
Payment Terms: 30% T/T payment in advance, 70% T/T payment before delivery
Packing Condition: Standard export packing or customized packaging
Ordering and Pricing
- Minimum order quantity: 1 unit
- Volume pricing:
- 1–29 unit: US $1516 / unit
- 30–49 unit: US $1429 / unit
- 50+ unit: US $1382 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this vrcooler glycol evaporator?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the vrcooler glycol evaporator be supplied for my local voltage?
The standard configuration is 220V/380V-Custom made. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

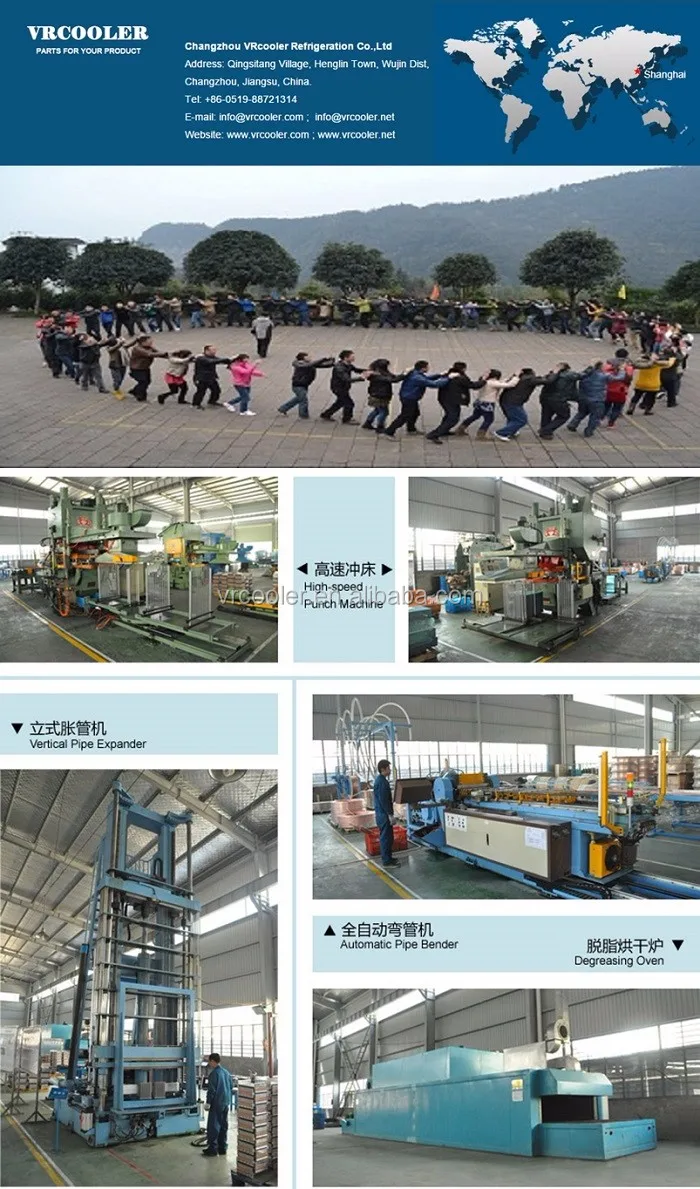

About the Manufacturer
