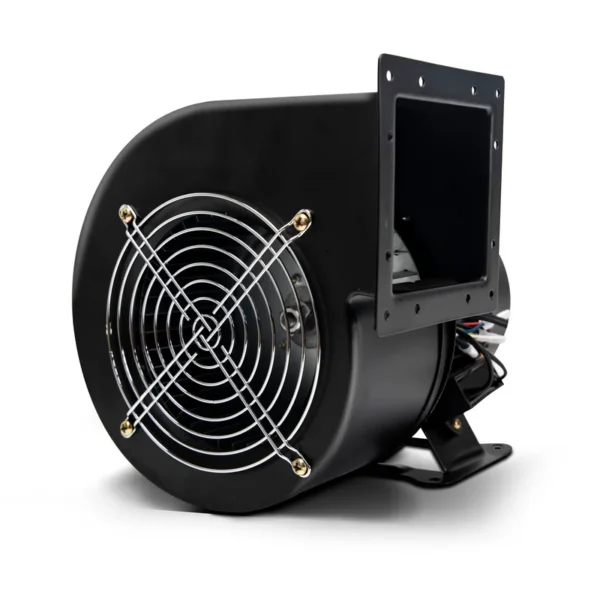

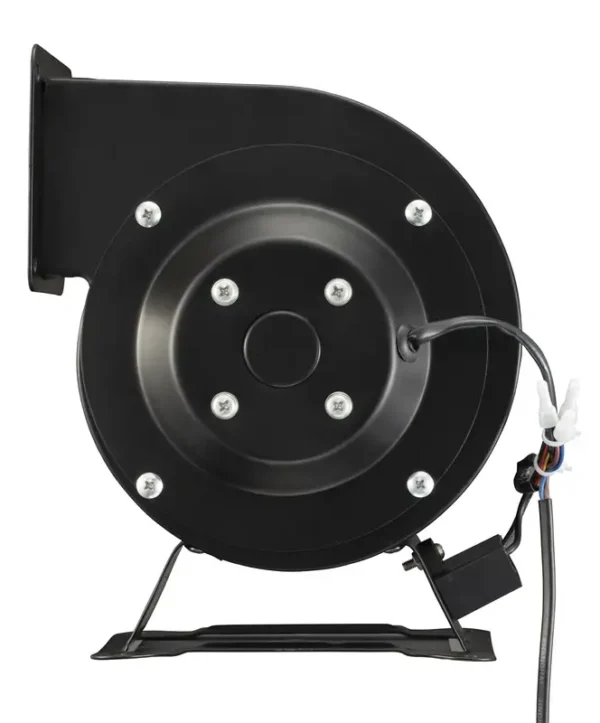

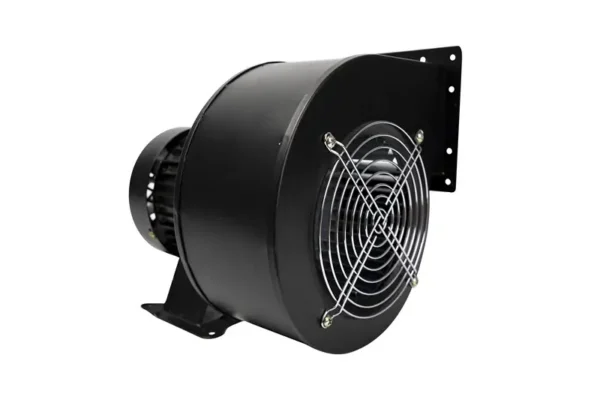

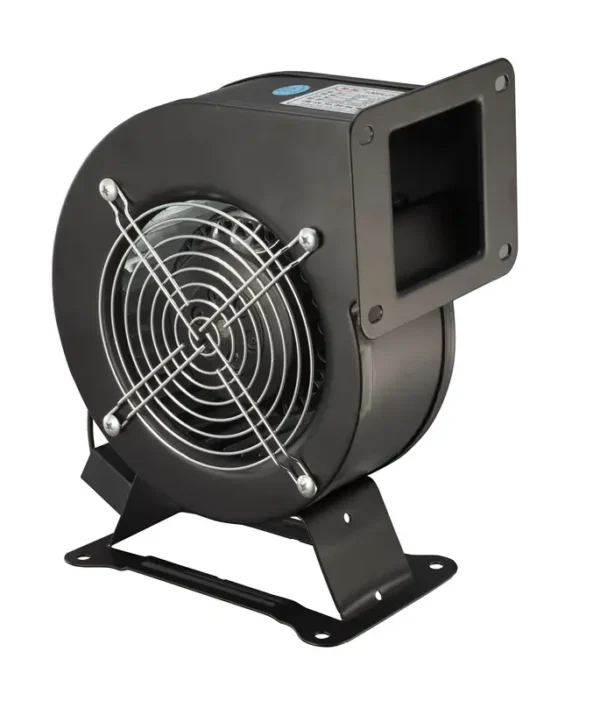

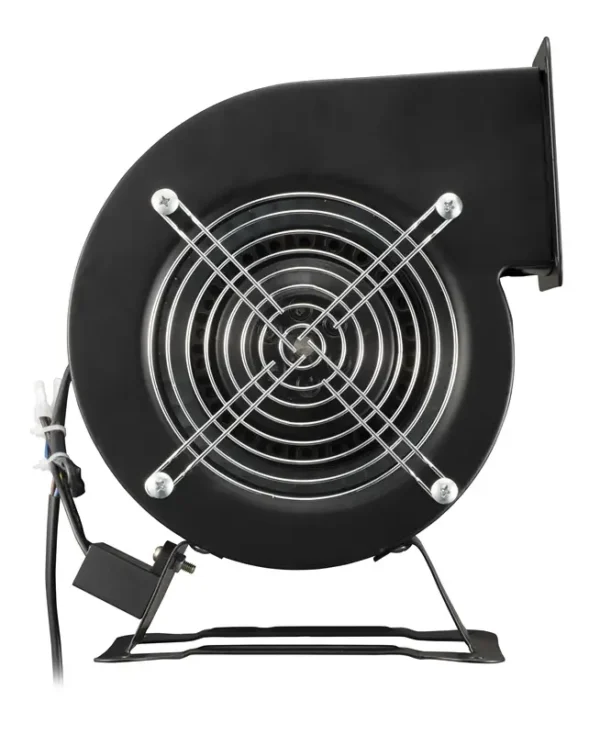

Wall Fan, 130, FLJ-1, 380V, Centrifugal

This wall fan is published with the manufacturer’s full specification — 220 V/380V, 85W. Made by Zhejiang Hongke Electromechanical Co., Ltd. (6 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Wall Fan

• Model Number: 130FLJ-1
• Power: 85W
• Voltage: 220 V/380V
• Blade Material: Zinc plating
• Warranty: 1 Year
• Place Of Origin: Zhejiang, China

Technical Specifications

Product Details

FLJ industrial frequency centrifugal fan

Carbon steel casing | Copper core motor | Powerful wind power

How to choose a small centrifugal fan?

Why choose us? Shh! Just compare a few points quietly and the difference will be obvious. Things that look similar can actually be quite different.

Full range of specifications, worry-free selection

Easy installation;Innovative lightweight design

The fuselage is extremely lightweight, and the flange interface serves as the primary load-bearing structure, requiring no additional support components.

Multi-angle installation

360-degree free installation, can be installed in the forward direction of suspension.

High-quality pure copper motor 24-hour continuous operation

High-quality bearings and a high-efficiency heat dissipation structure ensure that the motor's performance does not degrade under rated operating conditions.

Pure aluminum casing

Ball bearings

Pure copper core wire

Strong winds and stable operation

Made of high-quality galvanized steel sheet, manufactured with precision molds and rigorous dynamic balancing, ensuring smooth andreliable high-speed operation of the impeller and high durability.

Product Parameters

Model	Voltage (V)	Current (AMP)	Power (W)	Rotational speed (RPM)	Air volume (m鲁/h)	Detailed Explanations (Pa)
130FLJ0	220	0.27	60	2600	2.8	260
130FLJ0	380	0.16	60	2600	2.8	260
130FLJ1	220	0.39	85	2200	3.6	280
130FLJ1	380	0.25	85	2200	3.6	280
130FLJ2	220	0.16	60	2600	2.8	260
130FLJ2	380	0.16	60	2600	2.8	260
130FLJ5	220	0.55	120	2600	5.5	350
130FLJ5	380	0.3	120	2600	5.5	350
150FLJ17	220	1.12	240	2650	9	420
150FLJ15	380	0.7	240	2650	9	420

Installation dimensions

Dimensions and screw hole installation diagrams for 60, 85, 120, and 240W models.

Specification	Power (W)	A	B	D	E	G	H	φI	J
130FLJ0	60	78	45	70	65	80	70	4-φ8	110
130FLJ1	85	90	60	70	65	85	80	4-φ8	110
130FLJ	120	55	85	48	85	80	105	4-φ8	100
5150FLJ15	240	95	70	95	70	80	100	4-φ8	115
150FLJ17	240	95	70	95	70	80	100	4-φ8	115

Specification	K	L	M	N	φo	φP	Q	T
130FLJ0	130	180	85	130	4-φ8	4-φ3	180	210
130FLJ1	130	180	90	130	4-φ6	4-φ3	180	210
130FLJ	130	180	110	130	4-φ6	4-φ3	180	200
5150FLJ15	150	205	115	130	4-φ6	4-φ3	210	240
150FLJ17	150	205	115	130	4-φ6	4-φ3	210	240

Installation diagrams for 330W and 500W

(The product is measured manually and there may be some error. The actual product received shall prevail.)

Specification	Power (W)	A	B	C	D	E	F	G	H
150FLJ5/6	330	50	90	102	50	90	102	80	230
170FLJ5/7	500	20	82	100	50	65	100	80	265

Specification	I	J	K	L	M	N	O	P	Q
150FLJ5/6	12-φ4	120	50	200	118*118	130	4-φ6	4-φ3	200
170FLJ5/7	12-φ6	120	70	240	113*113	160	4-φ5	4-φ3	275

Wiring diagram

Please take safety precautions during wiring.If you encounter any wiring problems, please contact customer service for assistance.

Excellent details lead to an extraordinary user experience.

Meticulous attention to detail

Company Profile

Zhejiang Hongke Electric, founded in 2010, is a professional manufacturer of fans and supporting products. Committed to providing small and medium-sized enterprises with plant ventilation and equipment cooling solutions, we have enabled closed factories and equipment to "breathe" the natural outdoor air freely. With 10 years of development, we currently have a production workshop of 4,000 square meters, a warehouse center of 2,000 square meters, and 50 pieces of production and inspection equipment, and we employ over 100 professional production workers. Our presence has been expanded across China, serving over 300,000 clients. Our products include axial flow fans, centrifugal fans, explosion-proof fans, external rotor axial flow fans, VF motor cooling fans, dry-type transformer fans, small blowers, cabinet cooling fans, boiler induced-draft fans, and high-pressure centrifugal fans. Factory ventilation and equipment cooling solutions are our two main product categories, and we also provide supporting services such as dedusting, boiler air inducing, and material transportation. Quality is the cornerstone of Hongke. We are well aware that high quality is essential to solve clients' problems and also the reason why our clients choose us. We will continue to improve our pre-sales and after-sales service systems and integrate the demand and expectations of clients into our value chain to improve product quality, develop and upgrade our products and services. In this way, our clients can be provided with more efficient solutions. Hongke Fans unleash the full potential of wind!

FAQ

1. who are we?
We are based in Zhejiang, China, start from 2010,sell to Domestic Market(70.00%),North America(10.00%),Southeast Asia(10.00%),Eastern Europe(2.00%),Western Europe(2.00%),Southern Europe(2.00%),South America(00.00%),Africa(00.00%),Mid East(00.00%),Eastern Asia(00.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Blower fan,Centrifugal fan,Axial fan,Industrial fan,Pipe fan

4. why should you buy from us not from other suppliers?
Zhejiang Hongke Electric, founded in 2010, is a professional manufacturer of fans and supporting products. Committed to providing small and medium-sized enterprises with plant ventilation and equipment cooling solutions,

5. what services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese

Title goes here.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Title goes here.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1–199 piece: US $22.38 / piece
  • 200+ piece: US $20.18 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this wall fan?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the wall fan be supplied for my local voltage?

The standard configuration is 220 V/380V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Zhejiang Hongke Electromechanical Co., Ltd., based in China. The company 6 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Zhejiang Hongke Electromechanical Co., Ltd. range on HVACR Nexus.
