Key specification for this wall fan: 220 V, airflow 26000 m³/h. Everything below is reproduced from the factory data sheet. Made by Fujian Huada Electric Co., Ltd. (12 years on the platform, typical reply ≤1h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Wall Fan
- Model Number: HDB-120
- Power: 0.55kw
- Voltage: 220 V
- Airflow: 26000 m³/h
- Blade Material: aluminum and magnesium alloy
- Material Of Blade: aluminum and magnesium alloy
Technical Specifications
| Mounting | Free Standing |
|---|---|
| Voltage | 220 V |
| Speed | 600rpm |
| Blade Material | aluminum and magnesium alloy |
| Warranty | 3 Years |
| After-Sales Service Provided | Video Technical Support |
| Customized Support | OEM |
| Core Components | Motor, Gear, Other |
| Place Of Origin | Fujian,China |
| Brand Name | HUADA |
| Model Number | HDB-120 |
| Diameter | 1.2m |
| Motor | direct drive ,pmsm |
| Power | 0.55kw |
| Airflow | 26000 m³/h |
| Rotating Speed | 600rpm |
| Coverage Area | 150㎡ |
| Air Speed | 1-6.1m/s |
| Noise | 39dB |
| Material Of Blade | aluminum and magnesium alloy |
| Selling Units | Single item |
| Single Package Size | 99X214X99 cm |
| Single Gross Weight | 78.000 kg |
Product Details
Product Description

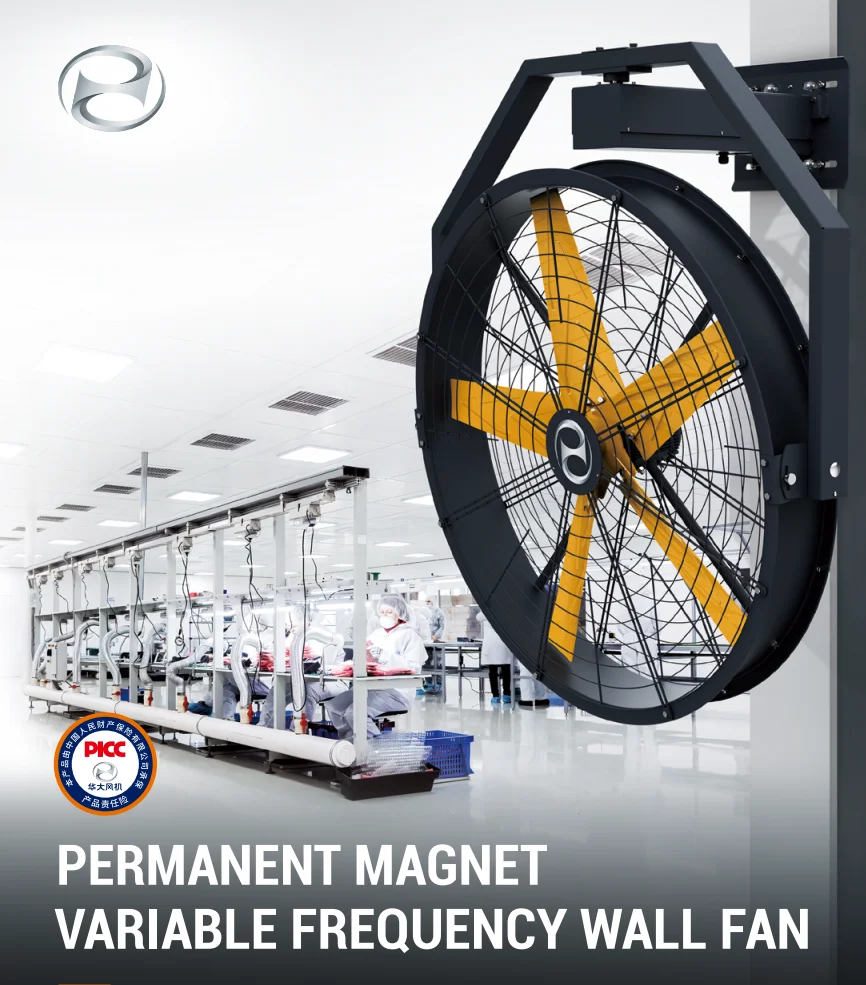

0.6m 0.9m 1.2m Wall Fan Oscillating Type
HDB series permanent magnet variable frequency wall fan ,with unique wing design, produce like the breeze system of nature, the body will feel three-dimensional wind from all directions, increased sweat evaporation area,
increase your comfort level.
increase your comfort level.
At the same time avoid the use of traditional high-speed fan in the direction of the wind all year round, causing a variety of human health problems, greatly improve the comfort of the environment.
HDB series fans can be combined with the actual needs of different occasions to adjust the wind volume, the wind speed in the range of 1m-6.7m /s can be arbitrarily adjusted.In the open space, the industrial energy-saving mobile fan's maximum blowing distance is 24 meters.
Blade Material | Aluminum and Magnesium Alloy |
Power | 0.55kw |
Voltage | 220v/380v |
Warranty | 3 years |
Fan Diameter | 1.2m |
Air volume | 26000m³/h |
protection | IP55 |
Max rotating speed | 600rpm |
Long distance | 20-30m |
Number of blade | 5pcs |
Noise | 39db |
Net weight | 56kg |

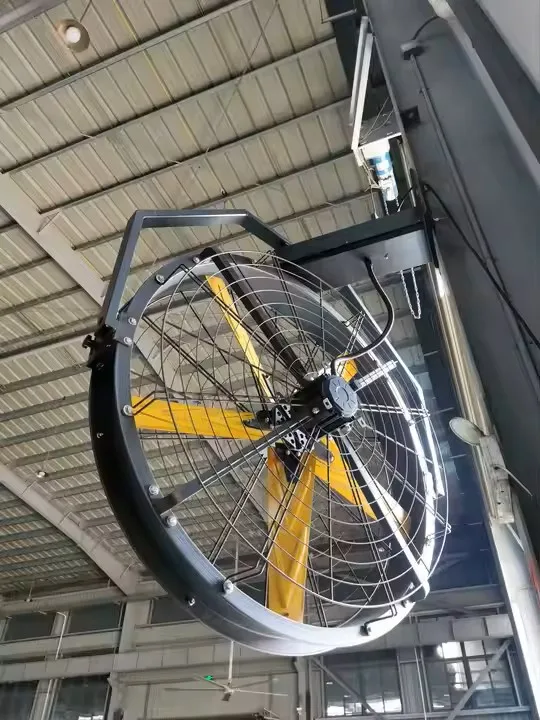

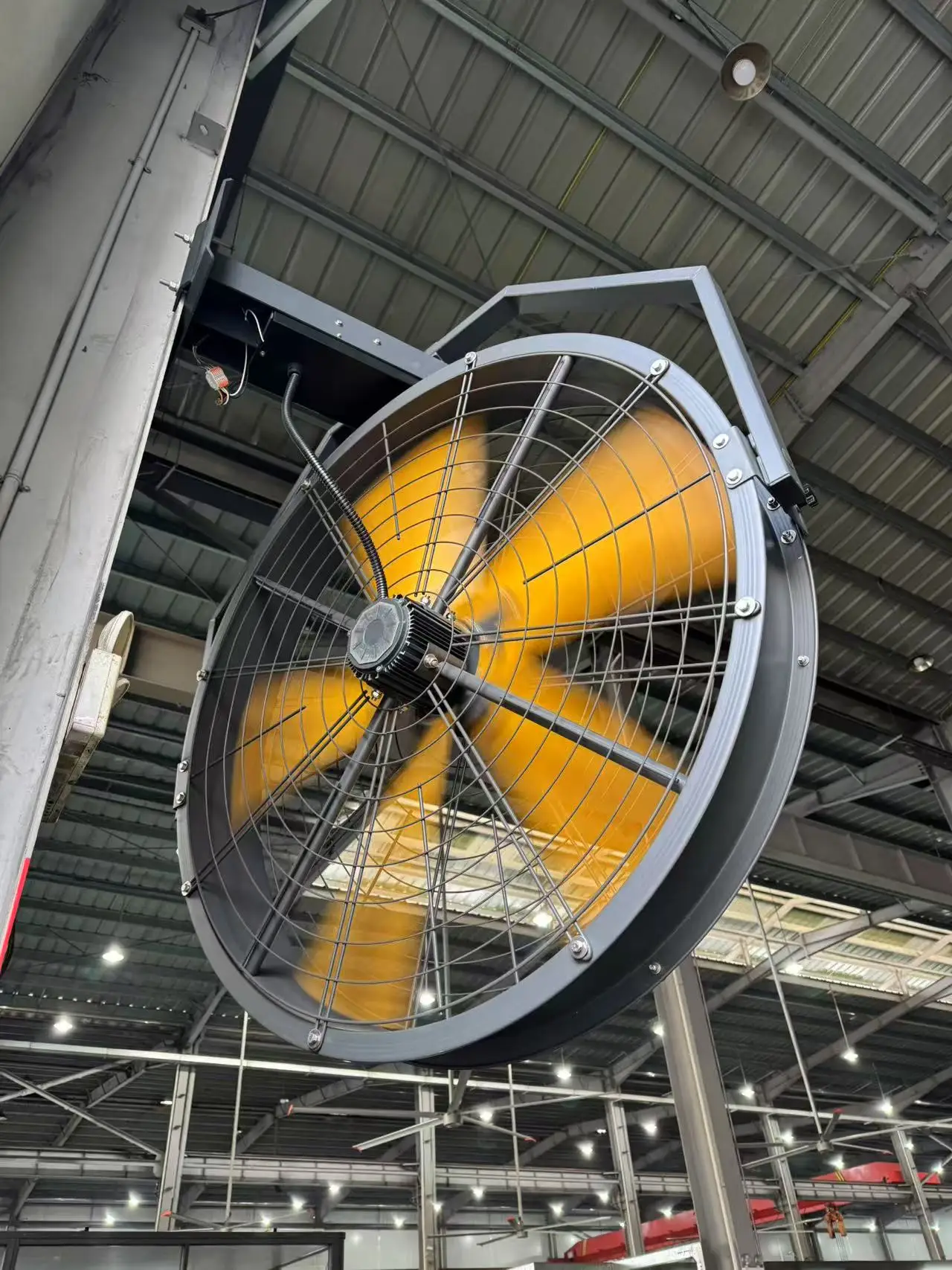

Details Images
Specification

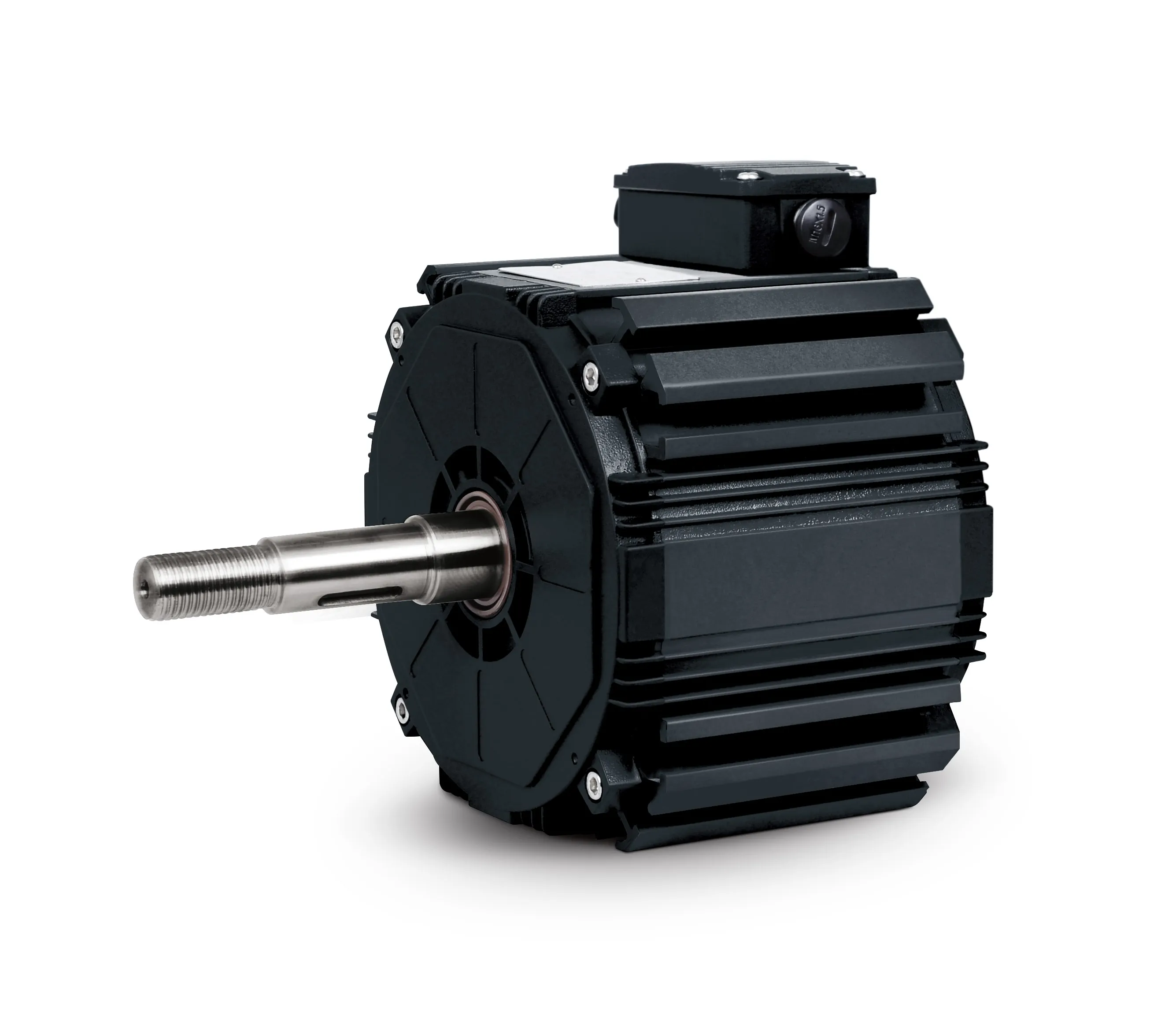

Permanent magnet synchronous motor
FEATURES:
1 Without rotor losses
2 High efficiency and precision
3 Large power factor
4 improve grid operating environment.
5 Frequency modulation width (0~200HZ)
6 Small size and light weight
7 Saving energy and high efficient

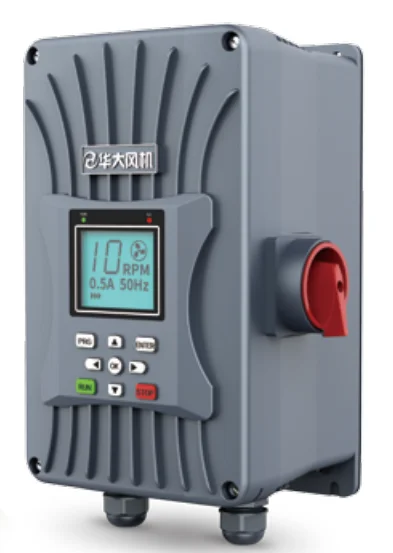

Smart Control System
1 The system is no position vector control,anti-electromagnetic interference,anti-radiation,small size,light weight,beautiful
appearance.
2 System function is simple,4 buttons easy to operation(start,stop,speed up,slow down).
3 System with overvoltage
,undervoltage, voltage loss regulation ,current,lack of phase ,overload , collision, overheating,
lightning,abnormal protection.

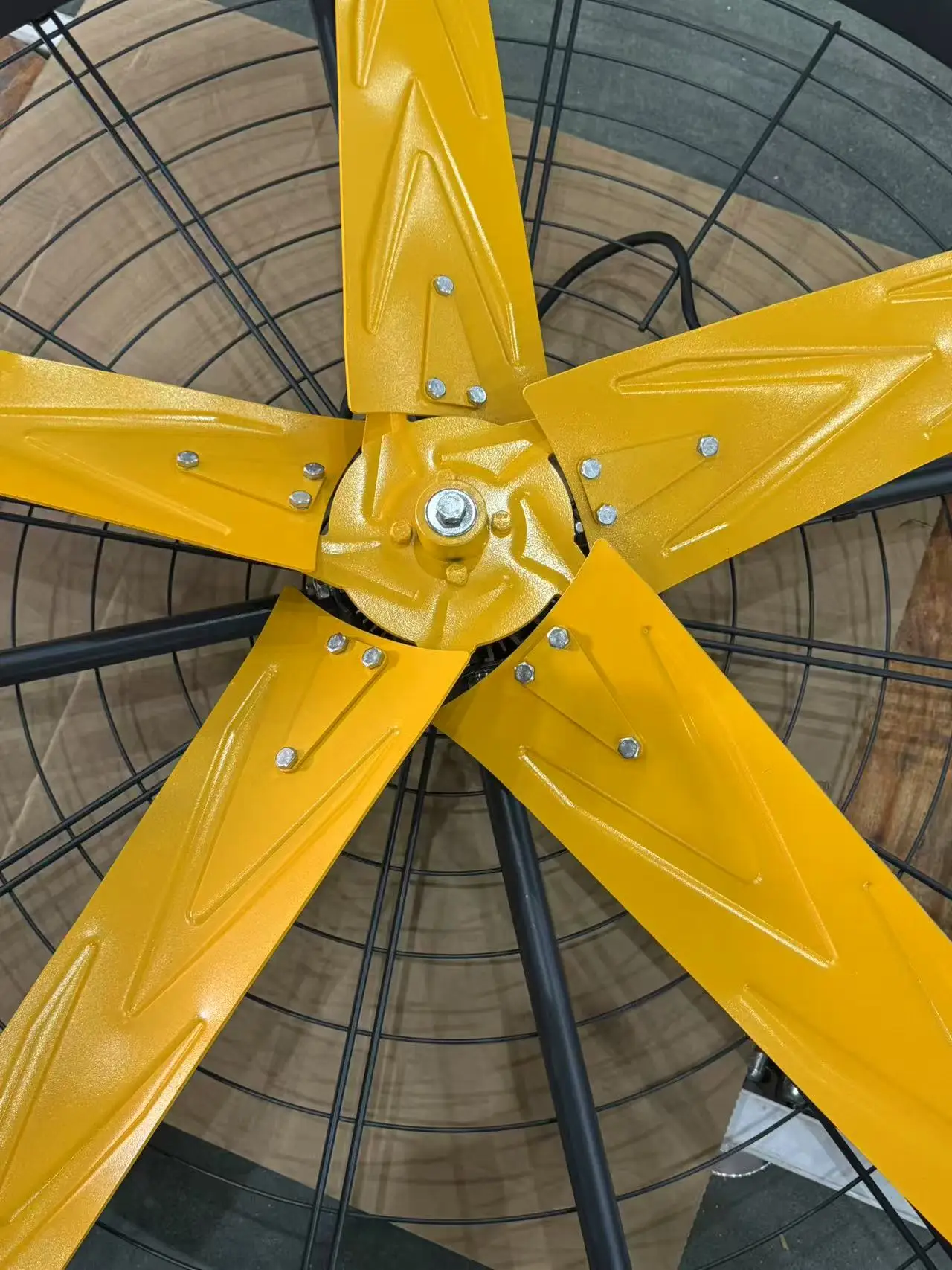

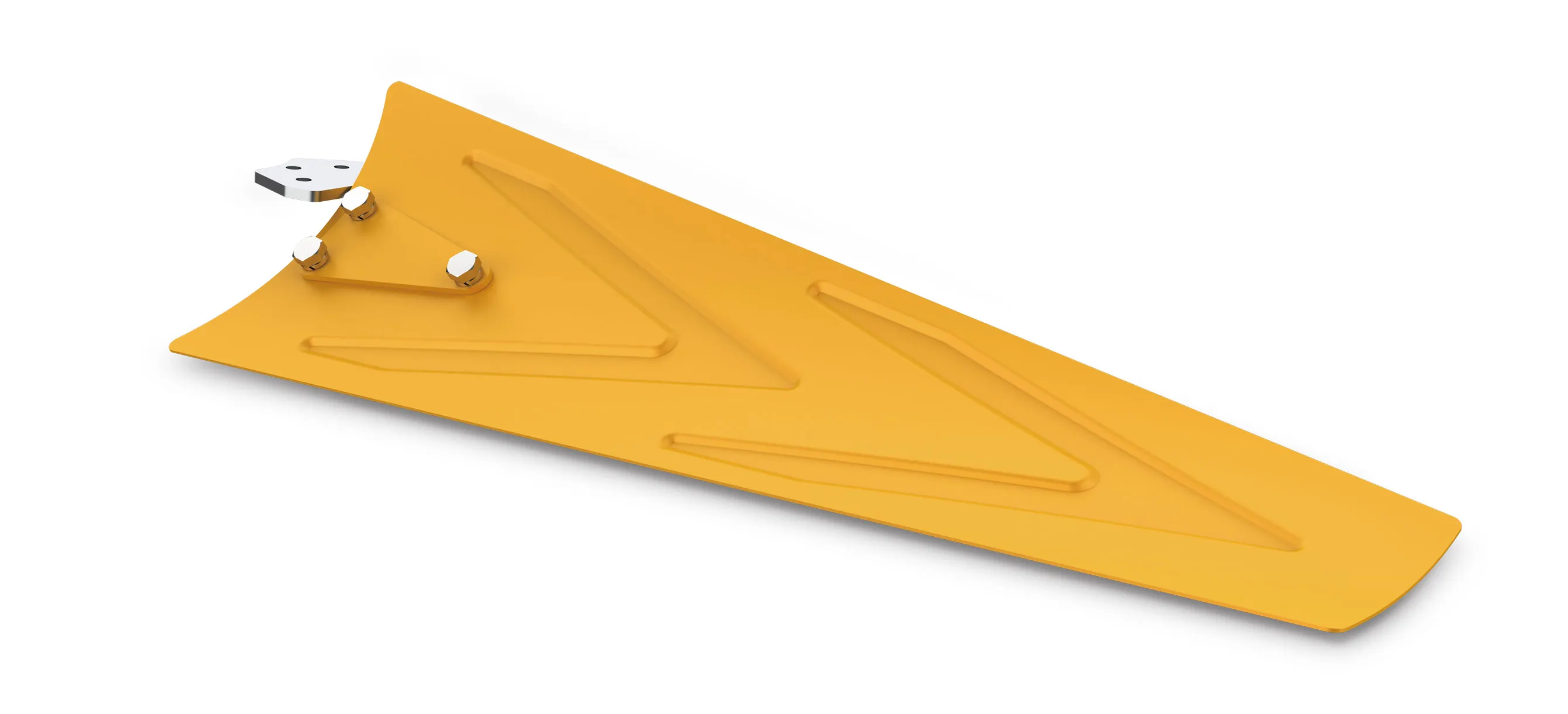

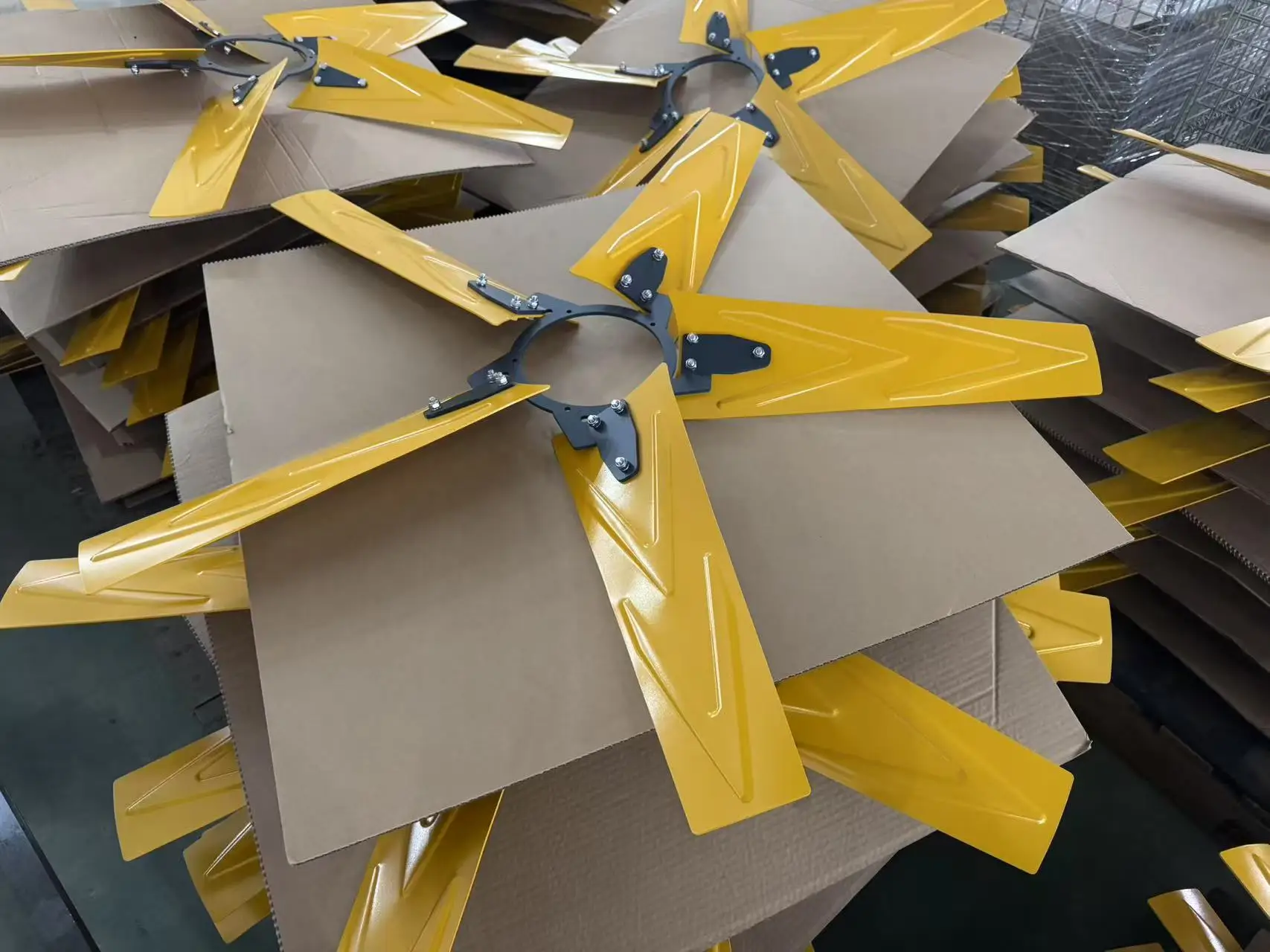

Fan blades
Blade material : aluminum and magnesium .
The fan blade surface is treated with T5+ bright surface oxidation
treatment,which
enhances the corrosion and oxidation resistance of the fan blade and can cope with special enviromental operations.
Big Sized Wall Fans Air move series Main Features
1. Super large air volume: Ultra-long air blowing, the effective distance is more than 25m;
2. Energy saving: With only 0.75KW power, very low energy saving;
3. Quiet & Low noise: Low noise with only 39DB level.
4. Stepless Speed Control: PMSM motor driving fan blade, VFD stepless peed control, easy to operate;
5. Waterproof/Dustproof: Protection level is IP55, waterproof in overall.
6. Durable: All materials of appearance are treated with spray-painted , the barrel is 2mm thick, the ovrall hollowing out to
reduce weight.
2. Energy saving: With only 0.75KW power, very low energy saving;
3. Quiet & Low noise: Low noise with only 39DB level.
4. Stepless Speed Control: PMSM motor driving fan blade, VFD stepless peed control, easy to operate;
5. Waterproof/Dustproof: Protection level is IP55, waterproof in overall.
6. Durable: All materials of appearance are treated with spray-painted , the barrel is 2mm thick, the ovrall hollowing out to
reduce weight.

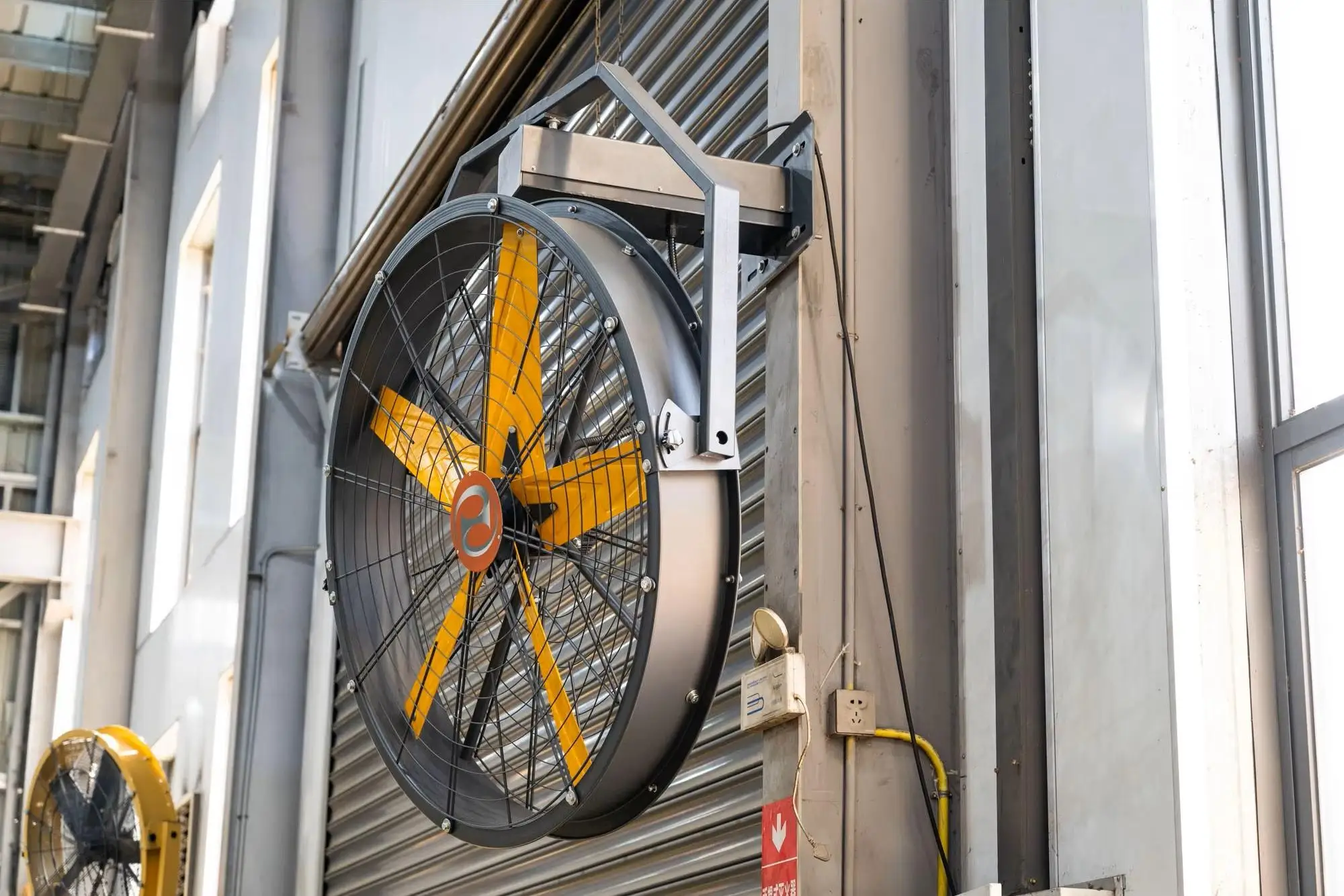

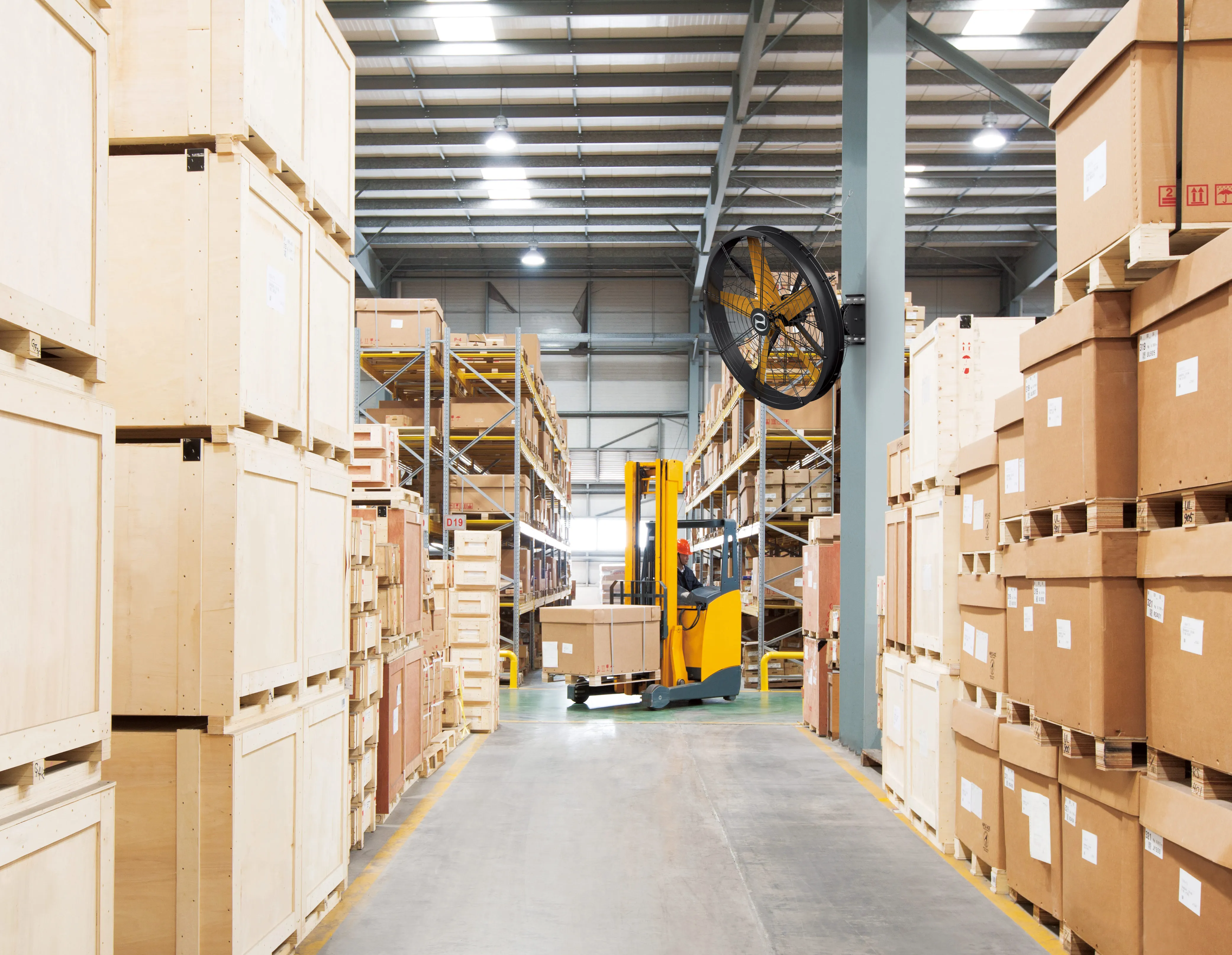

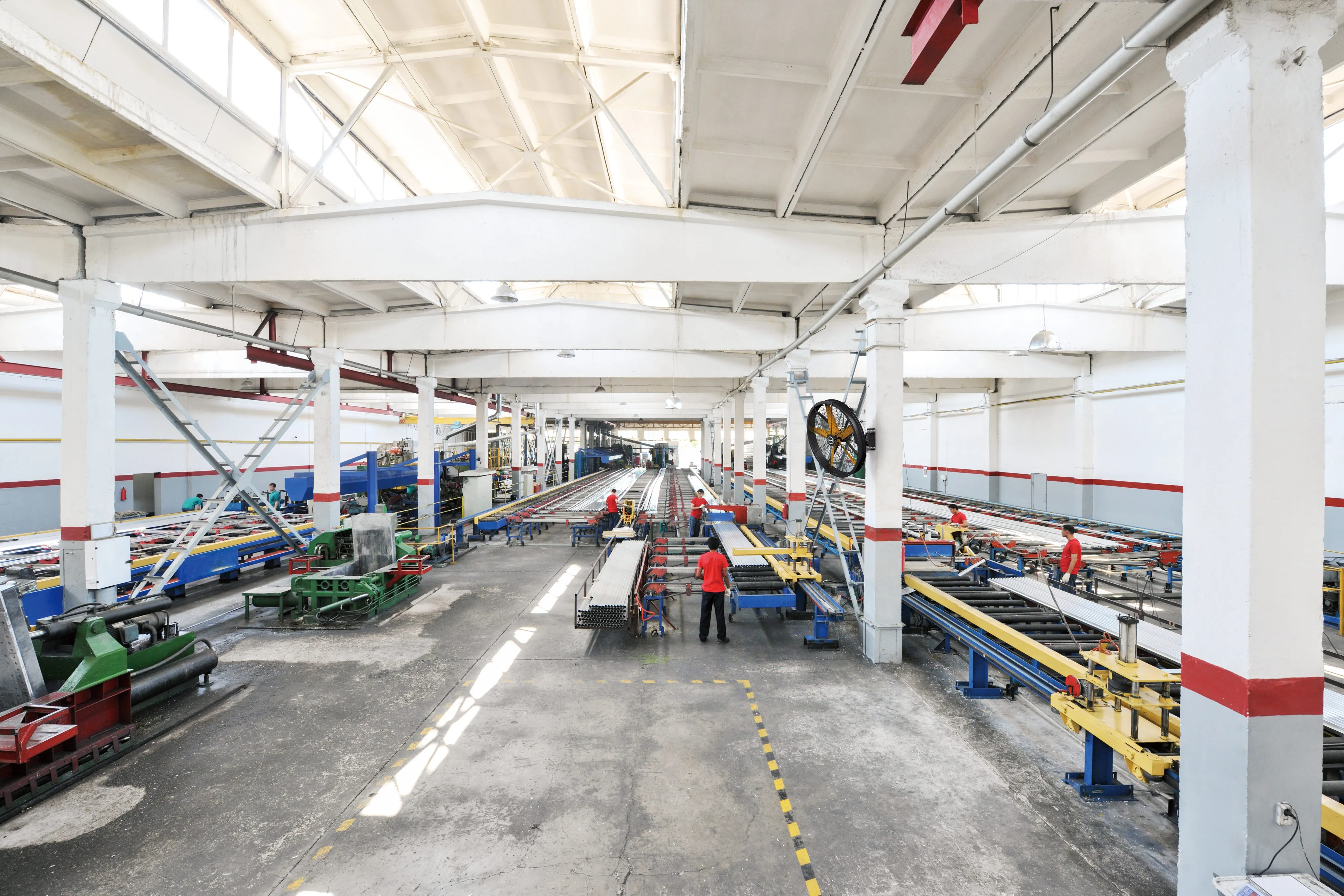

Application case

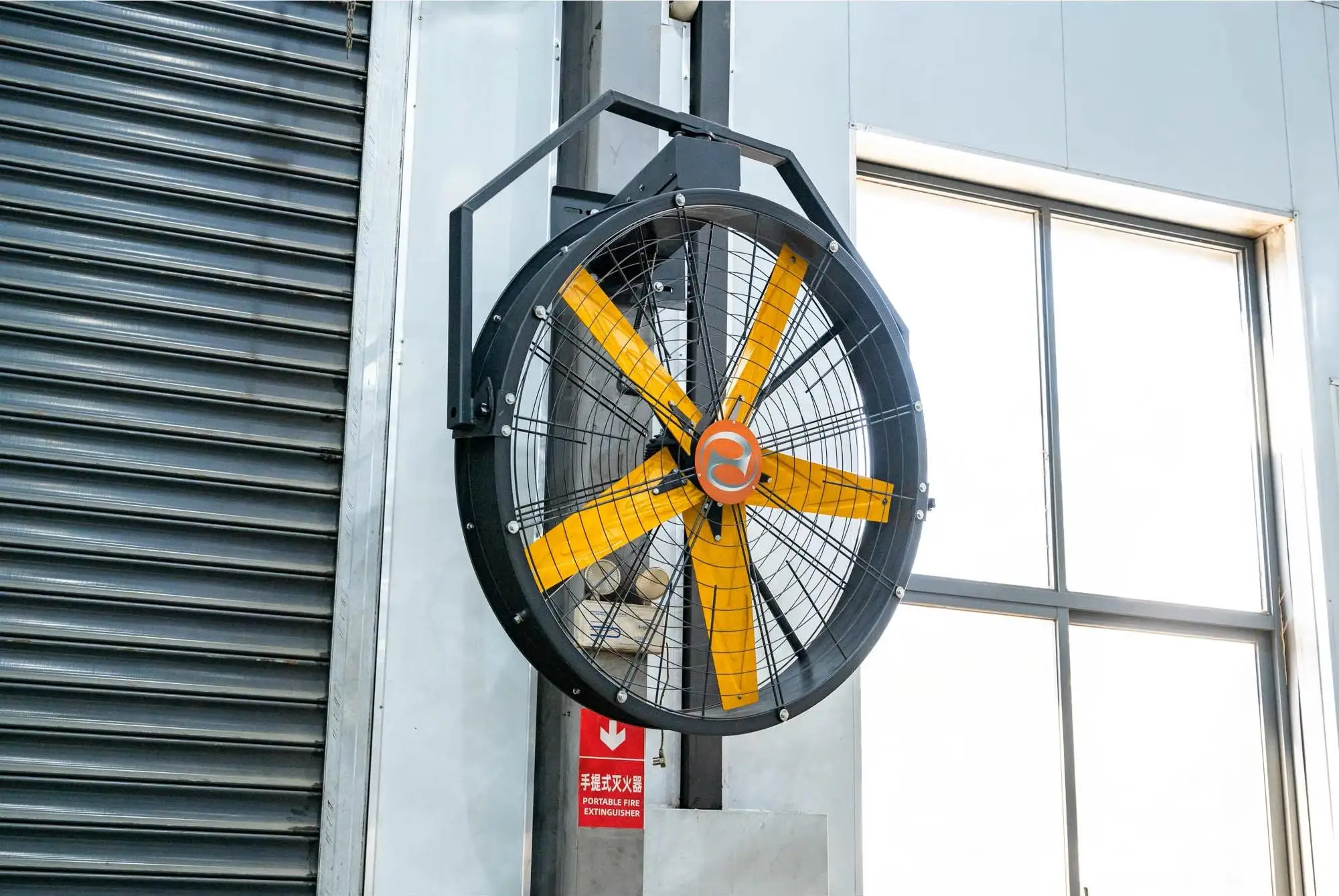

Logistics and Storage Industrial Plants

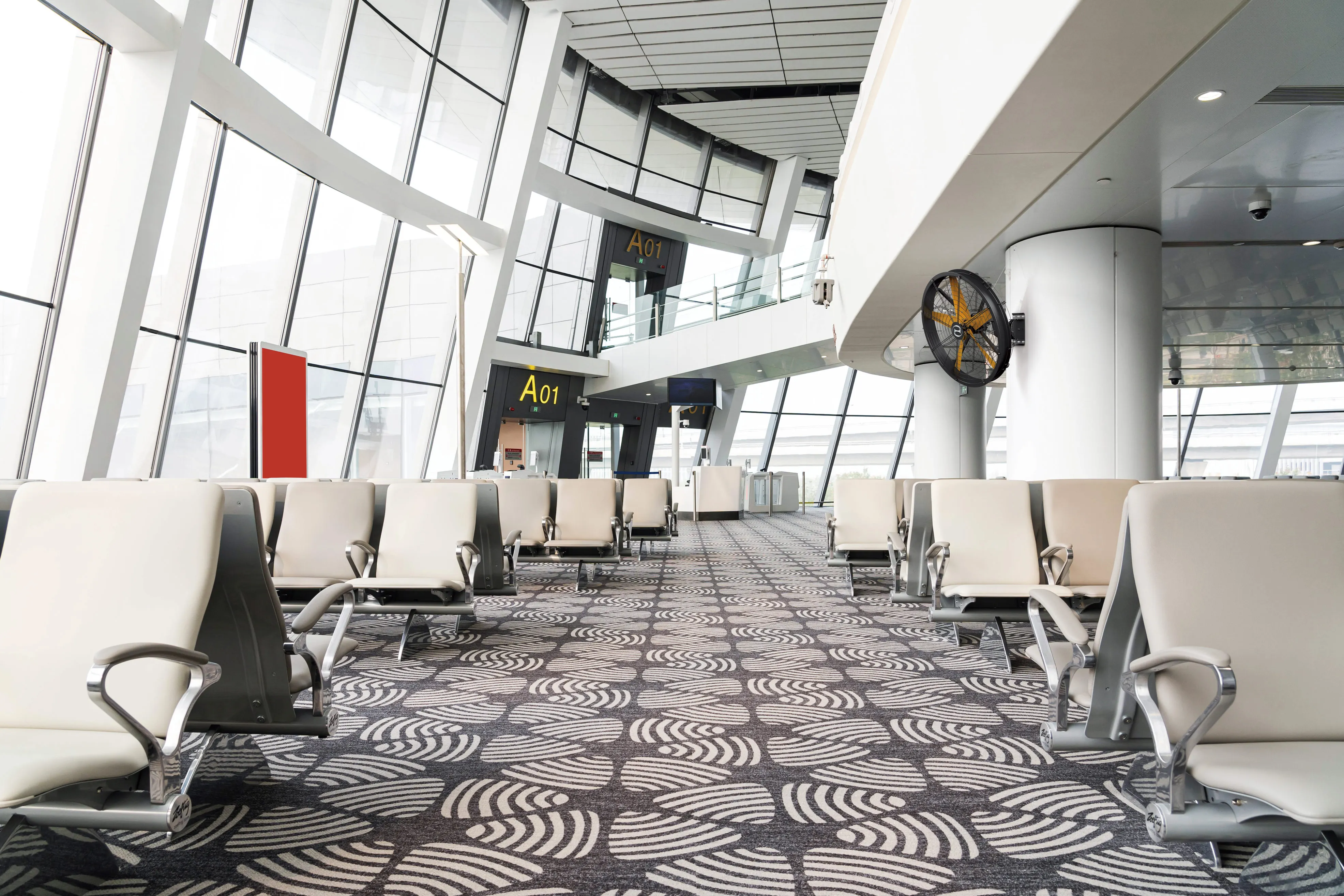

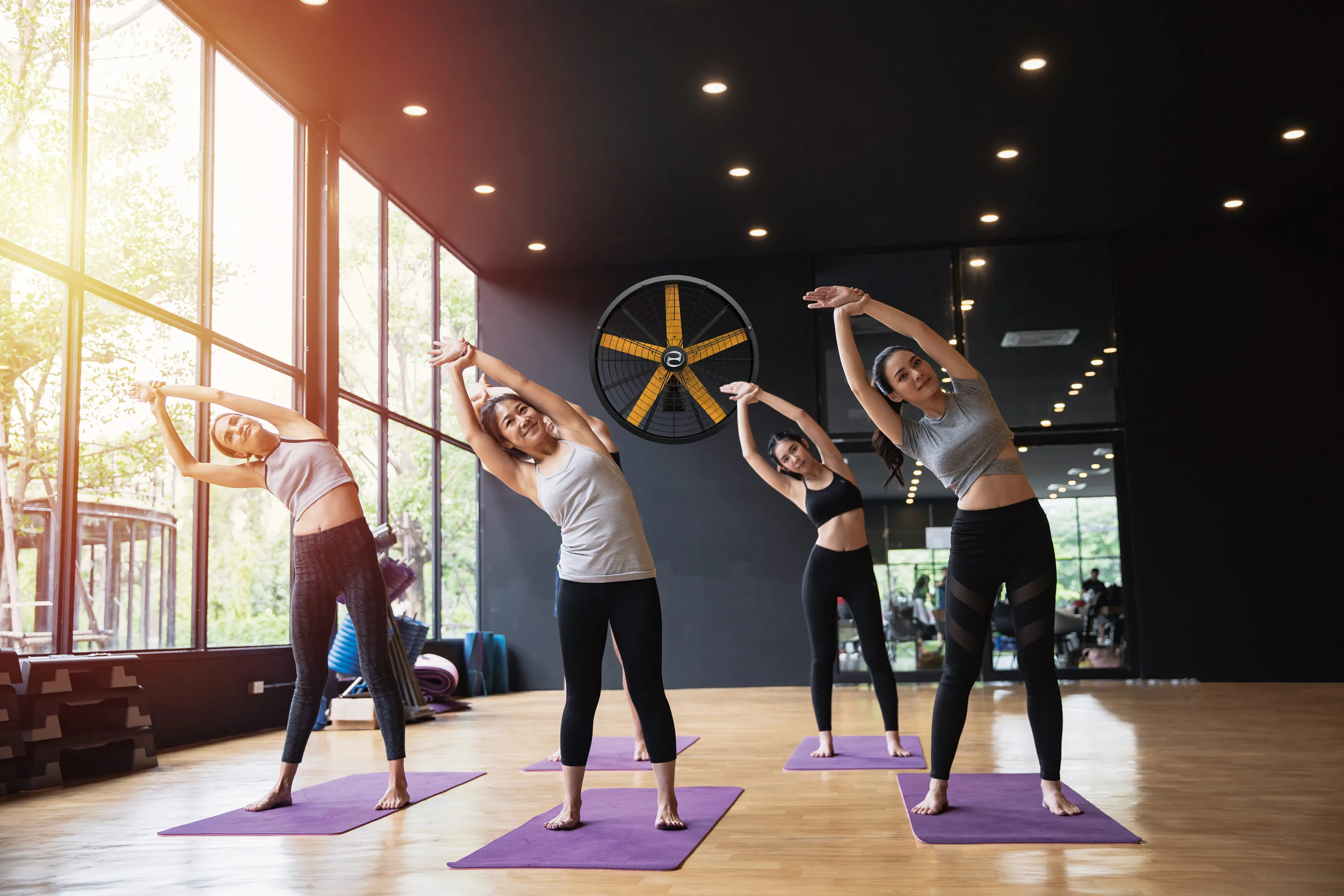

Waiting Room Gym

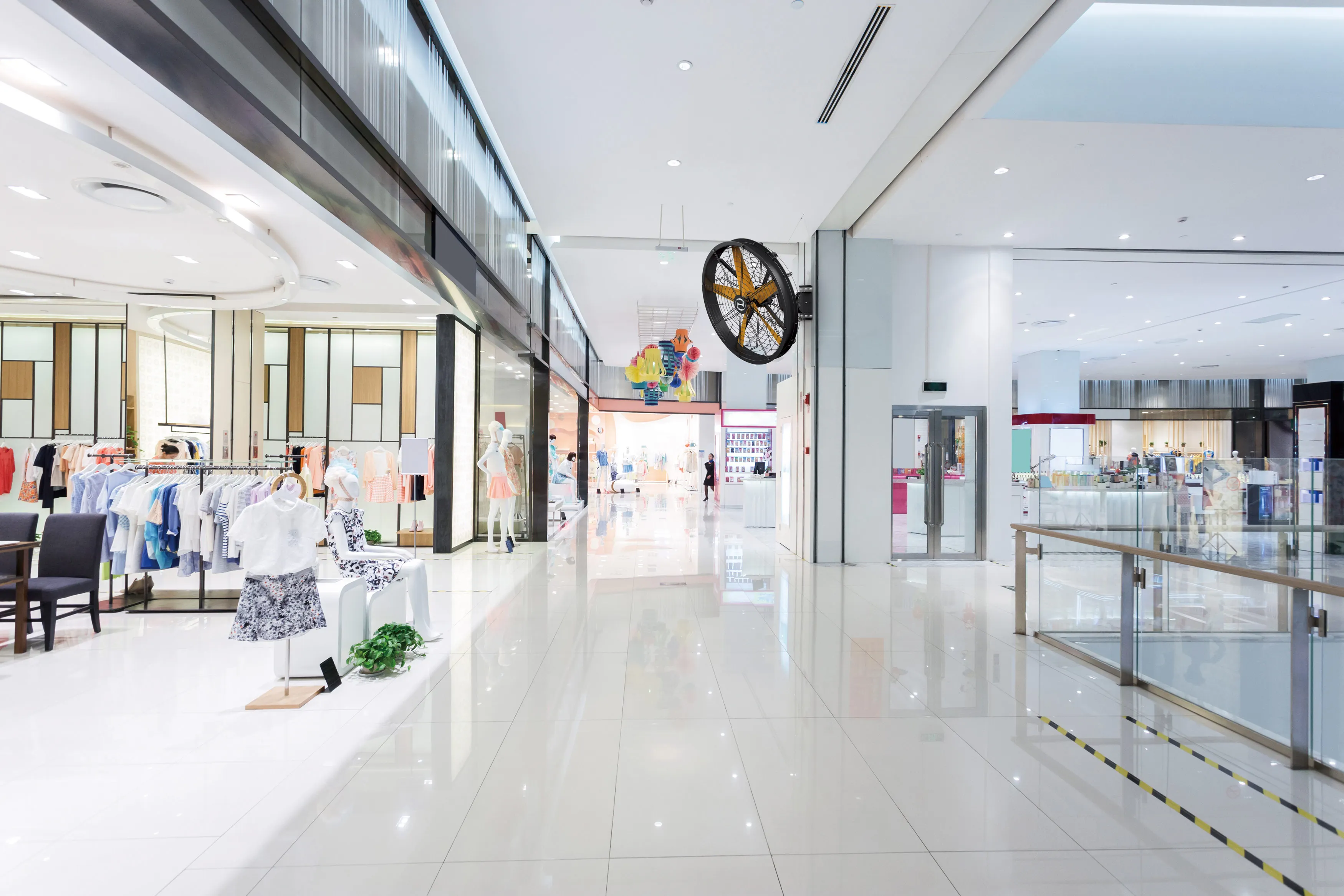

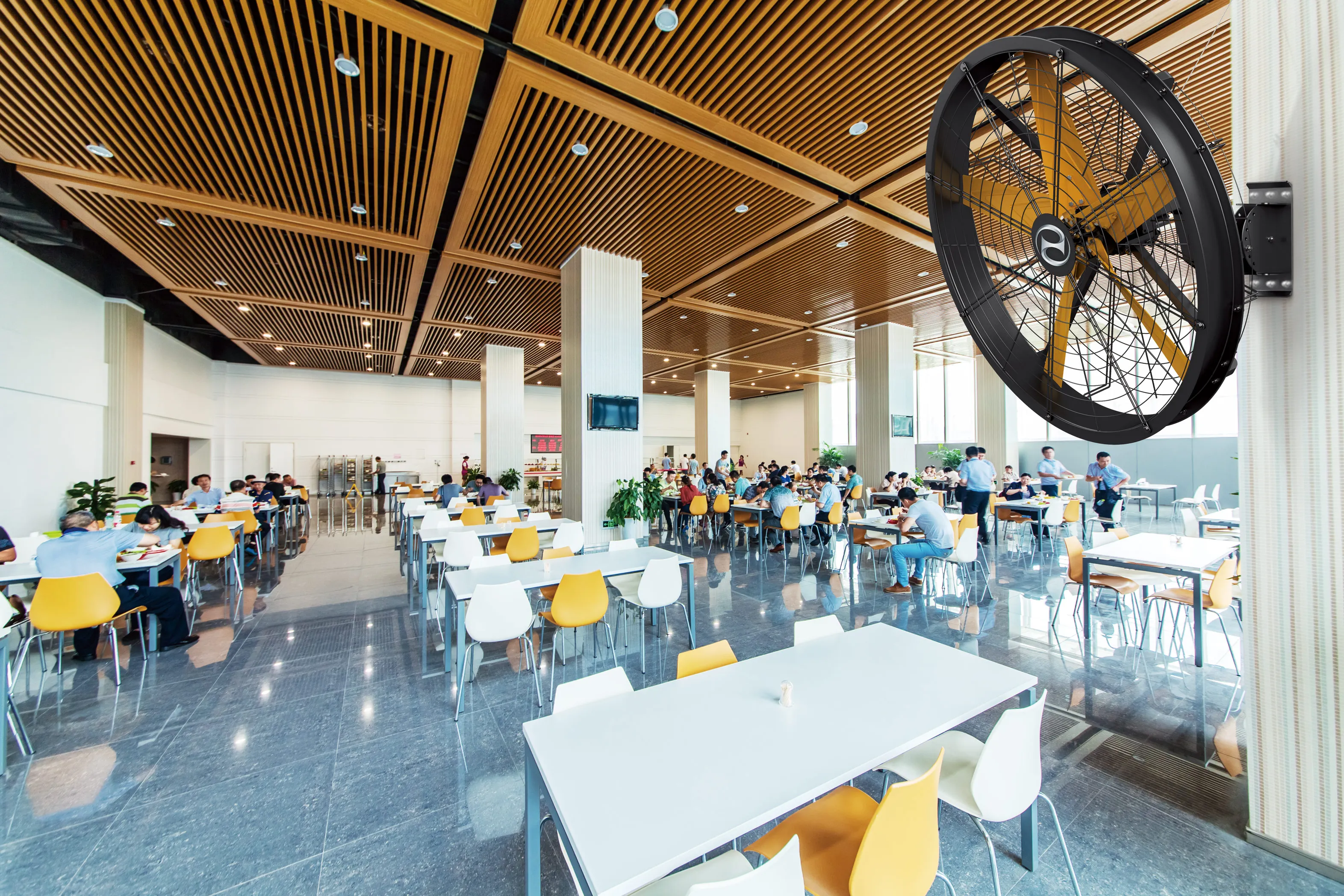

Large Shopping Malls Cafeteria

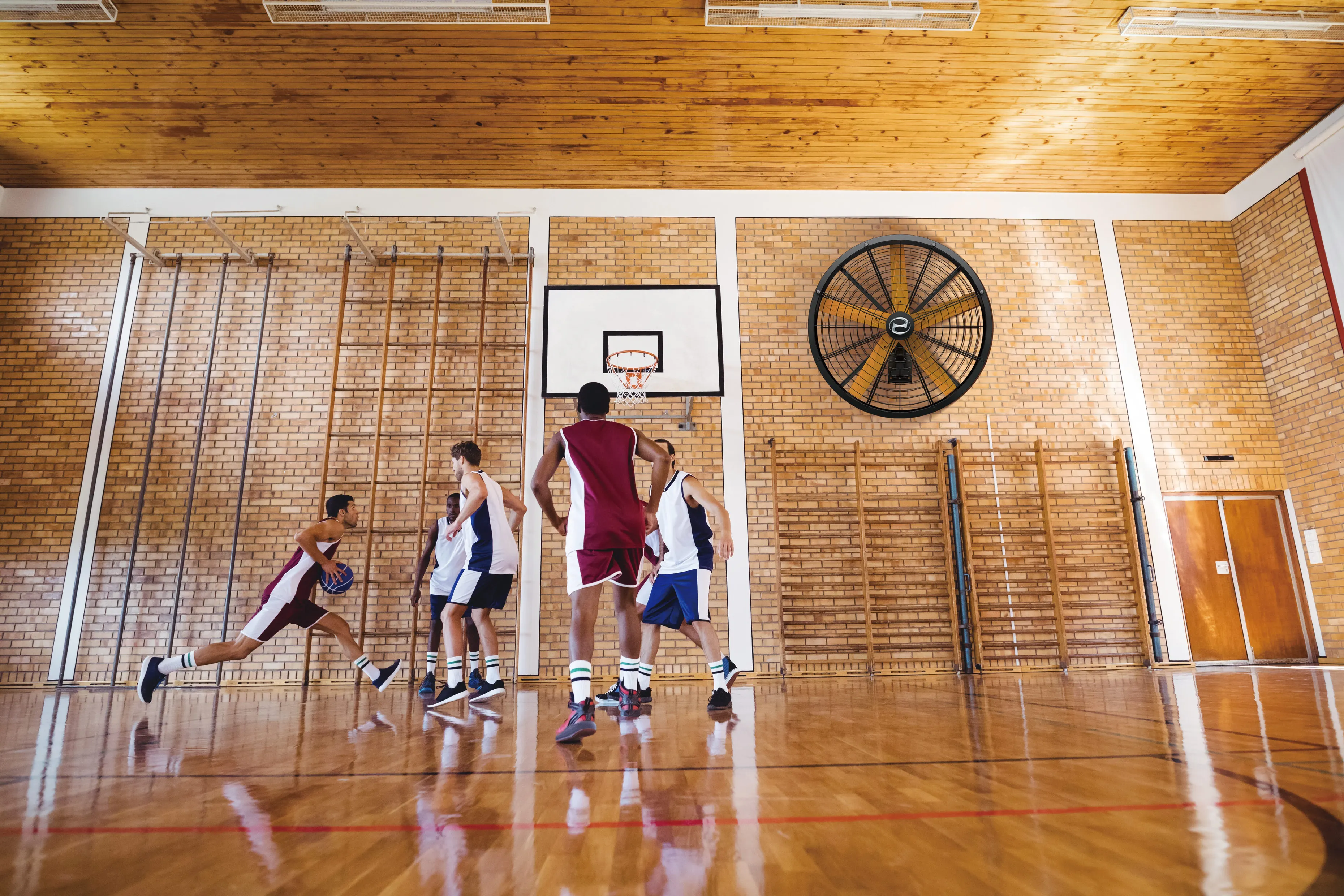

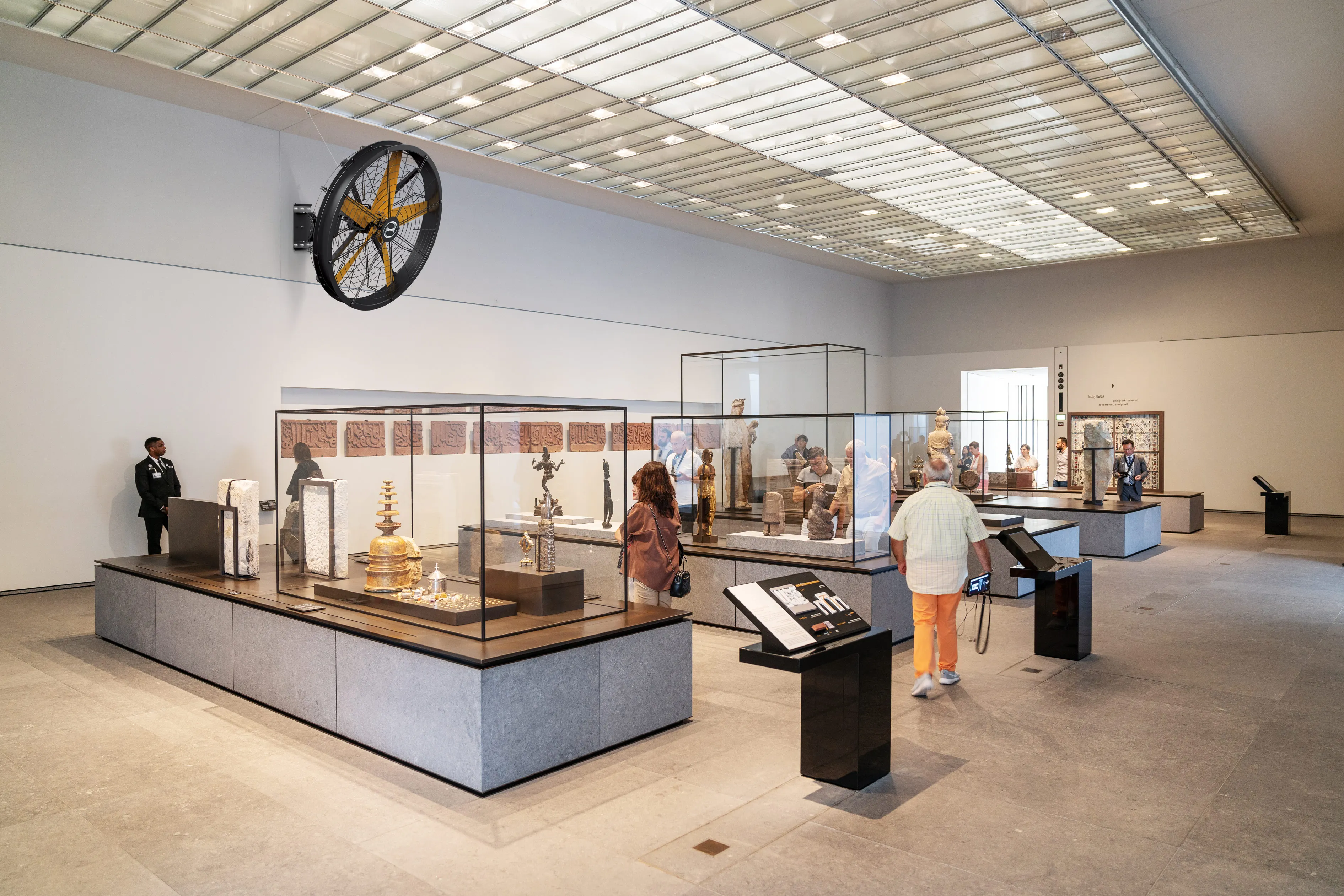

Gymnasium Exhibition Halls

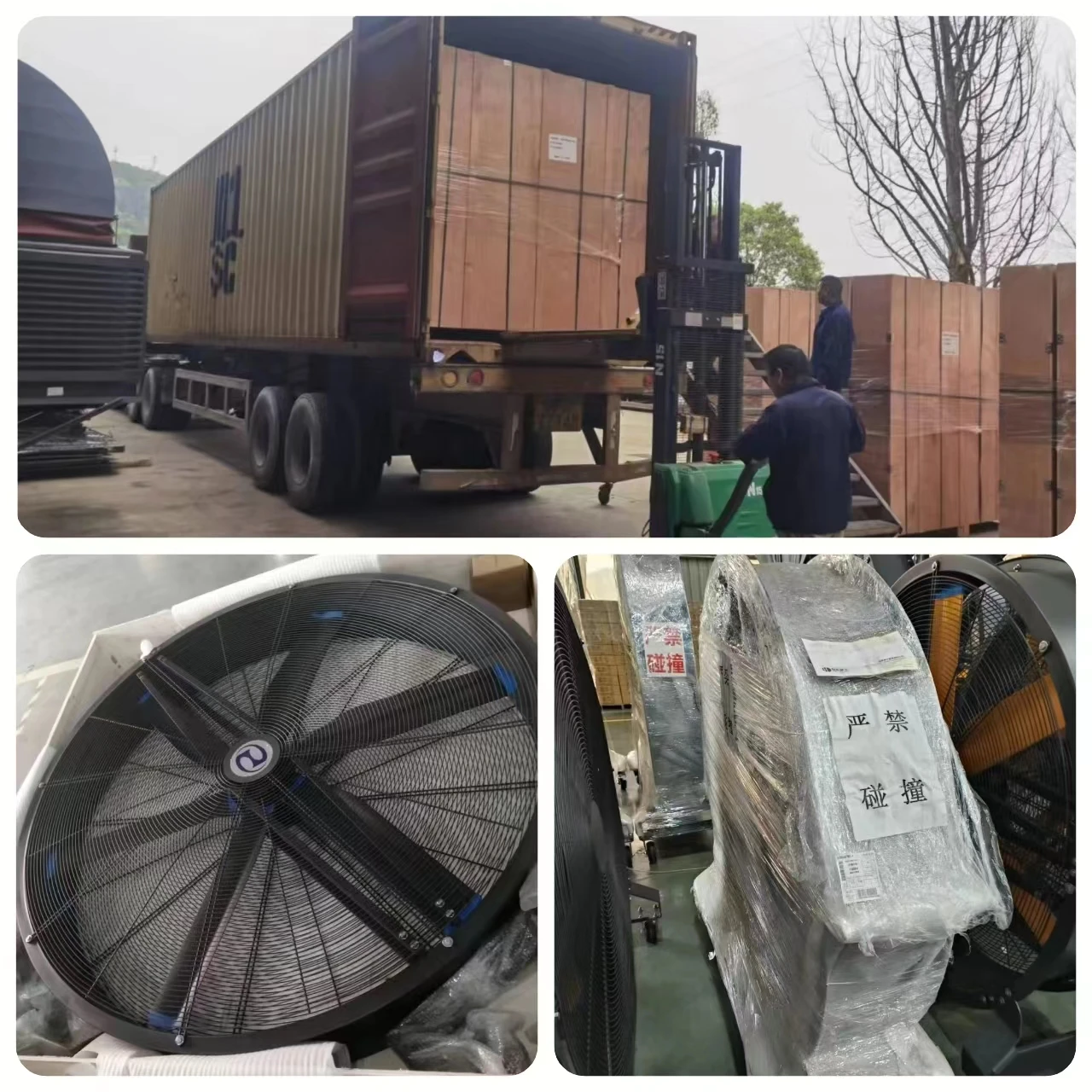

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Exhibition

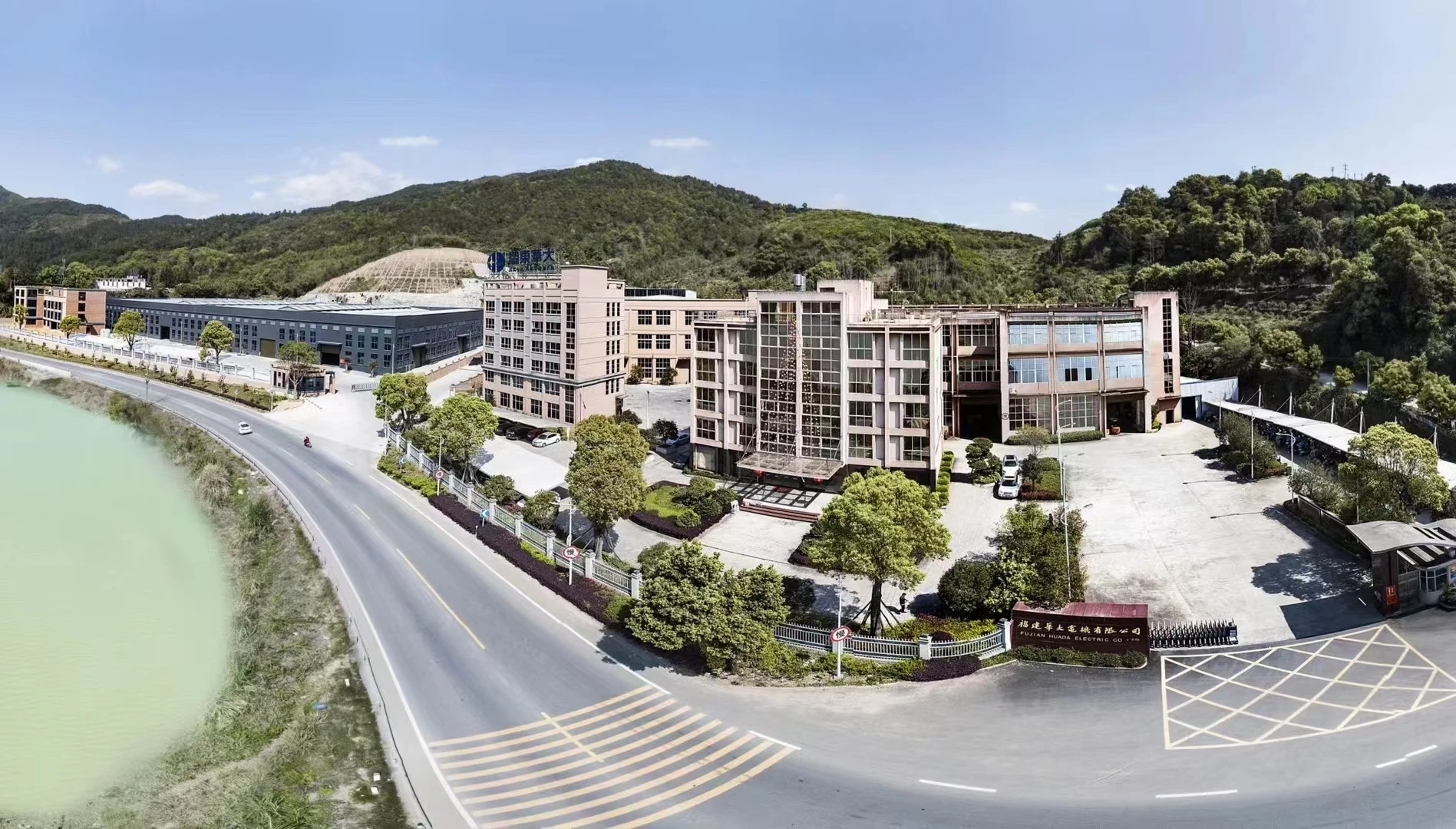

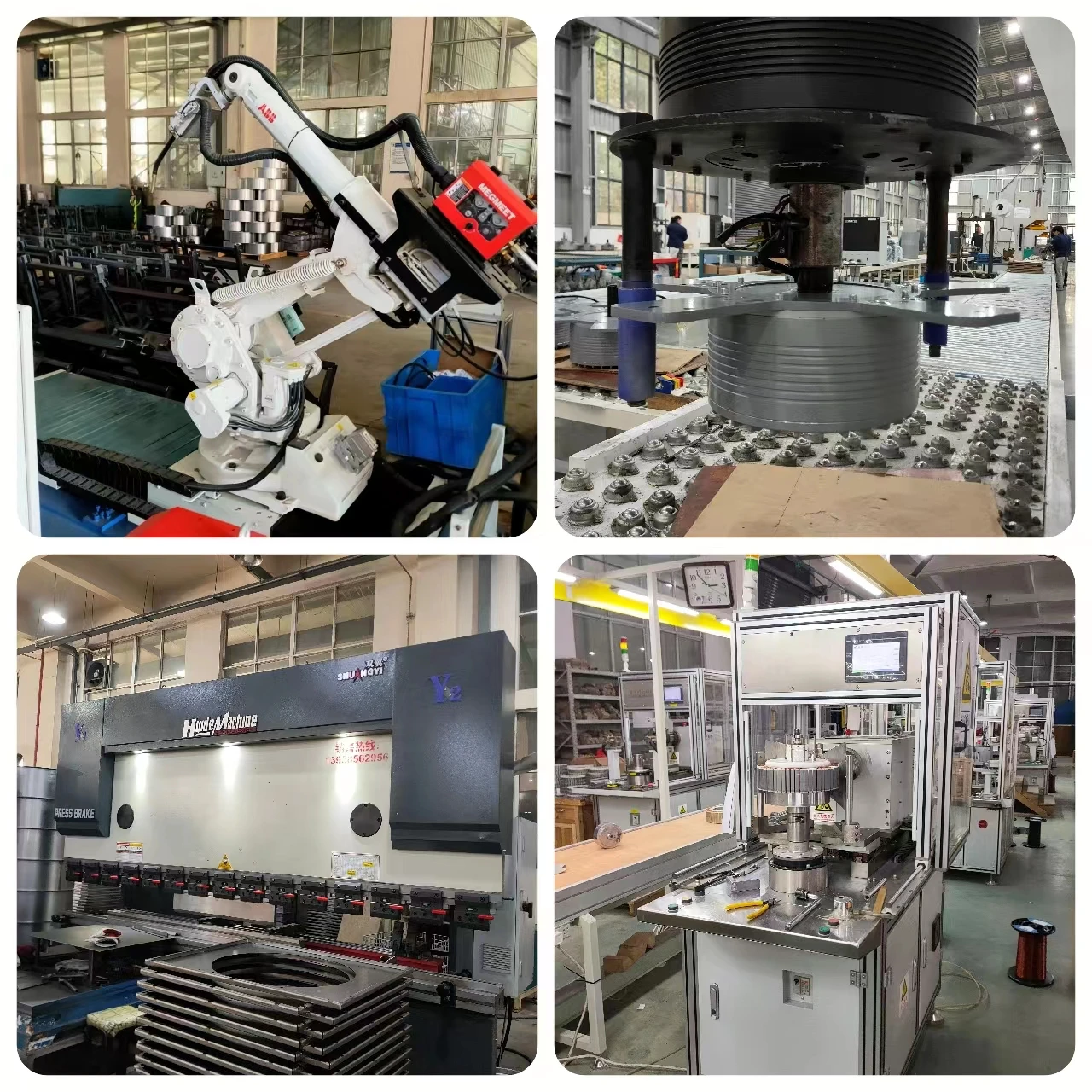

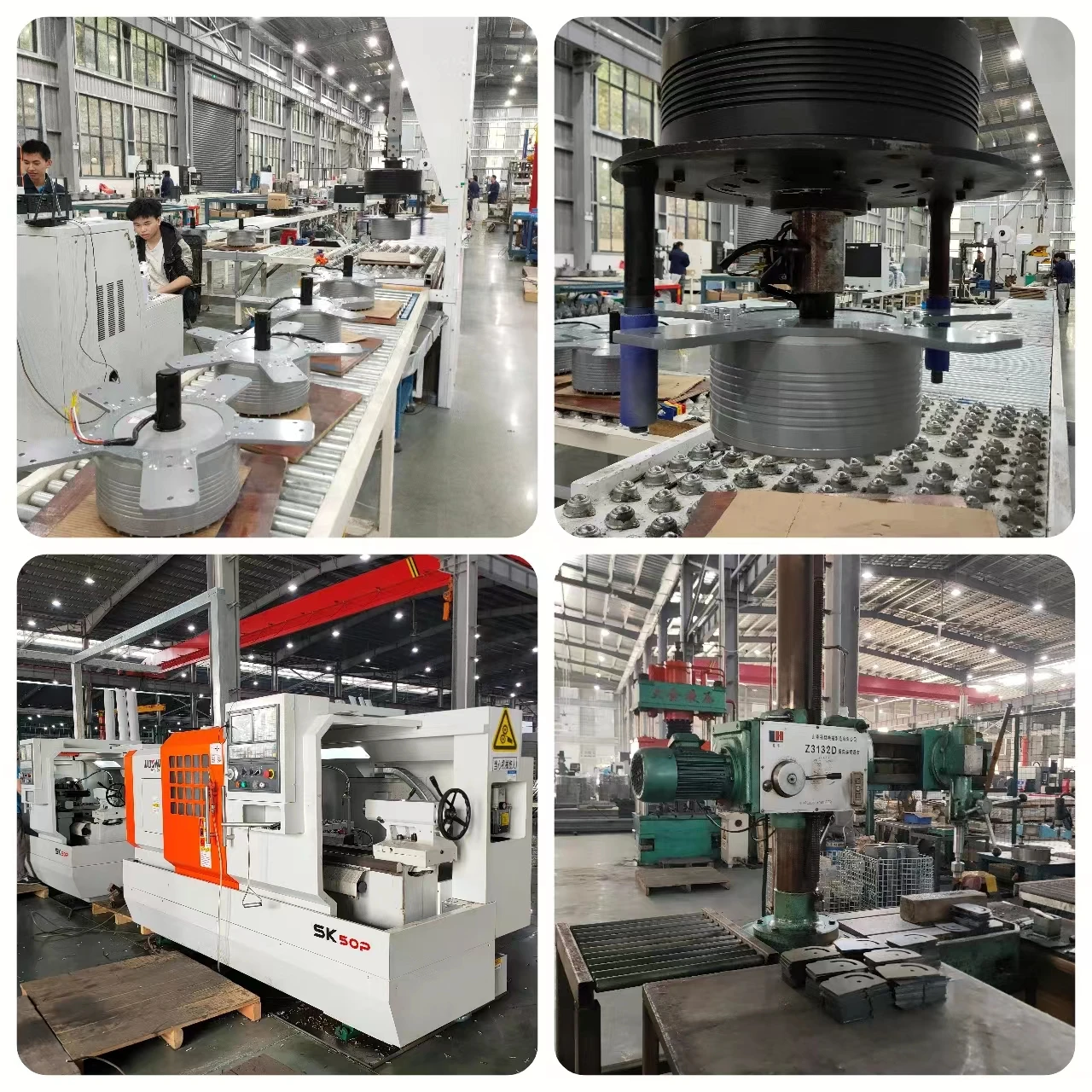

Company Profile
Fujian Huada Electric Co. Ltd.,Founded in 1998, locates in Fu'an, Fujian-the city of small and medium electrical machines.Covering 20,000 square meters and population is over 200 workers. Having R&D,production, sales and after-sales departments.we are a modern enterprise. Well-equipped with production lines and testing machines of motor and fans,we're advanced in manufacturing and management in our area. Besides,our R&D team is very strong. We cooperate with academic institutions and have many intellectual properties. Mostly, we can customize all kinds of special fans for customers. Fujian Huada Electric Co. Ltd.,is a famous manufacturer for fans and high temperature motors in China.Have passed the ISO9001:2008 certification,CE cert.,CCC,NORTH AMERICAN CSA,EU CE,EU ROSH,KOREA KC and so on.We have Three Invention patents, eleven utility-model patents and TWO design patents.Was name"Technology Enterprise of Fujian province" in 2003.All of our products sell all over the world with good reputation and reliability.
FAQ
Q: Are you the factory?
A: Of course, we are a factory focusing on series fans based in Fujian, China, be your direct fan supplier.
Q:Where does your fan use in?
A: This fan is widely used in factory, logistics & warehouse, supermarket, halls etc.
Q: Is it used in electricity?
A: Yes, it's power supply is electricity, but only 0.75KW or less, very energy-saving.
Q: What the price per fan?
A: We will offer you the best price according to the qty and the model.
Q: How long is the delivery time?
A: Normally 7-10 working days.
Q: How long is the warranty?
A: We offer 3-year warranty to guarantee the quality. Most importantly, its service life is above 20 years.
A: Of course, we are a factory focusing on series fans based in Fujian, China, be your direct fan supplier.
Q:Where does your fan use in?
A: This fan is widely used in factory, logistics & warehouse, supermarket, halls etc.
Q: Is it used in electricity?
A: Yes, it's power supply is electricity, but only 0.75KW or less, very energy-saving.
Q: What the price per fan?
A: We will offer you the best price according to the qty and the model.
Q: How long is the delivery time?
A: Normally 7-10 working days.
Q: How long is the warranty?
A: We offer 3-year warranty to guarantee the quality. Most importantly, its service life is above 20 years.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–19 set: US $470 / set
- 20–49 set: US $430 / set
- 50+ set: US $390 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this wall fan?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the wall fan be supplied for my local voltage?
The standard configuration is 220 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
