Key specification for this wall mount oscillating fan: power supply Electric Power, power 75~145W(0.10~0.19hp). Everything below is reproduced from the factory data sheet. Made by Foshan Shunde Tuoqiu Wanhao Technology Co., Ltd. (5 years on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.

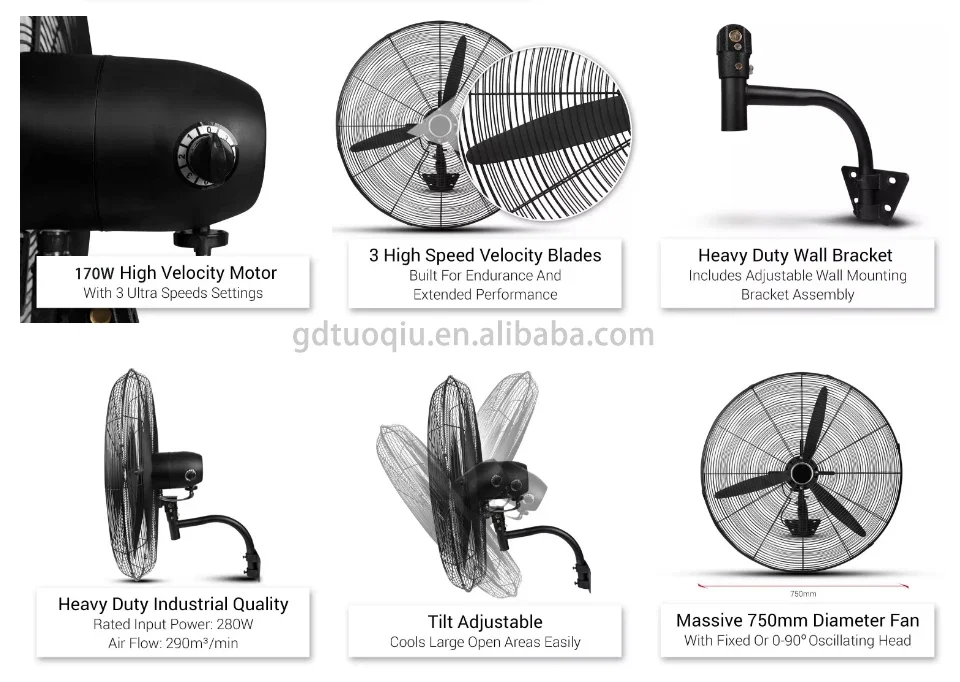

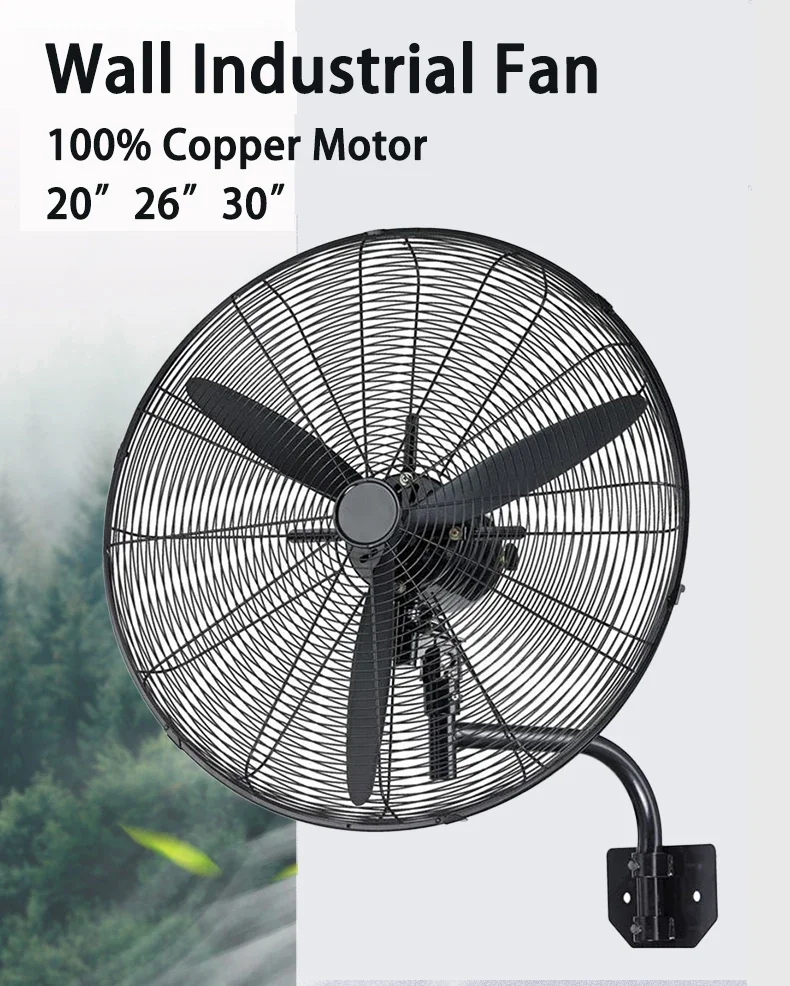

Key Features of This Wall Mount Oscillating Fan
- Model Number: TQ-Stand Fan,TQ-Wall fan
- Power (W): 75~145W(0.10~0.19hp)
- Power Source: Electric
- Power Supply: Electric Power
- Material: Metal
- Speed: 3 Speeds
Technical Specifications
| Application | Hotel, Outdoor, Garage, Commercial, Household |
|---|---|
| Type | Air Cooling Fan, 3 In 1 Industrial Fan |
| Power (W) | 75~145W(0.10~0.19hp) |

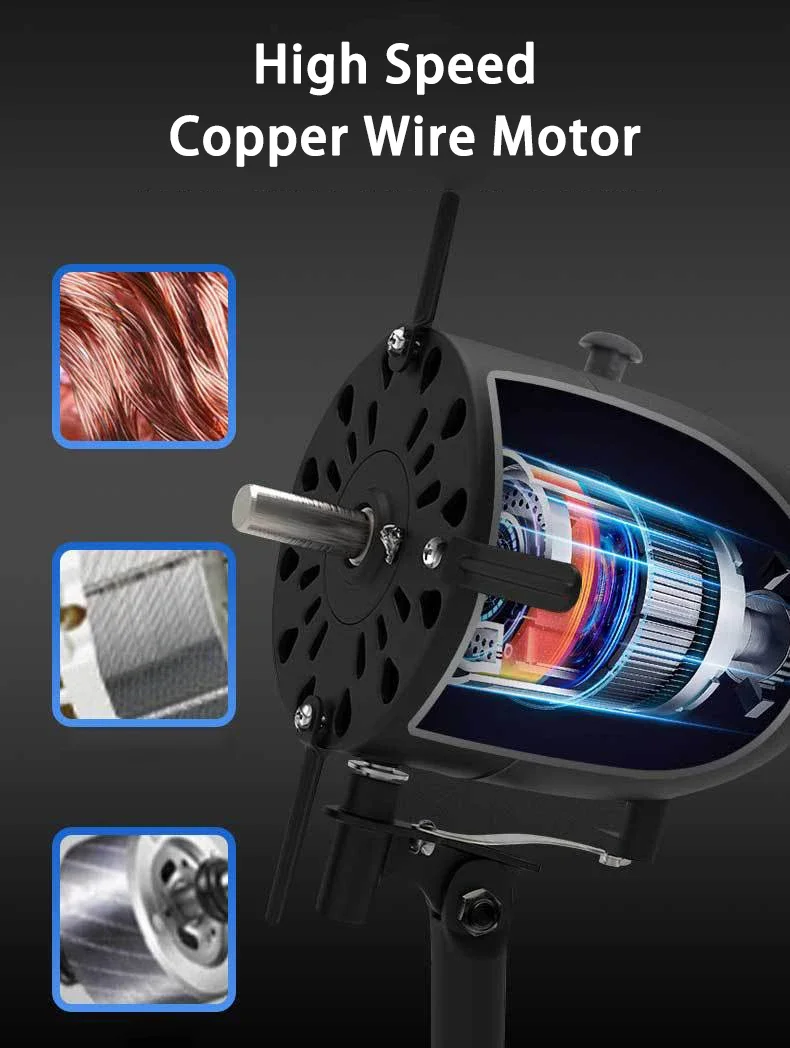

| Motor | AC Motor |
| Speed | 3 Speeds |

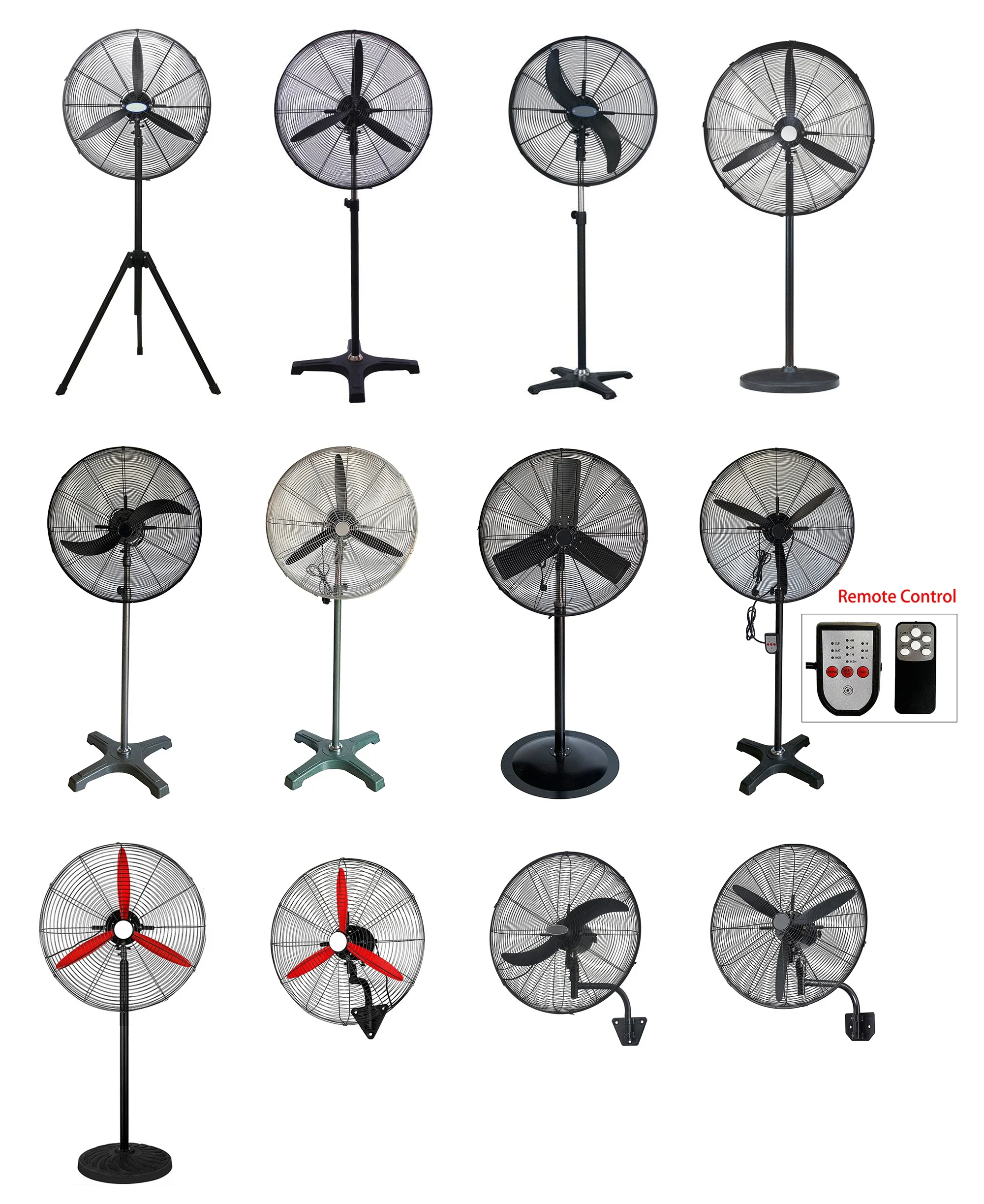

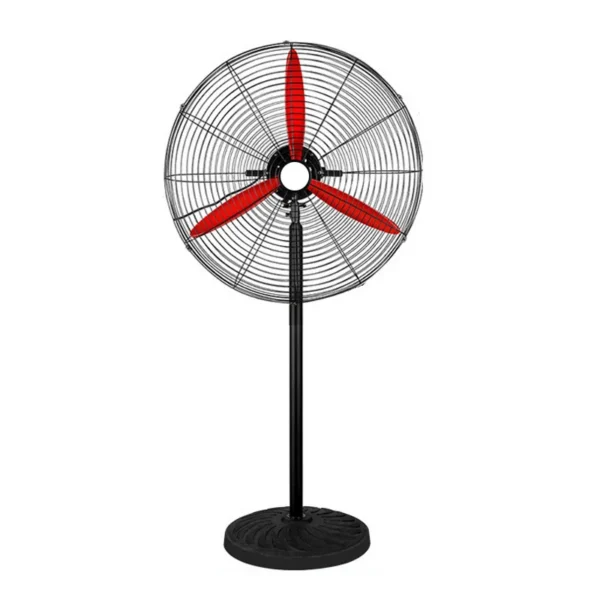

| Installation | Pedestal, Wall-mounted |
| Material | Metal |
| Energy Efficiency Rating | Class A |
| Warranty | 3 Years |
| After-Sales Service Provided | Free Spare Parts |
| Power Source | Electric |
| Number Of Blades | 3 |

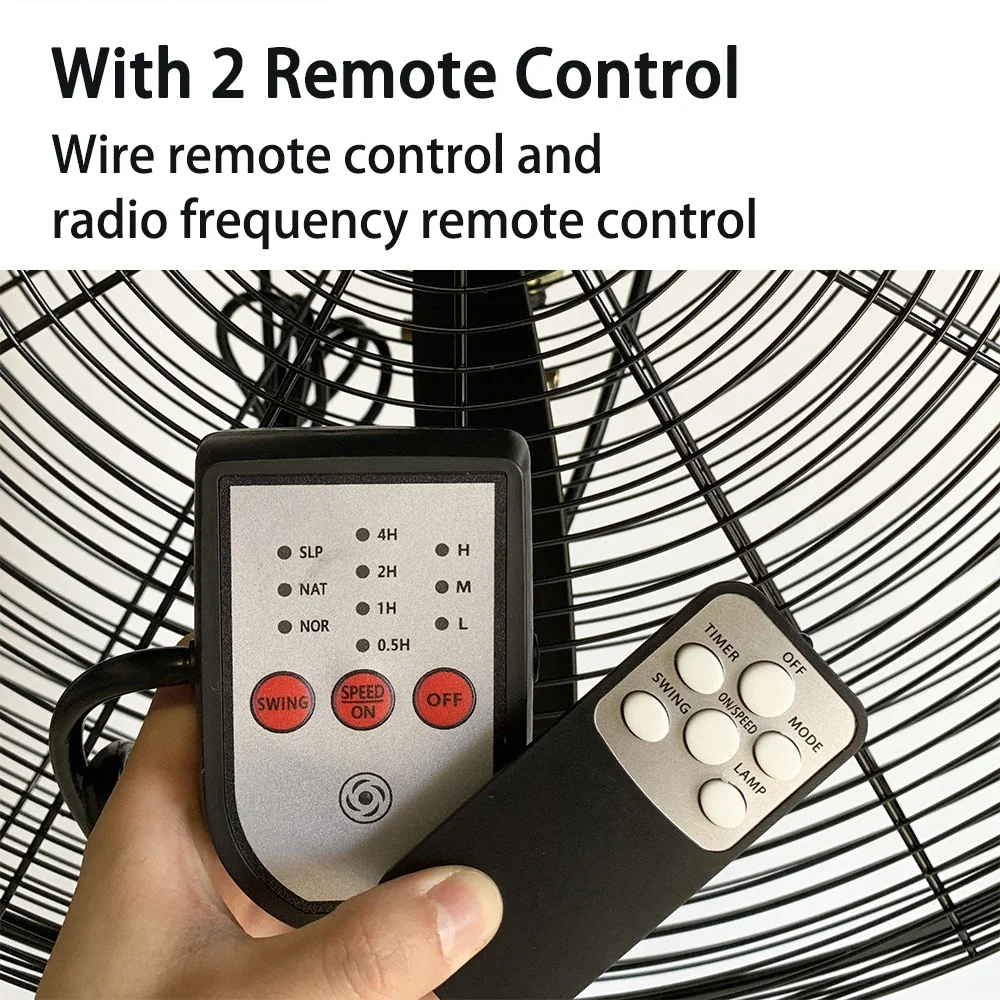

| Control Method | Remote Control |
| Feature | Strong Wind |
| App-Controlled | No |
| Operating Language | English |
| Private Mold | Yes |

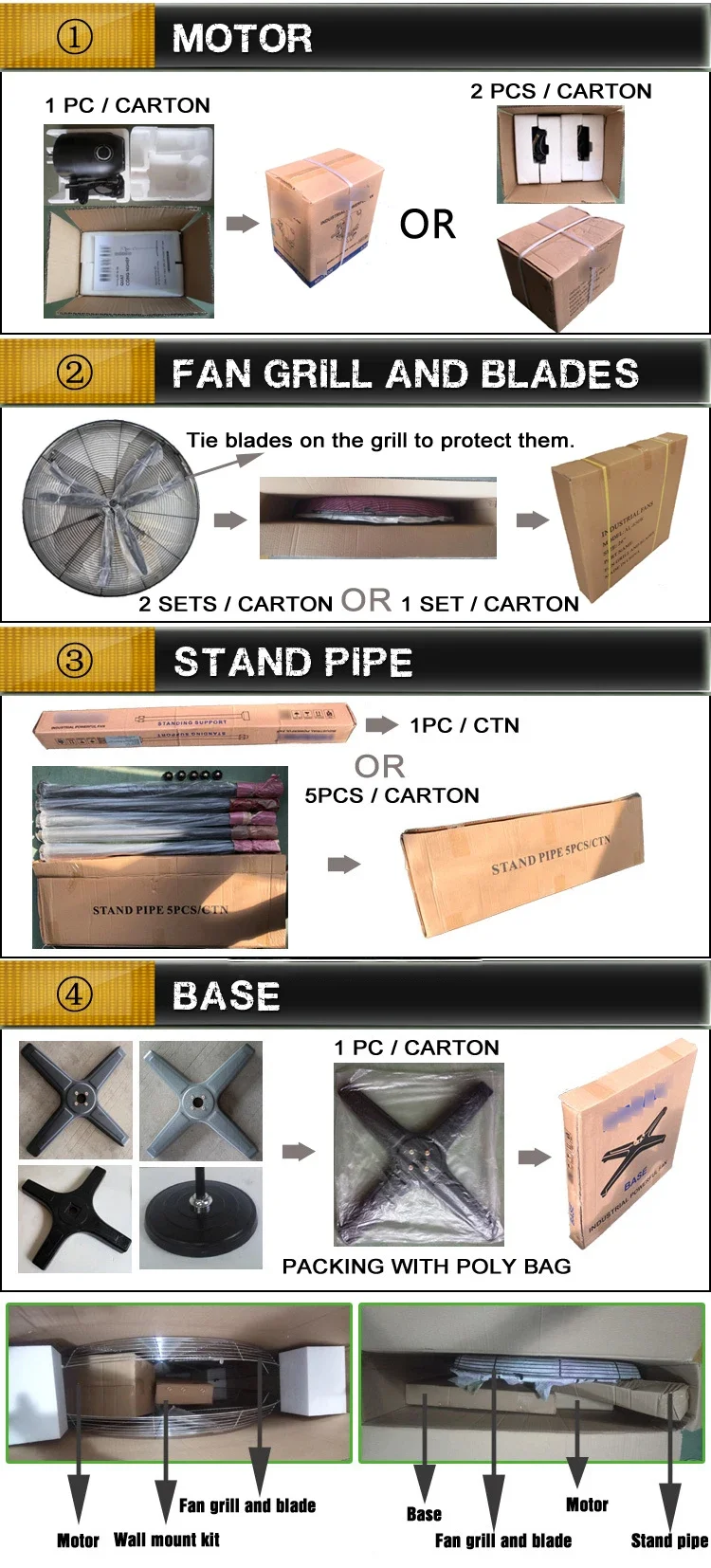

| Packaging Types | Corrugated Box |
| Place Of Origin | Guangdong, China |
| Brand Name | Tuoqiu |
| Model Number | TQ-Stand Fan,TQ-Wall fan |
| Product Name | Electric Industrial Fan |

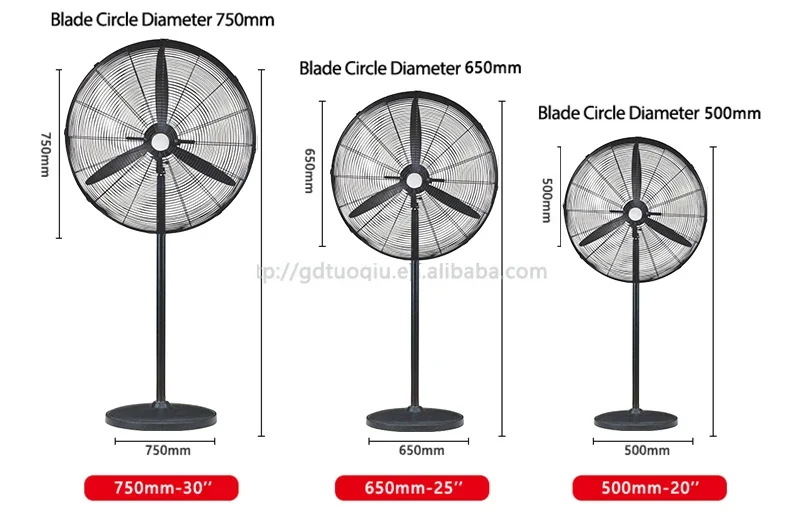

| Size | 20 26 30 Inch |
| Color | Black Red |
| Certification | CCC, CE, CB |

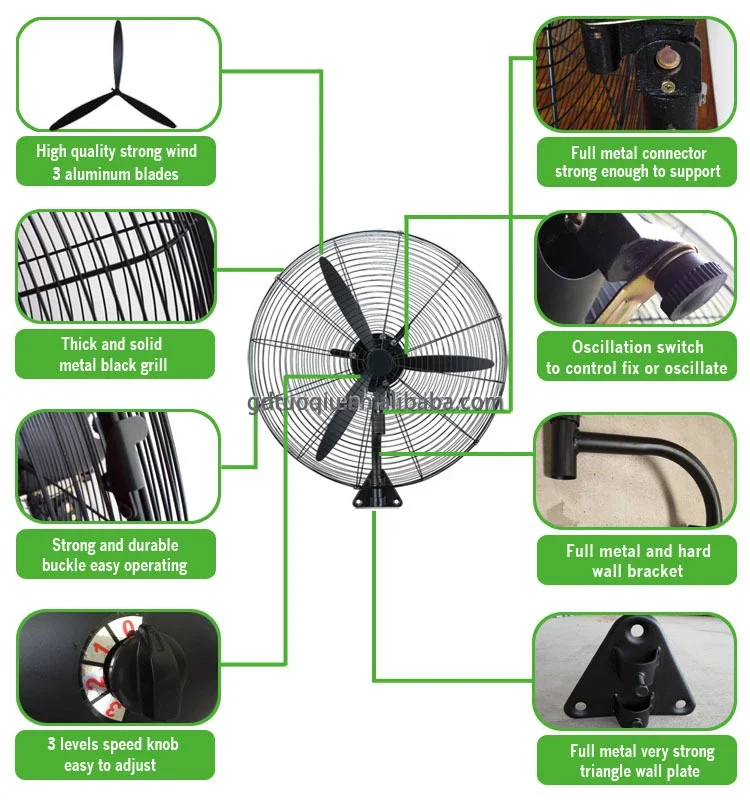

| Blade | 3 Metal Blades |
| Function | Cooling Air |
| Power Supply | Electric Power |
| Selling Units | Single item |
| Single Package Size | 100X100X100 cm |
| Single Gross Weight | 20.0 kg |

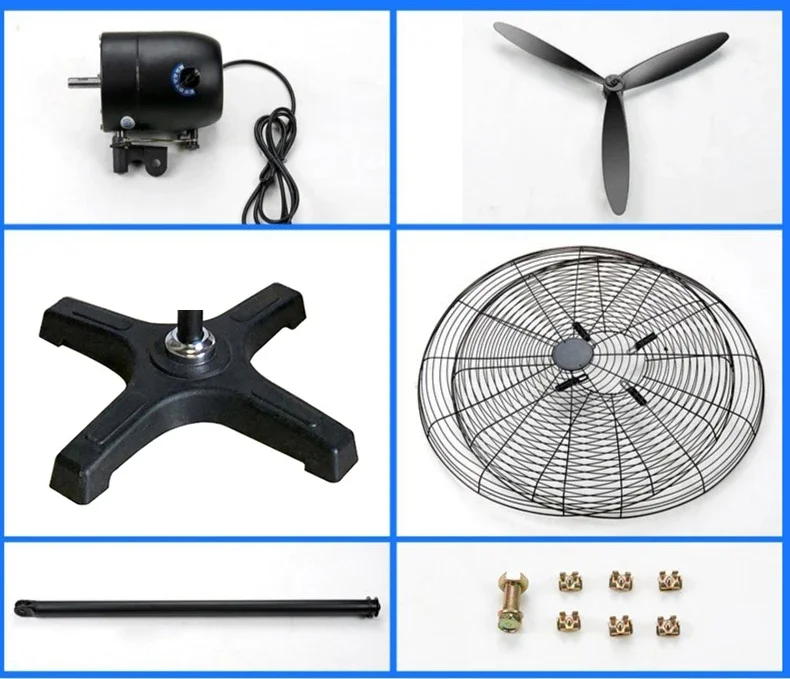

Product Details
Why Choose Us:
OEM/ODM Professional Service:

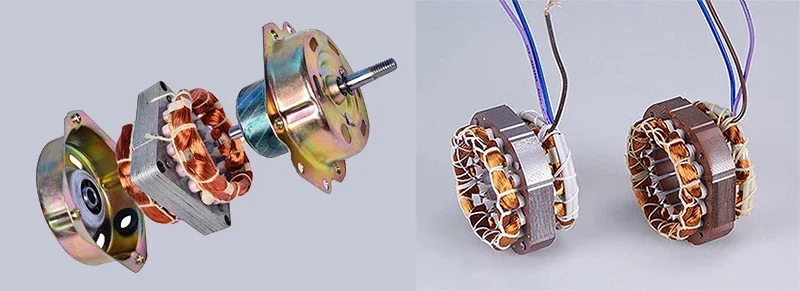

Model | Size | Color | Motor Material | Voltage (V) | Power (W) | RPM (r/min) |
TQ-NJS1-500 | 20 | Black | Copper | 220v/50Hz | 76, 78, 90 | 1160, 1280, 1400 |
TQ-NJS1-650 | 26 | Black | Copper | 220v/50Hz | 131, 132, 135 | 1060, 1210, 1350 |
TQ-NJS1-750 | 30 | Black | Copper | 220v/50Hz | 161, 162, 167 | 1060, 1200, 1350 |
TQ-NJS2-500 | 20 | Black | Aluminium | 220v/50Hz | 78, 80, 88 | 1150, 1270, 1380 |
TQ-NJS2-650 | 26 | Black | Aluminium | 220v/50Hz | 117, 127, 135 | 1020, 1230, 1340 |
TQ-NJS2-750 | 30 | Black | Aluminium | 220v/50Hz | 134, 140, 145 | 1050, 1230, 1330 |

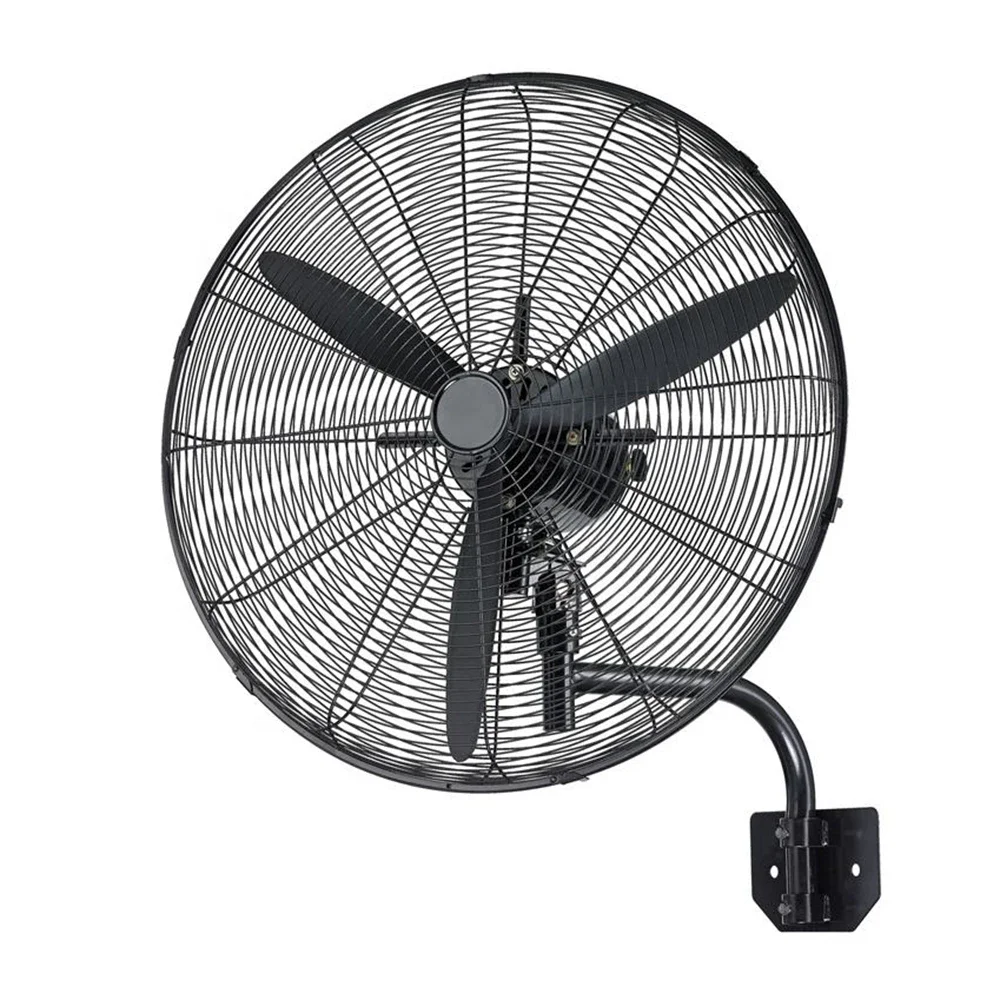

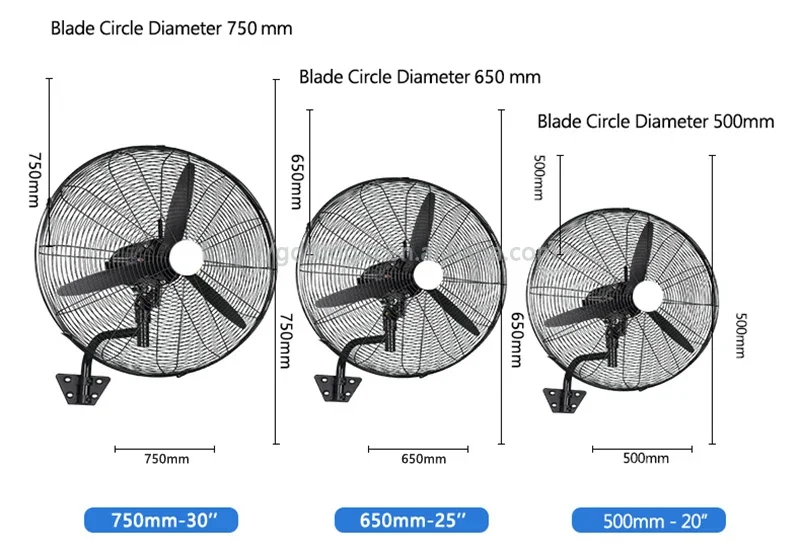

Model | Size | Color | Motor Material | Voltage (V) | Power (W) | RPM (r/min) |
TQ-NJS1-W-500 | 20 | Black | Copper | 220v/50Hz | 76, 78, 90 | 1160, 1280, 1400 |
TQ-NJS1-W-650 | 26 | Black | Copper | 220v/50Hz | 131, 132, 135 | 1060, 1210, 1350 |
TQ-NJS1-W-750 | 30 | Black | Copper | 220v/50Hz | 161, 162, 167 | 1060, 1200, 1350 |
TQ-NJS2-W-500 | 20 | Black | Aluminium | 220v/50Hz | 78, 80, 88 | 1150, 1270, 1380 |
TQ-NJS2-W-650 | 26 | Black | Aluminium | 220v/50Hz | 117, 127, 135 | 1020, 1230, 1340 |
TQ-NJS2-W-750 | 30 | Black | Aluminium | 220v/50Hz | 134, 140, 145 | 1050, 1230, 1330 |
Ordering and Pricing
- Minimum order quantity: 2 piece
- Volume pricing:
- 2–99 piece: US $30.5 / piece
- 100–499 piece: US $27.5 / piece
- 500–999 piece: US $25.5 / piece
- 1000+ piece: US $23.5 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this wall mount oscillating fan?
The standard minimum order quantity is 2 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.

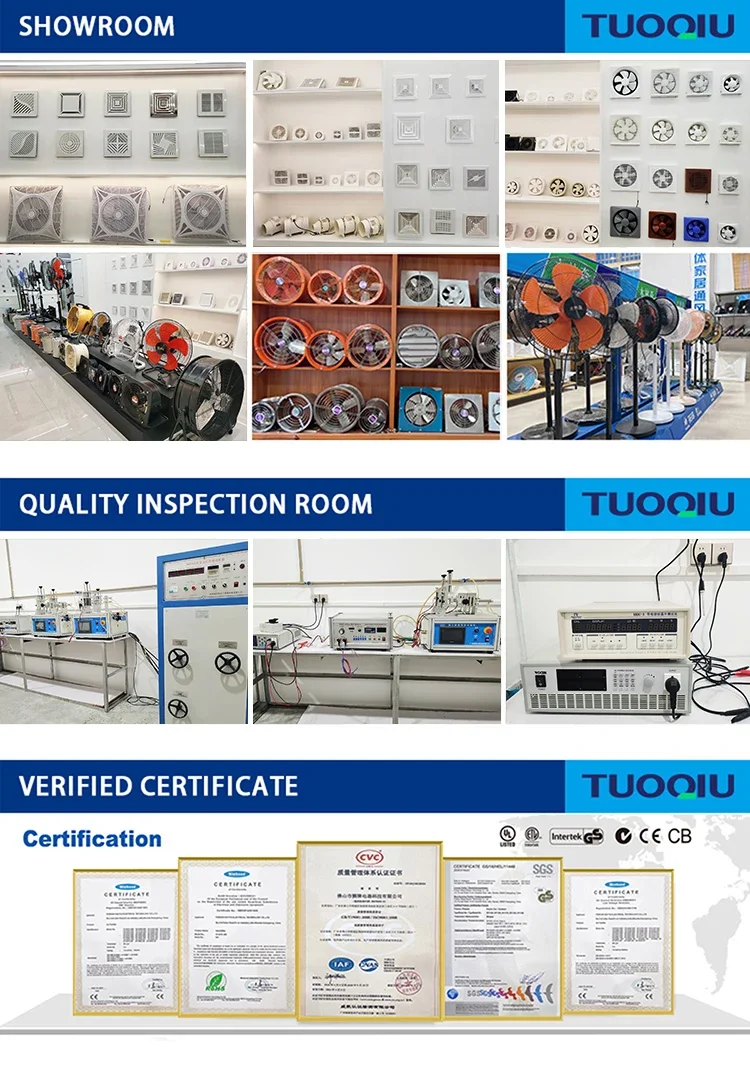

Which certifications does this wall mount oscillating fan carry?
It is supplied with CCC, CE, CB documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

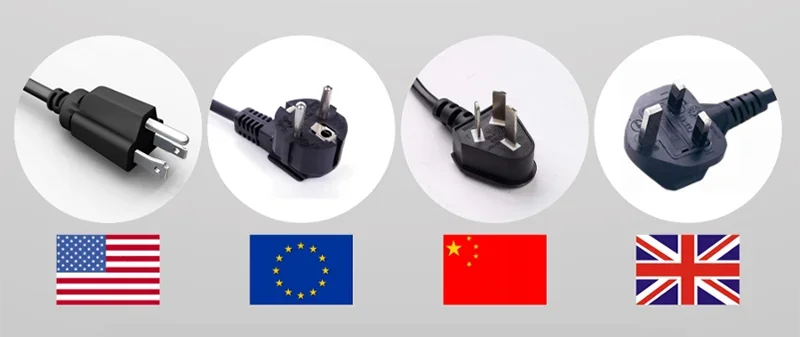

Can the wall mount oscillating fan be supplied for my local voltage?
The standard configuration is Electric Power. Alternative voltage and frequency builds are available when specified at the time of order.

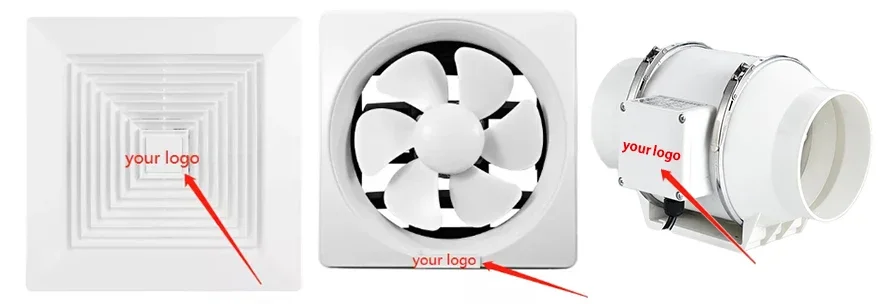

Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

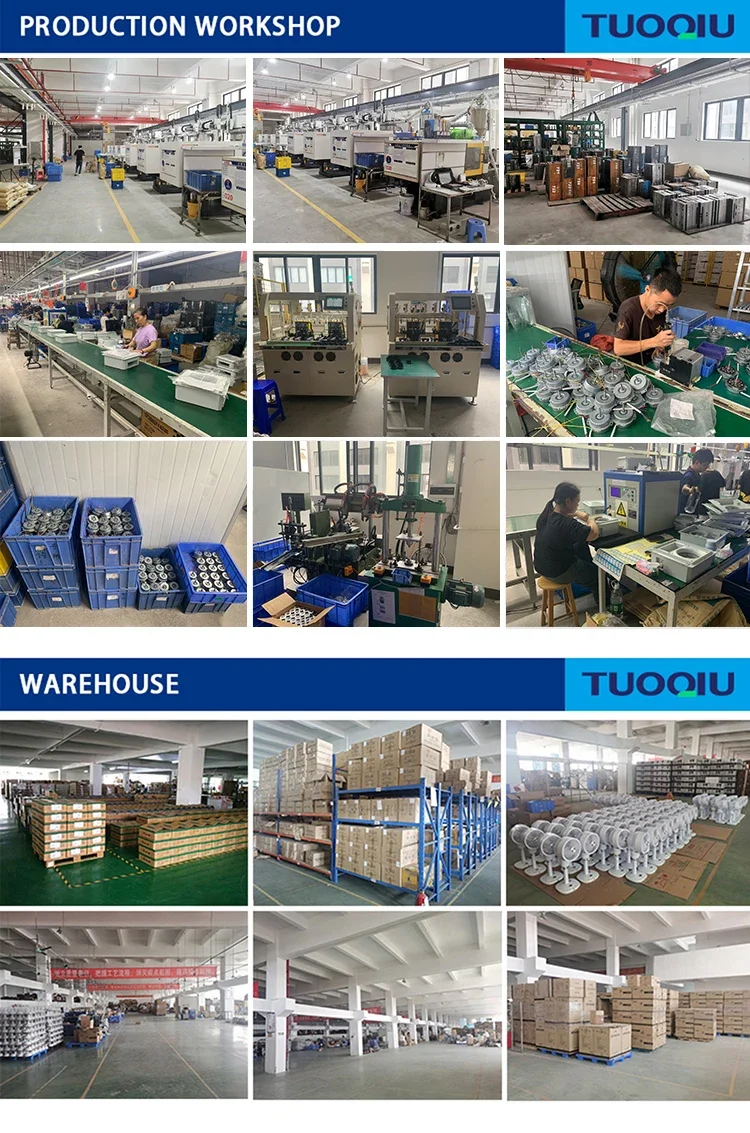

About the Manufacturer
This product is produced by Foshan Shunde Tuoqiu Wanhao Technology Co., Ltd., based in China. The company 5 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Foshan Shunde Tuoqiu Wanhao Technology Co., Ltd. range on HVACR Nexus.
