The water cooled screw chiller listed here carries 380V-3N-50HZ, cooling capacity 90-3100KW, documented exactly as the manufacturer publishes it. Made by SANHE TOP Air Conditioning (Guangdong) Co., Ltd. (5 years on the platform, typical reply ≤1h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Water Cooled Screw Chiller
- Model Number: TPS-C
- Power: 100KW
- Voltage: 380V-3N-50HZ
- Cooling Capacity: 90-3100KW
- Refrigerant: R-404A, R407C
- Warranty: 1 Year
Technical Specifications
| Voltage | 380V-3N-50HZ |
|---|---|
| Power | 100KW |
| Refrigerant | R-404A, R407C |
| Compressor Brand | Refcomp/Hanbell/Bitzer |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Easy To Operate, Eco-Friendly |
| Plug Type | China |
| Core Components | PLC |
| Model Number | TPS-C |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 2000 |
| Brand Name | SANHE TOP or OEM |
| Dimension(L*W*H) | 2900*900*1900MM |
| Product Name | Water-Cooled Chiller |
| Product Category | Screw Type Water Chiller |
| Cooling Capacity | 90-3100KW |
| Compressor Type | Screw Type |
| Chilled Water Outlet Temperature | 7℃ |
| Condenser Type | shell and tube type |
| Applicable Industries | Hotel,shopping mall,hospital,ect |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

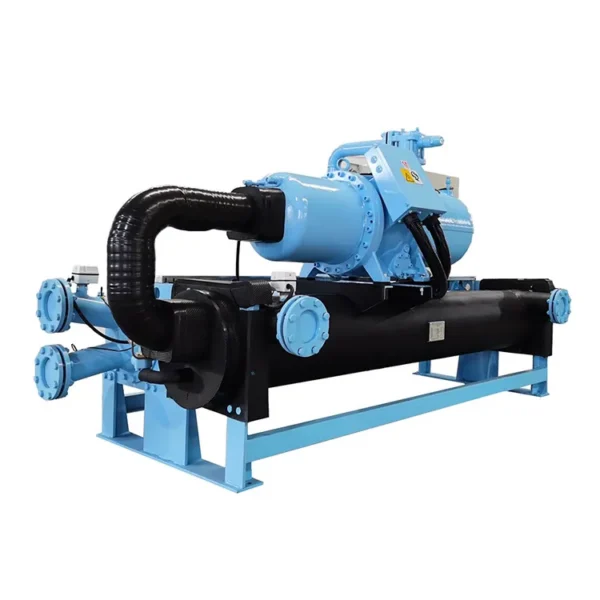

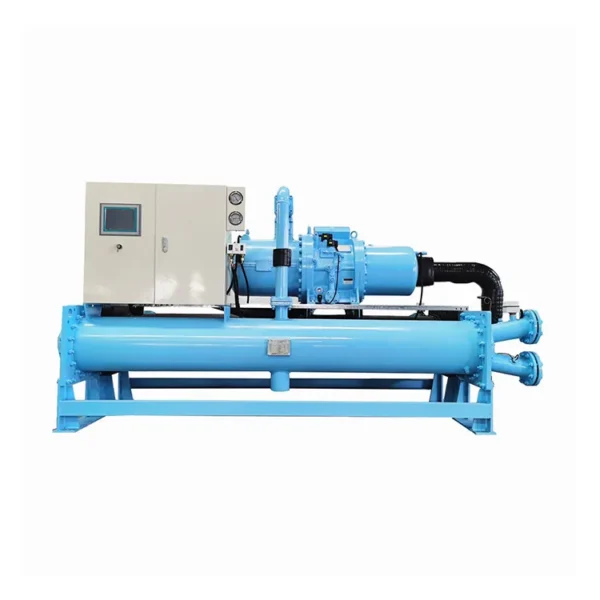

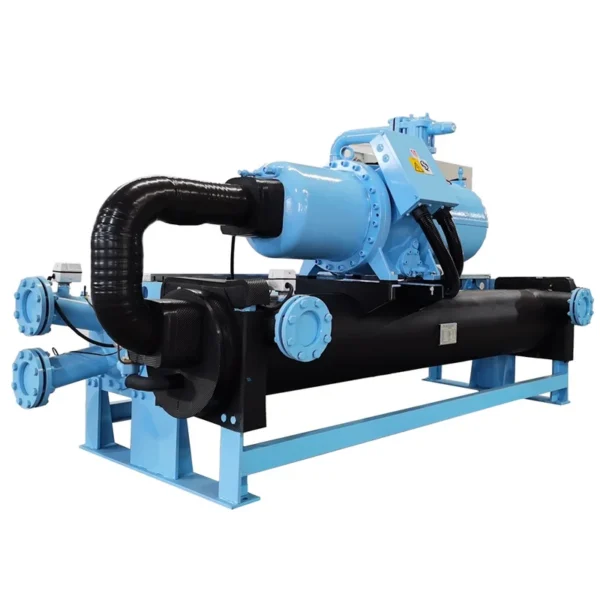

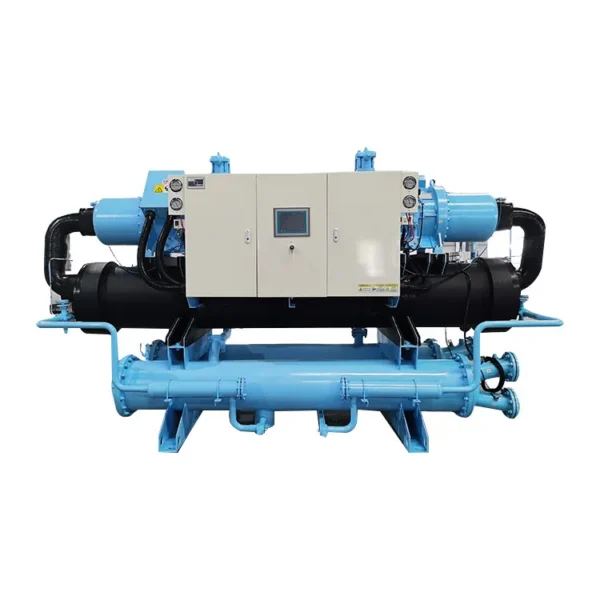

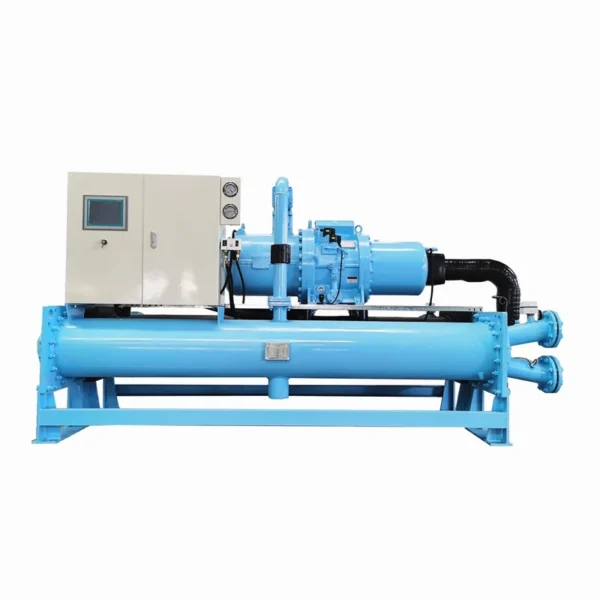

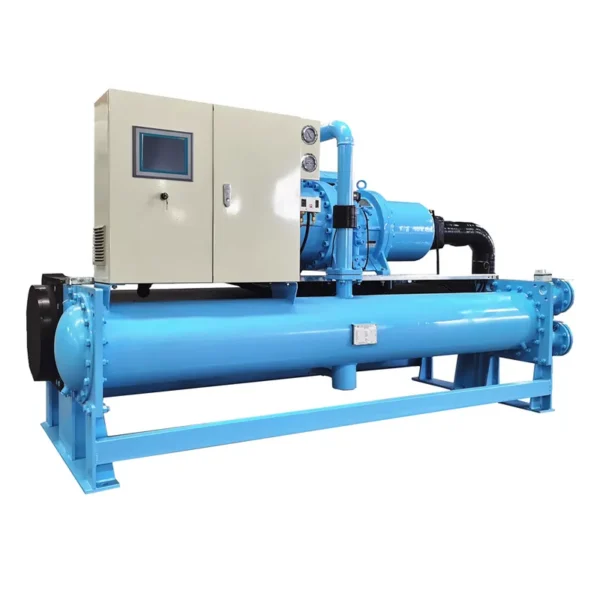

Water Cooled Screw Chiller System Manufacturers 100 Ton 300 Ton 500 Ton Industrial Refrigeration Equipment
| Water cooled screw chiller | Specifications | ||||||||||||
| HKW-Model | 325SR | 350SR | 380SR | 460SR | |||||||||
| Refrigerant | R22 | R407C | R134a | R22 | R407C | R134a | R22 | R407C | R134a | R22 | R407C | R134a | |
| Rated Cooling Capacity | ×1000kcal/h | 279.5 | 270.9 | 182.3 | 301 | 295.8 | 202.1 | 326.8 | 319.9 | 219.3 | 395.6 | 378.4 | 251.1 |
| KW | 325 | 315 | 212 | 350 | 344 | 235 | 380 | 372 | 255 | 460 | 440 | 292 | |
| USRT | 92.4 | 89.6 | 60.1 | 99.5 | 97.8 | 66.8 | 108 | 105.8 | 72.5 | 130.8 | 125.1 | 83 | |
| Power Supply | 380V-3N-50Hz | ||||||||||||
| Compressor | Input power (KW) | 69.5 | 68 | 44.5 | 75.5 | 74 | 48 | 83 | 83.5 | 53.5 | 99.5 | 94.5 | 60.5 |
| Current (A) | 122 | 119 | 79 | 132 | 130 | 85 | 148 | 145 | 102 | 171 | 163 | 108 | |
| Protection Device | Phase sequence protection,overcurrent protection,Anti frozen protection,high and low voltage protection,Gas outlet temperature protection,water flow protection | ||||||||||||
| Number of Refrigeration Circuit | 1 | ||||||||||||
| Capacity Control (%) | Stepless capacity or 25-50-75-100 | ||||||||||||
| Condenser | Shell-and-Tube Type | ||||||||||||
| Dia.of pipe to Condenser (inch) | 4″ | 4″ | 5″ | 5″ | |||||||||
| Cooling Water Flow (m³/h) | 67.9 | 65.9 | 44.2 | 73.2 | 71.9 | 48.7 | 79.7 | 78.4 | 53.1 | 96.3 | 91.9 | 60.7 | |
| Evaporator | Shell-and-Tube Type | ||||||||||||
| Dia.of pipe to Evaporator (inch) | 4″ | 4″ | 5″ | 5″ | |||||||||
| Chilled Water Flow (m³/h) | 55.9 | 54.2 | 36.5 | 60.2 | 59.2 | 40.5 | 65.4 | 64 | 43.9 | 79.2 | 75.7 | 50.3 | |
| Running noise (dBA) | 70 | 70 | 71 | 71 | |||||||||
| Total Weight (kg) | 1500 | 1570 | 1720 | 1920 | |||||||||
| Outline dimension (L*W*H)mm | 2900*900*1900 | 2900*900*1900 | 2950*1400*1500 | 3350*1400*1500 | |||||||||
Note:
1.Rated cooling capacity based on: Evaporator water inlet and outlet temperature 12℃/7℃,Condenser water inlet and outlet temperature 30℃/35℃, Fouling coefficient is 0.088.℃/KW;
2. Heat recovery device water inlet and outlet temperature: 50℃/55℃;
3. Chillled water temperature range: 5℃~20℃;
4. Cooling water temperature range: 20℃~40℃;
5. Specifications and dimensions are subject to change due to product improvement without notice.
Our Main Product:
1. Airsuspension oil-free variable frequency centrifugal chiller
2. Water cooled screw chiller, Air cooled screw chiller, Flooded type Screw Chiller
3. Water cooled Scroll chiller, Air cooled scroll chiller
4. Water-cooled Packaged air conditioner, Air-cooled packaged air conditioner
5. Low temperature chiller(0℃~-25℃)
6. Anti-corrosion chiller, explosion-proof chiller
7. Fan coil units, Air handling Units
Q1: Are you a manufacturer?
A1: Yes, we have more than 10 years experience in water chiller manufacture.
New plant was bulit in 2017 in Guangzhou city. Welcome to visit us anytime!.
Q2: Could you help us to recommend the suitable model for our project?
A2: Yes, we have engineers to check the details and make the scheme for you. Based on the following:
1) Cooling capacity;
2) Refrigerant;
3) Chilled water inlet/outlet temperature
4) Voltage;
5) For which industry
6) The building drawing(if you have)
7) Any other special requirements.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–4 piece: US $3000 / piece
- 5+ piece: US $2800 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this water cooled screw chiller?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the water cooled screw chiller be supplied for my local voltage?
The standard configuration is 380V-3N-50HZ. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
