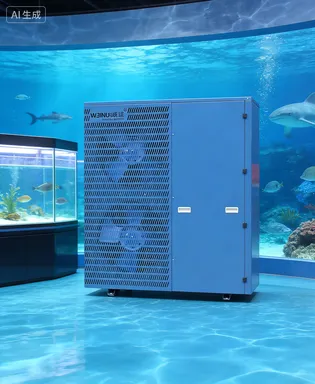

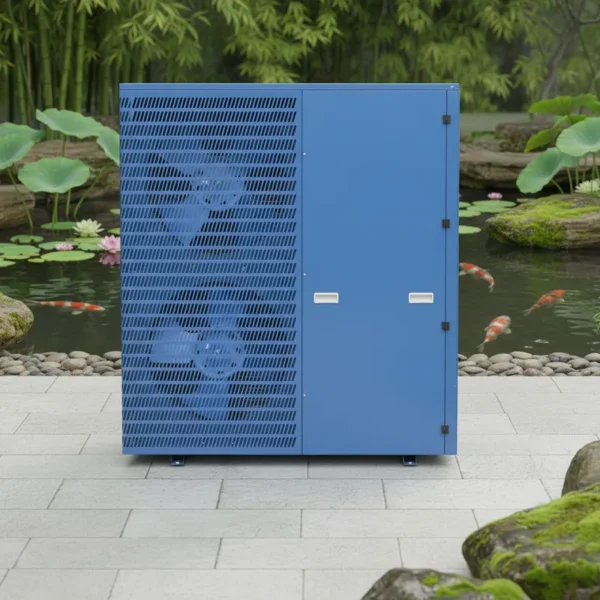

This water cooled water chiller is published with the manufacturer’s full specification — 380V/3/50HZ, 8.6KW. Made by Foshan Weinuo Refrigeration Equipment Co., Ltd. (15 years on the platform, typical reply ≤11h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Water Cooled Water Chiller
- Model Number: WN-3BN10CF
- Power: 8.6KW
- Voltage: 380V/3/50HZ
- Material: Titanium tube
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
Technical Specifications
| Item Type | Temperature Control Products |
|---|---|
| Volume | 60,000~80,000L |
| Material | Titanium tube |
| Shape | Square |
| Power | 8.6KW |
| Applicable Pet | Fish |
| Species | Goldfish |
| Feature | Eco-Friendly |
| Room Space | Indoor And Outdoor |
| Style | Modern, Simple |
| Warranty | 1 Year |
| Packing | Carton Box |
| Voltage | 380V/3/50HZ |
| Pattern | Circular |
| Place Of Origin | Guangdong, China |
| Brand Name | Weinuo |
| Model Number | WN-3BN10CF |
| Type | Aquariums & Accessories |
| Name | industrial water cooled water chiller |
| Color | Blue |
| Usage | aquarium tank, seafood pond,swimming pool |
| Size | 135*70*160 |
| Function | cool&heat water |
| Temperature Range | 5~35 degrees C |
| Selling Units | Single item |
| Single Package Size | 142X75X166 cm |
| Single Gross Weight | 230.0 kg |
Product Details
| PRODUCT DESCRIPTION | ||
Introduce:
Water chillers are special design for pool for cooling purpose, chiller is working according to the setting temperature to maintain fish tank to a constant temperature. Easy operate, quick cold, low noisy with long life circle. They are widely used by swimming pool, spa pool, hotel, aquarium, supermarket, school, villa, ocean park, seafood market, fish farming and so on.
Feature:
1) Offer original brand Panasonic or Copeland compressor with high quality.
2) The heat exchanger in the unit is made of pure high-quality titanium pipes and PVC molds, so it is well resistant to corrosion. Suitable both for seawater and fresh water.
3) Finned type condenser, high heat transfer capacity.
5) External rotor motor, hot air can be quickly taken away.
6) Microcomputer temperature controller using digital technology, able to accurately control the temperature.
7) Intelligent temperature system with power off memory function, machine will work according to the original setting after power supply again.
8) With high pressure and low pressure device to testing the gas working pressure to make sure machine work well.
9) Machine will show the fault code when problem appear, user find out the problem and repaire quickly to save time and avoid much more loss.
10) Easy operate, low operation noise, high Cop, environment friendly and energy-saving.
11) Temperature range from 5~35 degrees C.
Technical Data:
| Model | WN-BN 1BN | WN-BN 1.5BN | WN-BN 2BN | WN-BN 3BN | WN-3BN 3BN | WN-3BN 5BN | |||||||
| Power | 220V50Hz | 380V50HZ | |||||||||||
| Normal refrigerating capacity/W | 2700 | 3800 | 5200 | 7200 | 8580W | 14890W | |||||||
| Normal heating capacity/W | 2700 | 3800 | 5200 | 7200 | 8580W | 14890W | |||||||
| Compressor power (HP) | 1 | 1.5 | 2 | 3 | 3 | 5 | |||||||
| Rated power of the draught fan/W | 25W-6 | 50W-6 | 50W-6 | 90W-6 | 90W-6 | 90W-2 | |||||||
| Maximal air-flow capacity/m3 /h | 1800 | 3300 | 3300 | 3600 | 3600 | 3600*2 | |||||||
| Input power of compressor | Refrigerating (KW) | 1 | 1.27 | 1.78 | 2.34 | 2.34 | 4.9 | ||||||
| Heating (KW) | 0.8 | 1.08 | 1.4 | 1.75 | 1.75 | 3.92 | |||||||
| Total rated input current (A) | 4.8 | 6.5 | 9.8 | 12.5 | 6.8 | 9.1 | |||||||
| Refrigerant | R22/R410a | ||||||||||||
| Refrigerant intake volume (g) | 1000 | 1100 | 1300 | 1680 | 1680 | 2200 | |||||||
| Evaporator material | PVC plastic barrel, pure industrial titanium | ||||||||||||
| Diameter of water inlet/outlet/inch | 1– 1/2 | ||||||||||||
|
Using range | Ambient temperature/℃ | 5℃-38℃ | |||||||||||
| Chilled water temperature/℃ | 5℃–25℃ | ||||||||||||
| Allowed maximal water pressure/MPA | ≤0.2 | ||||||||||||
| Factory default of temperature controller | Temperature: 20℃ temperature difference: 2℃ | ||||||||||||
| Outward size: length*width*height/MM3 | 700*450*665 | 815*495*720 | 815*495*720 | 895*505*790 | 895*505*790 | 955*565*1170 | |||||||
| Weight/KG | 50 | 73 | 78 | 92 | 98 | 140 | |||||||

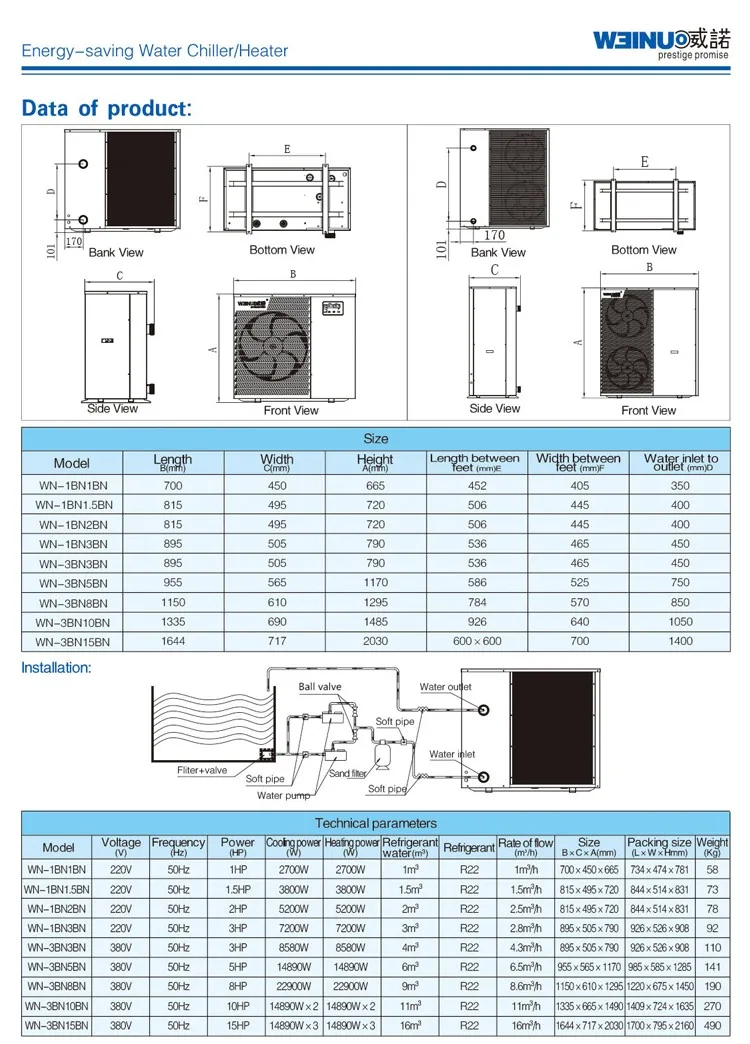

Structure And Size:

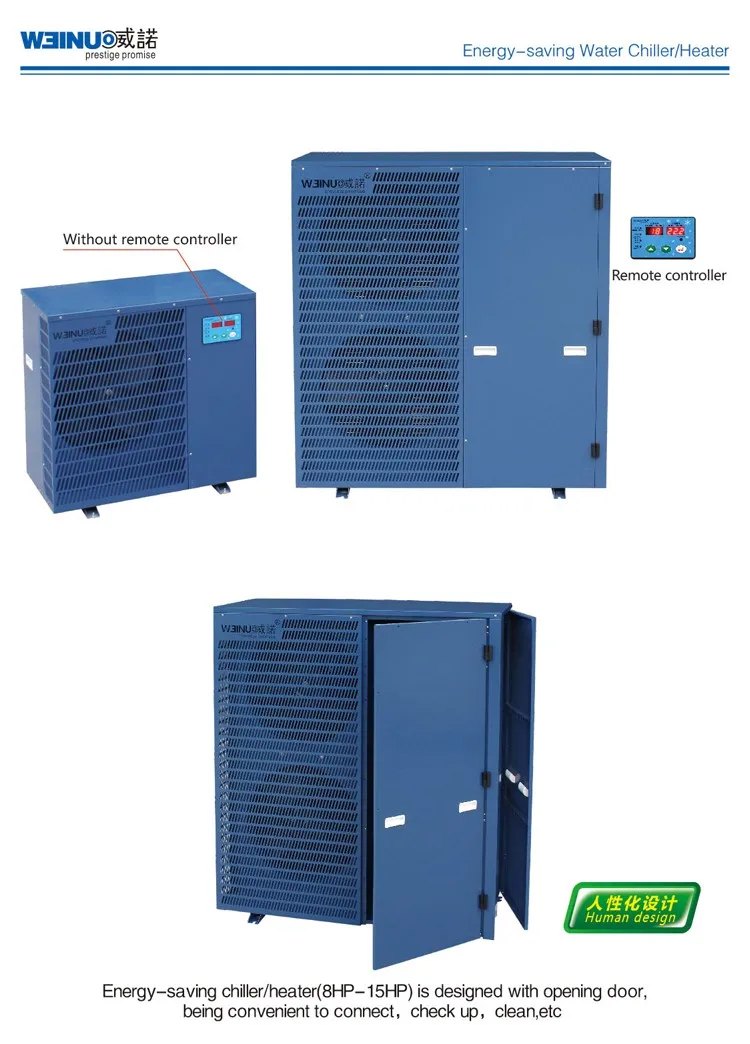

| PRODUCT DETAILS | ||
Packing And Shipment:
| PACKING & SHIPPING | ||
| COMPANY PROFILE | ||
| WHY CHOOSE WEINUO? | ||
A. More than 10 years exporting experience
Our products are selling to all over the world, such as North America, south America, Europe, Southest Asia and Mid-East,etc…
B. Quality Certification
All materials that we use are environment friendly with CE qualified and RoHs check.
C. OEM & ODM
OEM & ODM are available which can meet your any request with our professional engineering team.
D. Quality Service
Any inquiry replied within 12 hours
Any problem resolved within 24 hours
With 12 months warranty
| CERTIFICATE | ||
| FAQ | ||
1. Can I use our own brand logo on the products?
Yes. We provide OEM/ODM service to our customers.
2. Can you customize product for us?
Yes. the professional engineers have rich experience in designing our products. Just tell us your ideas or provide the drawing, we can help to carry out your ideas into real products.
3. What about the lead time for mass production?
Normally, it will be 25 working days.
4. What is your terms of delivery?
We accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or cost
effective for you.
5. What is your payment terms?
-For sample order: T/T 100%
-For container order: T/T 30% deposit, T/T 70% before shipment
6.What is the after-sale service of the product?
We provide after-sale service for a year free maintenance for chiller and heater unit and
half year free maintenance for heating rod and temperature controller.
| CONTACT US | ||
Foshan Weinuo Refrigeration Equipment Co., Ltd.
Mobile Phone:13609048330
Tel: +86-757-81100832
Fax:+86-757-85701762
Address: NO.4 factory, beside Tanbian new bridge, Tanbian first industrial zone, Dali town, Nanhai District, Foshan City
ZIP:528231
Website: http://www.gdwenuo.com
