Key specification for this water curtain: power 24, material Stainless Steel + Cold Rolled Steel. Everything below is reproduced from the factory data sheet. Made by Qingdao Wanbanglong Coating Equipment Co., Ltd. (1 year on the platform, typical reply ≤1h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Water Curtain
- Power (Kw): 24
- Voltage: 380V/220V, 3 Phase, 50/60Hz,415v/ customized
- Working Capacity: ≥95% paint mist removal rate
- Material: Stainless Steel + Cold Rolled Steel
- Warranty: 1 Year
- Place Of Origin: Shandong, China
Technical Specifications
| Machine Type | Spray & Drying Booth |
|---|---|
| Core Components | Engine, PLC |
| Machinery Test Report | Provided |
| Warranty | 1 Year |
| Key Selling Points | Long Service Life, easy to operate, Customize |
| Video Outgoing-Inspection | Provided |
| Power (Kw) | 24 |
| Place Of Origin | Shandong, China |
| Weight (Kg) | 2500 |
| Brand Name | Wanbanglong / Jinding |
| Working Capacity | ≥95% paint mist removal rate |
| Material | Stainless Steel + Cold Rolled Steel |
| Application | Wooden Furniture, Kitchen Cabinet, Door Panel, Metal Parts… |
| Dimension (L*W*H) | 1500*1500*1800 mm, / Customized |
| Heating Method | Electric / Gas / Hot air heater Optional |
| Filter Type | Dry filter / Water curtain type optional |
| Voltage | 380V/220V, 3 Phase, 50/60Hz,415v/ customized |
| Water Circulation System | Self-priming Pump with Water Curtain |
| Lighting | 95% Above |
| Paint Mist Capture Rate | 95% Above |
| Painting Type | Provide drawing, Remote technical guidance |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
PRODUCT HIGHLIGHTS & SPECIFICATION
- High Paint Mist Capture Rate ≥ 95% — Water curtain filtration captures overspray efficiently, keeping the workshop clean and compliant with environmental requirements.
- Explosion Proof Motor (Optional) — Explosion-proof motor and fan enhance safety for spraying operations, reducing fire and explosion risks.
- Stainless Steel Water Curtain Panel — 1.2mm stainless steel water curtain plate resists rust and corrosion, ensuring long service life and consistent performance.
- Eco Friendly Water Circulation System — Self-priming pump recycles water continuously, saving water and energy while effectively filtering paint mist.
- Custom Size Available — Sizes from 1m to 4m and non-standard dimensions available, perfectly matching your production line and workpiece size.
- Easy Operation and Maintenance — Electric control panel with simple button operation; removable parts make cleaning and maintenance fast and convenient.
- CE Certified Quality — Manufactured with strict quality control, CE / ISO9001 certified for reliable performance.
- Wide Application — Suitable for furniture, wooden products, metal parts, auto parts and crafts spraying in factories and workshops.

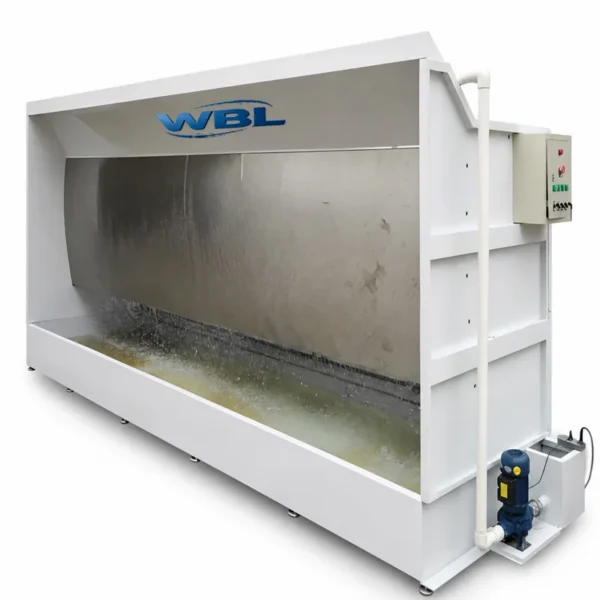

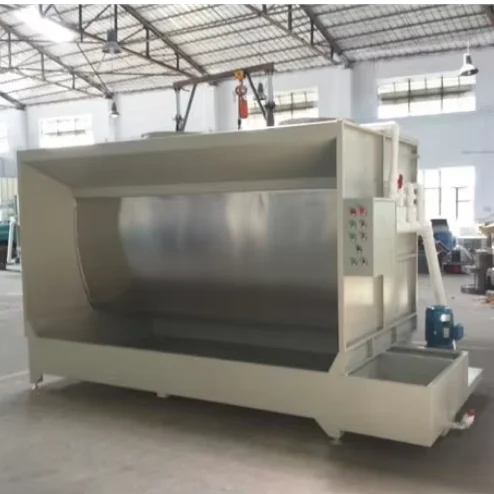

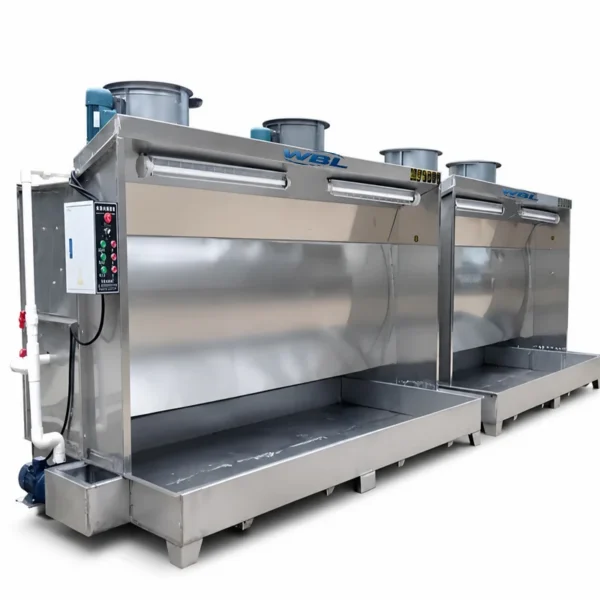

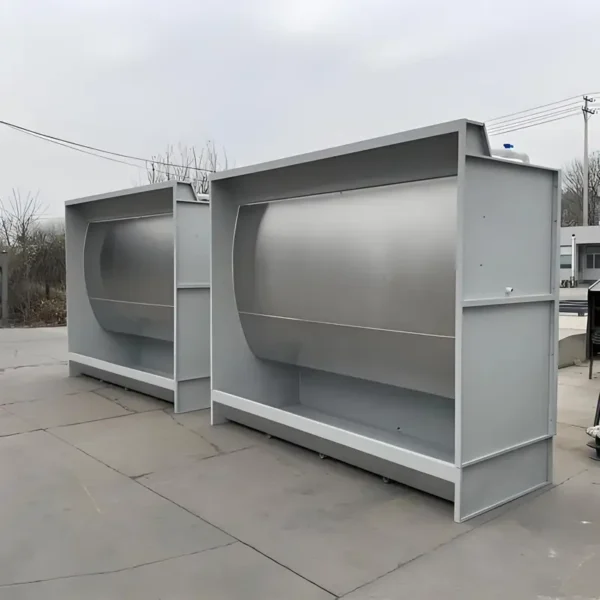

Product Name | Water Curtain Spray Booth / Water Wash Paint Booth |
Type | Water Wash Type (Wet Type) |
Model | WBL-1000 / WBL-2000/ WBL-3000 / CUSTOMIZED |
Application | Paint overspray filtration for furniture, wood products, metal parts and auto parts spraying |
Installation | Floor Standing, Indoor Use |
Overall Dimension (L×W×H) | 1500×1500×1800 mm |
Effective Working Area | Approx. 1300×1100×1500 mm |
Shell Material | 1.5mm Cold Rolled Steel with Electrostatic Powder Coating |
Water Curtain Panel | 1.2mm Stainless Steel |
Water Tank | 2.0mm Carbon Steel, Welded Construction |
Body Color | Light Gray (Customized Available) |
Voltage / Frequency | 380V 50Hz 3 Phase, or 220V 50Hz Single Phase (Optional) |
Exhaust Fan | 1–2 pcs Axial Flow Fans, Approx. 1.5KW Each |
Water Pump | Self-priming Circulation Pump, Approx. 0.75KW |
Total Power | Approx. 3–4KW |
Motor Type | Explosion Proof Motor (Optional) |
Control System | Electric Control Panel |
Lighting | Explosion-proof Fluorescent Lamp |
Paint Mist Capture Rate | Paint Mist Capture Rate |
Noise Level | 65–75 dB |
Water Circulation | Self-priming Pump Creates Continuous Water Curtain |
Exhaust Treatment | Water Curtain Filtration + Fan Exhaust |
Paint Type | Water-based and Oil-based Paint |
Available Sizes | 1m / 1.5m / 2m / 3m / 4m, Custom Size Available |
Net Weight | Approx. 350-500 kg |
Certification | CE / ISO9001 |
Warranty | 1 Year |
MOQ | 1 Set |
Customized Support | Custom Size, Custom Color, Custom Logo, OEM/ODM Available |
Packing | Wooden Case /WRAP FILM/NUDE/SAFE and NO DAMAGE |
Lead Time | 7–10 Days (Subject to Order Quantity) |

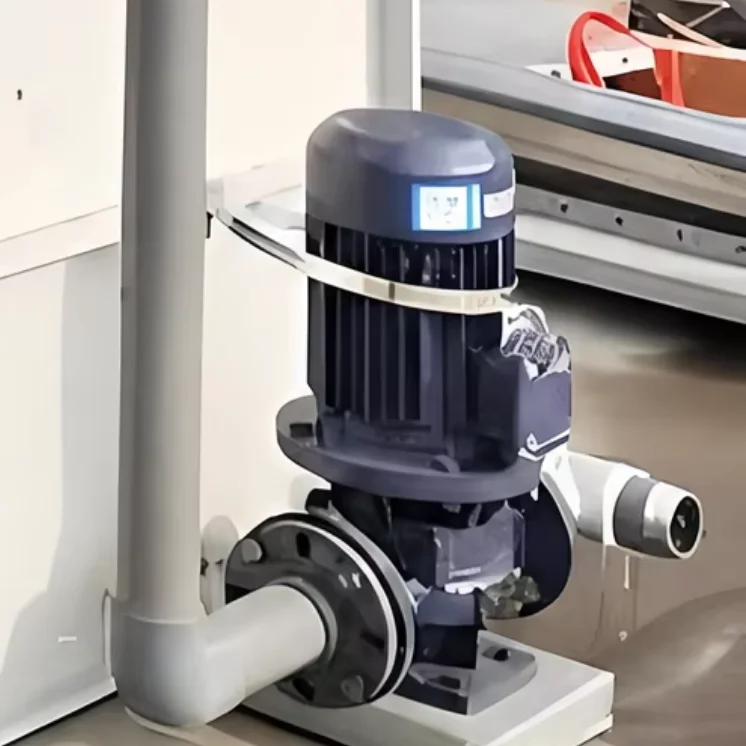

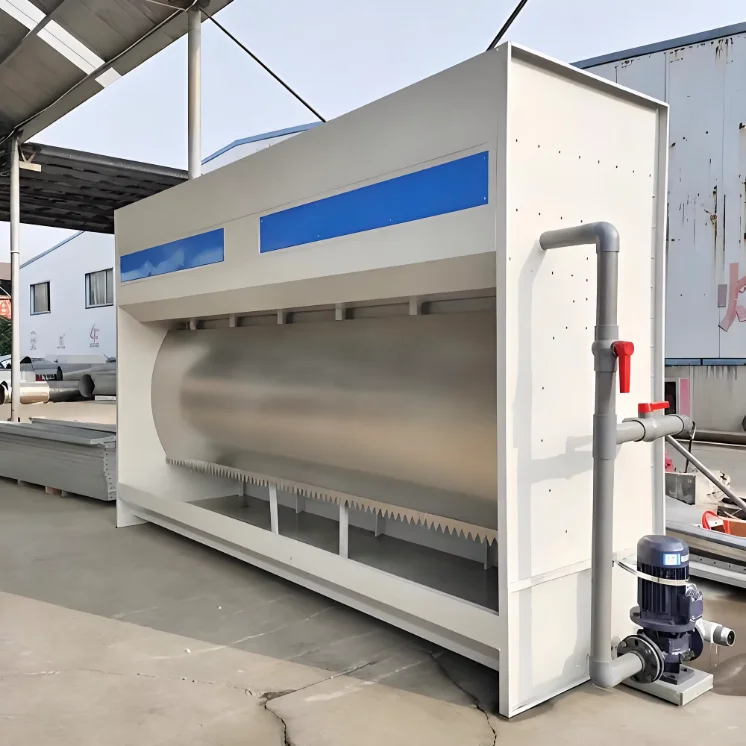

Self-priming Water Pump
* Self-priming, no manual water filling — start and go.
* Stable circulation with low noise for continuous water curtain.
* Stable circulation with low noise for continuous water curtain.

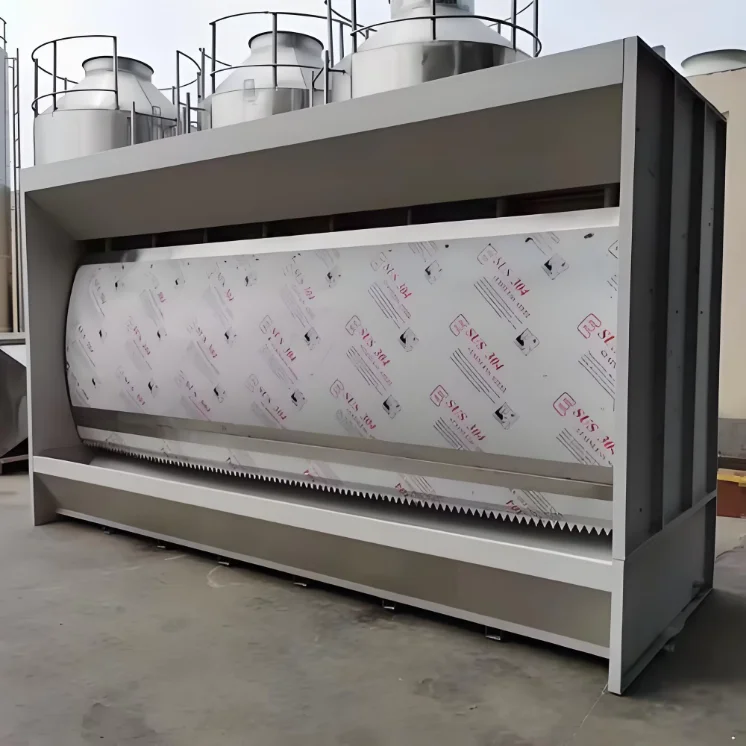

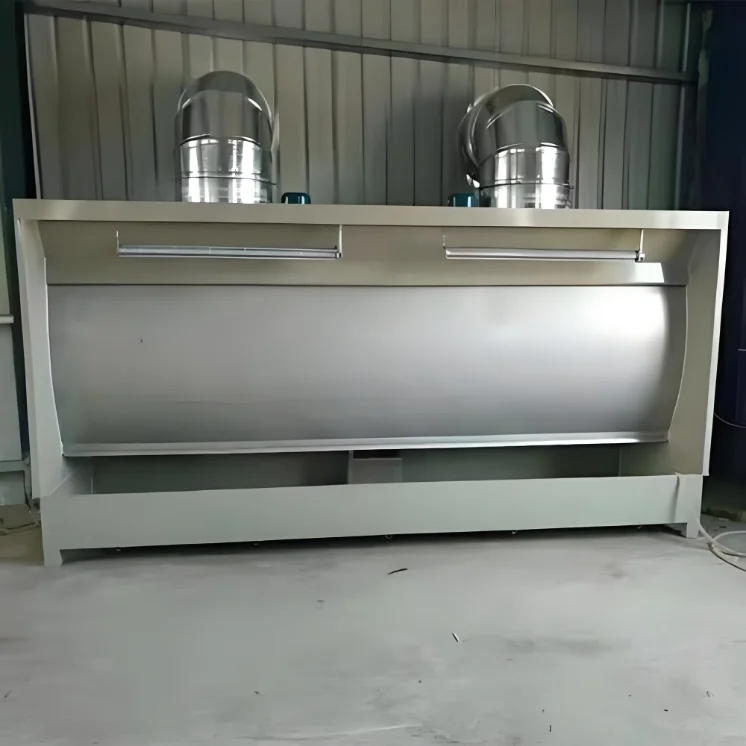

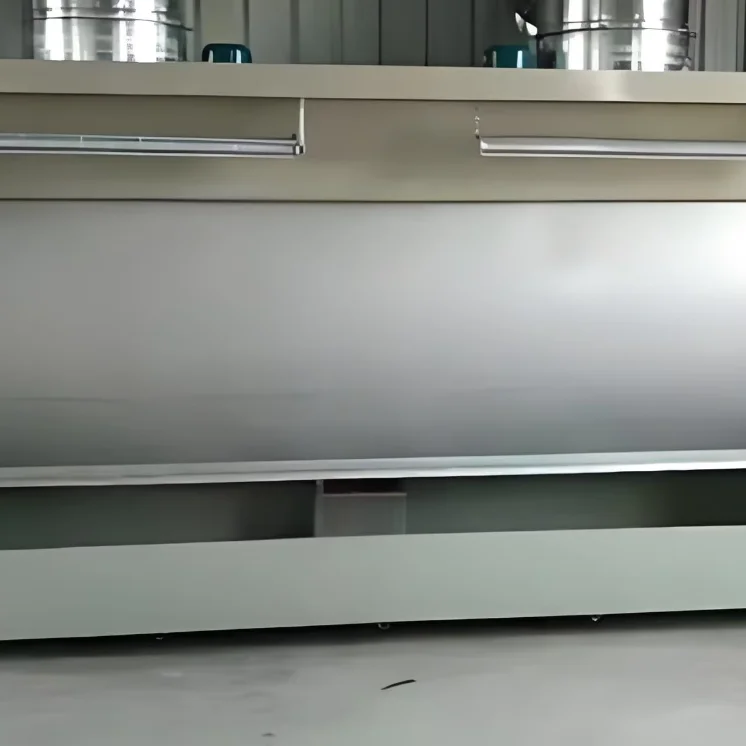

Stainless Steel Water Curtain Panel
* Rust-resistant stainless steel, easy to clean and long-lasting.
* Uniform water film captures overspray efficiently (≥95%).
* Uniform water film captures overspray efficiently (≥95%).

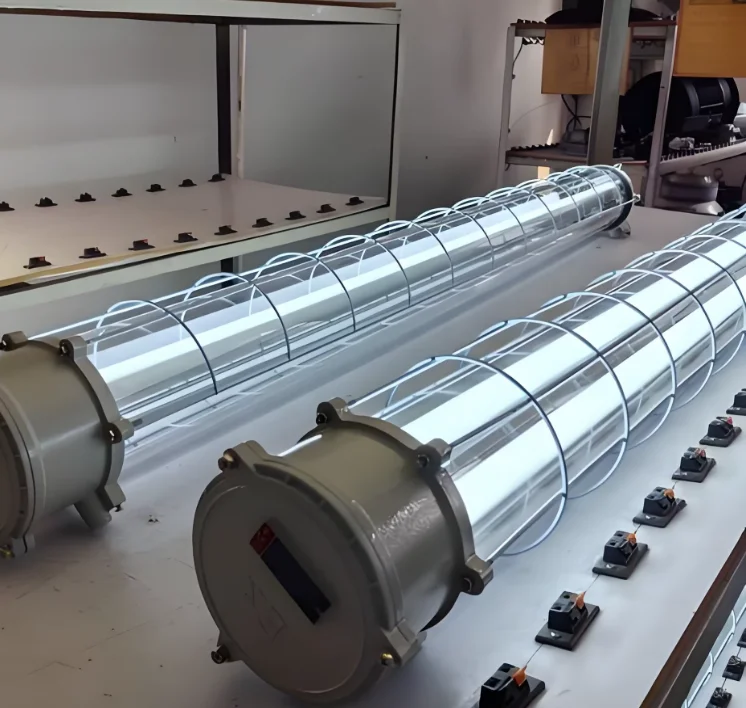

Explosion-proof Lamp
* Explosion-proof rated — safe lighting in paint mist environments.
* Bright, even illumination for clear visibility while spraying.
* Bright, even illumination for clear visibility while spraying.

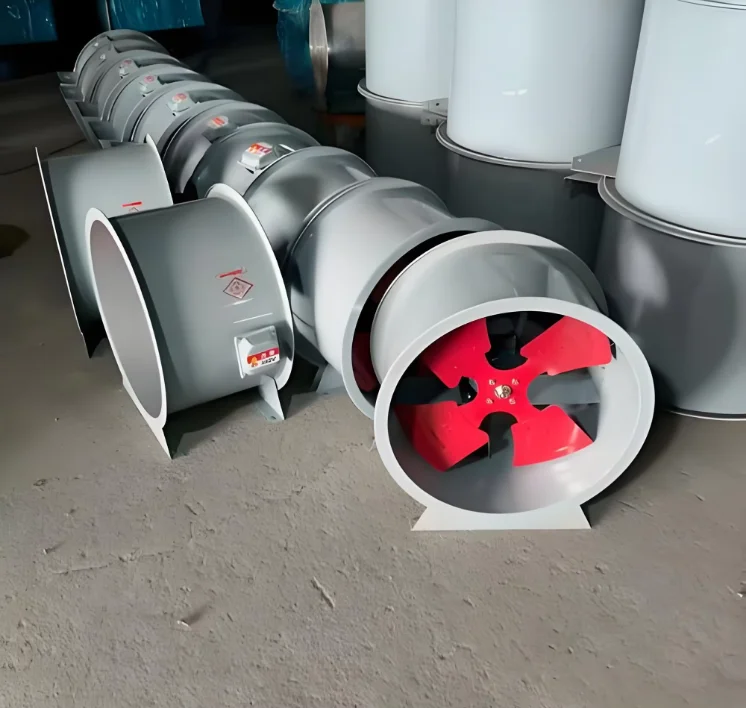

(Explosion-proof customized ) Axial Fan
* Explosion-proof motor for safety in paint mist environments.
* High air volume extracts paint mist quickly, keeping the workshop clean.
* High air volume extracts paint mist quickly, keeping the workshop clean.

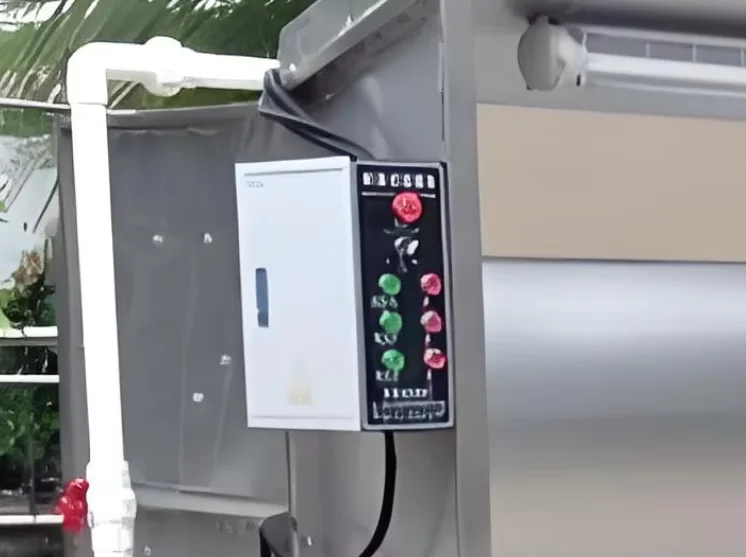

Electrical Control Cabinet
* Centralized control of fan, pump and lighting — one panel, simple operation.
* Optional explosion-proof design for safe use in spray painting areas.
* Optional explosion-proof design for safe use in spray painting areas.

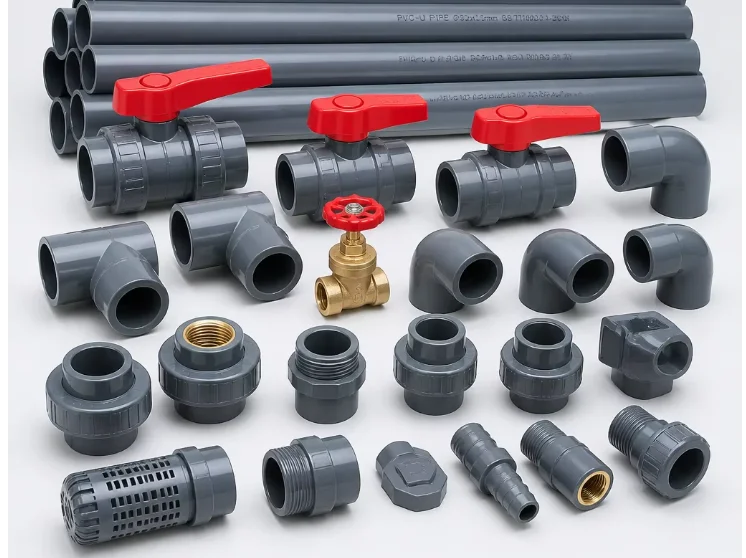

Pipe Fittings
* Corrosion-resistant PVC pipes and leak-proof joints for long, reliable service.
* Red lever ball valves for easy flow control and quick shut-off.
* Red lever ball valves for easy flow control and quick shut-off.
* Reliable quality * Stable operation
* Precision engineering * Easy installation
* Customize according to your drawings

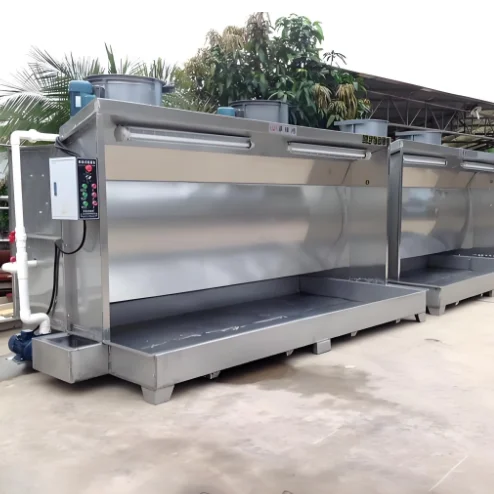

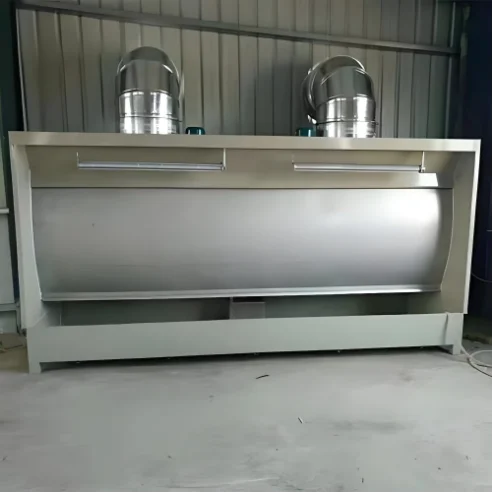

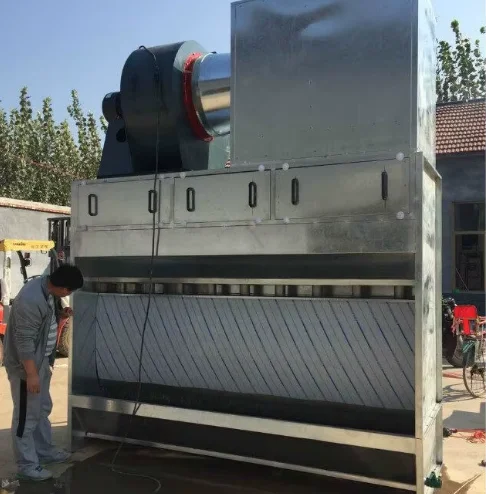

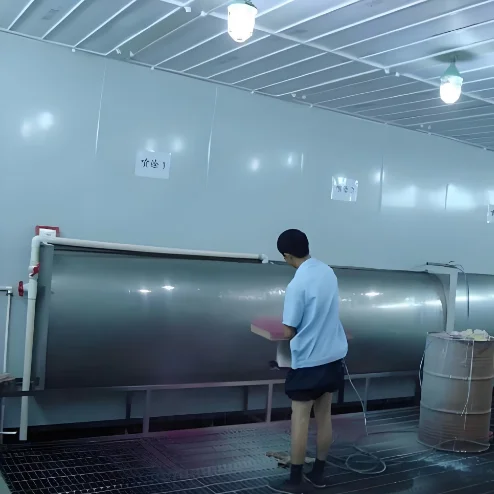

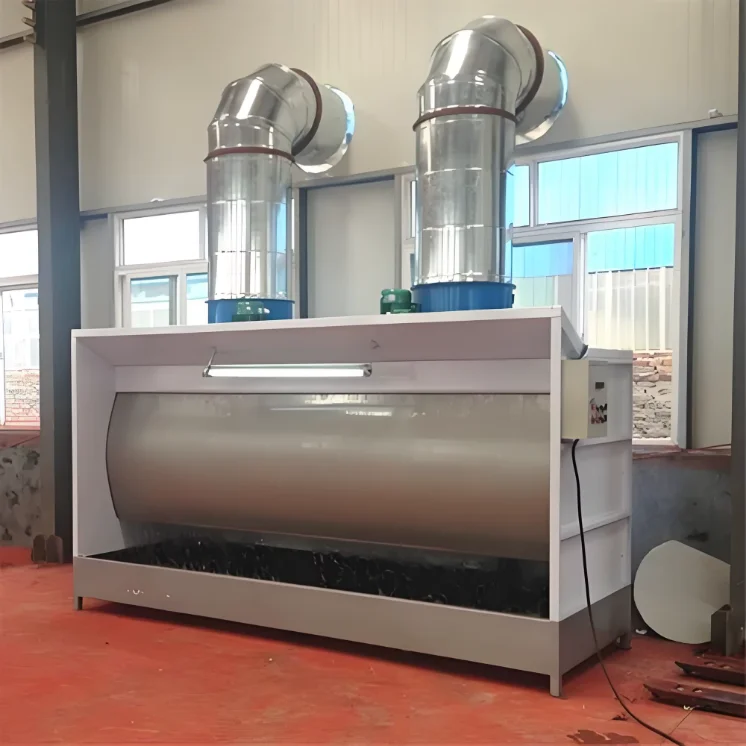

Rich production and installation cases, as shown in the below.

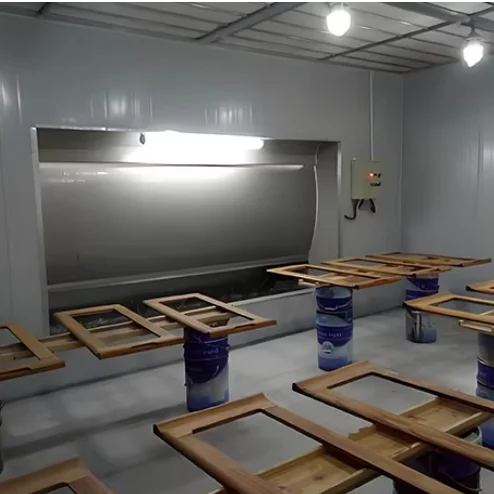

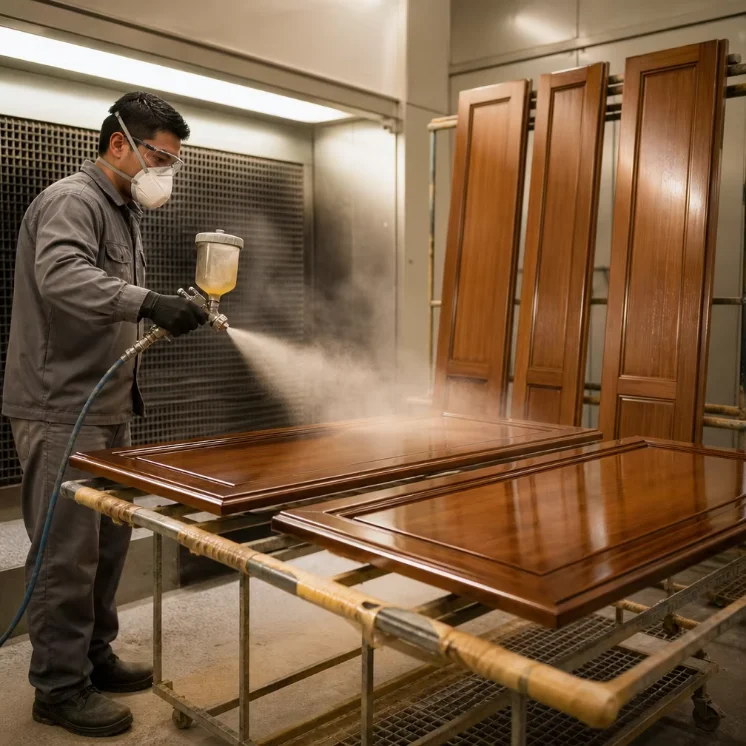

APPLICATION
Application Scope (Woodworking / Industry) Ideal for surface finishing of solid‑wood furniture, wardrobes, kitchen cabinets,handicrafts and so on…
WOODEN BOX / CORRUGATED PACKING / NOODLE PACKING /STRETCH WRAP FILM
* Suitable for container loading and sea transportation,
* Safe and No damage.
* Also accept the customized according to the clients requirements.
Professional Container Loading
Years of hands – on experience in container loading to ensure your cargo Safe and No Damage.
FAQs
Factory or Trading Company?
Factroy
Size
Design the right size for you according to your requirements.
Install?
By video or drawing or our workers go your there.
MOQ?
1 Set
Payment ?
TT, and Alibaba Trade Assurance.
Heating option
Gas heating for long time mass production; electric heating for small workshop without gas pipeline.
Is this machine suitable for wooden cabinet and wooden door production line?
Yes, this woodworking painting machine is widely used for wooden door & cabinet finishing workshop.
Loading Port:Qingdao Port
Trade Term:FOB Qingdao / CFR / CIF negotiable
Ordering and Pricing
- Minimum order quantity: 1 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this water curtain?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the water curtain be supplied for my local voltage?
The standard configuration is 380V/220V, 3 Phase, 50/60Hz,415v/ customized. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
