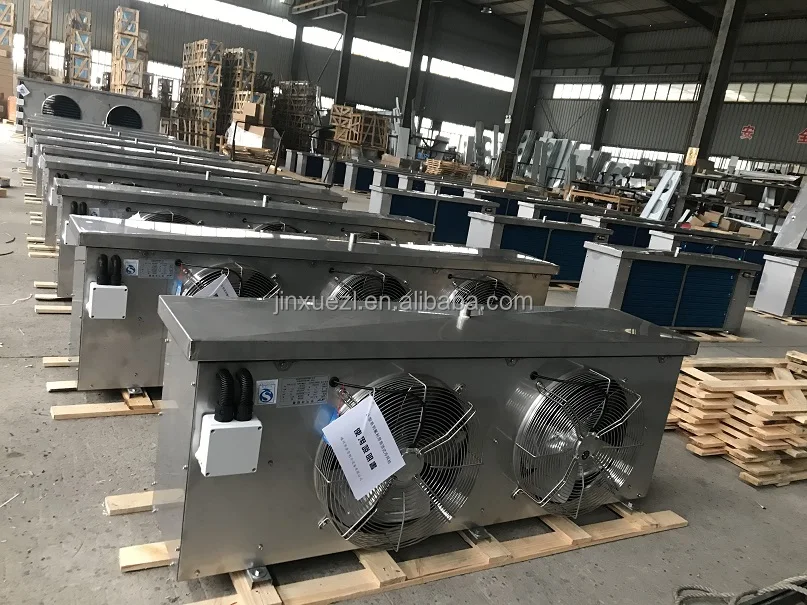

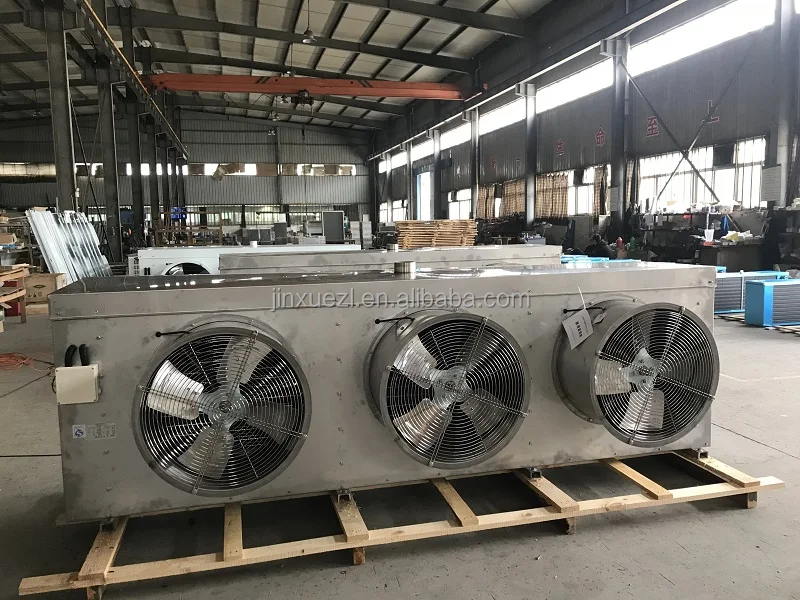

Water defrosting air cooler — 380 V, power source Electric. The complete factory specification follows. Made by Shengzhou Jinxue Refrigeration Equipment Co., Ltd. (6 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Water Defrosting Air Cooler
- Power Source: Electric
- Power(W): 25000
- Voltage: 380 V
- Material: Stainless Steel
- Warranty: 3 Years
- After Warranty Service: Online support
Technical Specifications
| Volume(L) | 100 L |
|---|---|
| Processing | Drum Evaporator |
| Operating Temperature | -40-10°c |
| Material | Stainless Steel |
| Power Source | Electric |
| Core Components | Motor |
| Voltage | 380 V |
| Warranty | 3 Years |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Long Service Life, Automatic, Easy To Operate |
| Power(W) | 25000 |
| Place Of Origin | Zhejiang, China |
| Weight (Kg) | 388 |
| Brand Name | JINXUE |
| Dimension(L*W*H) | 312*74*85CM |
| Mounting | Ceiling Mounting |
| After Warranty Service | Online support |
| Warranty Service | Spare parts |
| After-Sales Service Provided | Free spare parts |
| Provided | Online support |
| Applicable Industries | Restaurant |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Air coolers can be used in varies cold stores such as architectural or constructional ones.D air coolers include DL,DD and DJ three series.DL series can be used all of 0 ℃ for storing eggs and Vegetables,DD series at -18℃ around for storing meat and fishes.DJ series at -25℃ around for freezing the fresh food such as meat,fishes and son on.
The Features of Air Cooler
1.The Technics of acidification and twice painting is used for casing;the iron,zincification iron,stucco aluminum and stainless steel can be selected for the material of casing as user's order.the crust is easy to be cleaned with nicer corrosion protection and beautiful shape

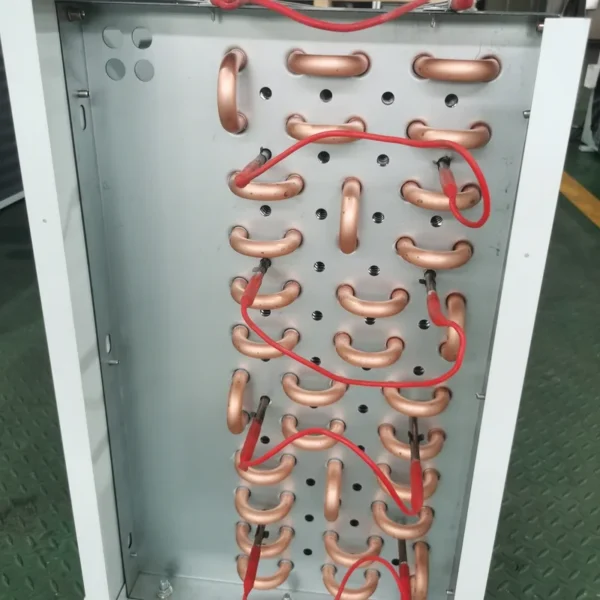

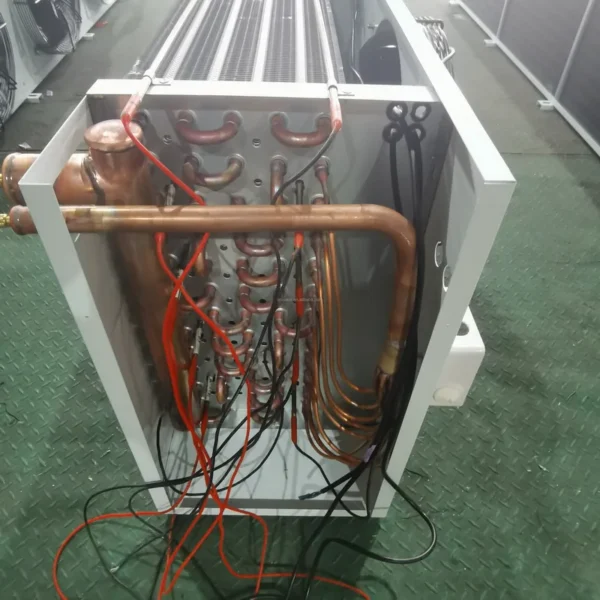

2.After pressure test,the coils inside are washed,so that the oil dirt,moistur and oxide etc.can be eliminated.
3.The Space between electric heaters is counted accurately so that effective defrosting can be assured.Otherwise,such two defrosting methods as by water and hot gas can be selected as user's order.
| Model | Refrigerating | Cooling | Tube (dm3) | Fan | Defrost heater | |||||||
| Qty | Diameter | Volume | Noise | Fan motor | Power | Coil | Catchment | N.W | ||||
| DD-1.4/7 | 1.40 | 7 | 0.88 | 1 | 300 | 1220 | 58 | 1*75 | 220/380V | 1.2 | 0.6 | 19 |
| DD-2.35/12 | 2.35 | 12 | 1.53 | 2 | 300 | 2440 | 58 | 2*75 | 1.8 | 0.9 | 26 | |
| DD-3.0/15 | 3.00 | 15 | 1.77 | 2 | 300 | 2440 | 58 | 2*75 | 2 | 1 | 33 | |
| DD-4.0/22 | 4.00 | 22 | 1.77 | 2 | 350 | 3660 | 58 | 2*75 | 380V | 2.4 | 1.2 | 40 |
| DD-6.0/30 | 6.00 | 30 | 3.23 | 2 | 400 | 6800 | 68 | 2*180 | 2.6 | 1.3 | 63 | |
| DD-8.0/40 | 8.00 | 40 | 4.31 | 2 | 400 | 6800 | 68 | 2*180 | 5.4 | 1.8 | 68 | |
| DD-12.0/60 | 12.00 | 60 | 6.39 | 2 | 500 | 12000 | 68 | 2*380 | 5.2 | 1.3 | 92 | |
| DD-15.9/80 | 15.90 | 80 | 7.99 | 2 | 500 | 12000 | 68 | 2*380 | 6.8 | 1.7 | 110 | |
| DD-20.0/100 | 20.00 | 100 | 10.53 | 3 | 500 | 18000 | 68 | 3*380 | 8.4 | 2.1 | 131 | |
| DD-24.0/120 | 24.00 | 120 | 12.72 | 3 | 500 | 18000 | 68 | 3*380 | 9.6 | 2.4 | 149 | |
| DD-28.0/140 | 28.00 | 140 | 14.86 | 4 | 500 | 24000 | 68 | 4*380 | 12 | 3 | 178 | |
| DD-32.1/160 | 32.10 | 160 | 16.79 | 4 | 500 | 24000 | 68 | 4*380 | 12.8 | 3.2 | 194 | |
| DD-37.4/200 | 37.40 | 200 | 45.73 | 2 | 600 | 20000 | 72 | 2*1500 | 18.4 | 2.3 | 278 | |
| DD-46.8/250 | 46.80 | 250 | 57.34 | 3 | 550 | 30000 | 73 | 3*1500 | 19.2 | 2.4 | 352 | |
| DD-56.2/310 | 56.20 | 310 | 68.48 | 3 | 600 | 30000 | 73 | 3*1500 | 20 | 2.5 | 406 | |
| DD-68.4/380 | 68.40 | 380 | 81 | 3 | 650 | 48000 | 72 | 3*2200 | 32.5 | 3 | 570 | |
| DD-83.6/440 | 83.6 | 440 | 100 | 3 | 600 | 48000 | 75 | 3*2200 | 39.5 | 3 | 610 | |
| DD-99.7/525 | 99.7 | 525 | 117 | 4 | 600 | 64000 | 75 | 4*2200 | 48 | 3 | 730 | |
| DD-114/600 | 114 | 600 | 135 | 4 | 650 | 64000 | 75 | 4*2200 | 51.5 | 3.5 | 750 | |
Standard Wooden Export Packing
1 Year Warranty;
Spare part for reqairment;
Online service support.
Shengzhou Jinxue Refrigeration Equipment CO.,LTD is specialized in manufacturing refrigeration equipment Such as air cooler,condensers and evaporators.have 25 years experiences on technological research and
developments,with ISO9001 management and CE certificter and Rosh Standard.
1.Is sample free or not?
Samples need to be charged.
2.Samples fees can be refund or not?
If the order quantity is above USD30000,The sample fees can be refunded.
3.Can make OEM and Customized design?
Yes,It is no problem.
Ordering and Pricing
- Minimum order quantity: 10 piece
- Volume pricing:
- 10+ piece: US $1600 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this water defrosting air cooler?
The standard minimum order quantity is 10 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the water defrosting air cooler be supplied for my local voltage?
The standard configuration is 380 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
