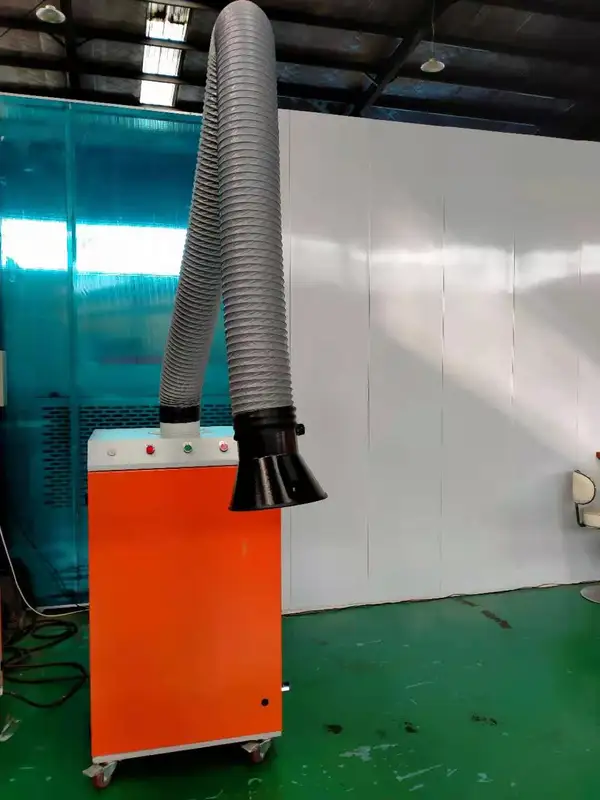

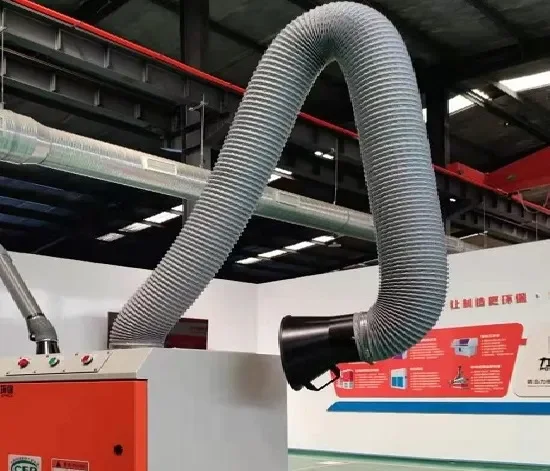

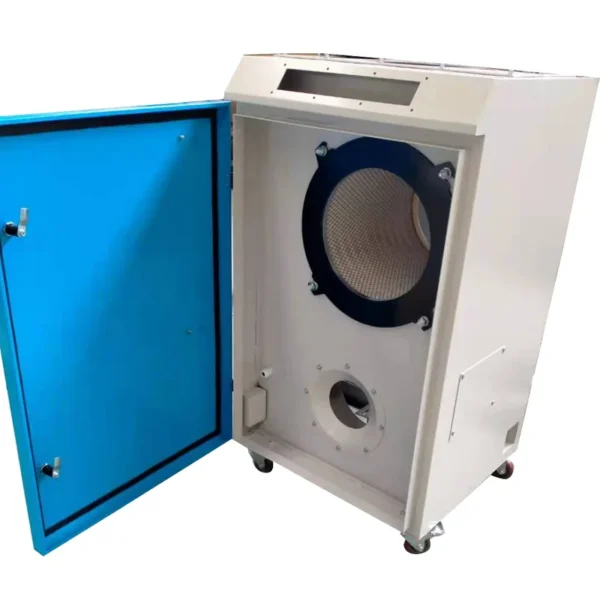

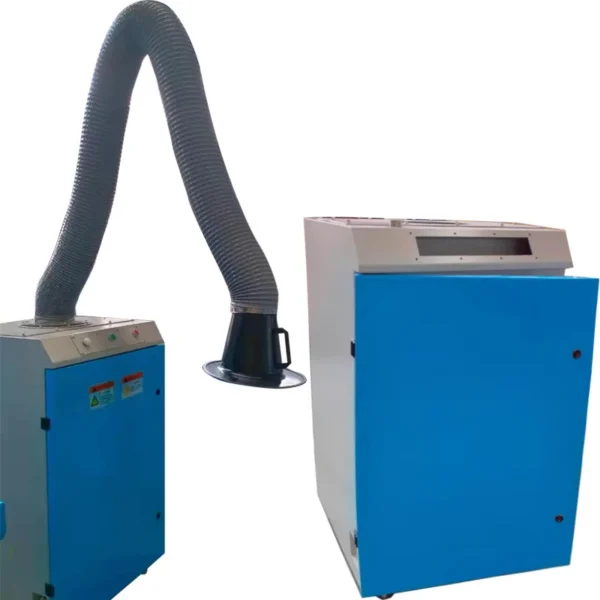

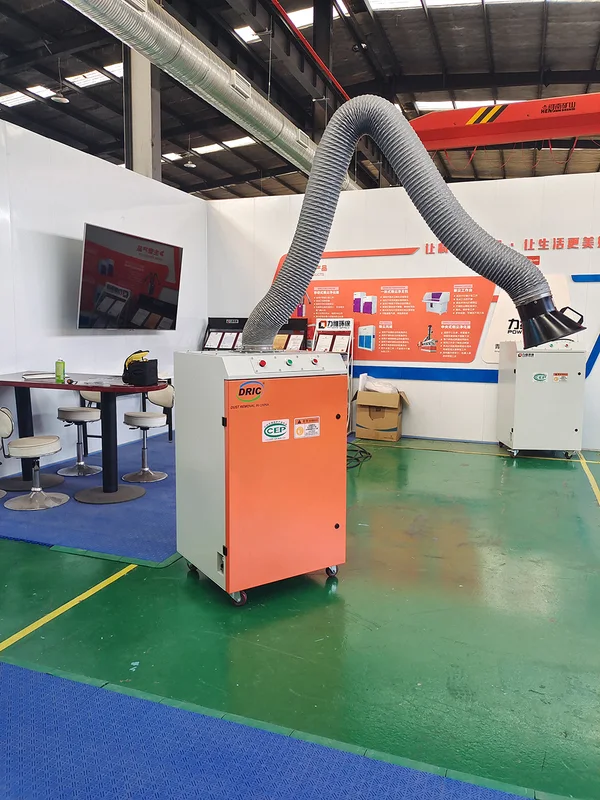

Key specification for this welding ceiling fume extractor: 380 V, 600 CFM. Everything below is reproduced from the factory data sheet. Made by Qingdao Power Space Environmental Protection Technology Co.,Ltd. (6 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Welding Ceiling Fume Extractor
- Power: 2.2 kW
- Horsepower: 2 HP
- Voltage: 380 V
- Lower Collector Capacity: 10 cu ft
- Maximum Air Flow: 600 CFM
- Material: Metal
Technical Specifications
| Maximum Air Flow | 600 CFM |
|---|---|
| Filter Type | Cartridge Filter |
| Voltage | 380 V |
| Phase | Single Phase, Three Phase |
| Power | 2.2 kW |
| Material | Metal |
| Main Inlet Diameter | 4 in, 6in |
| Lower Collector Capacity | 10 cu ft |
| Tank Size | 10 gal |
| Number Of Adaptor Inlets | 1, 2, 3 |
| Upper Filter Type | HEPA Filter |
| Horsepower | 2 HP |
| Installation | Customized |
| Maximum Sound Rating | 78 dBA |
| Timer Setting | 2 hr |
| Warranty | 1 Year |
| Condition | New |
| Place Of Origin | Shandong, China |
| Brand Name | LIWEI |
| Dimension(L*W*H) | 680*650*1210 |
| Minimum Particle Size | 0.3um |
| Weight | 160 |
| Process Ability | 2400m3 per hour |
| Filter Area | 15m2 |
| Filter Efficiency | 0.3μm; >99.9% |
| Filter Element | Nano flame-retardant |
| Performance | High Dust Removal Efficiency 99.99% |
| Main Function | Industrial Dust Treatment |
| Function | Industrial Air Filter |
| Application | Industrial Dust Removal |
| Keyword | Low Noise Dust Colector |
| Certification | CE ISO Certificate |
| Selling Units | Single item |
| Single Package Size | 76X76X150 cm |
| Single Gross Weight | 270.0 kg |
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–4 set: US $926 / set
- 5–9 set: US $916 / set
- 10+ set: US $900 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this welding ceiling fume extractor?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this welding ceiling fume extractor carry?
It is supplied with CE ISO Certificate documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the welding ceiling fume extractor be supplied for my local voltage?
The standard configuration is 380 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Qingdao Power Space Environmental Protection Technology Co.,Ltd., based in China. The company 6 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Qingdao Power Space Environmental Protection Technology Co.,Ltd. range on HVACR Nexus.
