The decentralized heat recovery unit listed here carries voltage 220-240V, airflow 20/40/50, documented exactly as the manufacturer publishes it. Made by Guangzhou Airwoods Environment Technology Co., Ltd. (13 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Decentralized Heat Recovery Unit
- Input Power: 6-7.8w
- Voltage: 220-240V
- Airflow(L/M/H): 20/40/50
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
- Application: Hotel, Villa, Apartment, Hospital, School, Sports Venues, Workshop, Home Office, Living Room, Bedroom
Technical Specifications
| Type | Ventilation |
|---|---|
| Application | Hotel, Villa, Apartment, Hospital, School, Sports Venues, Workshop, Home Office, Living Room, Bedroom |
| Feature | Flexible, Easy Installation |
| Warranty | 1 Year |
| After-Sale Service | Online Technical Support, Onsite Installation, Free Spare Parts |
| Design Style | Modern, European |
| Project Solution Capability | Others |
| Place Of Origin | Guangdong, China |
| Brand Name | AIRWOODS |
| Product Name | Wall Mounted Energy Recovery Ventilator |
| Voltage | 220-240V |
| Frequency | 50/60Hz |
| Input Power | 6-7.8w |
| Waterproof | IPX4 |
| Sensor | CO2 sensor control |
| Airflow(L/M/H) | 20/40/50 |
| Regeneration Efficiency | ≤ 97% |
| Controller | Remote controller+WiFi control |
| Noise | 32dBA |
| Selling Units | Single item |
| Single Package Size | 60X36X33 cm |
| Single Gross Weight | 7.500 kg |
Product Details
Product Description

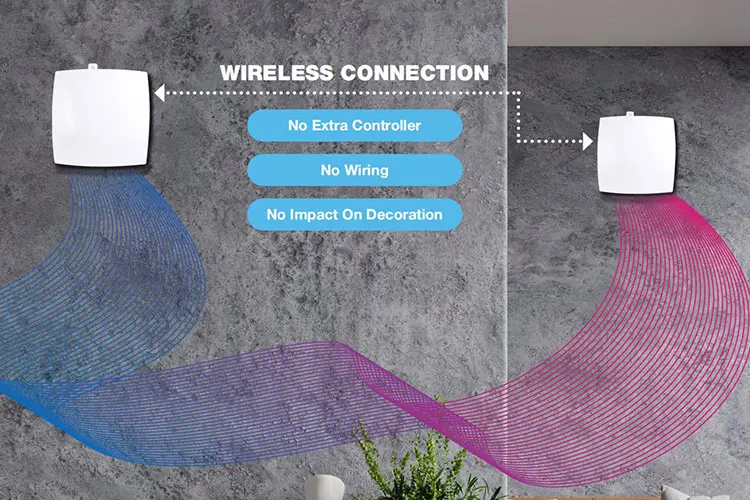

WIRELESS OPERATION INPAIR TO ENSURE BALANCED VENTILATION
Wireless connection of master and slave unit, no wiring or dialing needed, 30 meters ultra long distance transmission.
* 30 meters was tested without barrier and interference. In practical application, it is recommended to install within 8-15
meters. Please avoid the strong interference sources and shielding objects (e.g. iron frames, aluminum ceiling).
Wireless connection of master and slave unit, no wiring or dialing needed, 30 meters ultra long distance transmission.
* 30 meters was tested without barrier and interference. In practical application, it is recommended to install within 8-15
meters. Please avoid the strong interference sources and shielding objects (e.g. iron frames, aluminum ceiling).
GROUP CONTROL
The ventilator can create group control at the APP, the quantity is not limited. User can control all the ventilators in the group easily.
The ventilator can create group control at the APP, the quantity is not limited. User can control all the ventilators in the group easily.
WIFI FUNCTION
•On/off setting
• Fan speed control• Working mode selection
• LED lights on/off
• 7*24 hours timer setting
• Error display
• Online/offline display
• Linkage status display
• Smart control according to local weather
• Linkage control with other appliances with Tuya IoT
•On/off setting
• Fan speed control• Working mode selection
• LED lights on/off
• 7*24 hours timer setting
• Error display
• Online/offline display
• Linkage status display
• Smart control according to local weather
• Linkage control with other appliances with Tuya IoT

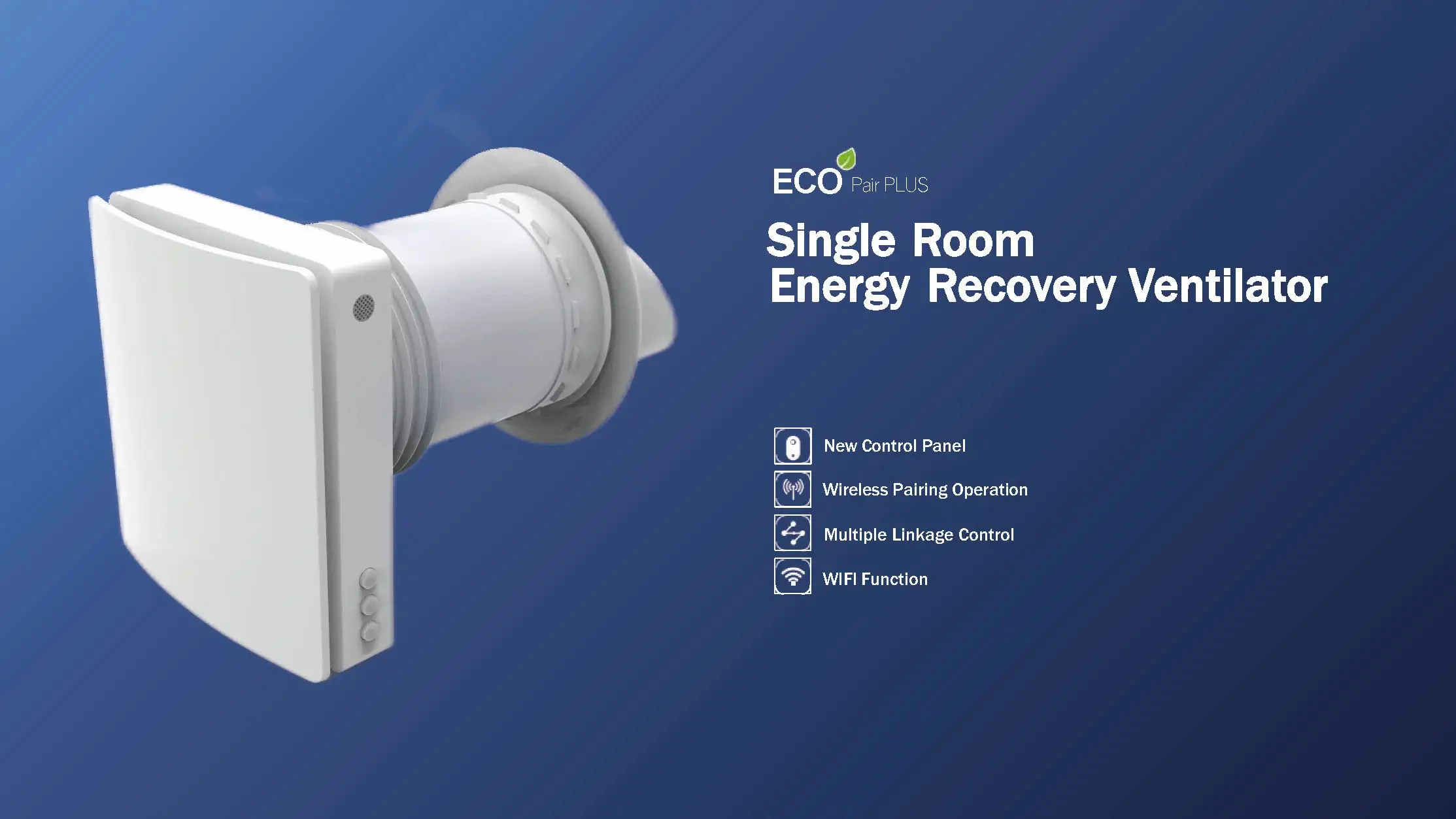

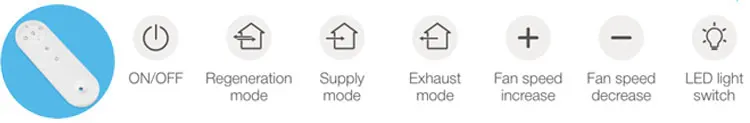

New Contorl Panel
•Using radio signal for communication.
•Longer distances communication up to 15m without barrier.
•Wider control area, multiple devices can be controlled at the same time.
•Accurate control to avoid controlling the wrong device.
•Using radio signal for communication.
•Longer distances communication up to 15m without barrier.
•Wider control area, multiple devices can be controlled at the same time.
•Accurate control to avoid controlling the wrong device.

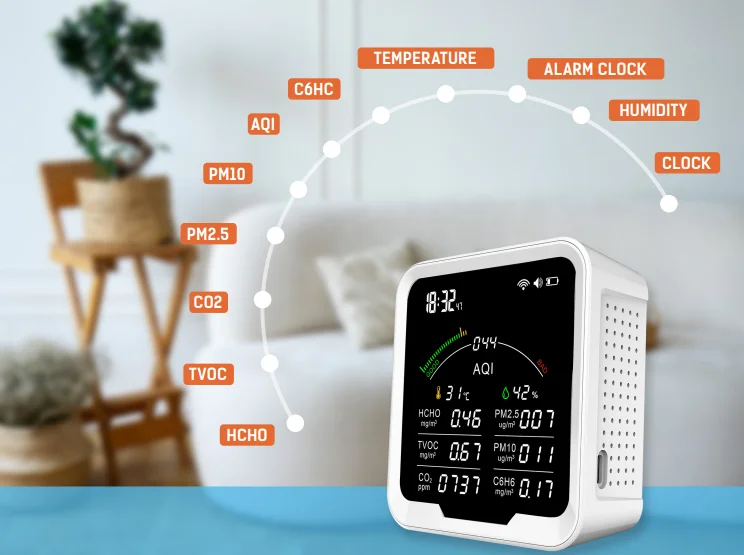

SMART AIR QUALITY DETECTOR
Track 6 air quality factors. Accurately detect the current CO2 concentration, temperature, humidity and PM2.5 in the air. Wifi function available, connect device with Tuya App and view the data in realtime. It can connect with Eco Pair ERV without wire, and control them according to the detected data to ensure air quality at any time. The operation functions can be designed according to the preference of users.

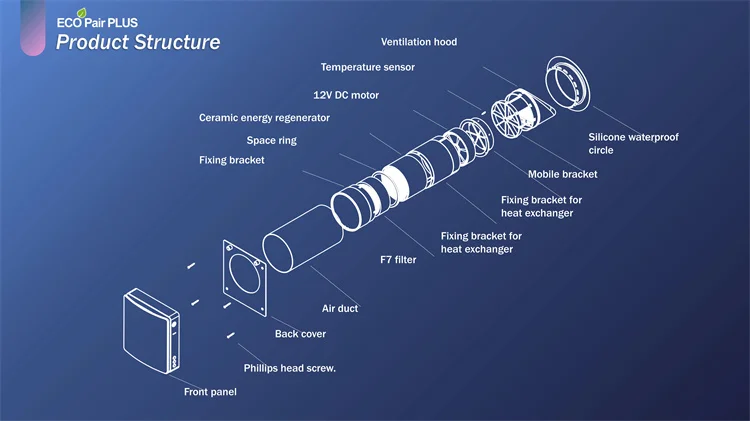

Product Structure
CERAMIC ENERGY REGENERATOR
The high-tech ceramic energy accumulator with regeneration efficiency up to 97 % ensures extract air heat recovery for warming of supply air flow. Due to the cellular structure the unique regenerator has a large air contact surface and high heat-conducting and heat-accumulating properties. The ceramic regenerator is treated with an antibacterial composition which prevents bacteria growth inside of the energy regenerator. The antibacterial properties last for 10 years.
AIR FILTERS
The two integrated air filters with total filtration rate G3 provide supply and extract air filtration. The filters prevent
ingress of dust and insects into the supply air and contamination of the ventilator parts. The filters also have antibacterial
treatment. The filter cleaning is done with a vacuum cleaner or water flushing. The antibacterial solution is not removed. F8 filter is available as a specially ordered accessory, but when installed, it reduces the air flow down to 40 m 3 /h.
REVERSIBLE EC-Fan
The reversible axial fan with a EC motor. Due to the applied EC technology the fan is featured with low power consumption and silen operation. The fan motor has integrated thermal overheating protection and ball bearings for long service life
The high-tech ceramic energy accumulator with regeneration efficiency up to 97 % ensures extract air heat recovery for warming of supply air flow. Due to the cellular structure the unique regenerator has a large air contact surface and high heat-conducting and heat-accumulating properties. The ceramic regenerator is treated with an antibacterial composition which prevents bacteria growth inside of the energy regenerator. The antibacterial properties last for 10 years.
AIR FILTERS
The two integrated air filters with total filtration rate G3 provide supply and extract air filtration. The filters prevent
ingress of dust and insects into the supply air and contamination of the ventilator parts. The filters also have antibacterial
treatment. The filter cleaning is done with a vacuum cleaner or water flushing. The antibacterial solution is not removed. F8 filter is available as a specially ordered accessory, but when installed, it reduces the air flow down to 40 m 3 /h.
REVERSIBLE EC-Fan
The reversible axial fan with a EC motor. Due to the applied EC technology the fan is featured with low power consumption and silen operation. The fan motor has integrated thermal overheating protection and ball bearings for long service life
Operation In Different Mode

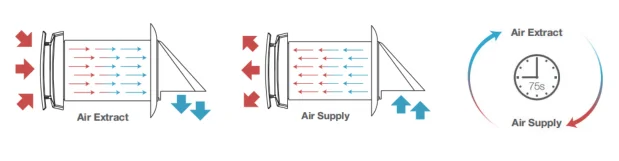

Regeneration Mode
Under regeneration model, the ventilators work in pair, one will extract air and the other will supply air. The fans rotate in
different direction.
Supply Mode
Under supply mode, two ventilators will run simultaneously to supply air to the room
Exhaust Mode
Under exhaust mode, two ventilators will exhaust air simultaneously
Regeneration Mode
Under regeneration model, the ventilators work in pair, one will extract air and the other will supply air. The fans rotate in
different direction.
Supply Mode
Under supply mode, two ventilators will run simultaneously to supply air to the room
Exhaust Mode
Under exhaust mode, two ventilators will exhaust air simultaneously

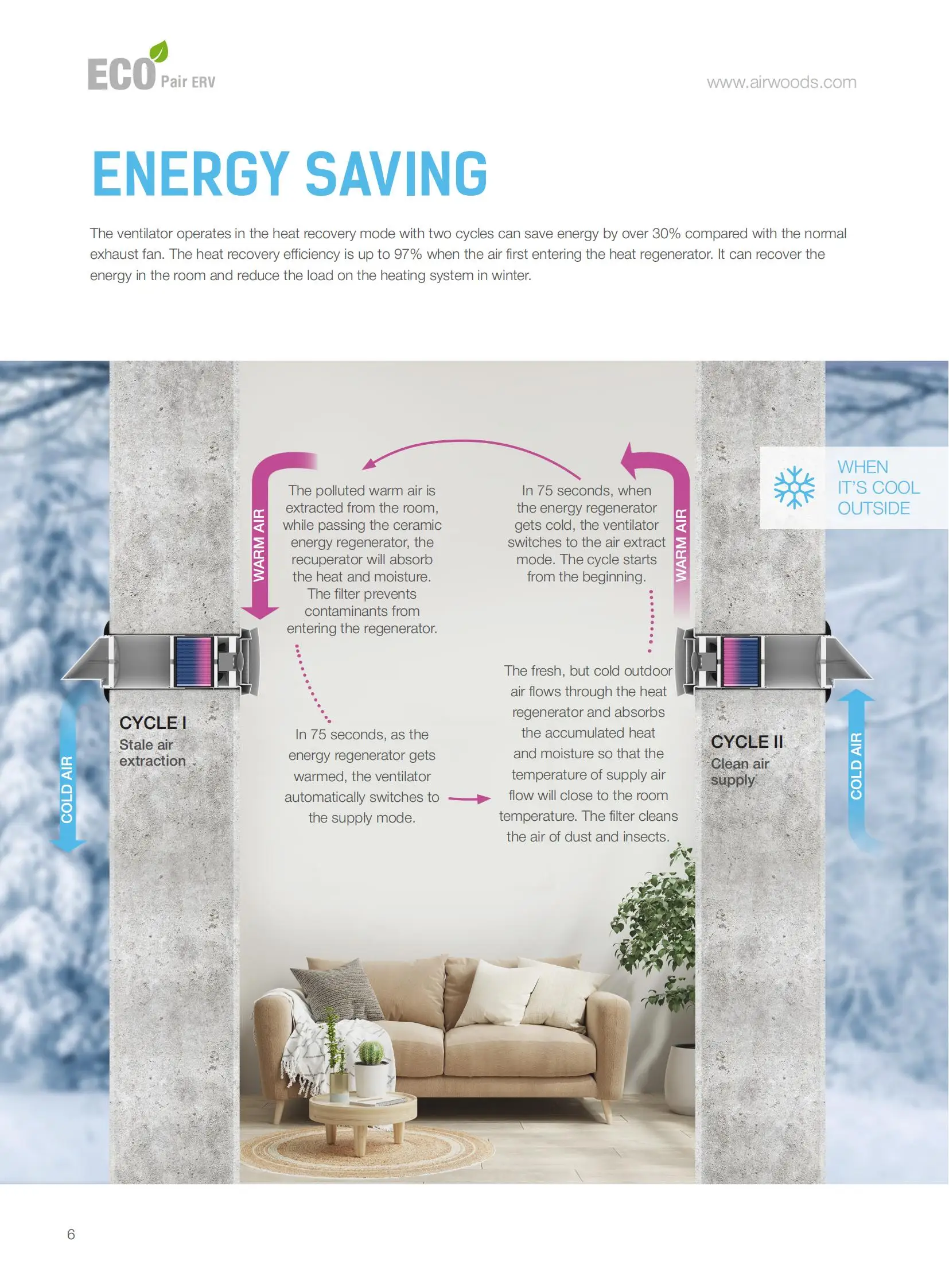

ENERGY SAVING
The ventilator operates in the heat recovery mode with two cycles can save energy by over 30% compared with the normal exhaust fan. The heat recovery efficiency is up to 97% when the air first entering the heat regenerator. It can recover the energy in the room and reduce the load on the heating system in winter.
The ventilator operates in the heat recovery mode with two cycles can save energy by over 30% compared with the normal exhaust fan. The heat recovery efficiency is up to 97% when the air first entering the heat regenerator. It can recover the energy in the room and reduce the load on the heating system in winter.

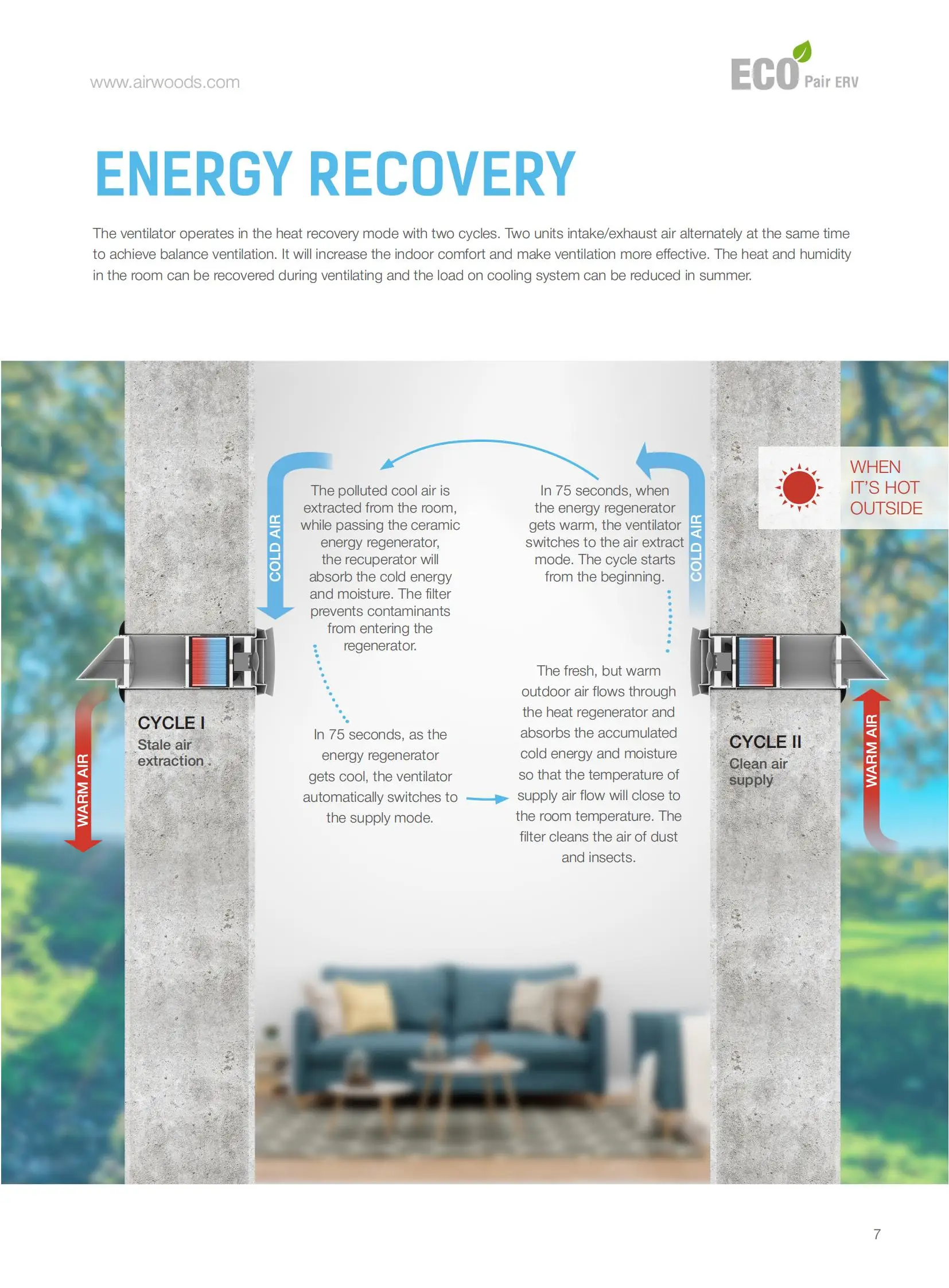

The ventilator operates in the heat recovery mode with two cycles. Two units intake/exhaust air alternately at the same time to achieve balance ventilation. It will increase the indoor comfort and make ventilation more effective. The heat and humidity in the room can be recovered during ventilating and the load on cooling system can be reduced in summer.
Model No. | AV-TTW5-W | ||||
Voltage | 100V~240V AC /50-60Hz | ||||
Power [W] | 6 | 7 | 7.8 | ||
Current [A] | 0.04 | 0.05 | 0.06 | ||
Air flow in regeneration mode [m3/h] | 20 | 40 | 50 | ||
Air flow in energy recovery mode [m3/h] | 14 | 27 | 32 | ||
SFP [W/m3/h] | 0.43 | 0.31 | 0.35 | ||
Sound pressure level at 1 m distance [dBA] | 28 | 32.9 | 36.7 | ||
Sound pressure level at 3 m distance [dBA] | 12 | 27.5 | 31.9 | ||
Regeneration Efficiency | Up to 97% | ||||
SEC | Class A | ||||
Transported air temperature [°C] | -20~50 | ||||
Ingress Protection Rating | IP22 | ||||
RPM | 2000 (max) | ||||

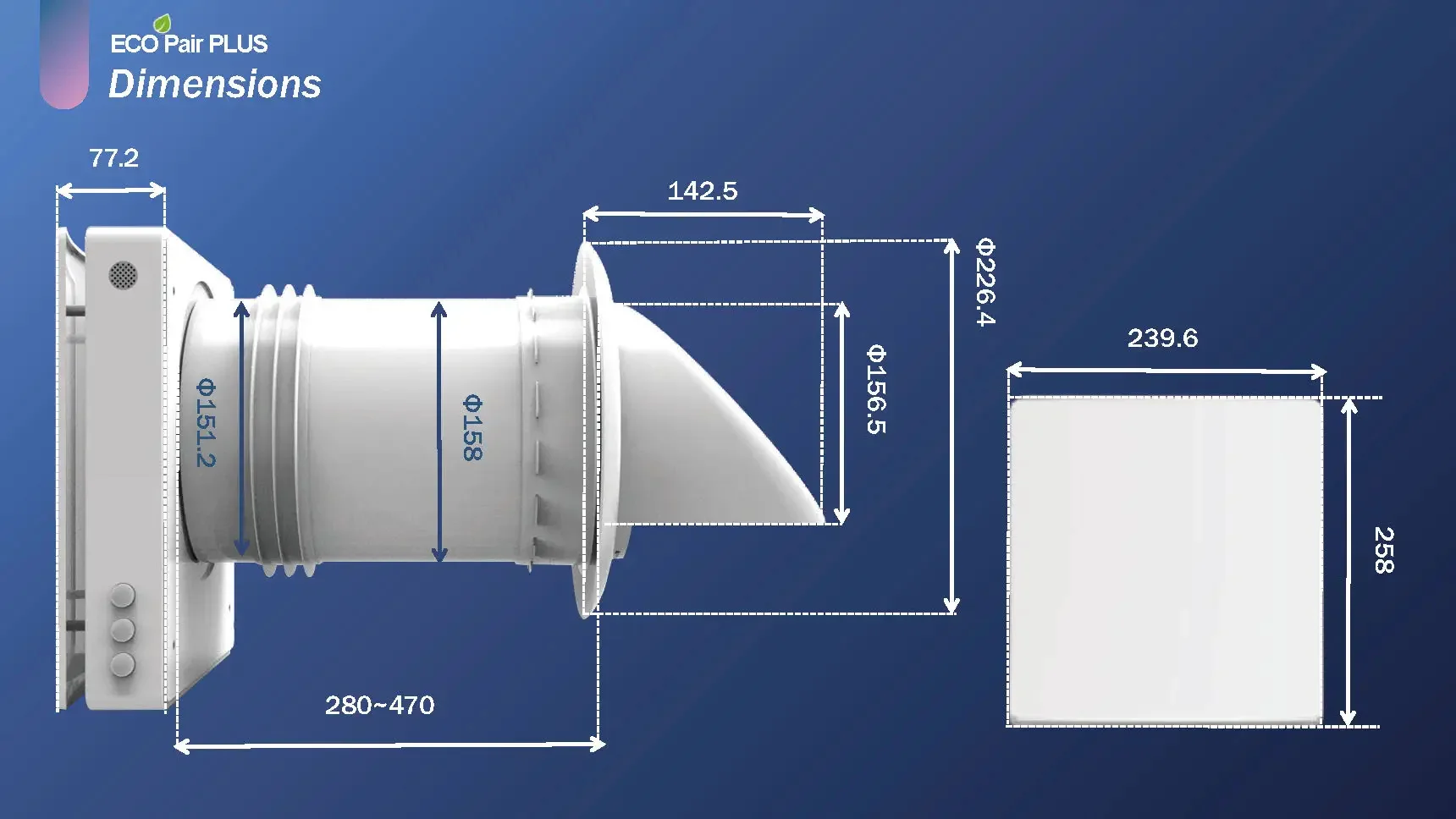

Diameter of duct [mm| | 158mm | ||||
Type of installation | Wall mounting | ||||
Net Weight | 4.2kg | ||||
Company Profile
Since 2007, Airwoods dedicated to provide comprehensive building air quality solutions for various applications. Its a brand for better air quality and better life products. AIRWOODS brand mainly focus on the marketing, sales and product development to meet different market demand. The main products include air purifier, air disinfection system, fresh air ventilator, energy recovery ventilator, heat pump type heat recovery ventilator, air heat exchanger, air handling unit, water chiller, heat pump, etc. Our products have exported to more than 100 countries, certified by SGS CE, CB, EPCS, etc. and earned a worldwide reputation for providing reliable products, knowledgeable application expertise and responsive support and services. We aim to deliver good building air quality to the world with energy efficient products, optimized solutions, cost-effective prices and great services to our customers.
Certifications
FAQ
1. How to select the suitable model ?
Before we make recommendations to you, we may need below information:
* Where do you want to apply it?
* What is the room size/ room type/ number of person
We will make advice to you according to your specific conditions, based on the airflow required and application.
2. Why choose Holtop as a business partner?
Because Holtop can be a trustworthy supplier, a fore runner in the production of air to air heat recovery equipment/ fresh air purification equipment for more than 18 years.
3. How about your product quality?
Our professional R&D team, certificates of ISO9001, ISO14001, OHSAS18001, CE and EUROVENT, customer feedback, and long-term customer relationship can speak for themselves.
4. Do you work with famous brands ?
Yes, we have established reliable relationship and been a regular supplier to MIdea, Haier, Hitachi, LG, Mcquay, Trane Technology, Gree, etc.
5. Where is your market?
Currently, we mainly export to Europe, the Middle East, Southeast Asia, and is expanding.
PS: Follow our Alibaba store & add the product to " my favorite" , to get new arrivals, trending and special discounts for you!
Before we make recommendations to you, we may need below information:
* Where do you want to apply it?
* What is the room size/ room type/ number of person
We will make advice to you according to your specific conditions, based on the airflow required and application.
2. Why choose Holtop as a business partner?
Because Holtop can be a trustworthy supplier, a fore runner in the production of air to air heat recovery equipment/ fresh air purification equipment for more than 18 years.
3. How about your product quality?
Our professional R&D team, certificates of ISO9001, ISO14001, OHSAS18001, CE and EUROVENT, customer feedback, and long-term customer relationship can speak for themselves.
4. Do you work with famous brands ?
Yes, we have established reliable relationship and been a regular supplier to MIdea, Haier, Hitachi, LG, Mcquay, Trane Technology, Gree, etc.
5. Where is your market?
Currently, we mainly export to Europe, the Middle East, Southeast Asia, and is expanding.
PS: Follow our Alibaba store & add the product to " my favorite" , to get new arrivals, trending and special discounts for you!
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–99 piece: US $170 / piece
- 100–499 piece: US $140 / piece
- 500+ piece: US $130 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this decentralized heat recovery unit?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the decentralized heat recovery unit be supplied for my local voltage?
The standard configuration is 220-240V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Guangzhou Airwoods Environment Technology Co., Ltd., based in China. The company 13 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Guangzhou Airwoods Environment Technology Co., Ltd. range on HVACR Nexus.
