PRODUCT SPECIFICATIONS
1.General Characters
|
Rated Voltage
|
230 VAC
|
Life Expectance
|
30,000 Hours
|
|
Frequency
|
50 Hz
|
Direction of Rotation
|
Clockwise
seen on rotor |
|
Rated Speed
|
1800 RPM
|
Dimension
|
See dimension drawing
|
|
Input Current
|
0.06 A
|

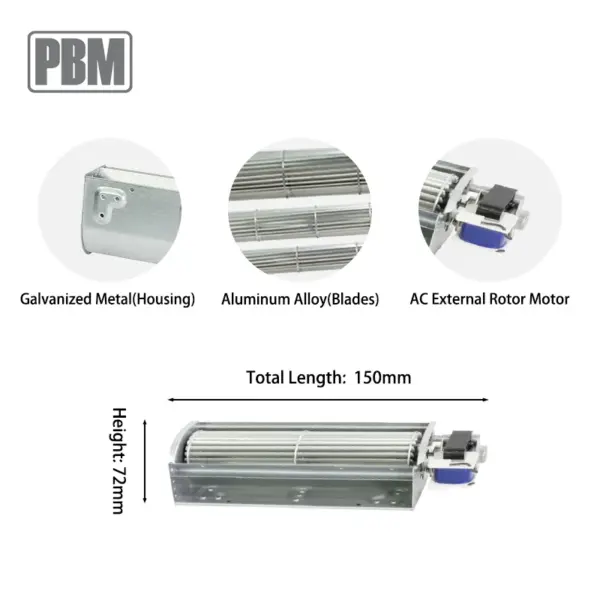

Material of Impeller
|
Aluminum alloy
|
|
Input Power
|
7.5 W
|
Air Flow
|
37.66 CFM / 64 m³/H
|
|
Acoustical Noise
|
36 dB(A)
|
Static Pressure
|
3.06 mmH₂O / 30 Pa
|
2. Environmental Characters
|
Operating Temperature
|
-20℃ to 70℃
|
Storage Temperature
|
-40℃ to 80℃
|

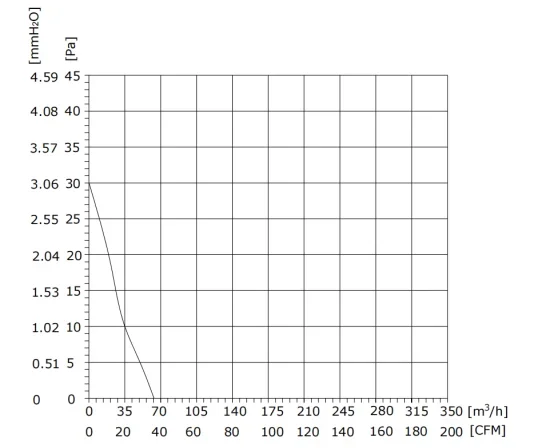

3. Performance Curve

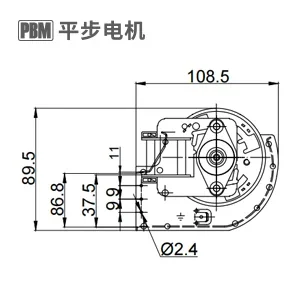

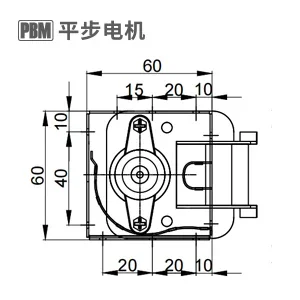

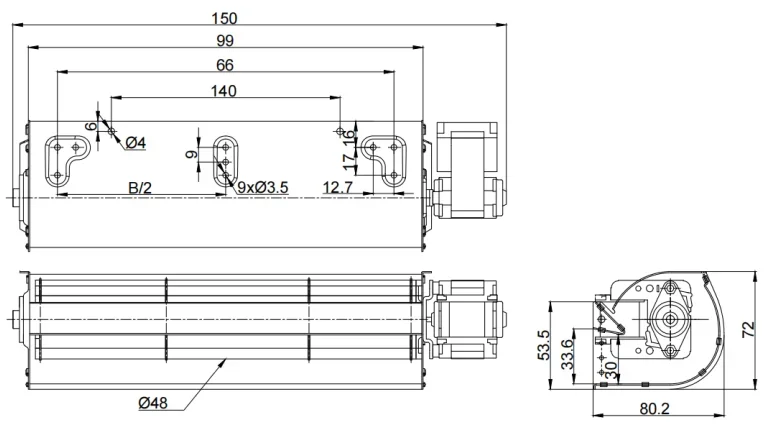

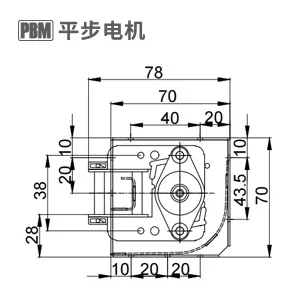

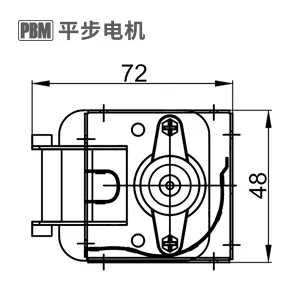

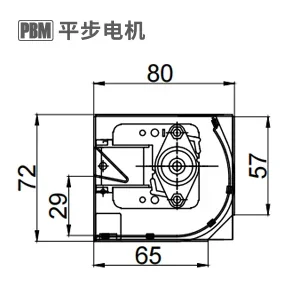

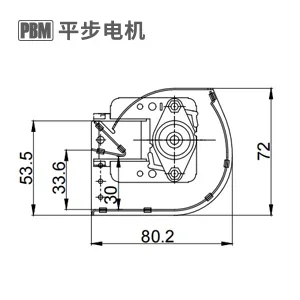

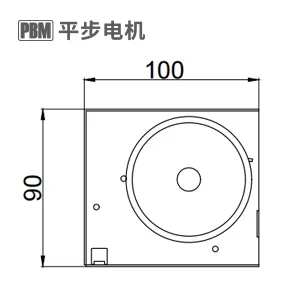

4. Outline Drawing
Certifications
Application Scopes
Recommend Products
|
Model
Part No.
|
Rated
Voltage
VAC
|
Air
Flow
m³/H
|
Air
Pressure
Pa
|
Rated
Speed
RPM
|
Sound
Level
dB(A)
|
Total
Length
mm
|
|
230
|
64
|
30
|
1800
|
36
|
150
|
|
|
230
|
81
|
28
|
1600
|
33
|
200
|
|
|
230
|
105
|
26
|
1500
|
32
|
246
|
|
|
230
|
168
|
40
|
2400
|
46
|
298
|
|
|
230
|
213
|
40
|
2400
|
46
|
310
|
|
|
230
|
264
|
35
|
2000
|
40
|
361
|
|
|
230
|
307
|
38
|
2200
|
43
|
413
|
|
|
230
|
343
|
35
|
2000
|
44
|
493
|
PBM AC Tangential Blowers with Different Impeller Sizes
PBM Cross Flow Fan 30mm Blades
Application: Air Conditioners, Air Curtain Equipment, Heater, Dryers, Laser Instruments, Home Appliances, Floor Convector, Trench
Heater.
Heater.
PBM Cross Flow Fan 40mm Blades
Application: Heat Pump, Hybrid Systems, Electrical Heating, Fireplace, Electric Corner Heater, Heat Recovery.
PBM Cross Flow Fan 45mm Blades
Application: Storage Heaters, Underfloor Convectors, Air Doors, Stove Jacket Cooling.
PBM Cross Flow Fan 48mm Blades
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PBM Cross Flow Fan 50mm Blades
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PBM Cross Flow Fan 60mm Blades
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PBM Cross Flow Fan 65mm Blades
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

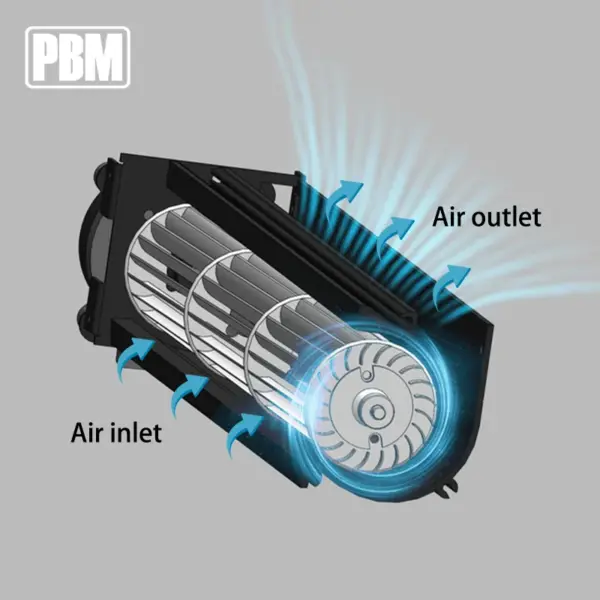

Product Overview
Exhibition Show
Packing Detail
FAQ
Q: What are the typical applications for these cross-flow blowers?
A: They are ideal for home appliances including indoor stoves,fireplaces, ovens, wood burners, underfloor convectors, air doors, air curtains, air conditioners, and heaters.
Q:How about the delivery time ?
A:Within 25 days after we receive the order.
Q:What kind of payments do you support?
A:T/T & L/C, other types please contact us.
Q: What’s the MOQ?
A: Generally speaking, the MOQ is 100 pieces. Different products have different MOQ. Please contact us.
Q: Transportation?
A: All available shipping ways could be applied, by courier, air or sea. Appointed shipping company or our own forwarders all could be used in shipment Full-way tracking the cargos for you before the goods arrive.
