Key specification for this wine cooler: 380V-440V/3Ph/50HZ-60HZ, refrigerant r22 r404a r507 r134a. Everything below is reproduced from the factory data sheet. Made by Taixing Penguin Refrigeration Equipment Factory (6 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Wine Cooler
- Voltage: 380V-440V/3Ph/50HZ-60HZ
- Refrigerant: r22 r404a r507 r134a
- Warranty: 1 Year
- After Warranty Service: Video technical support
- Certification: ce
- Place Of Origin: Jiangsu, China
Technical Specifications
| Application | Refrigeration |
|---|---|
| Type | Refrigeration Compressor |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Weight (Kg) | 150 |
| Place Of Origin | Jiangsu, China |
| Brand Name | BlTZER |
| Temperature | 5℃ to +15℃ |
| Specifications | 15HP/10.5KW |
| Displacement | YES |
| Voltage | 380V-440V/3Ph/50HZ-60HZ |
| Usage | Freezer/Cold Room/Cold Storage |
| Color | Green |
| After Warranty Service | Video technical support |
| Certification | ce |
| After-Sales Service Provided | Free spare parts |
| Refrigerant | r22 r404a r507 r134a |
| Selling Units | Single item |
| Single Package Size | 50X50X50 cm |
| Single Gross Weight | 68.0 kg |
Product Details
Product Overview

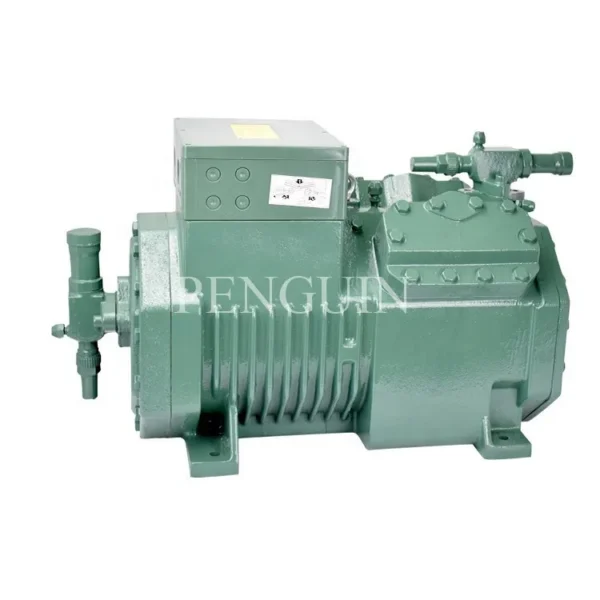

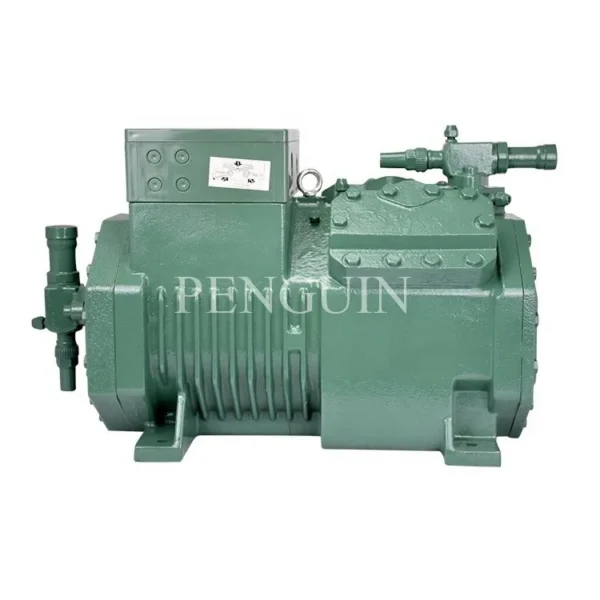

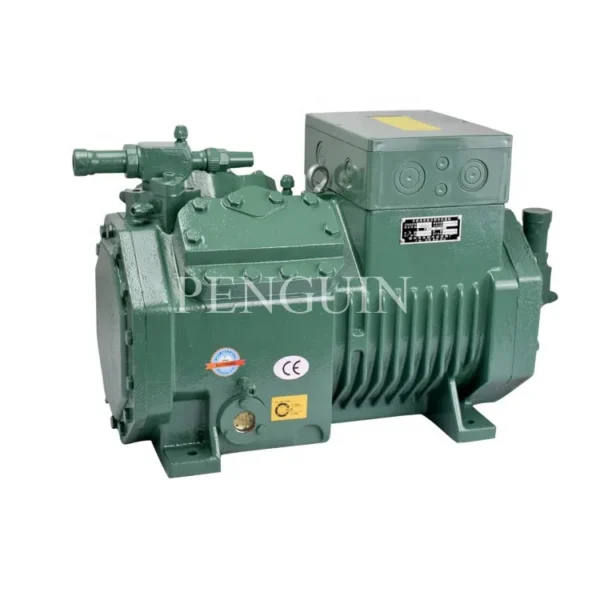

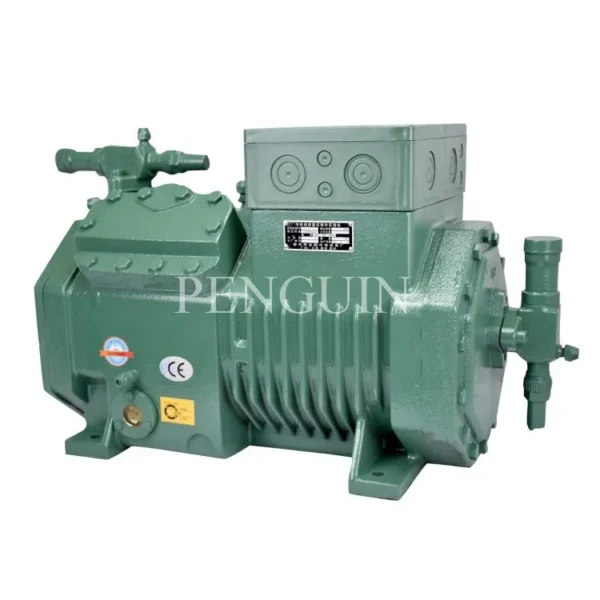

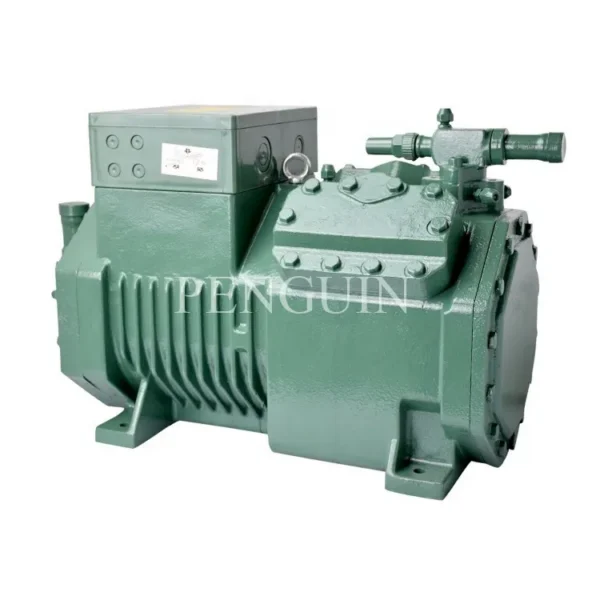

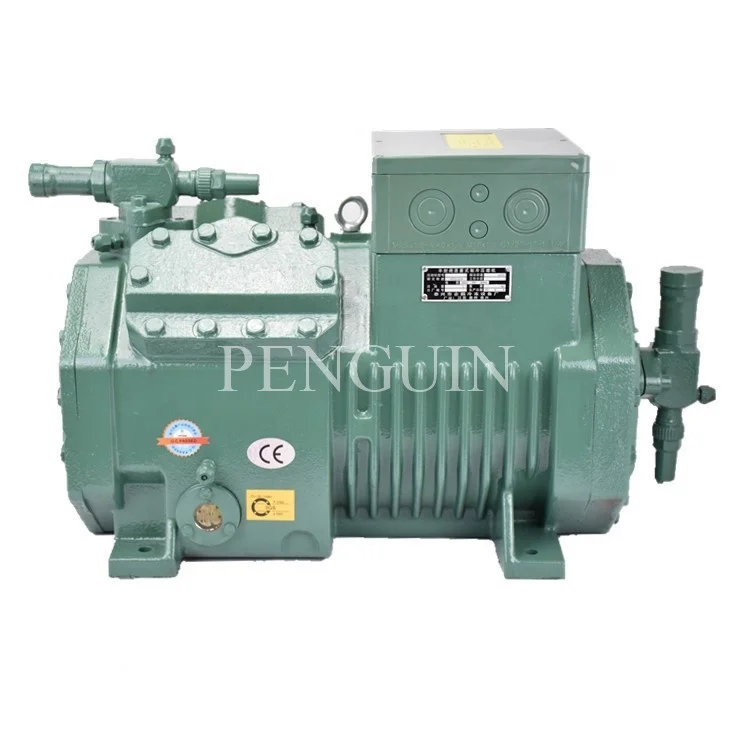

15HP China Piston R22 Cooling Semi Hermetic Refrigeration Walk In Wine Cooler Ice Block Machine Compressor Prices
If you don't know which model is suitable for you, please contact we without hesitation, after tell us your requirements, we shall be glad to give you our professional advise. And if all this model don't suit for you, we have advanced software and professional team of engineers can design product for you. We have customized products for many customers, following are some projects we did before. We can provide designing data and prodcution drawings.
Product introduction
This is a 15HP semi-hermetic refrigeration compressor, suitable for refrigerating warehouses of vegetables, fruits, meat, seafood, etc.We offer horsepower from 3HP to 50HP.Cooling capacity varies with horsepower.The advantages of our compressor are fast cooling, low noise and high efficiency.And have good after – sale service, deliver goods quickly!
We also provide other 3HP-60HP compressors. Reasonable price .Would like to know more about PENGUIN Machine equipments, feel free
to send us an inquiry or click picture!
to send us an inquiry or click picture!
Model | Motor Nominal Power | Displacement | Max operating current A | Fuel Supply mode | Weight |
HP kW | m3 h | A | Kg | ||
4VB5.2G | 5HP/3.7kW | 18.1 | 18.7 | Centrifugal lubrication | 86 |
4VB6.2Z | 6HP/4.4kW | 22.7 | 18.5 | Centrifugal lubrication | 84 |
4VB6.2G | 6HP/4.4kW | 22.7 | 22.9 | Centrifugal lubrication | 86 |
4VB5.2Z | 5HP/3.7kW | 26.8 | 23.4 | Centrifugal lubrication | 85.5 |
4VB7.2G | 7HP/5.1kW | 26.8 | 27.5 | Centrifugal lubrication | 88.5 |
4VB15.2G | 15HP/10.5kW | 48.5 | 31 | Centrifugal lubrication | 140 |
Our advantages
1、Safety & reliability
Having motor protection consisting of PTC thermistor element embedded in the motor and motor protector that can effectively prevent motor burnout for poor cooling, locked-rotor, power phase unbalance and so forth.
2、Reasonable
Having advanced design, rational structure, spare parts of high generality, light and handsome shape, small size, smooth performance, low noises and slight vibration for compressor.
3、Generality Having design of compressor conforming to the national standard for environmental protection and applicable to refrigerant such as R22, R134a, R404a, R407C.
4、Wear Resistance
Having ion nitriding treatment on the surface of primary moving parts to greatly enhance the service life of compressor. Having sliding bearing with low friction. Having aluminum piston being equipped with piston ring that has hard chromium plating on its surface.
5、Salient Performance-To-Price
Having valve plates which material are spring steel and stainless steel with high quality and impact-resistance being designed excellently. Having minimal dead point clearance. Having optimized air passage.
Application
Successful Project
If you don't understand something, you can click here to inquire
Product packaging
Why choose us
Jiangsu Taixing Jingchuang PENGUIN Refrigeration Equipment Manufactory is an enterprise specializing in the development and production of refrigerating compressors & units. The main products range from semi-hermetic refrigerating compressors & units to open-type refrigerating compressors & units that have extensively been applied into freezing & cold storage, large refrigerated warehouse in the industry of Chemical, Refinery, Pharmaceutical, Restaurant, Supermarket, Factory workshop and Food.The company has successively certified by ISO9001-2000 quality system certification, product compulsory certification and CQC quality certification. The product of refrigerating compressors & units has acquired the national industrial product manufacturing license and won the title of provincial “Quality Trustworthy Product”.The enterprise possesses advanced processing equipments for compressors such as modernized assembly line, Due to consummate technics, highly skilled production team, austere quality strategy and completely new management, the "PENGUIN"-branded products are in great demand nation-wide and have been exported to many overseas markets as Africa and South-East Asia.We are always transcending, and the "PENGUIN" is willing to be shoulder to shoulder, arm in arm with you to jointly develop splendid refrigeration cause.
FAQ
1. Who are we?
We are based in Jiangsu, China, start from 2008,sell to Domestic .There are total about 101-200 people in our office.
We are based in Jiangsu, China, start from 2008,sell to Domestic .There are total about 101-200 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment;
Always a pre-production sample before mass production;Always final Inspection before shipment;
3.What can you buy from us?
Refrigeration Compressor,Condensing Unit,Refrigeration Equipment and Parts
Refrigeration Compressor,Condensing Unit,Refrigeration Equipment and Parts
4. Why should you buy from us not from other suppliers?
(1).The professional manufcturer of compressor and condensing unit (Year1992 until now) ,owns Two factories area about 35000 square meter,more than one hundred workers.
(2).We have Modern assembly line and sophisticated equipment.
(3).We have innovativeness,more professional, with price advantage, and fast delivery, after-sales system perfect.
Want to know more about PENGUIN, Click inquiry to know more!
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–9 set: US $910 / set
- 10–29 set: US $835 / set
- 30+ set: US $757 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this wine cooler?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this wine cooler carry?
It is supplied with ce documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the wine cooler be supplied for my local voltage?
The standard configuration is 380V-440V/3Ph/50HZ-60HZ. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Taixing Penguin Refrigeration Equipment Factory, based in China. The company 6 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Taixing Penguin Refrigeration Equipment Factory range on HVACR Nexus.
