Ybt energy saving fan — 220V/380V-660V etc., power source Electric. The complete factory specification follows. Made by Jinan Tengyun Environment Engineering Co., Ltd. (9 years on the platform, typical reply ≤12h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Ybt Energy Saving Fan
- Model Number: TYB-32/42/52/62
- Power Source: Electric
- Voltage: 220V/380V-660V etc.
- Material: Cast Iron
- Blade Material: Cast Iron
- Shell Material: Cast Iron
Technical Specifications
| Blade Diameter | 18 in |
|---|---|
| Voltage | 220V/380V-660V etc. |
| Speed | 2500 RPM |
| Type | Explosion-Proof Axial Fan |
| Material | Cast Iron |
| Blade Material | Cast Iron |
| Mounting Type | Free Standing |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 2 Years |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Place Of Origin | Shandong, China |
| Brand Name | TENRUN |
| Model Number | TYB-32/42/52/62 |
| Color | Blue |
| Product Name | Axial jet fan for gold mining |
| Usage | For under mining coal, deep tunnel/ metal mining/ tunnel exhausting |
| Diameter Of Blades | 300-600mm |
| Shell Material | Cast Iron |
| Noise | 77dB |
| Outside Diameter | 370-675mm |
| Impeller Blade | Cast Iron |
| Selling Units | Single item |
| Single Package Size | 55X60X65 cm |
| Single Gross Weight | 40.000 kg |
Product Details
Explosion-proof Metal Industrial Exhaust Fan Axial Fans Aggregate Mine Tunnel Ventilation System
TYB series flameproof axial local fan type is mainly used in coal mines containing hazardous gas or coal dust explosion underground for Forced Auxiliary ventilation, the product is also suitable for metal mining, chemical mines, tunnels and other use the fan factories and mines, the transmission medium temperature does not exceed 40 ℃, humidity less than 95 ± 3% (25 ℃) and non-corrosive.
1.TYB Series Mining Fan Technical Parameter:
| Product Model | Voltage(V) | Rated current(A) | Air Flow(m3/h) | Rotary Speed(RPM) | Full Pressure(Pa) | Motor Power(KW) |
| TYB32-2 | 220-660V | 4.7 | 101-55 | 2840 | 380-960 | 2.2 |
| TYB42-2 | 220-660V | 11.1/6.1 | 180-90 | 2900 | 800-1700 | 5.5 |
| TYB52-2 | 220-660V | 21.8/12.5 | 225-145 | 2930 | 500-2400 | 11 |
| TYB62-2 | 220-660V | 35.5/20.4 | 300-195 | 2930 | 520-2400 | 18.5 |
| TYB62-2 | 220-660V | 42.2/22.3 | 370-240 | 2940 | 680-320 | 22 |
| TYB62-2 | 220-660V | 56.9/32.8 | 425-250 | 2950 | 800-3500 | 30 |

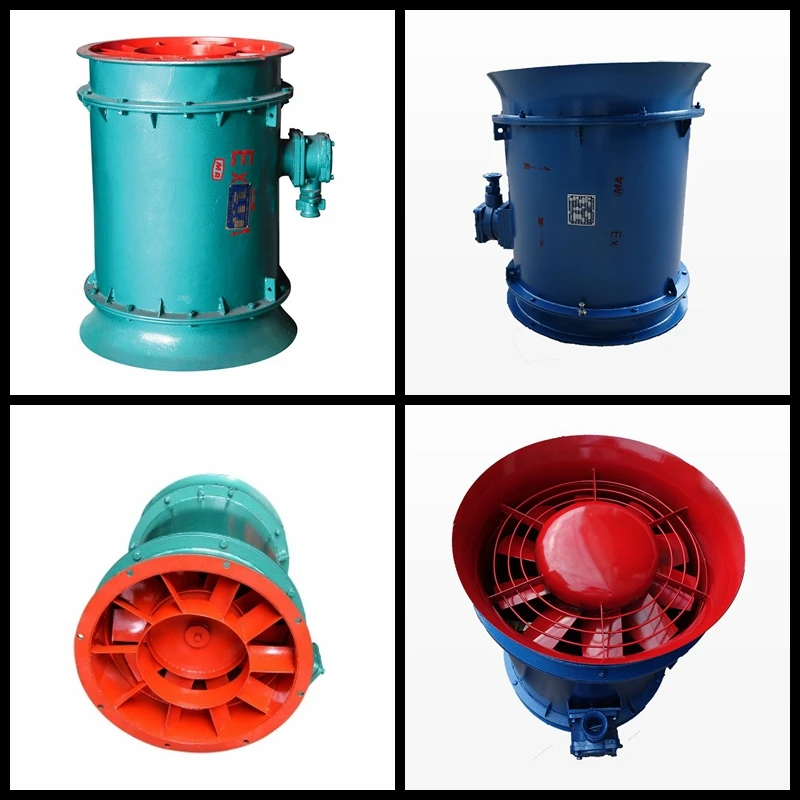

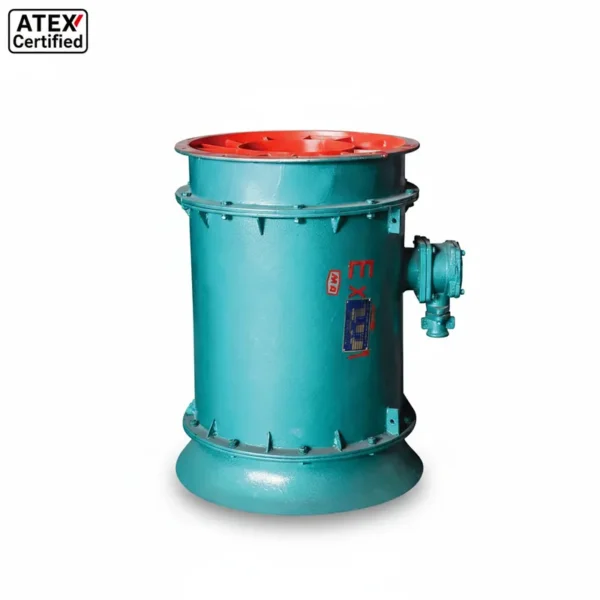

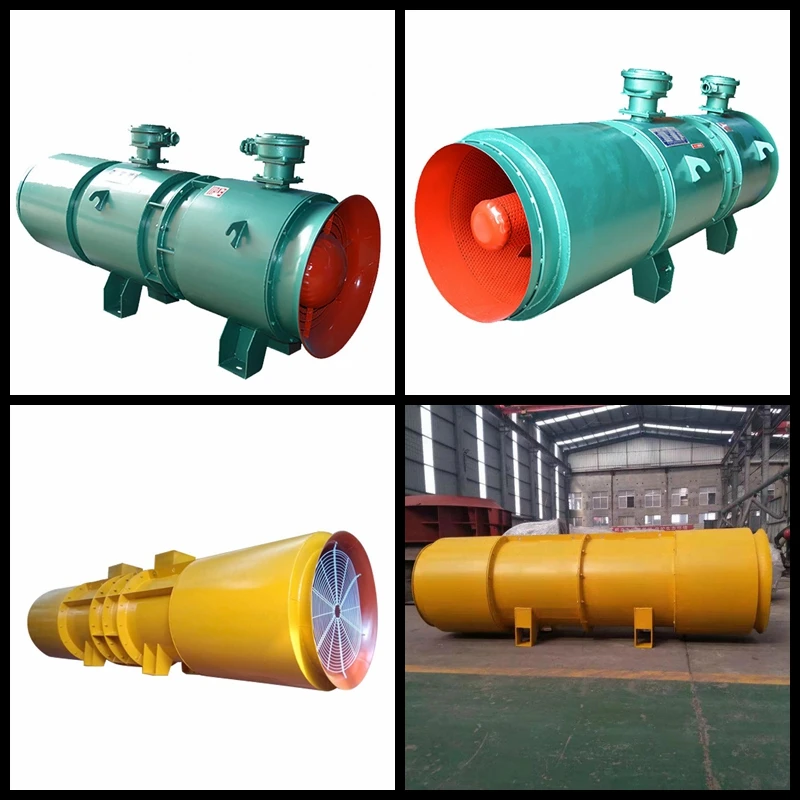

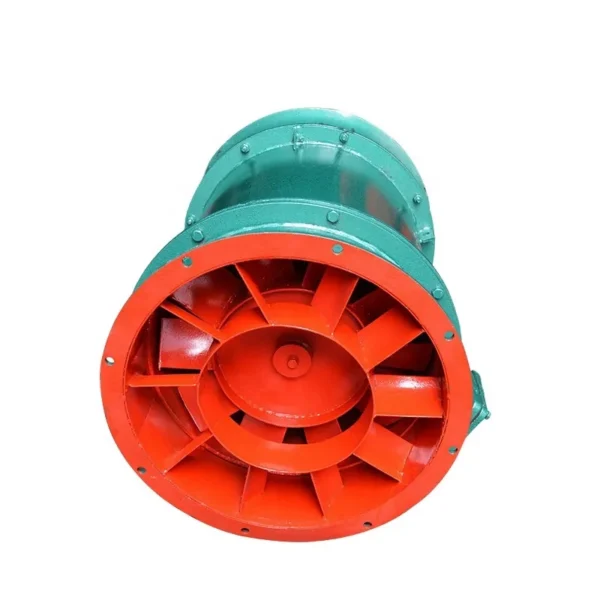

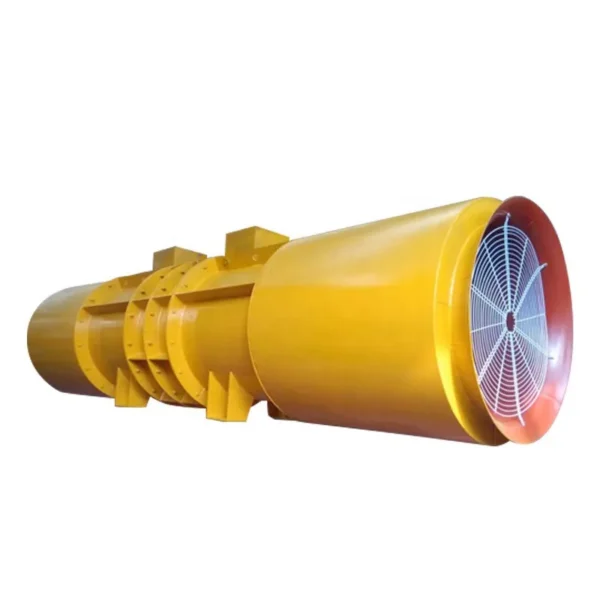

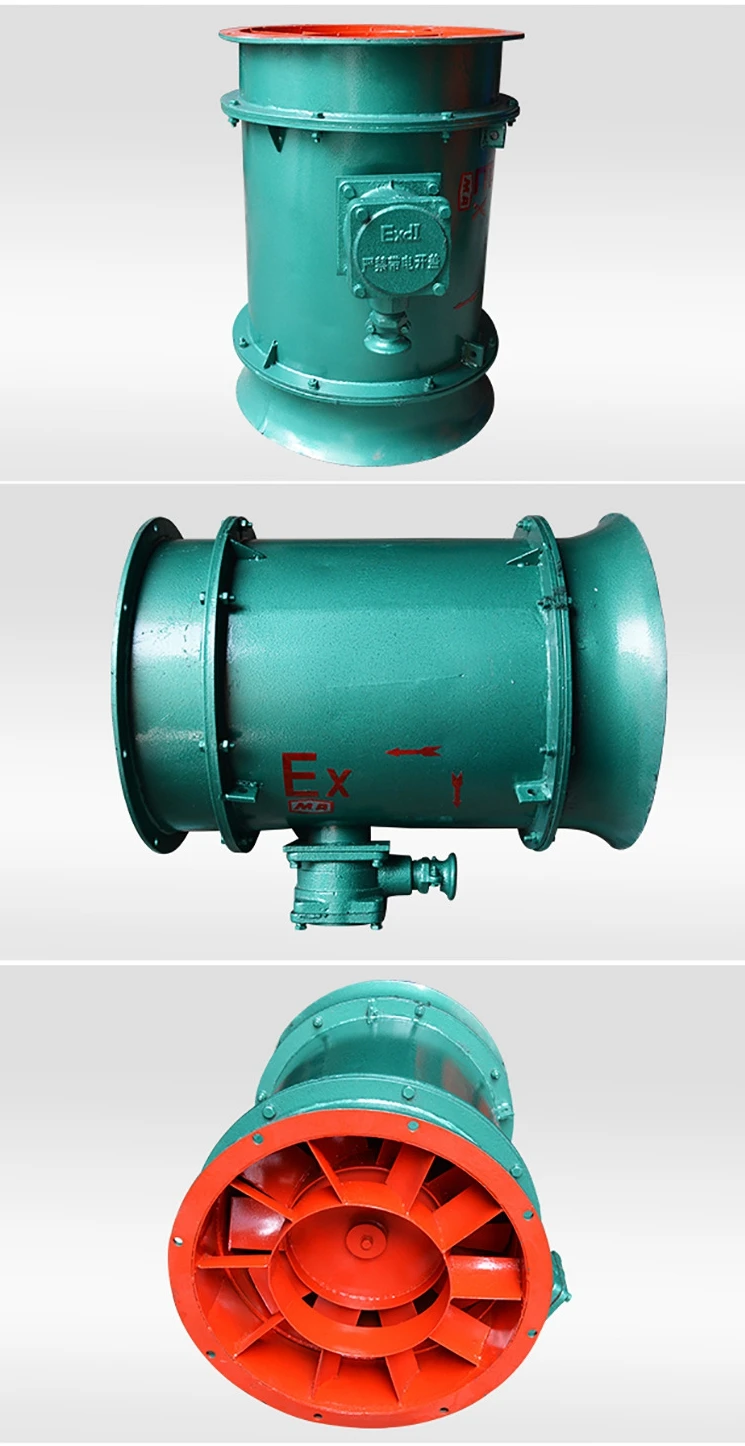

Pictures reference:

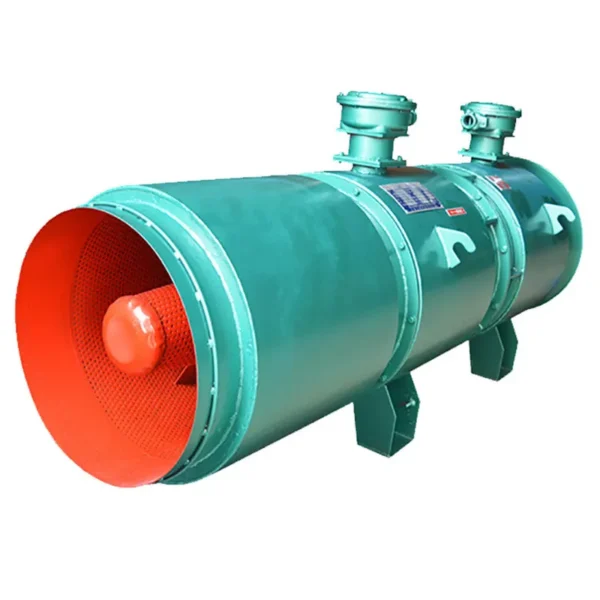

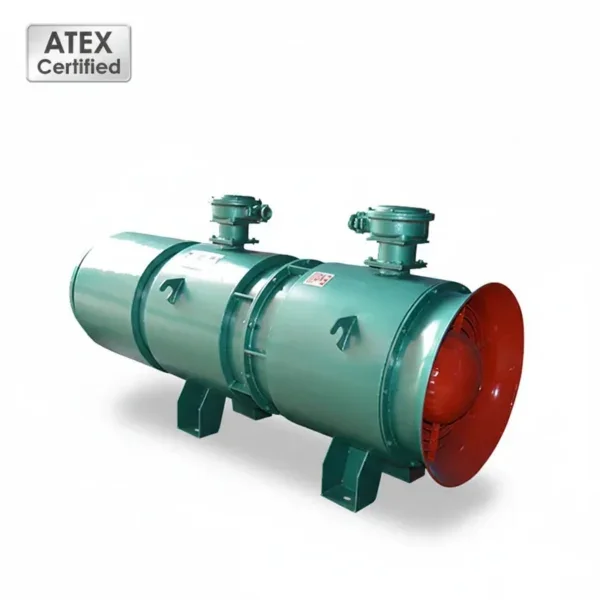

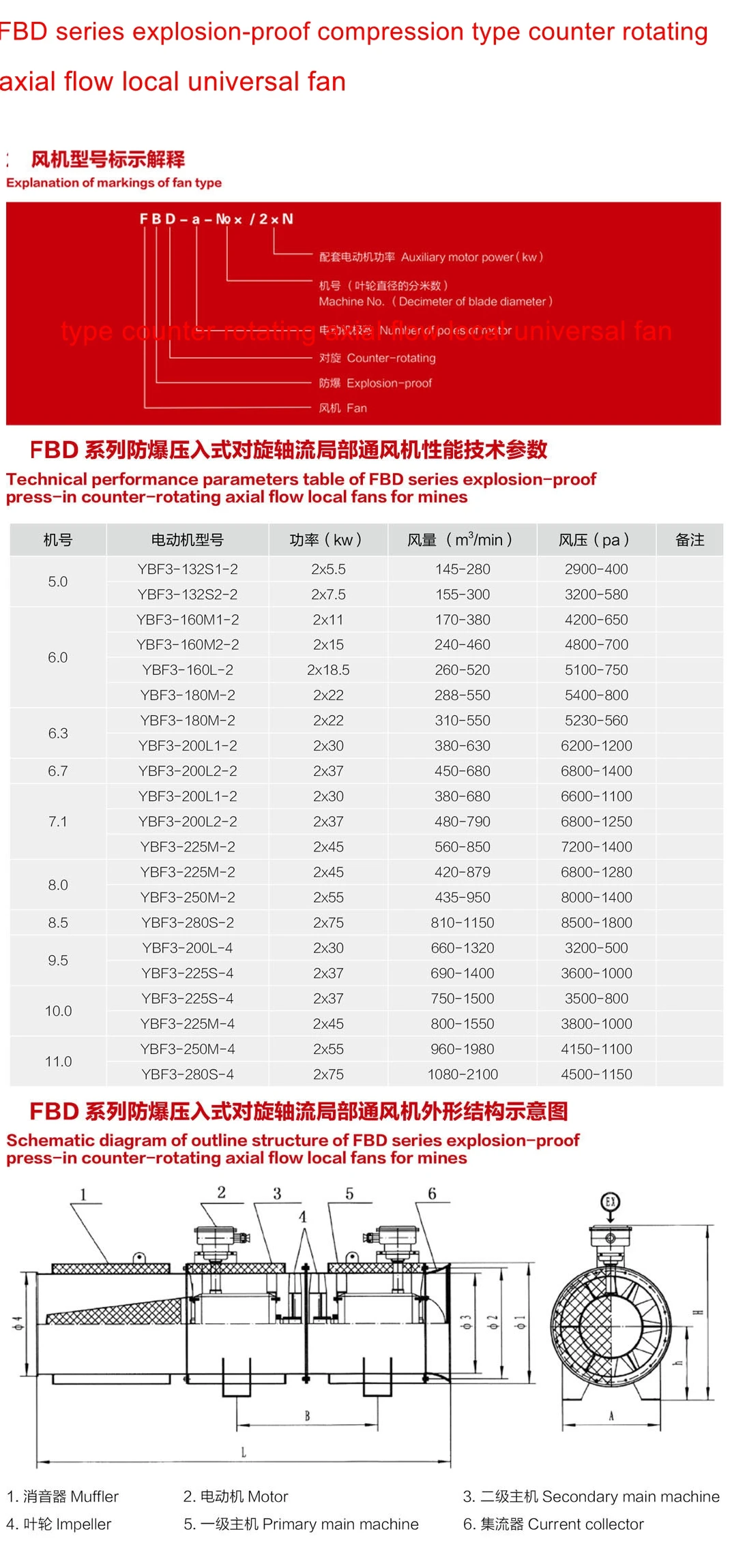

2.FBD Series Explosion proof counter rotating local ventilation fan

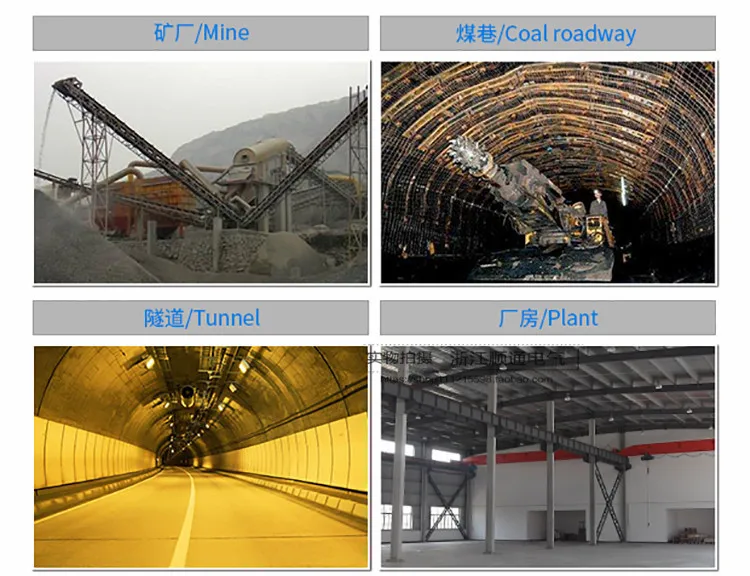

Application:
Best choise ventilation fan for under mining coal, deep tunnel/ metal mining/ engineering tunnel
· Function: far distance ventilation, big power ventilation, low noisy, high efficiency, energy-saving, various style available
· Temperature range:-20°C~+40°C
TYB Series explosion-proof Axial Fan for Tunnel and Coal Mine Feature
1. The product is composed of explosion-proof motor, vanes, air duct and others;
2. Low noise, low consumption and perfect performance;
3. Besides being used for ventilation and exhausting, it also can be installed in series to imp-rove the pressure in pipe;
4. The enclosure material can be armor plate or fiber flass reinforced plastic;
5. Wiring with cable.

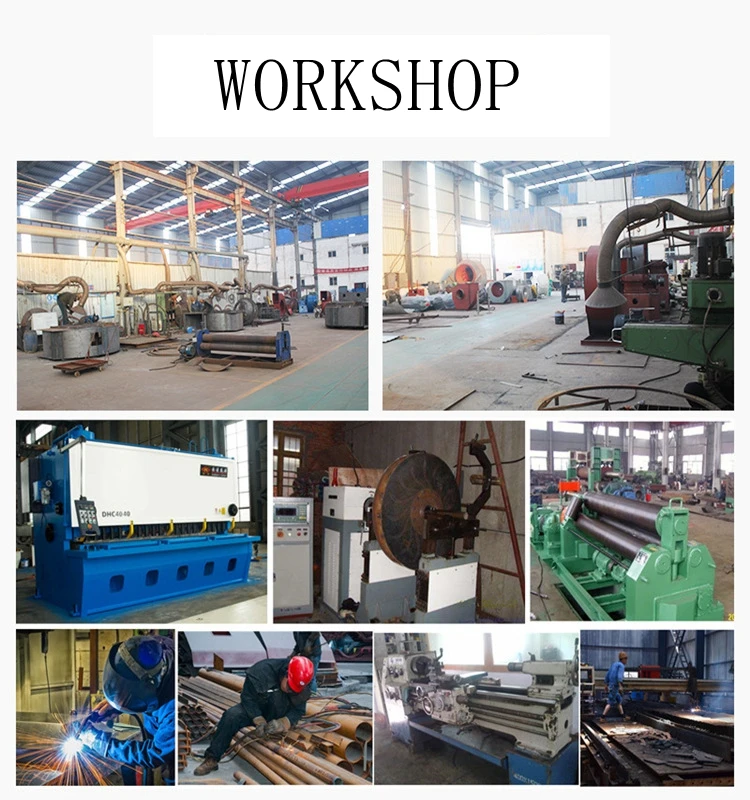

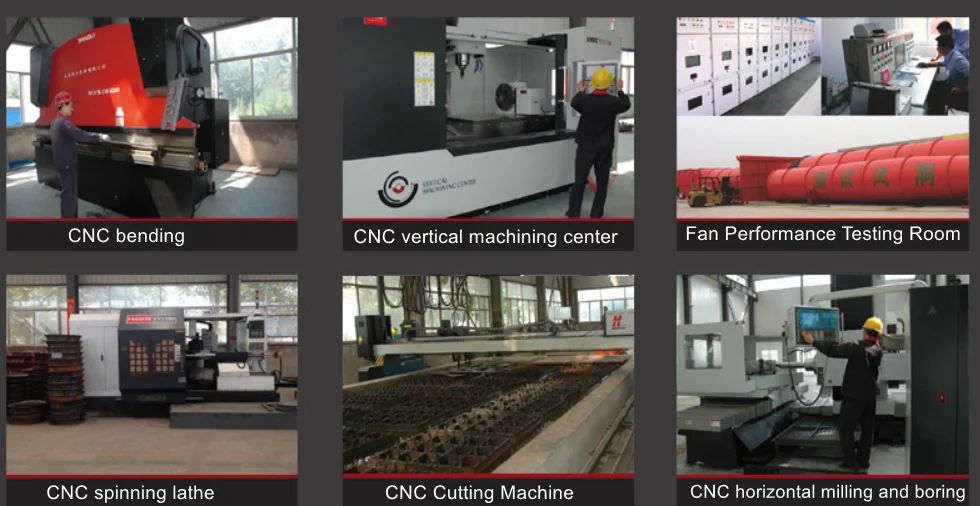

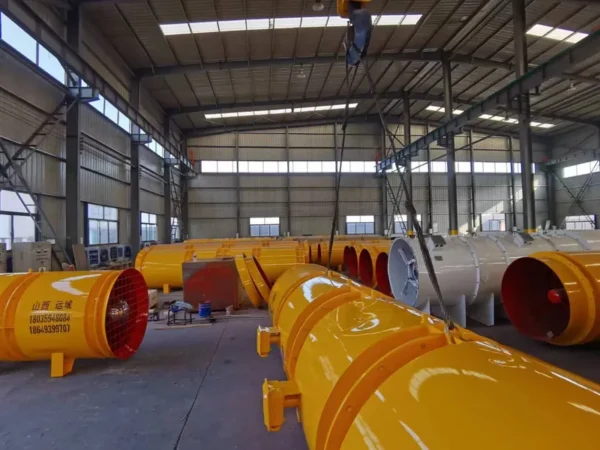

Production Process:
| Why choose TENGYUN? Jinan Tengyun Electric Fan Co., Ltd. is located in Jinan, the provincial capital of Shandong Province.The transportation is very convenient and fast.It's the biggest and the most professional manufacturer of Ventilation Fans, cooling and heating equipment in Asia.The whole group occupies 50,000 square meters, in which the workshop is 20,000 meters. |
Q:Is your company a manufacture or Trading company?A:We are a professional manufacture of Ventilation equipment,Cooling equipment and Heating equipment for poultry,workshop and greenhouse over 20 years in China.
Q:Can you open our own brand?
A:Yes,we can offer OEM/ODM service,put your logo for the produce.
Q:What is your minimum oreder quantity?
A:We accept small order quantity, but the freight cost will be very high
Q:Voltage your can offer?
A:Normal voltage will be 380V-50HZ-3Phase, And it can be customized based on your request.
Q:How about the quality of your product?
A:All the products are produced strictly according to the international standard,which has been passed CE certification,CCC
certificated and ISO9001:2008 international quality management system.
Q:Can you accept an inspection of a Third-party detection instituation?
A:Yes,sure. Our products have been inspected by some third-party detection institutions authorized by customs before.and have got
perfect inspection report.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $300 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ybt energy saving fan?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the ybt energy saving fan be supplied for my local voltage?
The standard configuration is 220V/380V-660V etc.. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
