Products Description

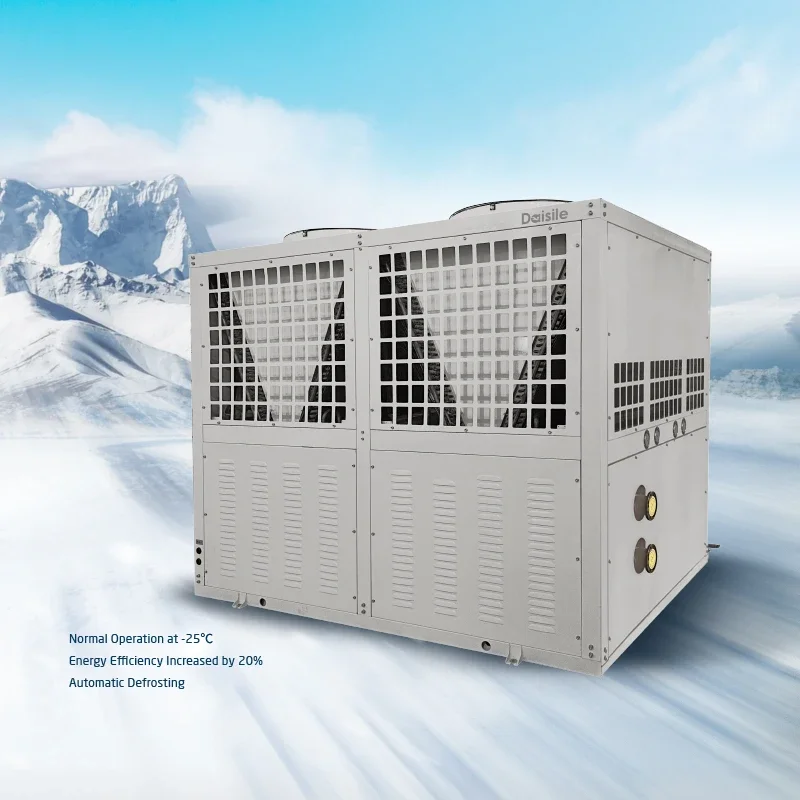

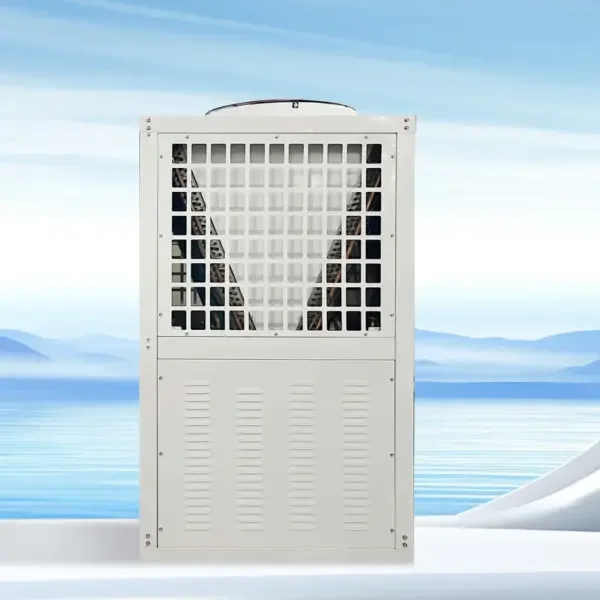

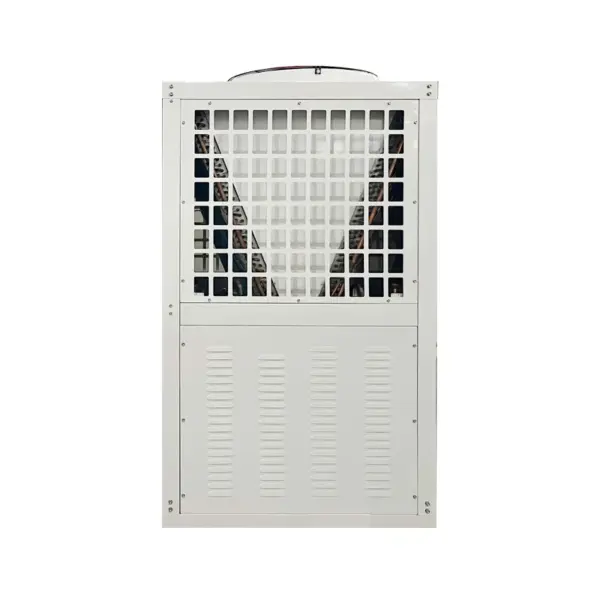

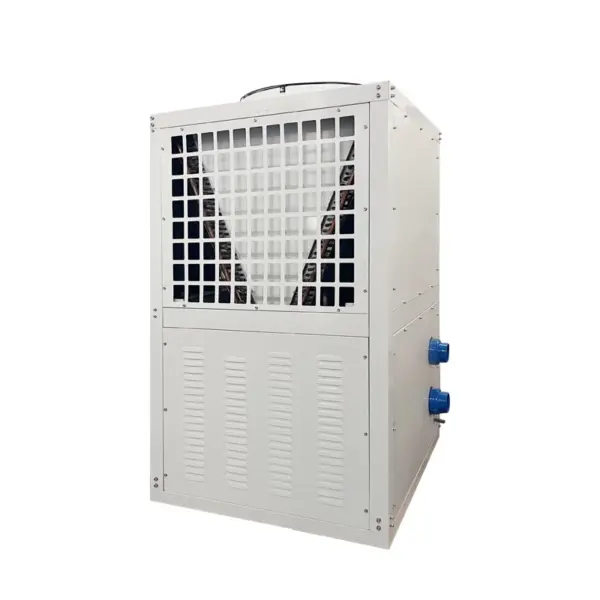

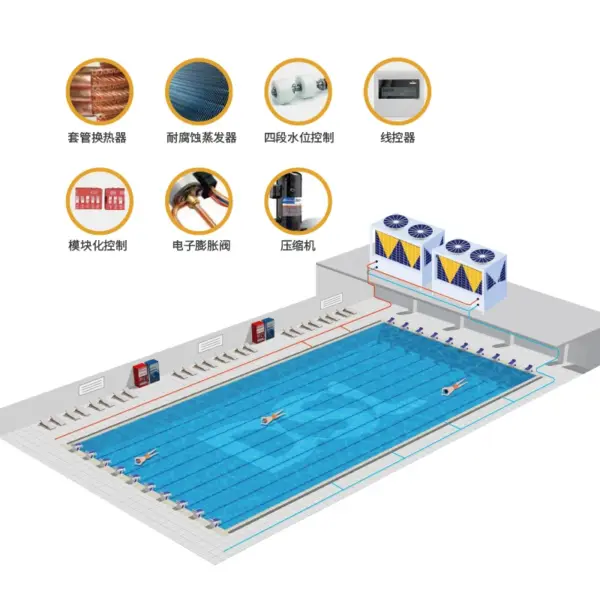

Low Temperature AirSource Heat Pump of Swimming Pool
Low Temperature AdaptationStrong StabilityLow Temperature Resistant Material
Normal Operation at -25°CEnergy Efficiency Increased by 20%Automatic Defrosting
Product parameters
|
Model
|
DSL-DPHP-10
|
DSL-DPHP-20
|
DSL-DPHP-30
|
||||
|
Heating Capacity (kW)
|
38
|
95
|
110
|
||||
|
Rated Input Power (kW)
|
8.9
|
18.6
|
25.2
|
||||
|
COP(W/W)
|
4.27
|
5.11
|
4.37
|
||||
|
Rated Current (A)
|
15.9
|
33.2
|
45.0
|
||||
|
Maximum Input Power (kW)
|
11.8
|
24.3
|
34.8
|
||||
|
Maximum Input Current (A)
|
21.1
|
43.4
|
62.2
|
||||
|
Power Supply Specification
|
380 3N~/50Hz
|
||||||
|

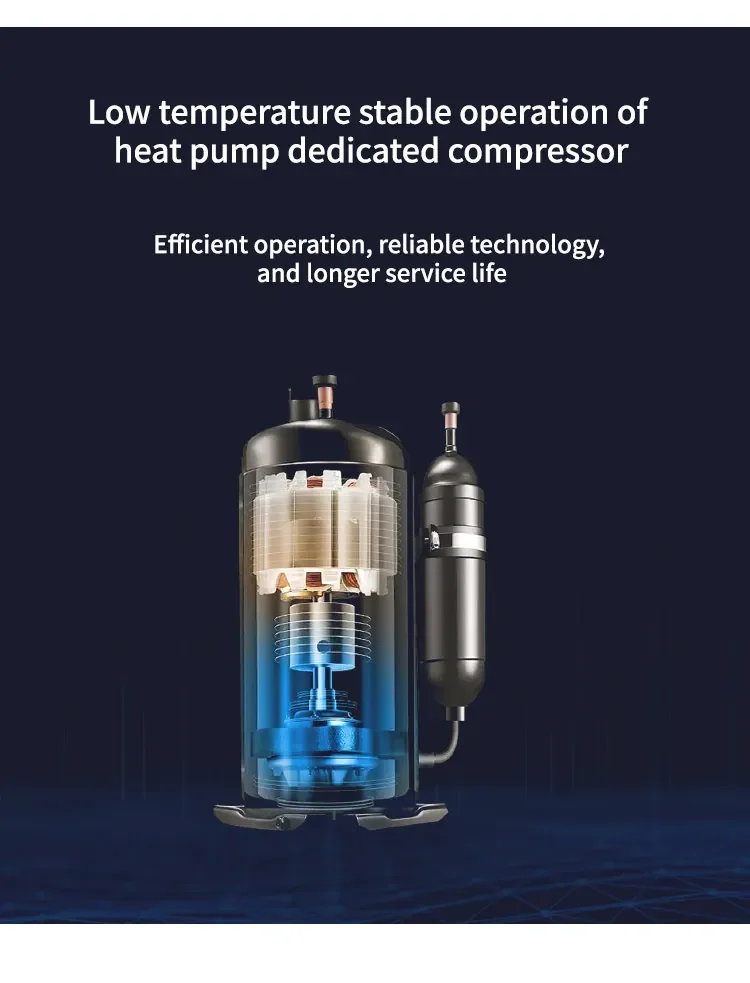

compressor Type
|
Fully Enclosed Flexible Vortex Compressor
|
||||||
|
Heat
Exchanger
|
Water Side
|
Titanium Foam
|
|||||
|
Wind Side
|
Finned Heat Exchanger
|
||||||
|
Water
System
|
Rated Effluent Temperature
|
28
|
|||||
|
Maximum Effluent Temperature
|
35
|
||||||
|
Water Discharge (m³/h)
|
16
|
34
|
47
|
||||
|
Water Resistance (kPa)
|
≤50
|
≤68
|
≤68
|
||||
|
Water Inlet and Outlet Dimensions
|
DN50Inner Teeth
|
DN50Inner Teeth
|
Φ110×4” Flange
|
||||
|
Fan Type/ Wind Outlet Type
|
Fan Type/ Wind Outlet Type
|
||||||
|
Anti-electric Shock Level
|
Level I
|
||||||
|
0perating Environment Temperature
|
-25~43℃
|
||||||
|
Refrigerant
|
R22
|
R410A
|
R22
|
||||
|
Noise dB (A)
|
68
|
68
|
72
|
||||
|
Equipment Weight (kg)
|
430
|
700
|
760
|
||||
|
Product Size (L* W* H) mm
|
1200*1100*2200
|
2370*1180*2200
|
2050*1700*2200
|
||||
Product Paramenters
Company Profile
DSL Group Profile
Founded in 1998, DSL® Group brings nearly 30 years of expertise in water environment management and indoor air quality control.Driven by our mission to “Safeguard Ecological Civilization,”we have developed a full-cycle,one-stop ser vice system that spansplanning and design, MEP integration,safety assessment,research & development,intelligent manufacturing,project implementation,and smart operation & maintenance.

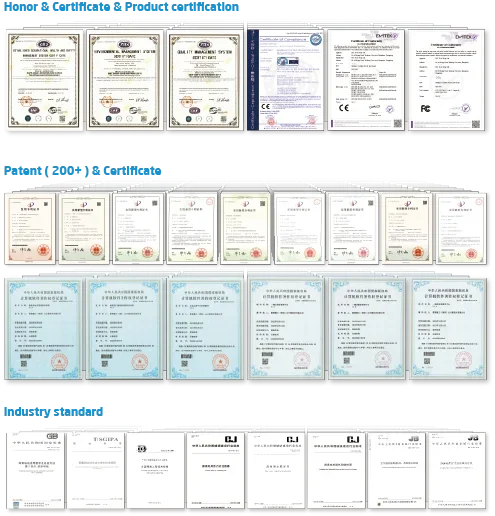

Certifications
Exhibition
Why Choose Us

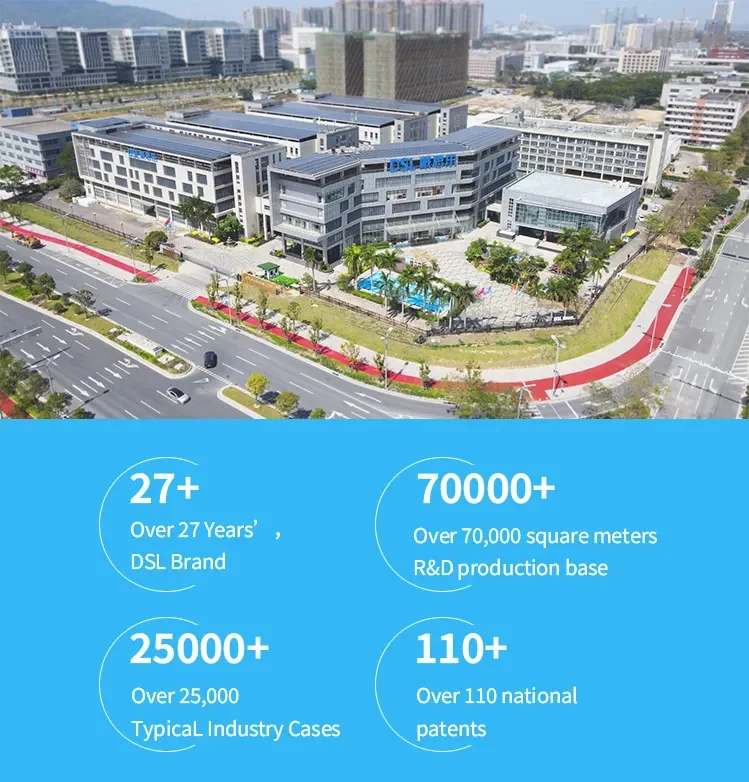

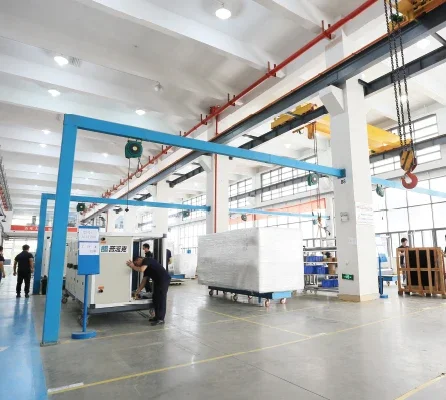

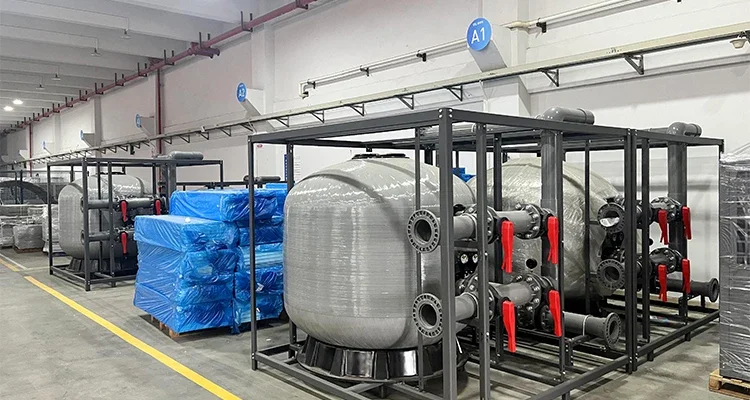

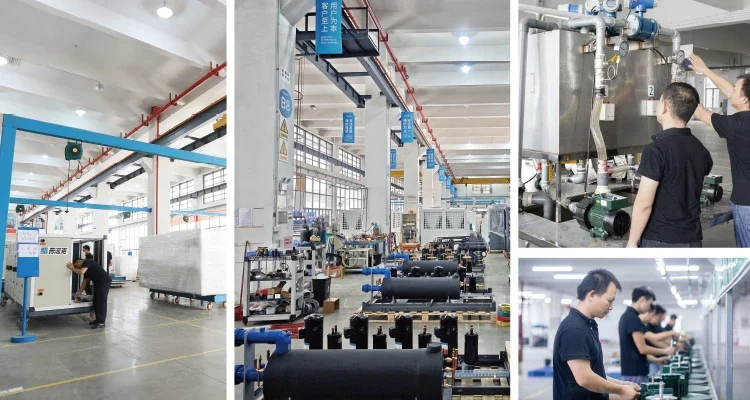

China Production Base
In 2014, we estabilished the DSL Science and Technology Park in the Cuiheng New Area of Zhongshan City, Guangdong Province, covering an area of 60 acres with a building area of 70,000 square meters. The park is equipped with nearly ten intelligent automated production lines, ensuring efficient production of high-quality water treatment equipment. In addition, we also have five professional laboratories built in accordance with national standards, dedicated to scientific research and innovation.
FAQ
Q1: Are you trading company or factory manufacturer?
A: We are a factory manufacturer, our factory is about 70,000 square meters.

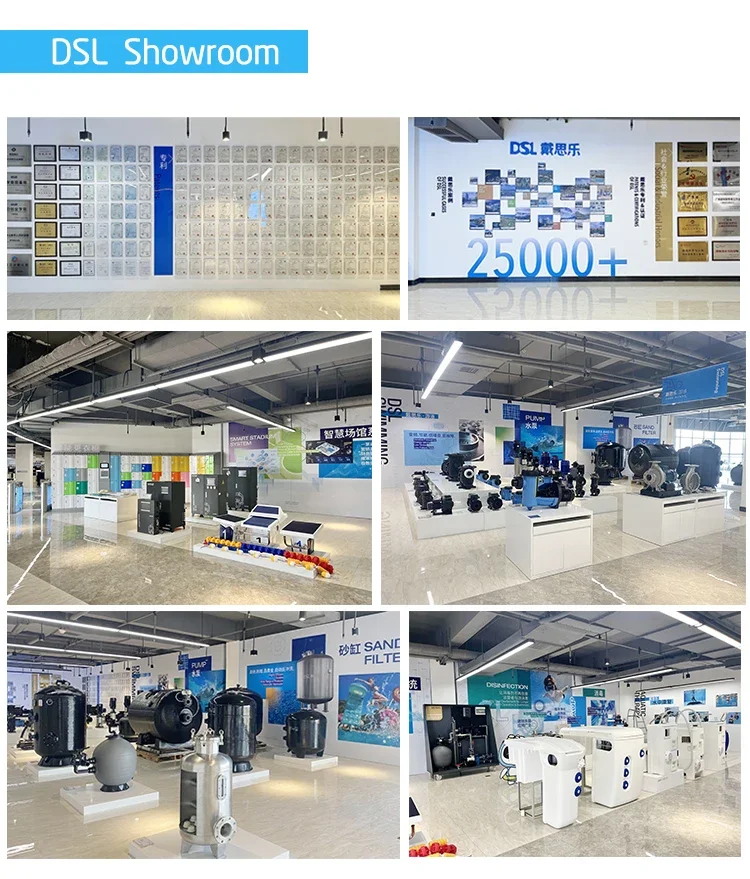

Q2: Where is your factory and showroom located? How can l visit there?
A: Our factory and showroom is located in Zhongshan City, Guangdong Province, China, about 2 hours from Guangzhou Baiyun Airport to factory. And our factory is located in No.16. HeQing Road, Tsuihang New District. Welcome to visit us!
Q3: What can you buy from us?
A: Pool equipment, pool fittings, heat pump, variable speed dehumidifier and so on.
Q4: ls it ok to print my logo on product?
A: Yes. We accept the OEM and the ODM order, and we can print the logo on the items for you.
Q5: Why should you buy from us not from other suppliers?
A: Our DSL is one of the biggest professional manufacturer of swimming pool equipment in China, with over 27 years’ experience in developing and producing, so high quality with competitive price product is available to support.
