Product

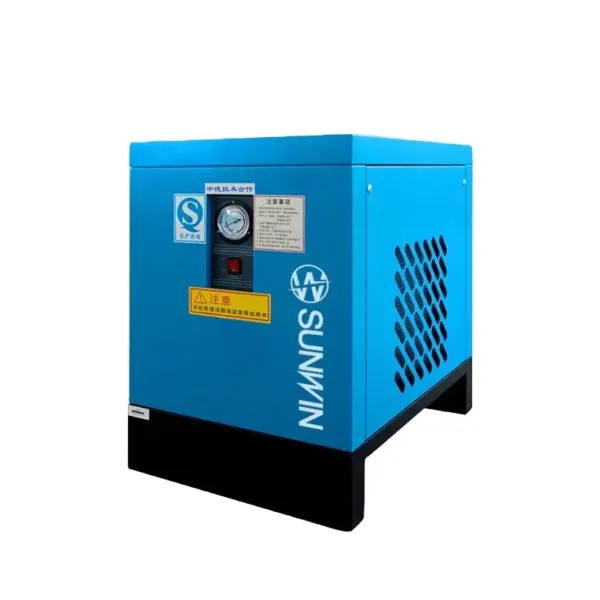

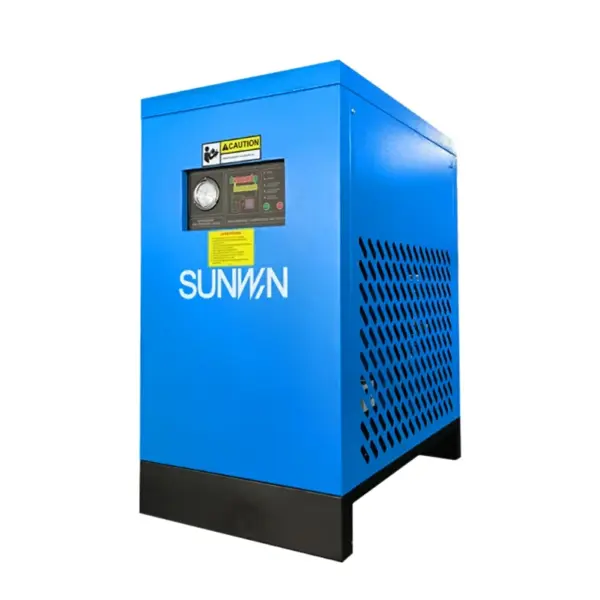

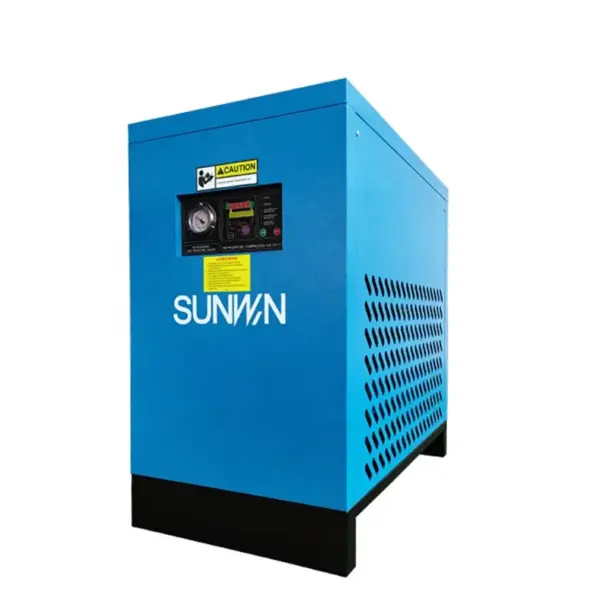

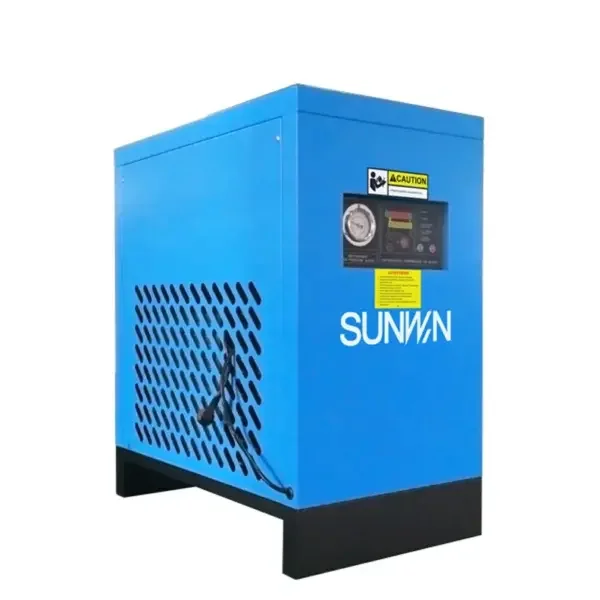

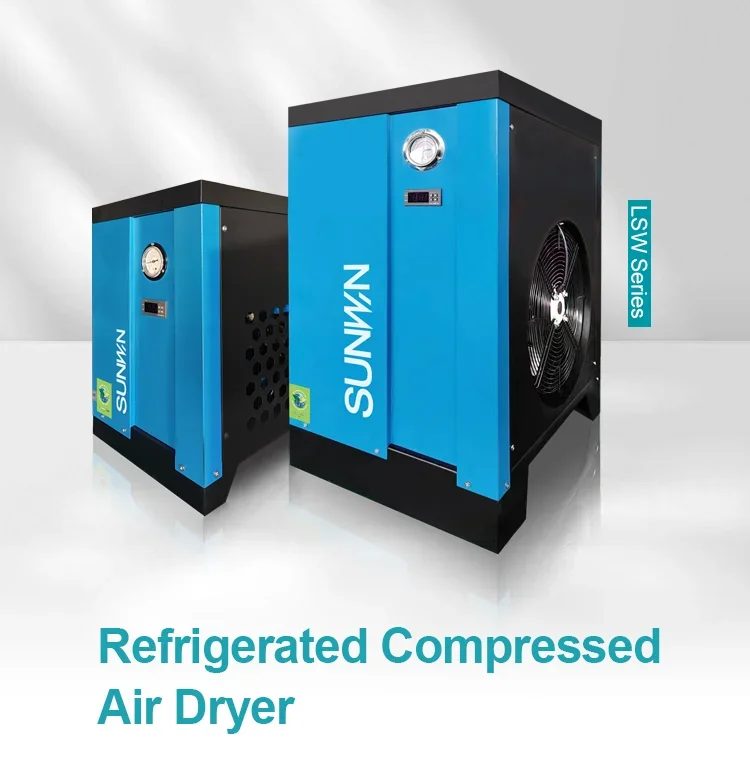

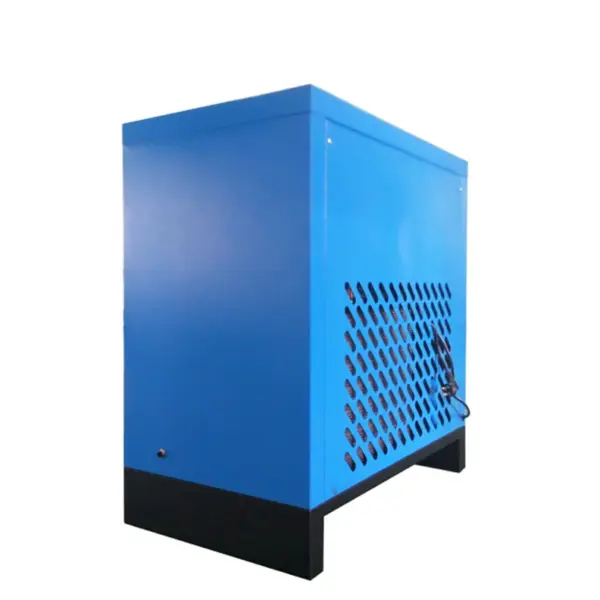

LSW Series is a refrigerated compressed air aluminum plate heat exchange dryer. It utilizes a three-in-one plate heat exchange made of aluminum alloy material. The LSW series is designed to provide high-quality compressed air with a low pressure dew point.
This dryer can effectively remove moisture and impurities from compressed air to prevent damage to equipment and improve production efficiency. Its compact design and easy installation make it suitable for various applications.
This dryer can effectively remove moisture and impurities from compressed air to prevent damage to equipment and improve production efficiency. Its compact design and easy installation make it suitable for various applications.
Features
◆ Superior heat transfer performance at a lower energy cost compared to traditional shell-tube type models.
◆ Made from durable aluminum alloy, the plate refrigerated air dryer is designed for both efficiency and environmental impact.
◆ Small size and compact structure that save more installation space.
◆ New appearance design from the user, more in line with modern industrial aesthetics
◆ Digital display controller to show dew point more directly.

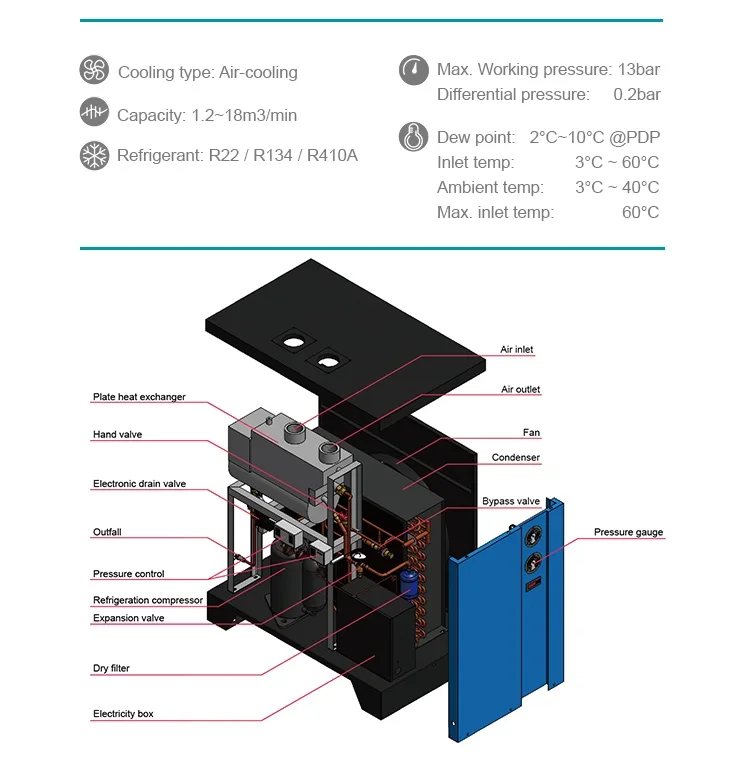

◆ Pre-cooler,evaporator and liquid separator are all following all-in-one modular structure design. ◆ It adopts thickened aluminum alloy of heat exchange whose corrosion resistance is more than twice the similar products. ◆ It do not make secondly contamination for the lower air pipe. Nanometer hydrophilic film.

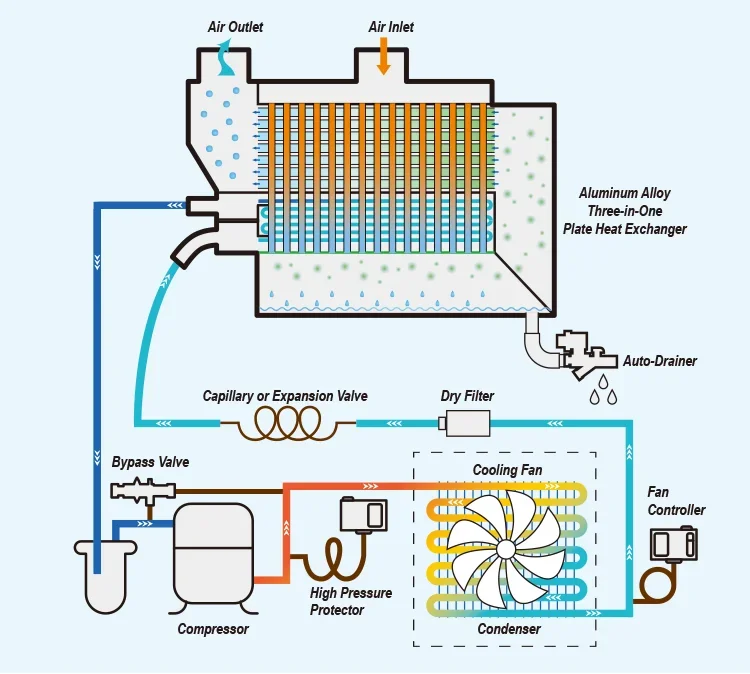

Working Principle
Product Parameters
|
Model
|
Capacity
|
Nominal Power
|
Power Supply
|
Air connections
|
Dimensions(mm)
|
Weight
|
||||
|
Nm3/min
|
KW
|
V/Ph/Hz
|
L
|
W
|
H
|
kg
|
||||
|
LSW-1HTF
|
1.2
|
0.5
|
220/1/50
|
Rc1″
|
452
|
390
|
575
|
41
|
||
|
LSW-2HTF
|
2.4
|
0.85
|
Rc1″
|
502
|
390
|
595
|
50
|
|||
|
LSW-3HTF
|
3.8
|
1
|
Rc1.5″
|
528
|
390
|
788
|
72
|
|||
|
LSW6HTF
|
6.5
|
1.25
|
Rc1.5″
|
647
|
430
|
830
|
88
|
|||
|
LSW-8HTF
|
8.5
|
1.5
|
Rc1.5″
|
688
|
462
|
868
|
92
|
|||
|
LSW-10HTF
|
210.7
|
3
|
Rc2″
|
743
|
527
|
900
|
135
|
|||
|
LSW-13HTF
|
13.5
|
2.5
|
Rc2″
|
843
|
552
|
920
|
140
|
|||
|
LSW-15HTF
|
18.0
|
3
|
380/3/50
|
Rc2.5″
|
1043
|
600
|
1100
|
160
|
||
Customer Feedbacks

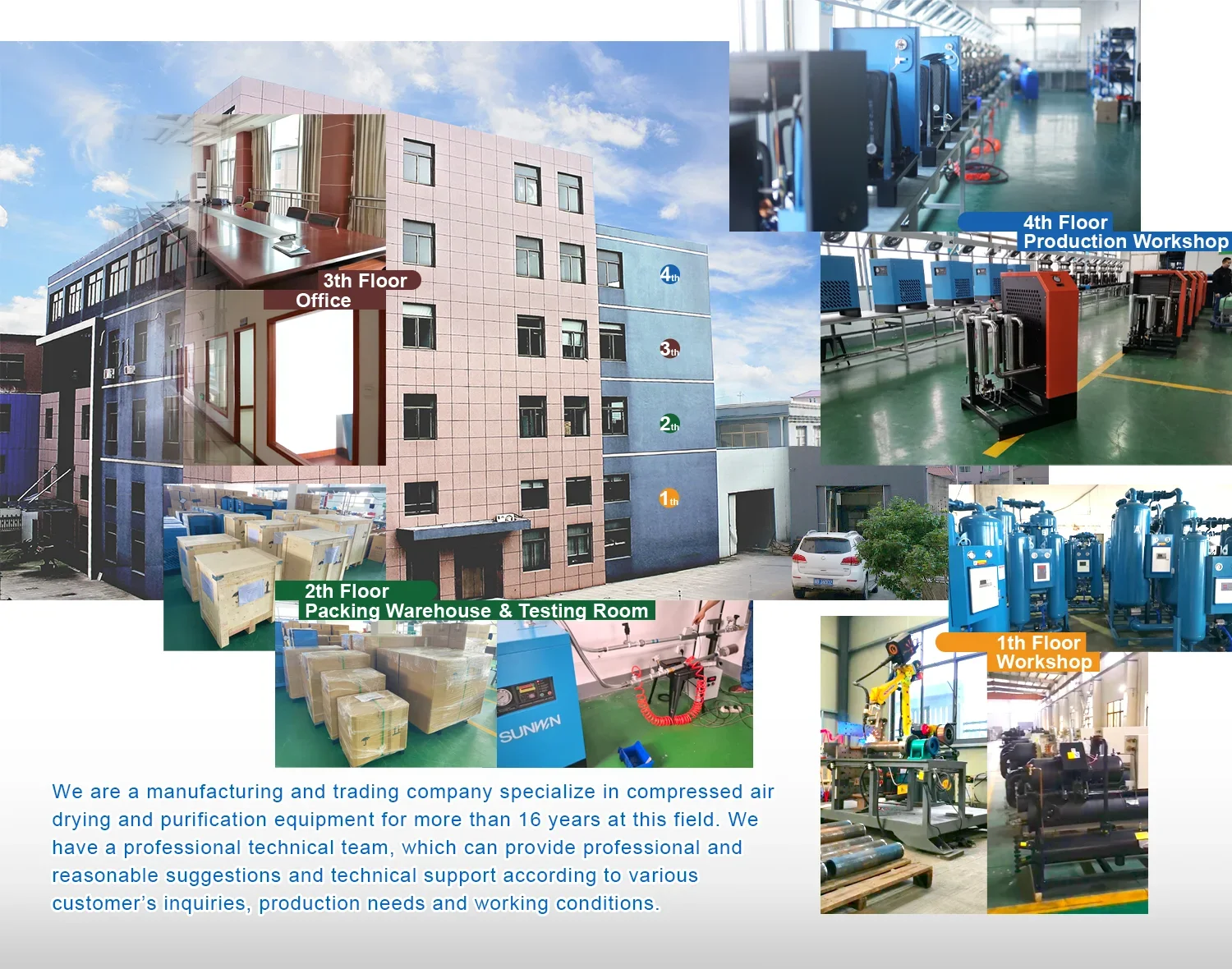

Our Company
Packaging & Shipping
Recommend Products

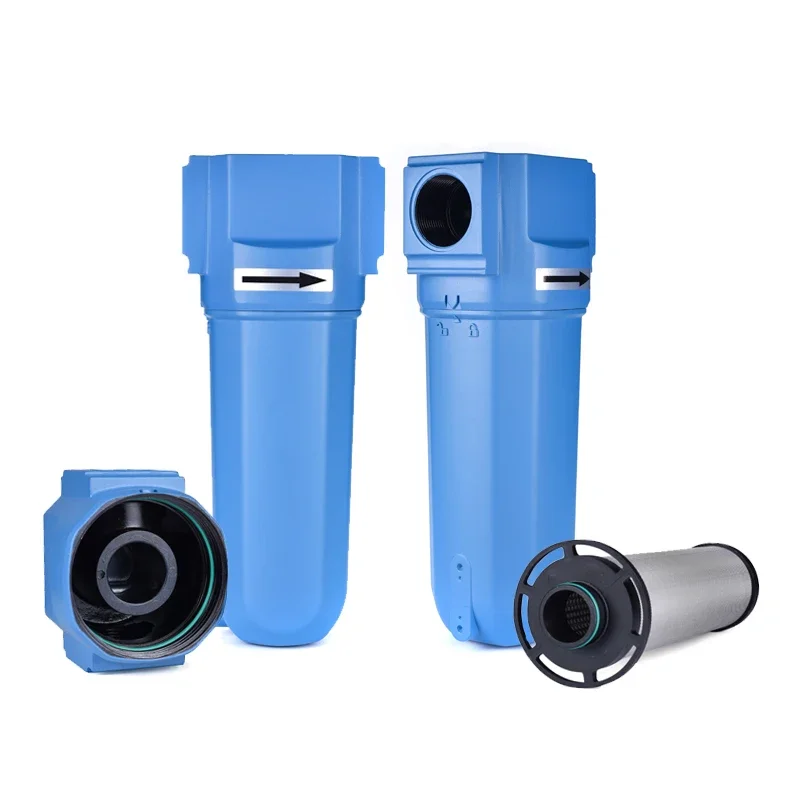

Compressed Air Filter

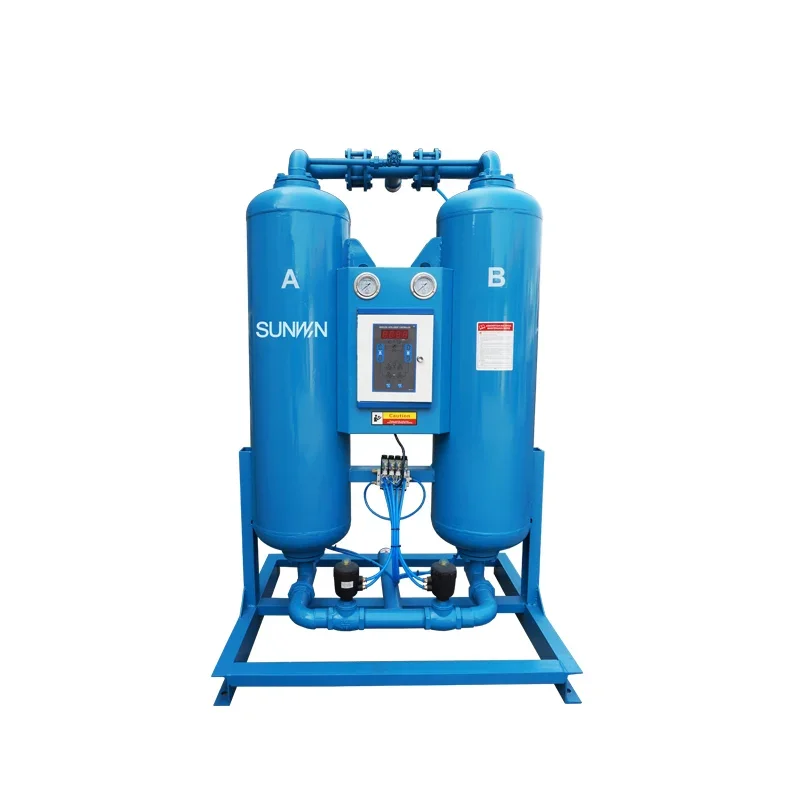

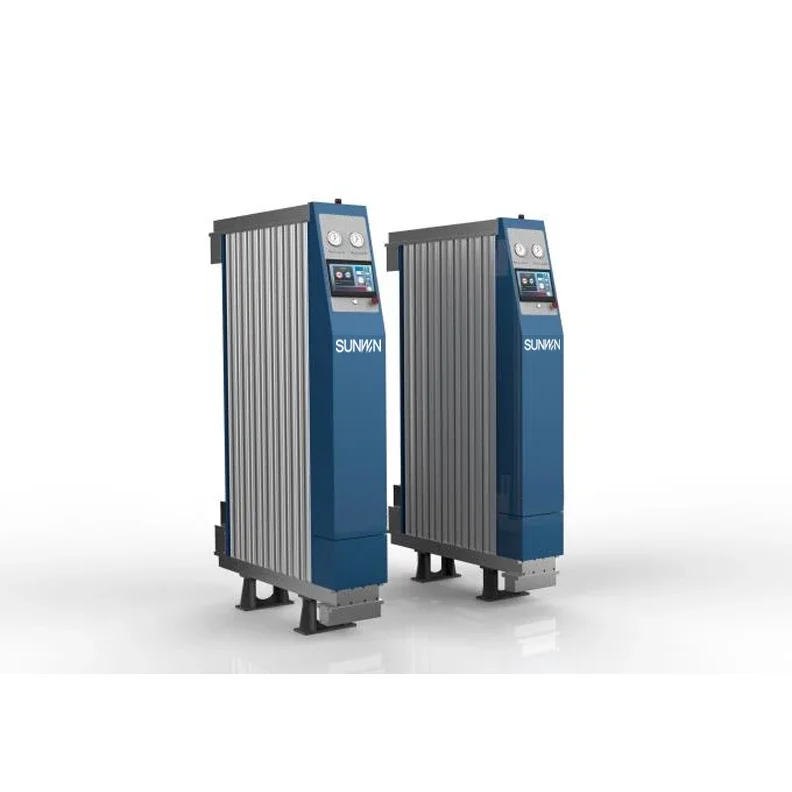

Desiccant Air Dryer
