The agricultural poultry air conditioner listed here carries 220V/380V/50HZ, 0.75kw, documented exactly as the manufacturer publishes it. Made by Jiangsu Lai Shi Environmental Protection Technology Co., Ltd. (5 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Agricultural Poultry Air Conditioner
- Model Number: FJ-126×6
- Power: 0.75kw
- Voltage: 220V/380V/50HZ
- Blade Material: fiber glass or Al Alloy
- Warranty: More Than 5 Years
- Place Of Origin: Jiangsu, China
Technical Specifications
| Voltage | 220V/380V/50HZ |
|---|---|
| Blade Material | fiber glass or Al Alloy |
| Electric Current Type | AC |
| Mounting Type | Roof Fan or Wall Fan |
| Warranty | More Than 5 Years |
| After-Sales Service Provided | Video Technical Support |
| Customized Support | OEM, ODM |
| Place Of Origin | Jiangsu, China |
| Brand Name | Hawai Fan |
| Model Number | FJ-126×6 |
| Product Name | Industrial Exhaust Fan |
| Application | Industrial Workshops |
| Shape Size | 1260*1260*550mm |
| Air Volume | 37000m³/H |
| Power | 0.75kw |
| Noise | ≤72db |
| Impeller Diameter | 1060mm |
| Vibration | 1.7mm/s |
| Usage | Air Cooling System |
| Port Of Dispatch | Shanghai Port or Ningbo Port |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 100 sets per Month |
Product Details
Product Description
Working principle
Working principle: negative pressure fan is mainly used to quickly discharge the hot gas, dust, smoke, peculiar smell and other harmful gases from industrial workshops, logistics storage, commercial public places and agricultural greenhouses, which need ventilation. After a large number of harmful gases are discharged, negative pressure is formed indoors. The atmosphere is to realize the balance of indoor and outdoor air pressure The outdoor fresh air enters into the room naturally from the doors and windows of the place to achieve better ventilation and cooling effect.

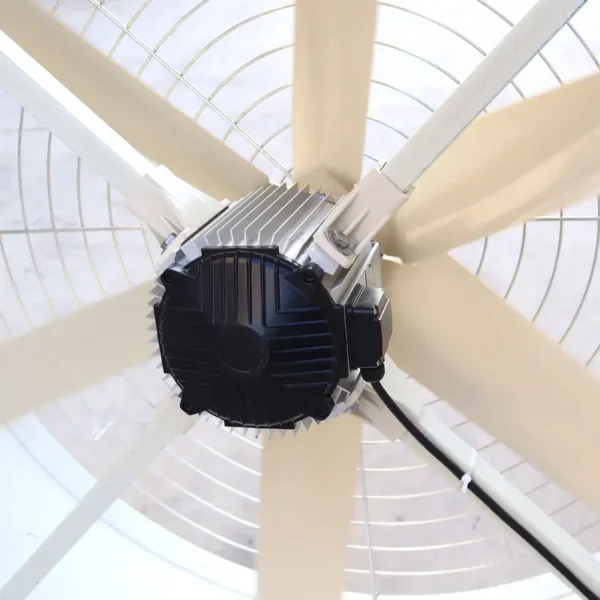

Core power components
Applying special brushless frequency conversion energy-saving motor, Japan's core technology is more efficient, saving more than 27%. Dustproof and waterproof grade lp66 (washable), no longer afraid of humid environment. Insulation grade (b), working temperature -20 ℃ ~ 45 ℃. The soft start is more secure, and the simultaneous start of multiple units will not affect the power grid. It is equipped with overload and overheat protection to prevent accidents and effectively improve service life.
High efficiency adjustable fan blade technology
Through professional aerodynamics, the blade is designed to meet the characteristics of negative pressure fan, with high efficiency blade with large air volume, low energy consumption and low wind noise. According to the customer's selection, the blade cutting angle can be adjusted. After the standard dynamic and static balance test, it can reach (gb6075-85) good level ≤ 2.1mm/s. In this way, the damage caused by vibration and resonance during the operation of the fan can be reduced, and the service life of the motor bearing can be improved.
Shell fuselage technology
This industrial exhaust fan initiated the development and application of SMC composite forging die for large negative pressure fan shell and fuselage in China. Using 2000t large hydraulic press one-time forming forging technology, the strength, density and damage resistance are higher in the industry
Specification
Model Number | FJ-126×6 |
Product Name | Exhaust Fan |
Type | Axial Flow Fan |
Shape Size | 1260*1260*550mm |
Impeller Diameter | 1060mm |
Air Volume | 37000m³/h |
Power | 0.75KW |
Electric Current Type | DC |
Mounting | Wall Fan |
Blade Material | Stainless Steel |
Voltage | 220V/380V/50HZ |
Noise | ≤72db |
Vibration | 1.7mm/s |
Applicable Industries | Hotels, Manufacturing Plant, Food & Beverage Factory, Restaurant |
After-sales Service Provided | Video technical support |
Model | Shape Size (L*W*Thick） | Power | Blade Material | Noise | Air Volume | Impeller Diameter |
FJ-146*6 | 1460*1460*580mm | 0.75-1.1kw | SMC or Al | ≤75db | 44500m³/h | 1260mm |
FJ-126*6 | 1260*1260*550mm | 0.75kw | SMC or Al | ≤72db | 37000m³/h | 1060mm |
FJ-106*6 | 1060*1060*550mm | 0.55kw | SMC | ≤68db | 30000m³/h | 900mm |
FJ-085*6 | 850*850*480mm | 0.37kw | SMC | ≤65db | 12000m³/h | 600mm |
Company Profile
Workshop
Certifications
Exhibition
VR
Packing & Delivery
FAQ
Q1: Is your company a manufacturer or a trading company? A: We are manufacturers, we have own trade company, we also have our own factory and design, sales team.
Q2: Can I be your agent? A: Yes, welcome to deep cooperation. We have big promotion of LAISHI brand in the market now. For the details please contact with our overseas manager.
Q3: What is the minimum order quantity? A: Usually, MOQ of exhaust fan, industrial ceiling fan, environmental protection air conditioner and air cooler is 10 sets. Small quantity we also can do, but the cost will be high.
Q4: How to get samples to check the quality? How long can I get the samples? A: After the price is confirmed, samples can be provided for your evaluation, after confirming the sample details, the samples will be ready for delivery within 3-7 days, and sent to you by courier, then arrive within 5-7days.
Q5: What's your quality guarantee? A: We will offer client one year quality guarantee time.
Q6: Do you have a discount? A: We will do our best to provide you with these services at the best price and quality service.
Q7: What venue is suitable for installing industrial fans? A: Generally used in large workshops, warehouses, logistics transfer centers, livestock farms, etc.
Q8: What are the benefits of installing industrial fans? A: The diameter of the ceiling fan in the industrial plant can reach 7.3m, and its unique streamlined fan blade can push a large amount of air to the ground at a low speed, thereby forming a breeze airflow. The human body feels a cooling of 3-5 degrees, which is as comfortable as natural wind.The traditional small fan will feel dizzy after blowing it for a long time. The energy-saving industrial fan solves this problem well.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–9 set: US $230 / set
- 10–99 set: US $183 / set
- 100+ set: US $173 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this agricultural poultry air conditioner?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a More Than 5 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the agricultural poultry air conditioner be supplied for my local voltage?
The standard configuration is 220V/380V/50HZ. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
