The air cleaning equipment prefilter listed here carries 220 V, material Galvanized/SUS, documented exactly as the manufacturer publishes it. Made by Dongguan Senbao Purifying Equipment Co., Ltd. (15 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Air Cleaning Equipment Prefilter
- Voltage: 220 V
- Material: Galvanized/SUS
- Warranty: Unavailable
- Place Of Origin: Guangdong, China
- Application: Industrial, Laboratory
- Type: Fan FIlter Unit
Technical Specifications
| Application | Industrial, Laboratory |
|---|---|
| Type | Fan FIlter Unit |
| Voltage | 220 V |
| Material | Galvanized/SUS |
| Size | 2X4, 1175575320 mm, 100010001000 mm, 600600600, 120*60 cm, 4×2 feet, Small, 8 ft By 37 ft, 800800800 mm, 600600600 mm, 5007001000 mm, 5.52.53 m, 1500mm, 400400400 mm |
| Condition | New |
| Warranty | Unavailable |
| Place Of Origin | Guangdong, China |
| Brand Name | Senbao |
| Weight (Kg) | 35 |
| Efficiency | High Efficiency HEPA 99.99%@0.3um |
| Frame | Stainless Steel, Galvanized steel |
| Media | Glass Fiber |
| Function | Ceiling |
| Business Type | Manufacturer |
| Standard | CE, ISO9001 |
| Product Name | Ceiling Fan Filter |
| Selling Units | Single item |
| Single Package Size | 128X68X45 cm |
| Single Gross Weight | 35.000 kg |
Product Details

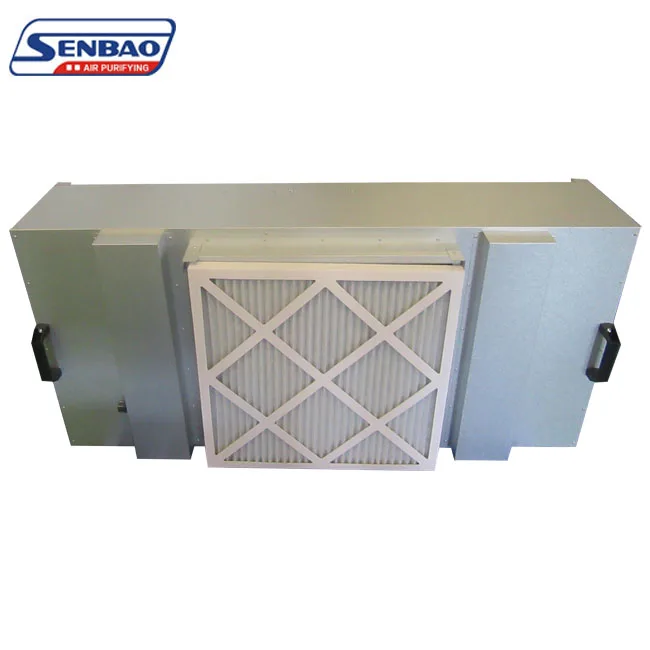

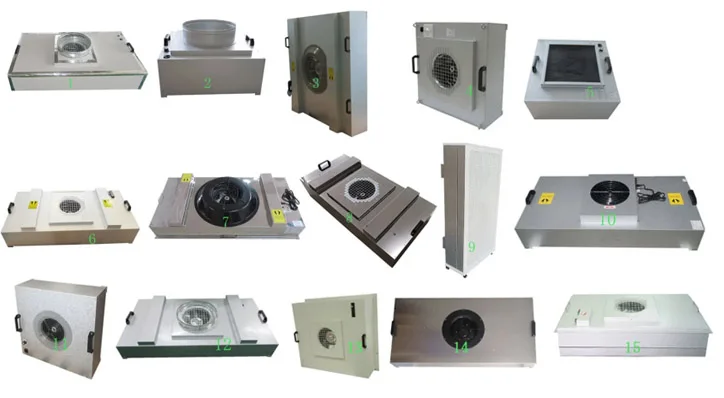

Modular Control FFU Laminar Flow Hood Cleanroom Air Cleaning Equipment Pre-Filter HEPA Filter Ventilation System New

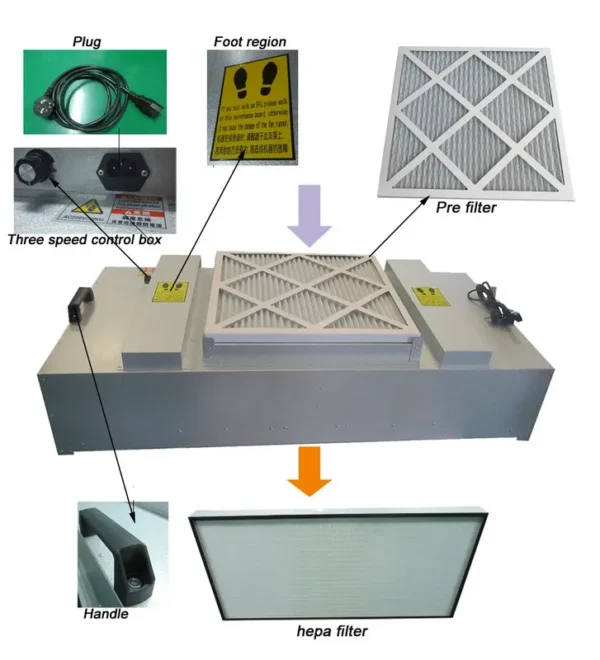

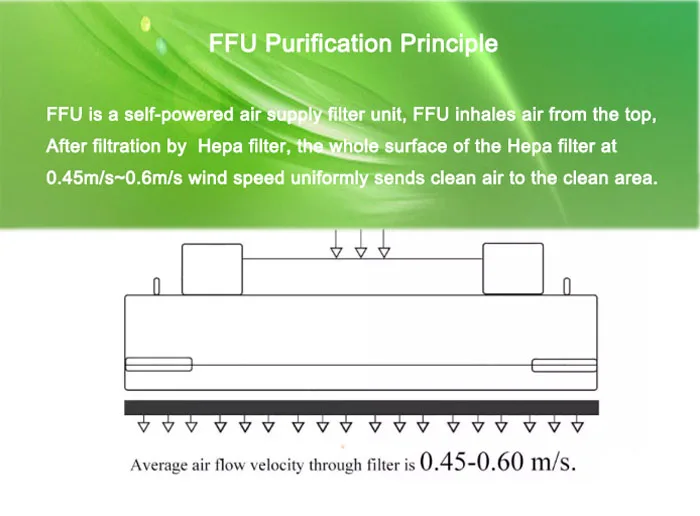

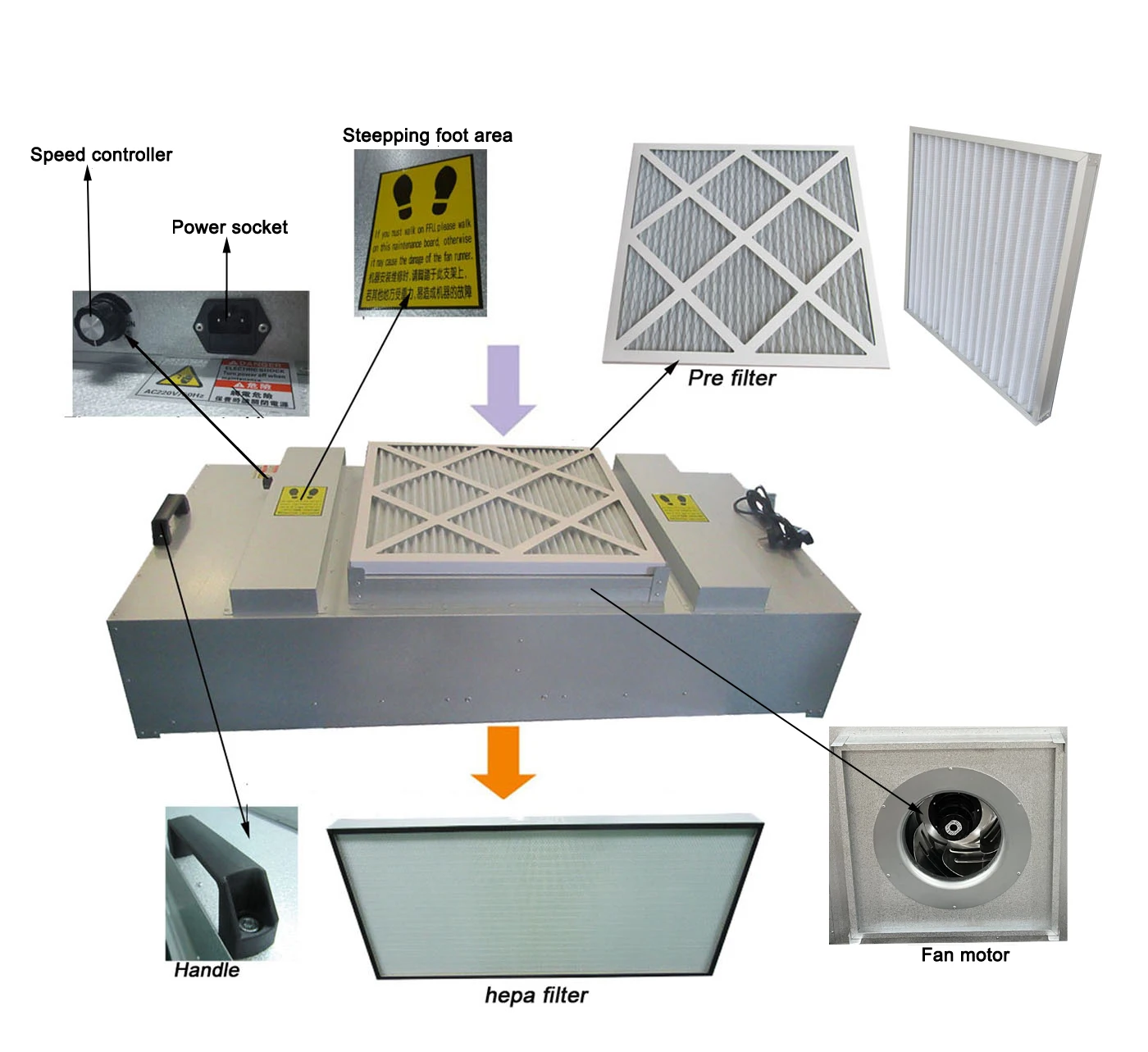

It's composed of a casing, a fan, a HEPA/ULPA filter, and a control system. The built – in fan sucks in air, which then passes through the pre – filter and the hepa filter. The filtered clean air is evenly delivered across the outlet surface at a wind speed of 0.45m/s ± 20%. This process effectively removes particles and microorganisms in the air, ensuring high – quality air in the workspace.
FFUs are widely used in cleanrooms, laminar flow cabinets, and other areas with strict air – cleanliness requirements, such as semiconductor manufacturing, hospitals, and laboratories. Their modular design allows for easy installation, replacement, and scalability, adapting to different room sizes and cleanliness levels. Plus, they are energy – efficient and can operate with low noise, making them a popular choice for creating clean environments.
| Model | FFU-575 | FFU-1175 | FFU-575 |
| FFU Size | 575*1175(mm) | 1175*1175(mm) | 575*575(mm) |
| Hepa Filter Size | 570*1170*69(mm) | 1170*1170*69(mm) | 570*570*69(mm) |
| Air Flow | 850-1100(m³/h) | 1700-3400(m³/h) | 400-900(m³/h) |
| Speed Control | Adjust the air volume /manual speed regulation | ||
| Voltage/Electricity | DC/AC, 1P, 220V.50HZ/60Hz (110V for option) | ||
| Output Power | 130-180W | 150-220W | 55-180W |
| Filter Efficiency | 99.99%@0.3μm-99.9995%0.12μm(for option) | ||
| Box Material | SUS304 stainless Steel /Galvanized frame | ||

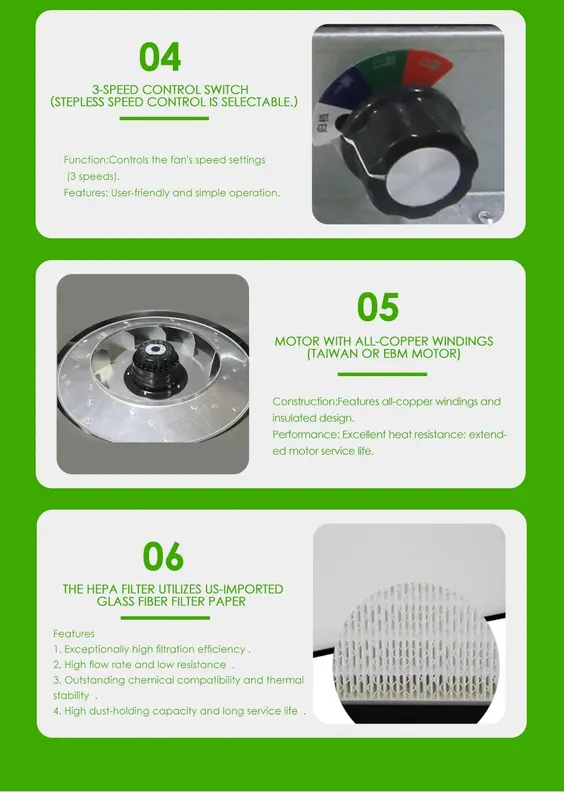

| Options | Hepa/ULPA filter Stepless speed controller/3 speed controller Germany EBM Fan/Taiwan fan/Chinese Fan Customized sizes available | ||
Company Information
Dongguan Senbao Purifying Equipment Co., Ltd.
Founded in 2003, based in Dongguan, Guangdong, with a 10,500 – sqm facility.
We make air filters (HEPA, FFU, V – Bank, etc.) meeting ISO standards.
Offer OEM/ODM, custom solutions, and sample testing.
Serving global clients across industries with cost – effective, quality products.
Q1: Can your filters withstand high – humidity environments?
A: Yes. Our filters are designed to work well in environments with relative humidity up to 80%, maintaining stable filtration performance.
Q2: How often should I replace the filters?
A: Generally, it's recommended to replace the filters every 6 – 12 months. However, the actual replacement time depends on usage frequency and air quality. Monitoring the pressure drop can help determine the right time for replacement.
Q3: Do you offer custom – sized products?
A: Absolutely. We support OEM/ODM services, which means we can customize product sizes, efficiency levels, and packaging according to your specific needs.
Q4: What is the lead time for orders?
A: Usually, the lead time is around 7 – 15 days. But it may vary slightly depending on the order quantity and product complexity.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–9 piece: US $210 / piece
- 10+ piece: US $200 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air cleaning equipment prefilter?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a Unavailable warranty. Spare parts and technical support remain available after the warranty period.
Can the air cleaning equipment prefilter be supplied for my local voltage?
The standard configuration is 220 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Dongguan Senbao Purifying Equipment Co., Ltd., based in China. The company 15 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Dongguan Senbao Purifying Equipment Co., Ltd. range on HVACR Nexus.
