Flow hood with prefilter — 380 V, 220 V, 750 CFM. The complete factory specification follows. Made by Dongguan Senbao Purifying Equipment Co., Ltd. (15 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Flow Hood With Prefilter
- Voltage: 380 V, 220 V
- Maximum Air Flow: 750 CFM
- Material: Stainless Steel, Aluminium, galvanized Zinc, Stainless Steel 201, SS304, SUS201, Gavalume Plate
- Warranty: Unavailable
- Place Of Origin: Guangdong, China
- Application: Industrial, Laboratory
Technical Specifications
| Application | Industrial, Laboratory |
|---|---|
| Maximum Air Flow | 750 CFM |
| Filter Type | HEPA Filter |
| Type | ffu |
| Voltage | 380 V, 220 V |
| Material | Stainless Steel, Aluminium, galvanized Zinc, Stainless Steel 201, SS304, SUS201, Gavalume Plate |
| Mobility | Stationary |
| Condition | New |
| Warranty | Unavailable |
| Filter Efficiency | 99.995 |
| Place Of Origin | Guangdong, China |
| Brand Name | Senbao |
| Weight (Kg) | 35 |
| Efficiency | High Efficiency HEPA 99.995%@0.3um |
| Frame | Powder Coated Steel Sheet Or Stainless Steel |
| Media | Fiberglass |
| Function | Ceiling |
| Usage | Medical Equipment |
| Business Type | Manufacturer |
| Standard | EN779-2012 , ISO9001 |
| Product Name | FFU Fan Filter |
| Selling Units | Single item |
| Single Package Size | 123X64X40 cm |
| Single Gross Weight | 35.000 kg |
Product Details
CE Certified Laminar Air Flow Hood with Pre-Filter Hepa Filter Fan Unit FFU 99.995% Efficiency New Condition

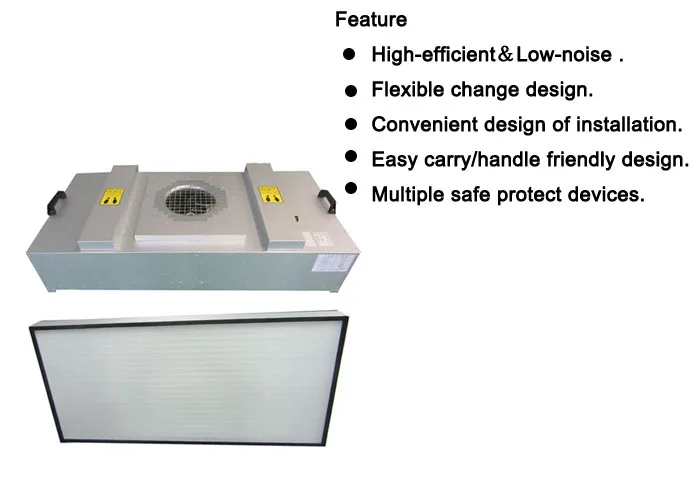

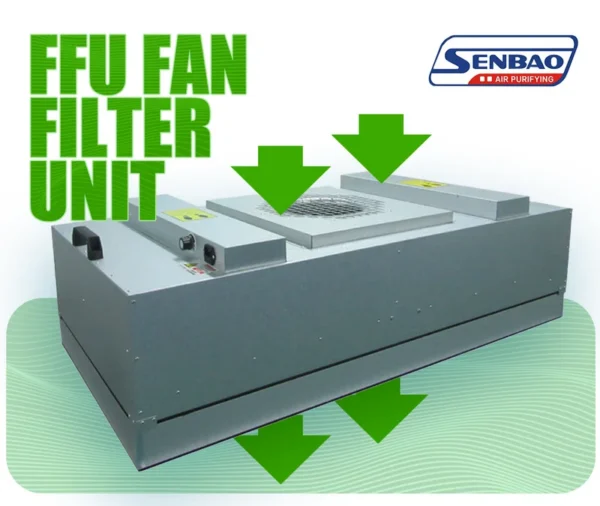

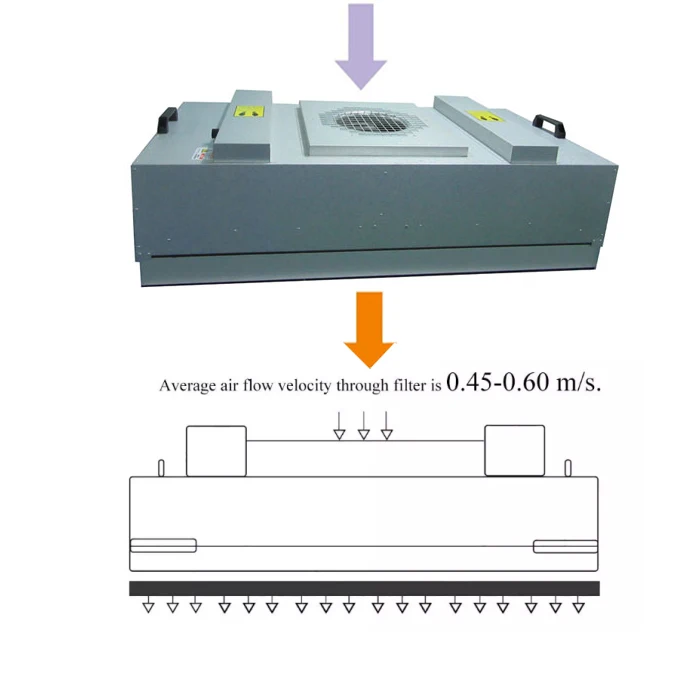

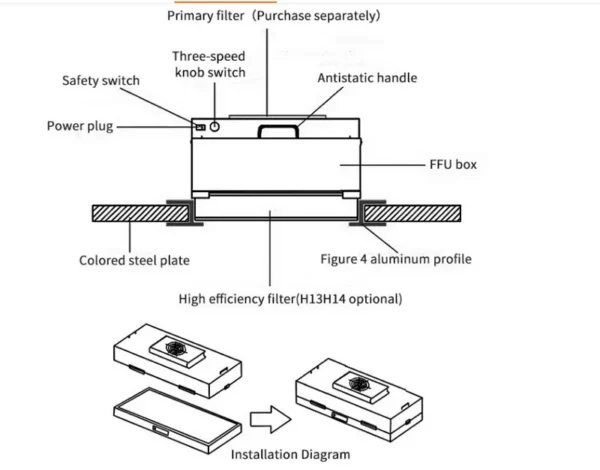

FFU Fan Filter which draws in contaminated air from the top of the module, and exhausts filtered clean air vertically in a unidirectional(laminar) air stream at its base, is a self-contained fan and filter module for cleanroom applications.
Features
1.longer Using life.
2.less noise and vibration.

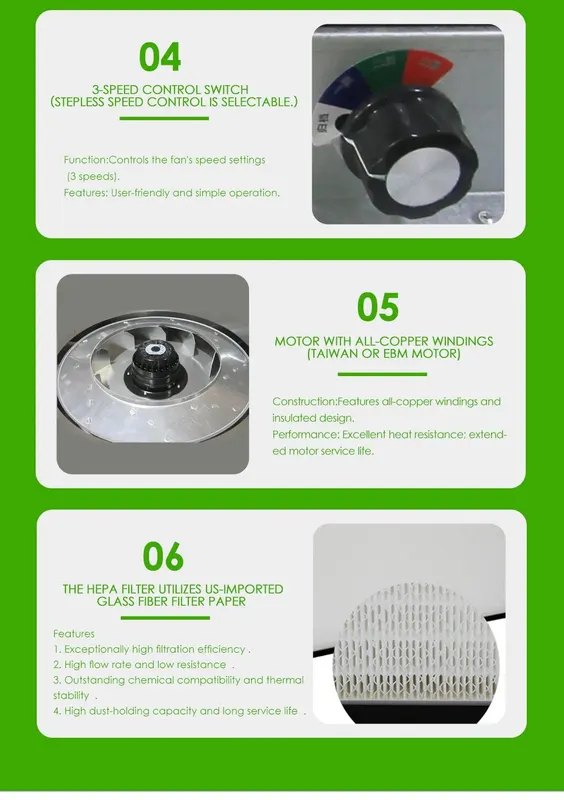

3.adjustable air speed.
4.thousands unit can be easy controlled.
Specification and technical parameters
| Model | FFU-1175 | FFU-1220 |
FFU-575 |
FFU-610 | |||
| Dimension | mm | 575*1175*320 | 610*1220*320 | 575*575*320 | 610*610*320 | ||
| air filter size | mm | 570*1170*69 | 605*1215*69 | 570*570*69 | 605*605*69 | ||
| air Volume | m³/h | 700-1800 | 700-1900 | 350-900 | 350-950 | ||
| External static pressure | Pa | 98 | 98 | 98 | 98 | ||
| Main body |
– | Standard | cold rolled steel plate with powder coated | ||||
| Option | Stainless steel Galvanized steel Aluminum coated zinc plate SUPER GALUM | ||||||
| Power supply | Standard | V/Hz | 110V 220V/50Hz 60Hz | ||||
| Option | V/Hz | Pls contact us if you have any other requirement about the power. | |||||
| Output poewr | W | 100-180 | |||||
|
Filter | Efficiency | – | HEPA Over 99.99% @ 0.3um | ||||
| – | ULPA Over 99.9995% @ 0.1um | ||||||
| Frame | – | Aluminum | |||||
| Shock | m/s |
0.34~0.75 | |||||
| Noise | dBA |
≤49~63 | |||||

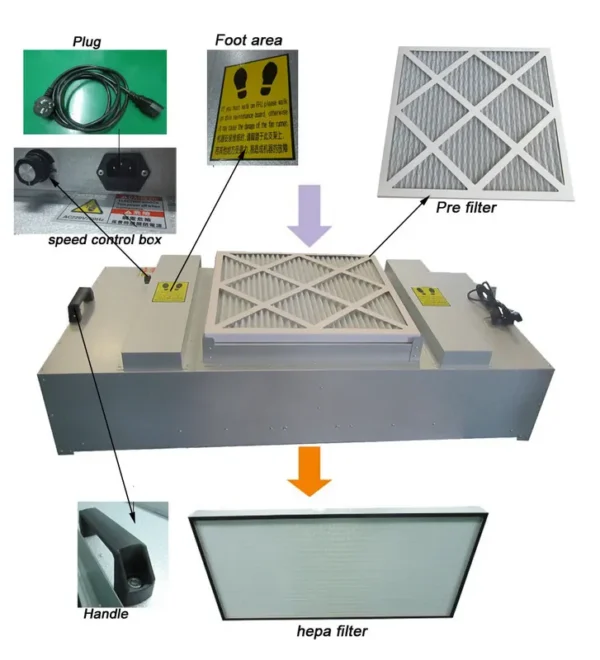

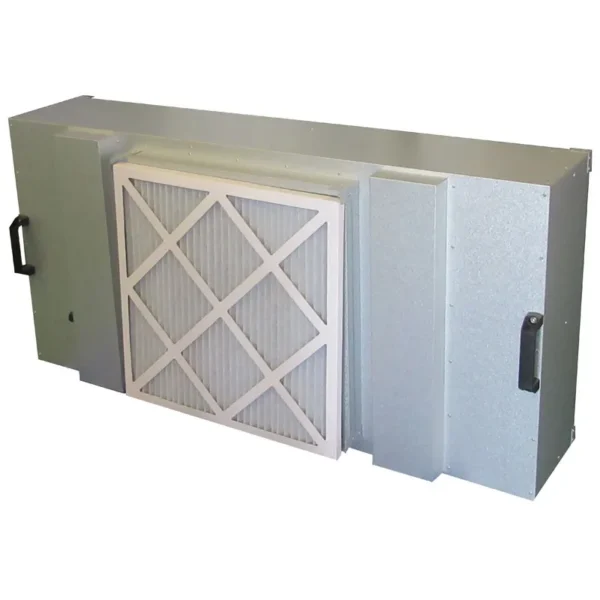

| Option | – | Differential draft gauge; Remote control; Duct flange for suction air; Pre-filter | |||||

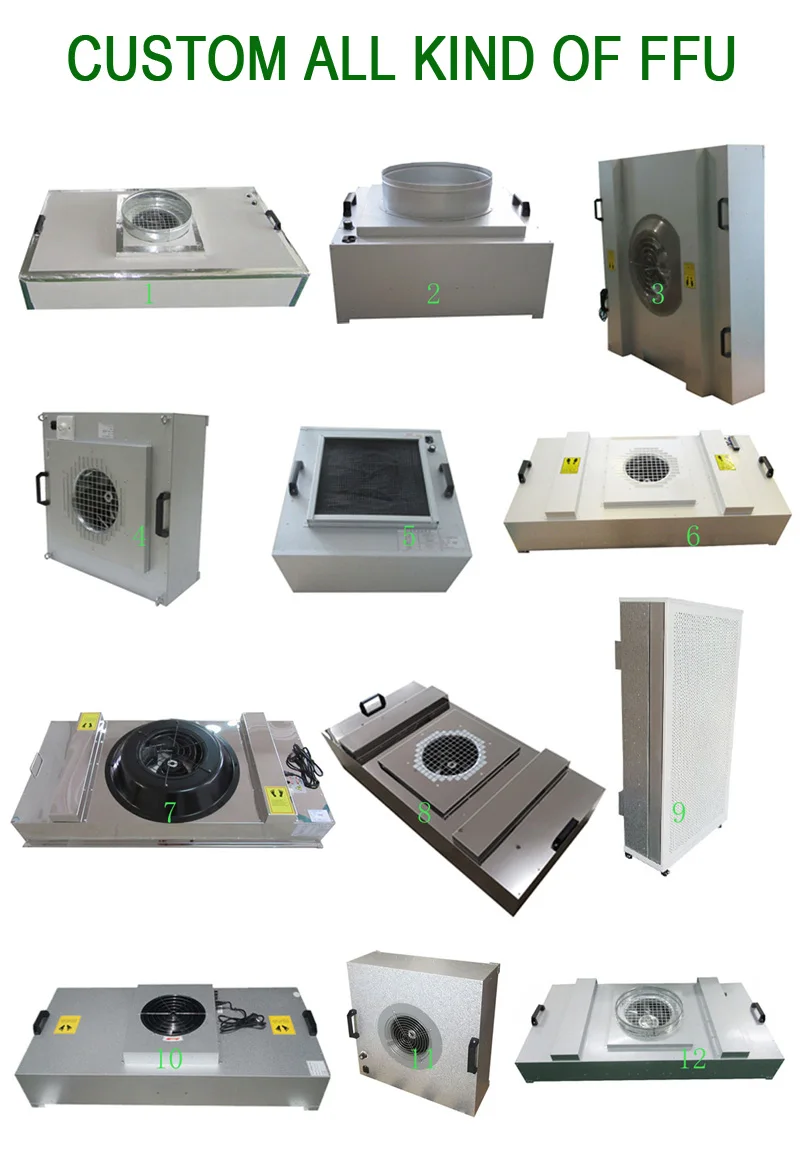

| Special size can be customized. | |||||||

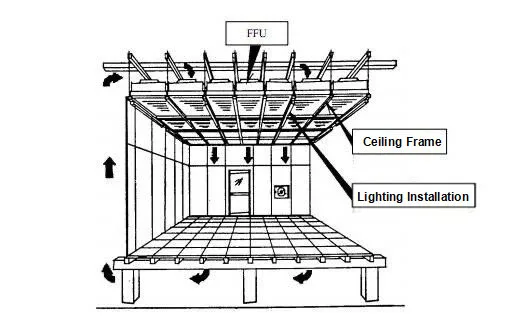

FFU’s are commonly used in the construction of Class 10 to Class 100,000 cleanrooms, even forming ultra clean line, clean closet and etc…
-
Ø 24 hours a day, 7 days a week.
-
Ø Cheap, fast and efficient.
-
Ø adequate stocks.
-
Ø 23 years experiences.
-
Ø Seriously quality control.
-
Ø Superb technique.
Senbao Purifying introduces advanced manufacturing equipments, imported high-quality filter materials. Together with strict manufacturing process control system and rich application experience of years, they make our products favored by both domestic and foreign customers.
Save
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–9 piece: US $220 / piece
- 10+ piece: US $200 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this flow hood with prefilter?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a Unavailable warranty. Spare parts and technical support remain available after the warranty period.
Can the flow hood with prefilter be supplied for my local voltage?
The standard configuration is 380 V, 220 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Dongguan Senbao Purifying Equipment Co., Ltd., based in China. The company 15 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Dongguan Senbao Purifying Equipment Co., Ltd. range on HVACR Nexus.
