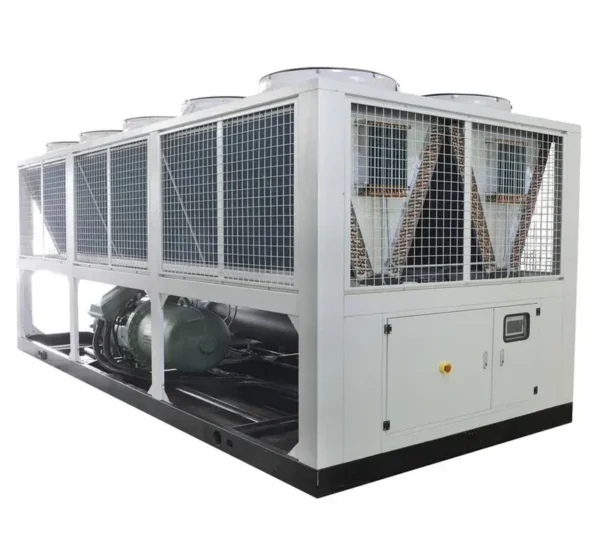

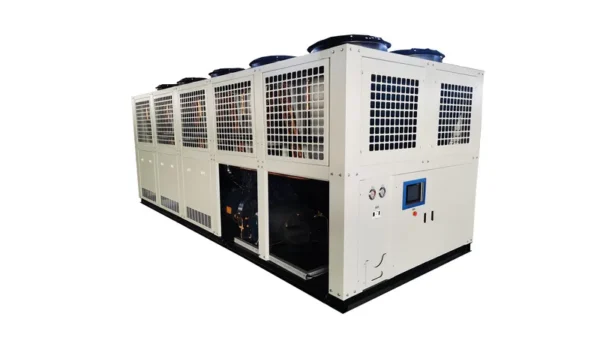

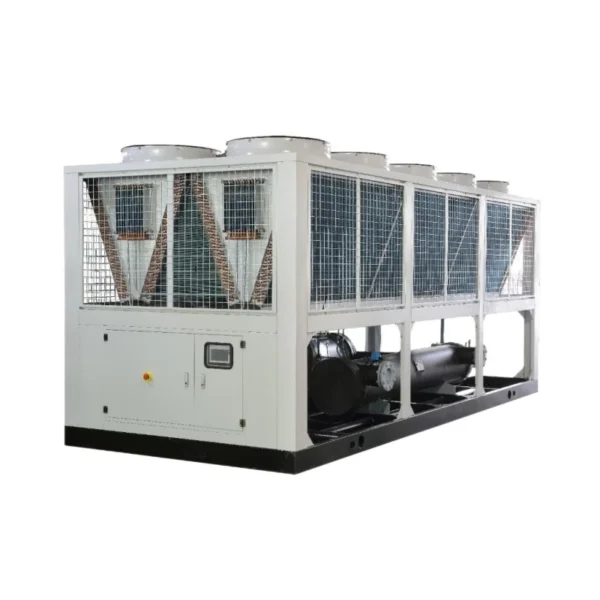

This air-cooled screw industrial chiller is published with the manufacturer’s full specification — 135kw, 135KW. Made by Shandong Taicheng Precision Technology Co., Ltd. Jinan Branch (4 years on the platform, typical reply ≤1h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Air-Cooled Screw Industrial Chiller
- Power: 135KW
- Voltage: 3PH-380V-50Hz or according to customer need
- Cooling Capacity: 135kw
- Refrigerant: R134a/R407c/R404a
- Warranty: 1 Year
- After Warranty Service: Online Technical Support
Technical Specifications
| Voltage | 3PH-380V-50Hz or according to customer need |
|---|---|
| Power | 135KW |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | High-Accuracy |
| Core Components | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Place Of Origin | Shandong, China |
| Weight (Kg) | 850 |
| Brand Name | TAICH |
| Dimension(L*W*H) | 3200*1450*2150mm |
| Working Temperature Range | -10~35degreee |
| Product Name | air Cooled Screw Chiller |
| Application | Industrial Cooling Solutions |
| Function | Provide Cooling Air |
| Keyword | Air Cooled Industrial Water Chiller |
| Cooling Type | Air Cooled Condenser Chiller |
| Compressor | Hanbell |
| Cooling Capacity | 135kw |
| Refrigerant | R134a/R407c/R404a |
| After-Sales Service Provided | Online Support |
| After Warranty Service | Online Technical Support |
| Selling Units | Single item |
| Single Package Size | 3200X1450X2150 cm |
| Single Gross Weight | 1900.0 kg |
Product Details

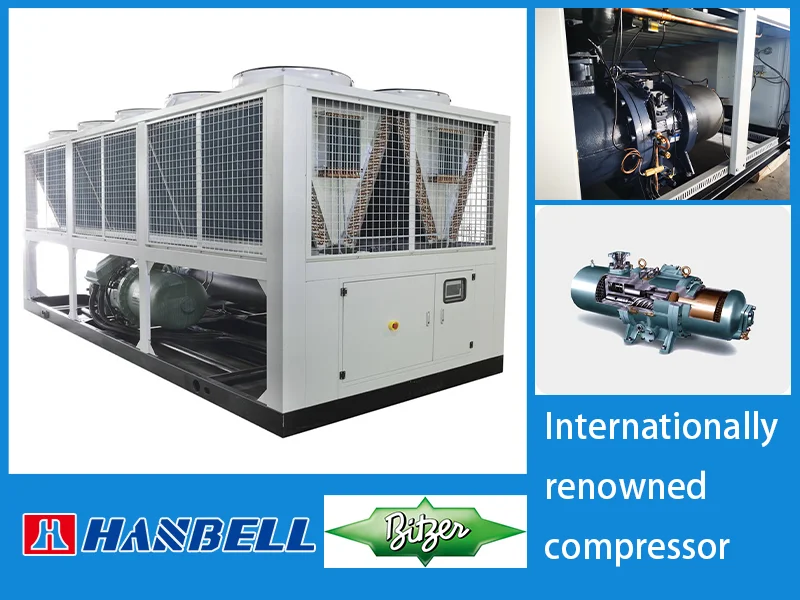

2. TAICH industrial water chiller adopts international famous brand compressors such as Schneider, Emerson,SIMENS, Danfoss, and Bitzer, and has stable performance and can work continuously.
3.User-friendly design, flexible and convenient.

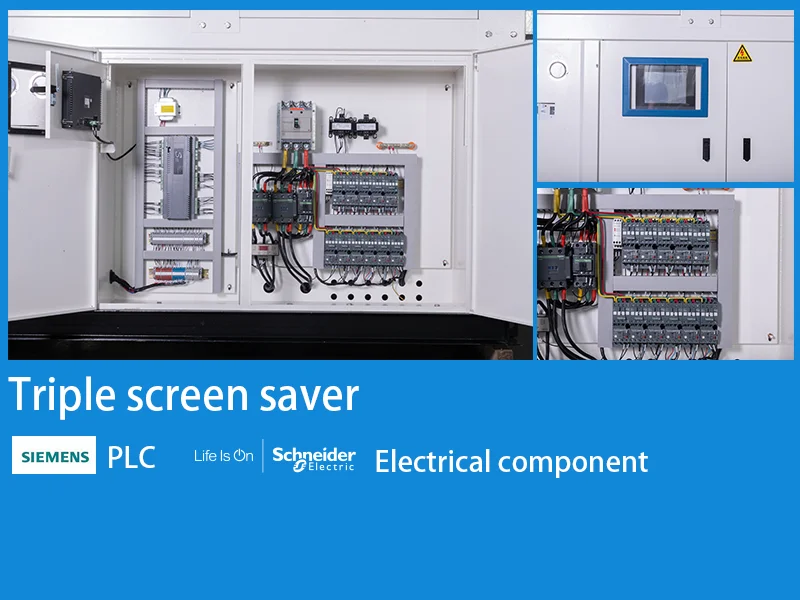

4. TAICH industrial chiller adopts microcomputer temperature controller, or Simens PLC , temperature digital display,，adjustmentunit ±1℃, temperature range is -15 ~ 35℃.
5. Use hot gas by pass to save energy and improve control accuracy.
6. Multiple fault alarms (over temperature alarm, sensoralarm, high pressure alarm, compressor over heat alarm).
7. Boot delay protection, all components are safely grounded.
8. The high performance circulation pump of TAICH chiller is guaranteed to run 24 hours a day.
Model | TC-100 | ||
Cooling capacity | 0°C kw | 95 | |
-5°C kw | 80 | ||
-10°C kw | 65 | ||
Power Supply | Power Supply | 3PH-380V-50Hz or according to customer need | |
Refrigerant | Type | R22/R407/R404/R301 | |
Control | Thermostatic expansion valve | ||
Compressor | Type | Semi-closed screw type | |
0°kw Power | 41 | ||
-5°kw Power | 40 | ||
-10°kw Power | 38 | ||
Start | Y-Δ | ||
Capacity | 25%-50%-75%-100% | ||

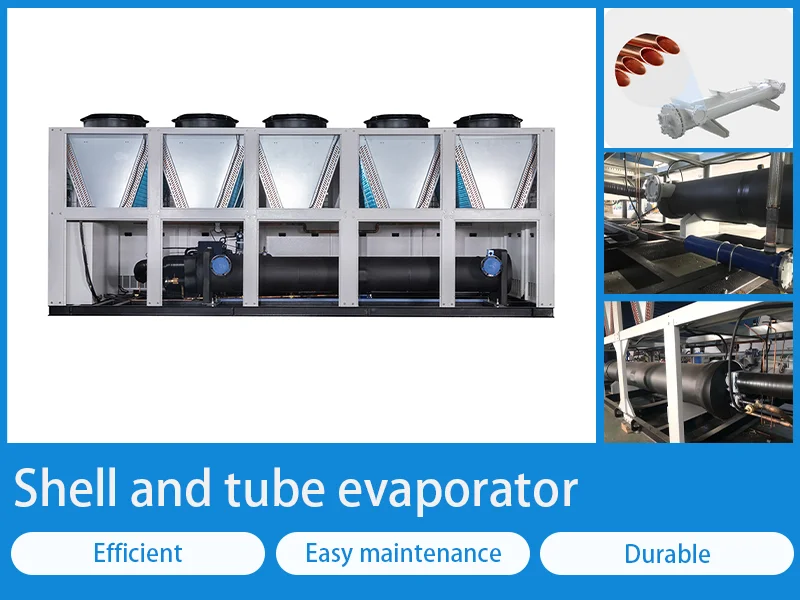

Evapoirator | Type | High effciency copper tube shell and tube type | |
0° m³/h Flow | 18 | ||
-5° m³/h Flow | 16 | ||
-10° m³/h Flow | 13 | ||
Inlet/Outlet | DN65 | ||

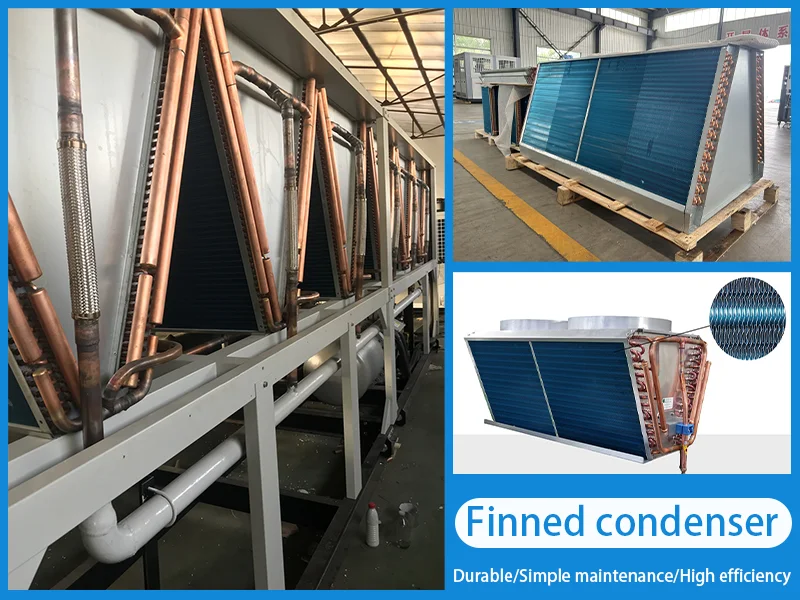

Condenser | Type | High effciency hydrophilic aluminum foll finned type | |
m³/h Flow | 40000 | ||
Protection System | Protection System | Compressor overheat and overload protection, high and low pressure protection, phase sequence/lack of phase protection, water flow protection, antifreeze protection | |
Dimension | mm/L | 3200 | |
mm/W | 1450 | ||
mm/H | 2150 | ||
Weight | KG | 1900 | |
Q 2: How can I choose a right water chiller model?
Reply: If you can make sure the cooling capacity need, can find the suitable model according to our parameter data, or inform us,we choose for you. If you are not sure the cooling capacity, can inform us:
(2). What's the water flow in your system?
(3). What's the inlet and outlet temperature need?
(4).Or any more information you can share us, we will calculate and suggest a suitable water chiller proposal for you.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $10780 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air-cooled screw industrial chiller?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the air-cooled screw industrial chiller be supplied for my local voltage?
The standard configuration is 3PH-380V-50Hz or according to customer need. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shandong Taicheng Precision Technology Co., Ltd. Jinan Branch, based in China. The company 4 years as a verified Alibaba.com supplier, Trading Company. Browse the full Shandong Taicheng Precision Technology Co., Ltd. Jinan Branch range on HVACR Nexus.
