Chiller — 5Kw ~100 Kw glycol chiller for brewery, 37.84KW(50.74hp). The complete factory specification follows. Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Chiller
- Power: 37.84KW(50.74hp)
- Compressor Power: 7.96 Kw*4
- Voltage: 3PH-380V-50Hz or according to customer need
- Cooling Capacity: 5Kw ~100 Kw glycol chiller for brewery
- Refrigerant: R22 / R407c / R134a / R507
- Warranty: 1 Year
Technical Specifications
| Voltage | 3PH-380V-50Hz or according to customer need |
|---|---|
| Power | 37.84KW(50.74hp) |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Competitive Price |

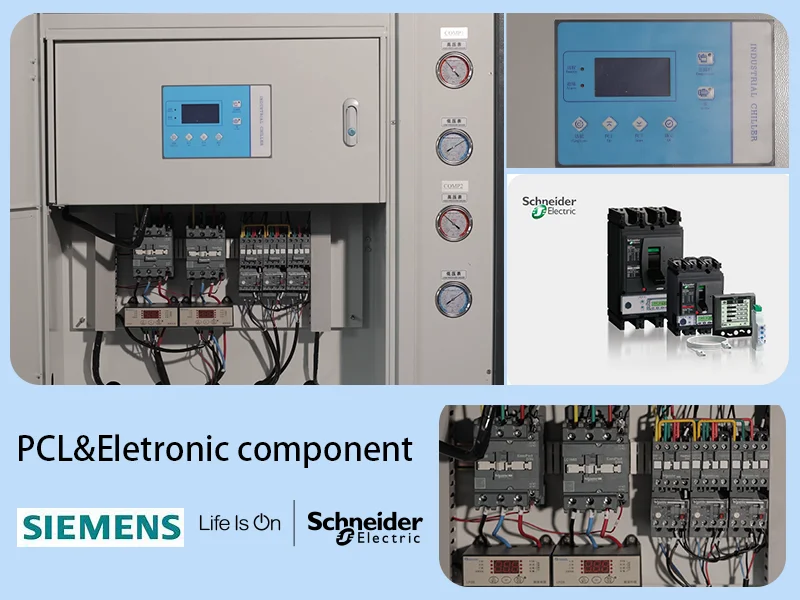

| Core Components | PLC, Engine, Motor, Pressure Vessel, Pump, Compressor, Fan, Evaporator, Condenser |
| Place Of Origin | Shandong, China |
| Weight (Kg) | 1350 |
| Brand Name | TAICH |
| Dimension(L*W*H) | 2450*1400*2110 mm(96.46*55.12*83.07in) |
| Working Temperature Range | -5-+35 degree C |

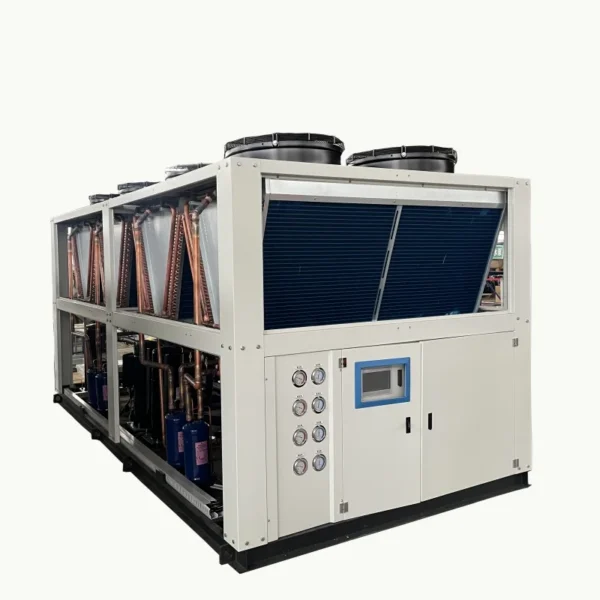

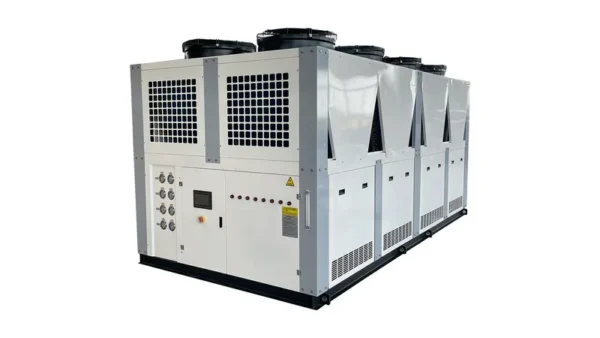

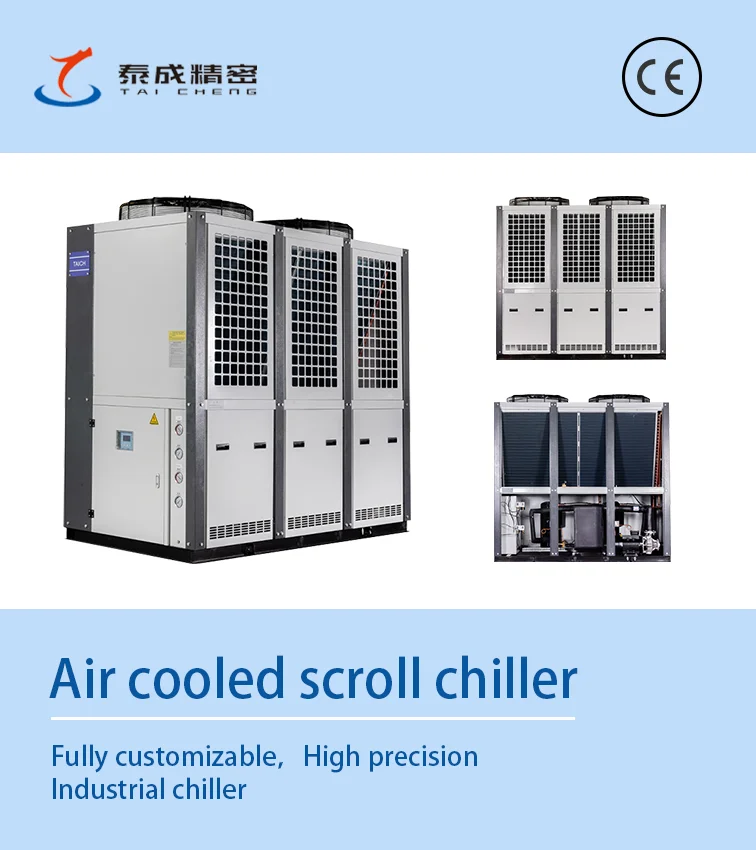

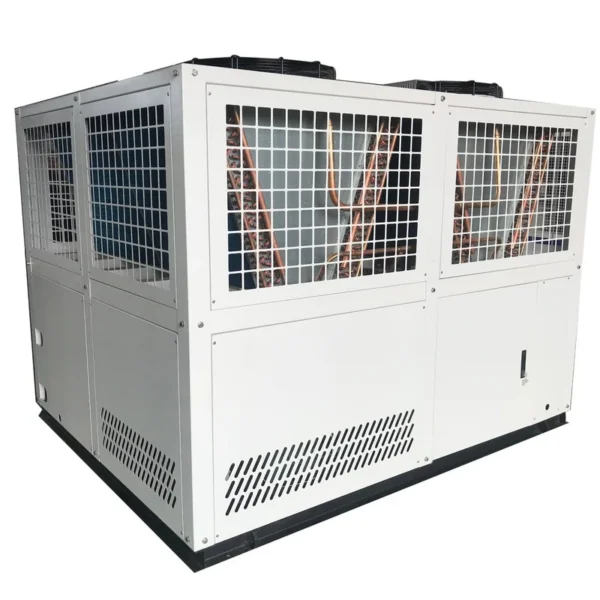

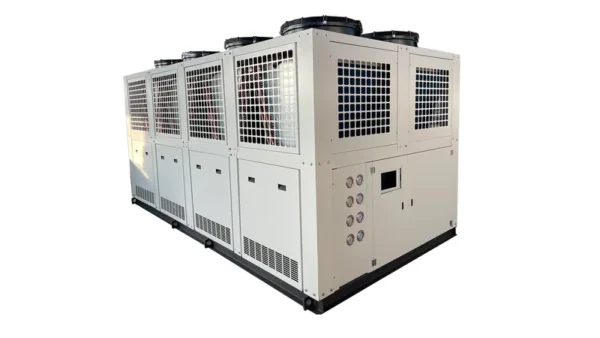

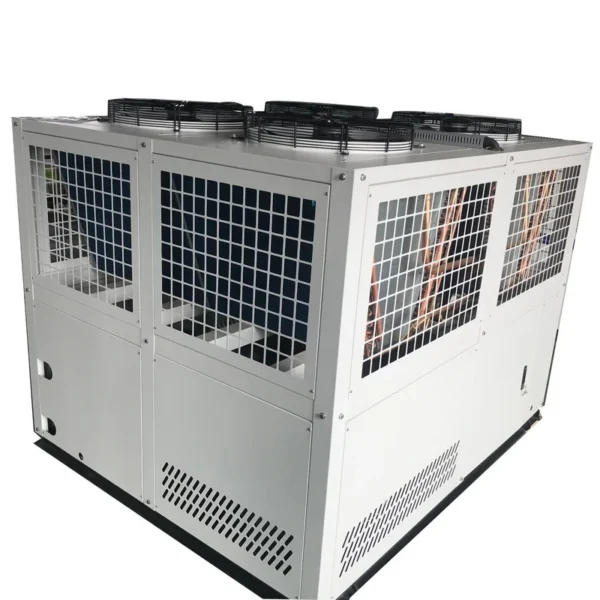

| Product Name | Air Cooled Industrial Chiller Glycol Chiller For Beer Fermentation |
| Cooling Capacity | 5Kw ~100 Kw glycol chiller for brewery |
| Application | Industry process cooling, plastic injection, extrusion chiller |
| Compressor Power | 7.96 Kw*4 |

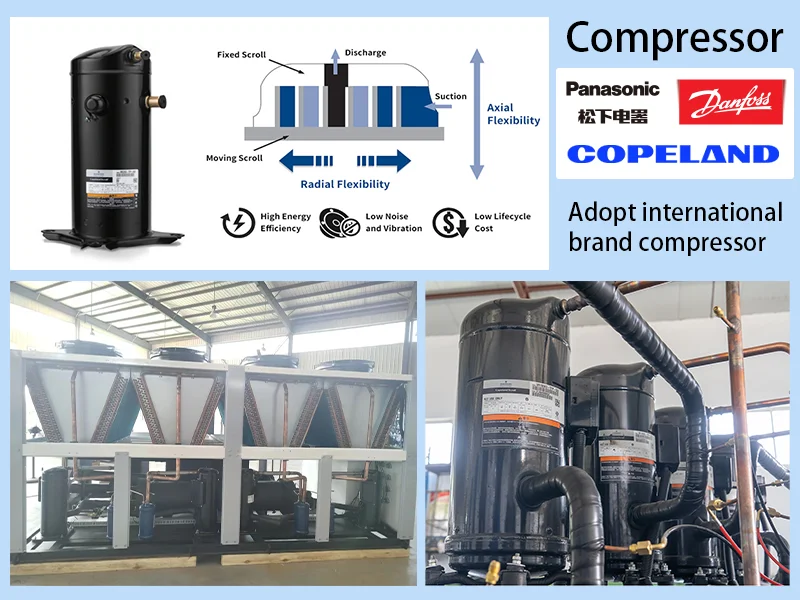

| Compressor Brand | Hermetic Scroll Compressor |

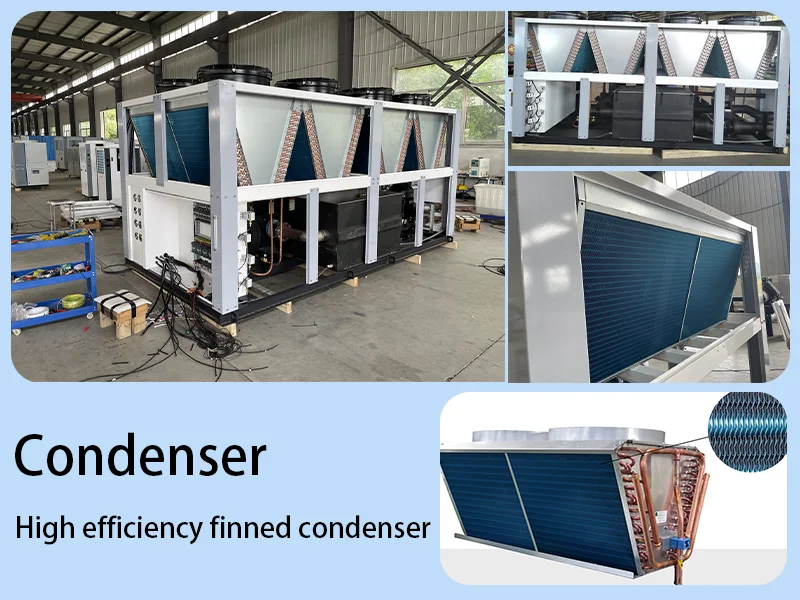

| Condenser | Air cooling aluminum foll finned |

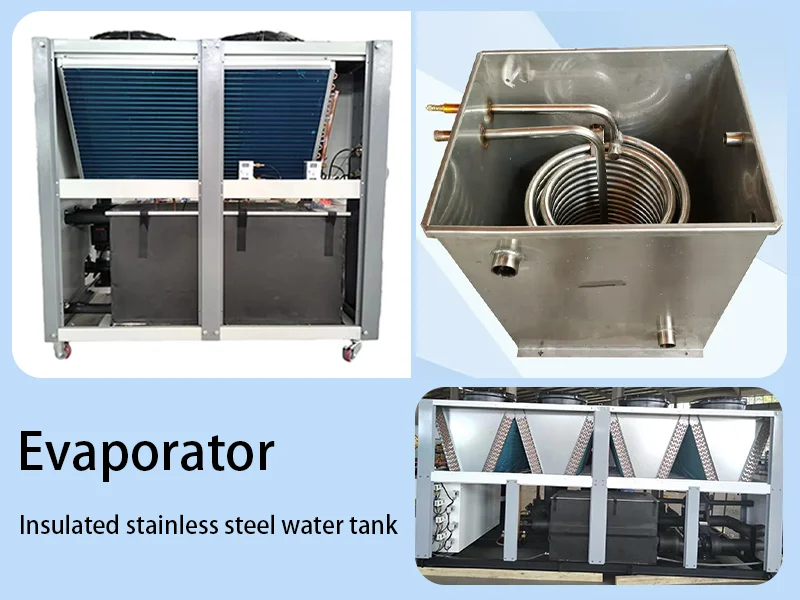

| Heat Exchanger | Shell and tube |
| Water Flow | 14.4 m3/h at -5 deg C outlet |
| Refrigerant | R22 / R407c / R134a / R507 |
| Remote Control | WIFI Connection |
| Selling Units | Single item |
| Single Package Size | 2450X1400X2110 cm |
| Single Gross Weight | 1350.0 kg |
Product Details
TAICH Air cooled chiller with the follow performance which can ensure your future use feel happy.
Specification:
1. Outlet temperature range: -10 C ~+35 deg C
convenient for use.
Model | TC-20C(D) | TC-25C(D) | TC-30C(D) | TC-40C(F) | TC-50C(F) | ||||||
Cooling capacity | Kcal/h | 47558 | 54352 | 71896 | 994256 | 107844 | |||||
Kw | 55.3 | 63.2 | 83.6 | 109.6 | 125.4 | ||||||
Power | Kw | 21.27 | 24.35 | 32.33 | 41.66 | 49.65 | |||||
Power Supply | 3PH-380V-50Hz or Customized according to customer needs | ||||||||||
Refrigerant | Type | R22/R407c/R410a/R507 | |||||||||
Control | Thermostatic expansion valve(Capillay) | ||||||||||
Compressor | Type | Hermetac scroll type | |||||||||
Power （Kw） | 9.05*2 | 10.6*2 | 9.05*3 | 9.05*4 | 10.6*4 | ||||||
Water flow ( m³/h) | 9.48 | 10.83 | 14.33 | 18.79 | 21.5 | ||||||
Inlet / Outlet | DN40 | DN40 | DN65 | DN65 | DN80 | ||||||
Capacity（L） | 350 | 350 | 450 | 580 | 580 | ||||||
Condenser | Type | High efficiency hydrophilic aluminum foll finned type | |||||||||
Power（Kw） | 0.75*2 | 0.75*2 | 0.75*2 | 1.5*2 | 0.75*4 | ||||||
Chilled water pump | Type | Centrigual water pump | |||||||||
Power（Kw） | 1.5 | 1.5 | 2.2 | 2.2 | 4 | ||||||
Lift（L） | 20 | 20 | 20 | 20 | 20 | ||||||
Protection System | Compressor overheat protection, high/low pressure protection, phase missing/sequence protection, flow rate protection, anti-frozen protection. | ||||||||||
Dimension | L(mm) | 2100 | 2100 | 2200 | 2500 | 2000 | |||||
W(mm) | 1000 | 1000 | 1160 | 1460 | 2000 | ||||||
H(mm) | 1700 | 1700 | 1900 | 2000 | 1750 | ||||||
Weight | KG | 850 | 850 | 1150 | 1350 | 1600 | |||||
Q 2: How can I choose a right water chiller model?
Reply: If you can make sure the cooling capacity need, can find the suitable model according to our parameter data, or inform us,
we choose for you. If you are not sure the cooling capacity, can inform us:
(1). Your process line description, such as what's the industry, what's the production capacity, what's the power and etc;
(2). What's the water flow in your system?
(3). What's the inlet and outlet temperature need?
(4).Or any more information you can share us, we will calculate and suggest a suitable water chiller proposal for you.
If you are looking for the most suitable Water Chiller, TAICH Chiller is the right choice. Call our sales manager for furtherguidance on the models, sizes, and configurations, and place your order at a very reasonable price.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $9000 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this chiller?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the chiller be supplied for my local voltage?
The standard configuration is 3PH-380V-50Hz or according to customer need. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shandong Taicheng Precision Technology Co., Ltd. Jinan Branch, based in China. The company 4 years as a verified Alibaba.com supplier, Trading Company. Browse the full Shandong Taicheng Precision Technology Co., Ltd. Jinan Branch range on HVACR Nexus.
