The air cooled water chiller listed here carries voltage 3PH~220V/380/415V~50HZ/60HZ, 50kw, documented exactly as the manufacturer publishes it. Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Air Cooled Water Chiller
- Power: 15kw(20.12hp)
- Compressor Power: 15kw
- Pump Power: 2.2 kw
- Voltage: 3PH~220V/380/415V~50HZ/60HZ
- Cooling Capacity: 50kw
- Warranty: 1 Year

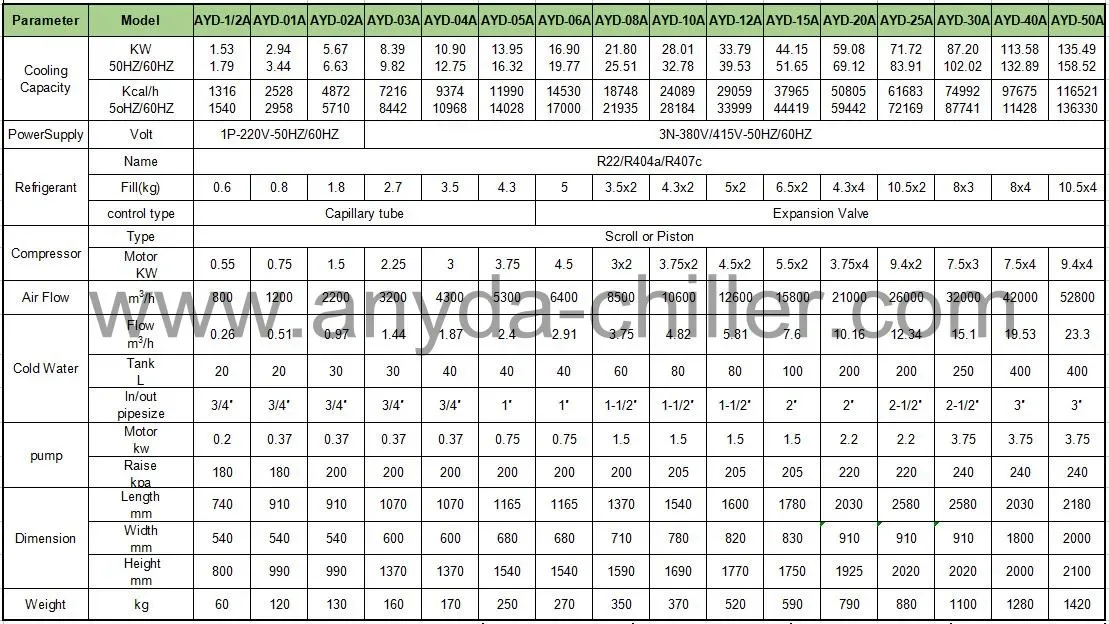

Technical Specifications
| Voltage | 3PH~220V/380/415V~50HZ/60HZ |
|---|---|
| Power | 15kw(20.12hp) |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Easy To Operate |
| Core Components | PLC, Engine, Motor |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 790 |
| Brand Name | Anyda |

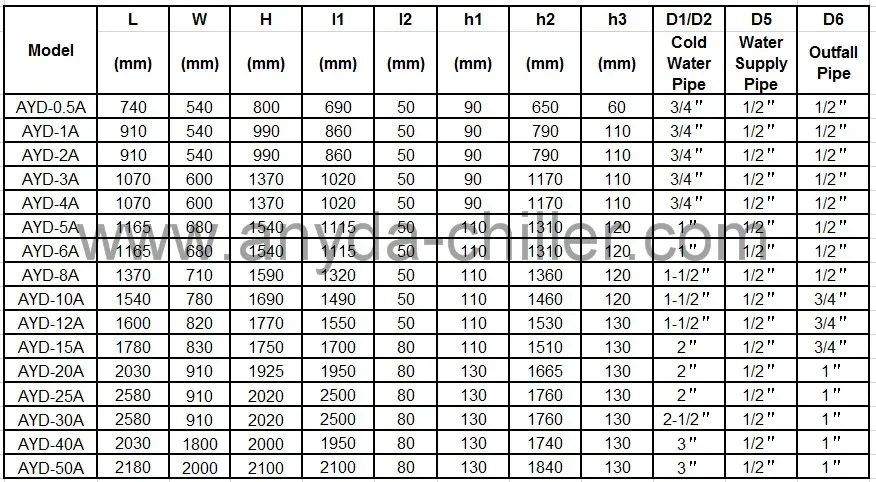

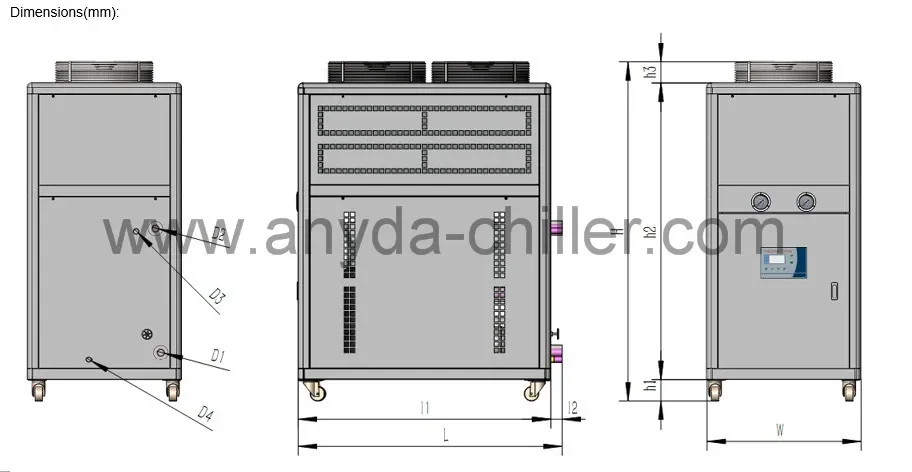

| Dimension(L*W*H) | 1700*830*1510mm(66.93*32.68*59.45in) |
| Product Name | 15 Ton 50kw Industrial Air Cooled Water Chiller |
| Cooling Capacity | 50kw |
| Compressor Qty | 2 |
| Compressor | Scroll |
| Compressor Power | 15kw |
| Air Volume | 21000m3/h |
| Tank Volume | 285L |
| Pump Power | 2.2 kw |
| Water Flow | 10.16m3/h |
| Pipe Size | 2" |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

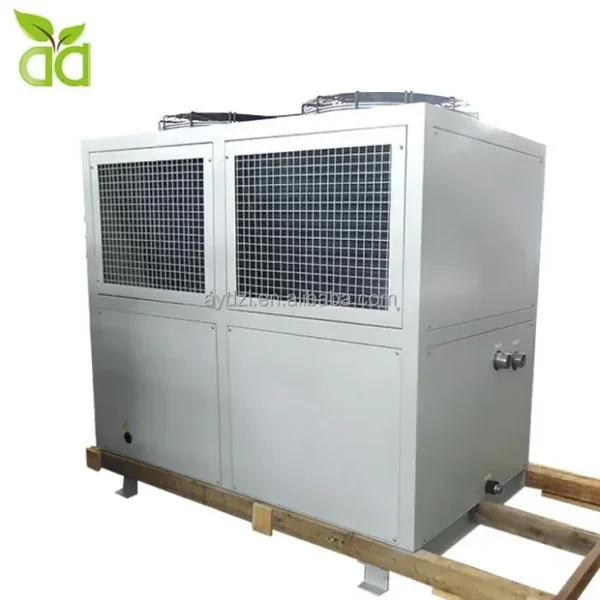

15 Ton 50kw Industrial Air Cooled Water Chiller
Product Detail
| Cooling Capacity | 50kw |
| Compressor Power | 15kw |
| Air Volume | 21000m3/h |
| Tank Volume | 285L |
| Pump Power | 2.2 kw |
| Product Keywords | 20Hp water chiller |
Features:
All models are equipped with compressor and pump overload protector, phase shortage and reversal alarm, anti – freeze thermostat, pressure gauge etc. They feature excellent performance and a long life span. This series of working flow is based on the basic principle of heat exchange. It is applicable to the industry that requires flow of precisely controlled chilled water, and considered as indispensable equipment for modern industry.
Applied Machinery: Cooling system of oil temperature, ultrasonic, high frequency machinery, injection molding machinery, blow molding machinery.
Description:
1.Anyda industrial air cooled water chiller unit use scroll compressor
It can adopts Sanyo,Copeland,Danfoss and other brand as your required.
2.Anyda industrial air cooled water chiller unit use high efficiency air side heat exchanger
Unique M-shaped design, inner grooved & patent sawtooth design and hydrophilic aluminum fin guarantee efficient heat exchange between the air side exchanger and ambient air.
3.Anyda industrial air cooled water chiller unit use shell & tube heat exchanger
Dry type & tube heat exchanger with inner grooved copper tube optimizes the cooling & heating efficiency. Self-cleaning, high intensity, anti-shaking design and heat insulation covering material ensure shell & tube heat exchanger unstained, reliable, quiet, highly efficient.
4.Anyda industrial air cooled water chiller unit equipped with complete protection
Water shortage protection, high/low voltage protection, anti-freezing protection, overload protection, overheat protection and oil level protection ensure high reliability and stability.

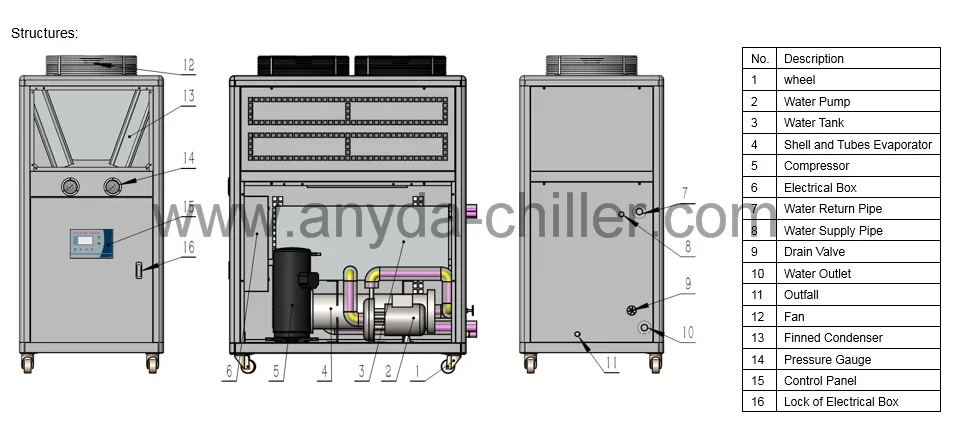

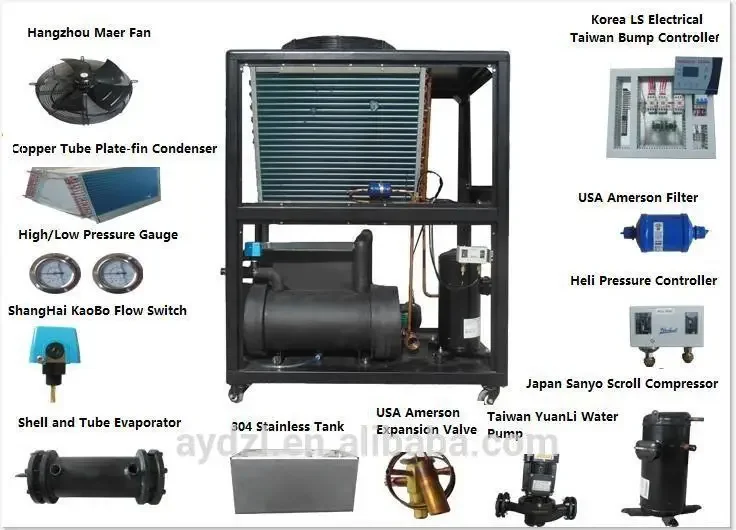

Main Parts
Name: Compressor
Brand: Sanyo/ Copeland/ Danfoss
Name: Condenser,Evaporator
Brand: Anyda
Name:Control Panel
Brand:Punp
Name: Electrical Parts
Brand: LG/Schneider
Name: Pump
Brand: Mini/CNP
-

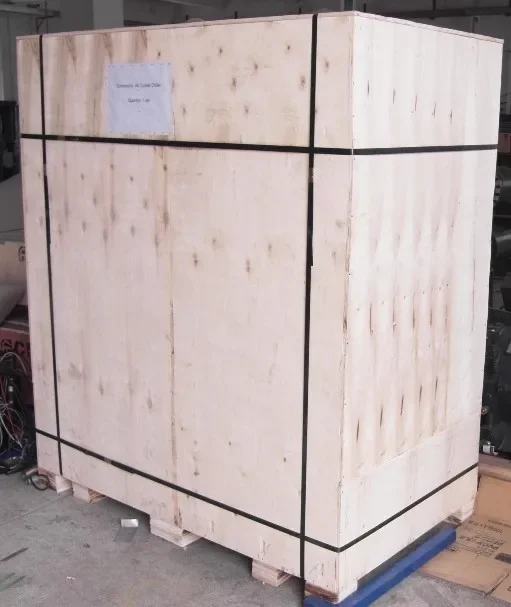

Package: Plywooden Case
-
Dellivery Time: 20-30 Working Days

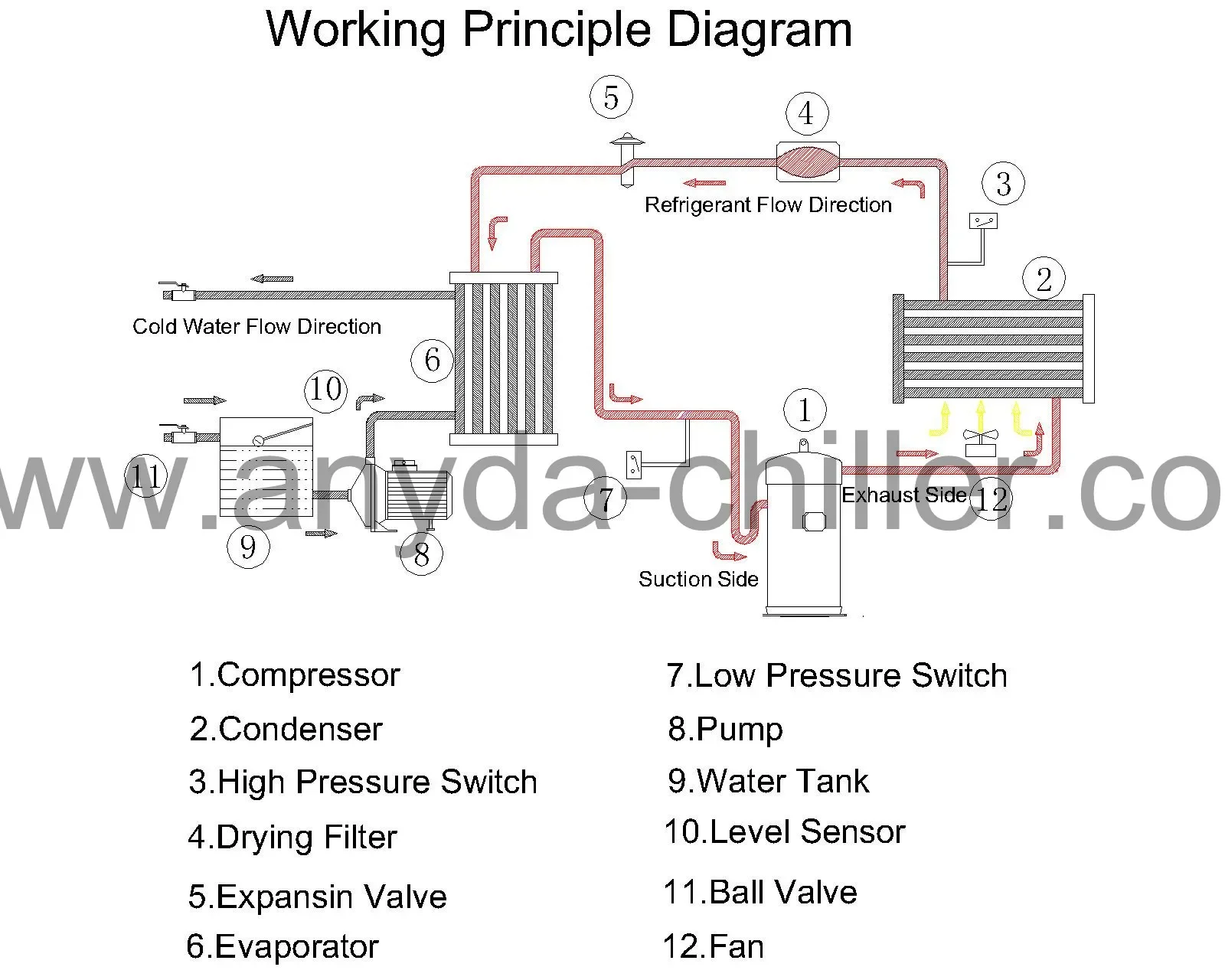

1.How does a chiller system work?
Chiller has two circulation,one is process water circulation,the other is refrigerant gas circulation.Heat picked up from the process.Heat transfers to refrigerant circulation.Heat is remove to air or water.
2.How to calculate cooling capacity for chillers
Cooling Capacity(kw)= Flow Rate(m3/h)*Temp Change(T1-t2)/0.86
Heat Load= C(specific heat)* M(quality output per hour )*Temp Change(T1-T2)
3.Types of chiller system?
Air Cooled Chiller and Water Cooled Chiller.Water cooled chiller needs a separated cooling tower and has a higher efficiency,but less easier than air cooled.
4.Cooling capacity unit conversion?
1 kcal/h = 1.163W,1 W = 0.8598 kcal/h;
1 Btu/h = 0.2931W,1 W = 3.412 Btu/h;
1 USRT = 3.517 kW,1 kW = 0.28434 USRT;
1 kcal/h = 3.968 Btu/h,1 Btu/h = 0.252 kcal/h;
1 USRT = 3024 kcal/h,10000 kcal/h = 3.3069 USRT;
5.The chiller can heat?
Yes,by the electrical heating wire.Please kindly inform us the hot water temp or heating capacity.
6.Chiller maintenance?
Step 1: Keep Tubes Clean
Step 2: Ensure a Leak-free Unit
Step 3: Sustain Proper Water Treatment(prevent scale, corrosion)
Step 4: Analyze Oil and Refrigerant
1.Reply your inquiry within 12 working hrs.
2.Strong R&D team,more than 15 years of manufacturing chiller experience. OEM&ODM is welcomed.
3.Direct factory,offer customer competitive price with high quality chiller.
4.Strict quality control system,professional QC team.
Ordering and Pricing
- Minimum order quantity: 1 unit
- Volume pricing:
- 1+ unit: US $5200 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air cooled water chiller?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the air cooled water chiller be supplied for my local voltage?
The standard configuration is 3PH~220V/380/415V~50HZ/60HZ. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

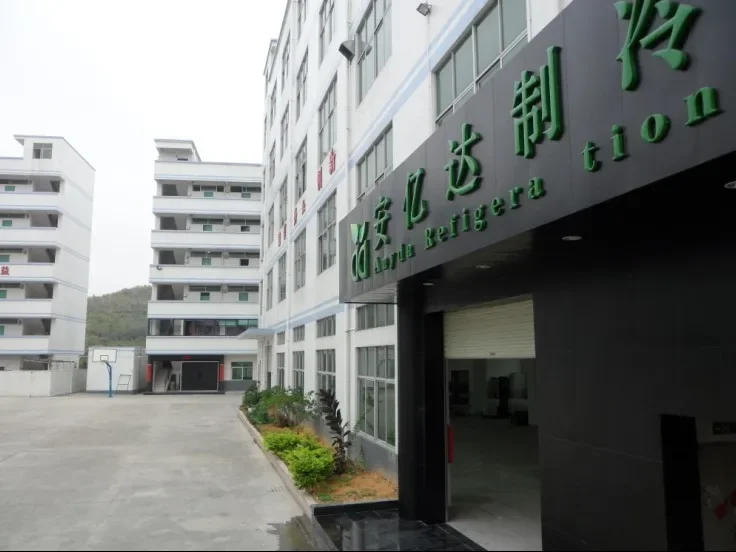

About the Manufacturer
