This water cooling tower is listed with the manufacturer’s full published specification — voltage 3N-380/415V-50HZ, cooling capacity 8000000kcal/h, power(w) 15kw(20.12hp). It is produced by Shenzhen Anyda Refrigeration Equipment Co., Ltd., a verified supplier of 10 years. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.
Key Features of This Water Cooling Tower
- Power(W): 15kw(20.12hp)
- Motor Power: 15 kw
- Voltage: 3N-380/415V-50HZ
- Cooling Capacity: 8000000kcal/h
- Material: FRP
- Warranty: 1year
Technical Specifications
| Voltage | 3N-380/415V-50HZ |
|---|---|
| Cooling Type | Cross Flow |
| Power(W) | 15kw(20.12hp) |
| Material | FRP |
| Core Components | Motor |
| Machinery Test Report | Provided |
| Warranty | 1year |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Eco-Friendly |
| Place Of Origin | Guangdong, China |
| Brand Name | Anyda |
| Dimension(L*W*H) | 13500*4500*6000mm(531.50*177.17*236.22in) |
| Product Name | Counter Flow Square Water Cooling Tower |
| Tower Water Flow | 450 m3/h |
| Cooling Capacity | 8000000kcal/h |
| Air Volume | 180000m3/h |
| Inlet/Outlet Temp | 43 /34.5degrees |
| Noise Value | 70dbA |
| Fan Dia | 3400mm |
| Net Weigh | 9150kg |
| Motor Power | 15 kw |
| Wet Bulb Temp | 30C |
| Port Of Dispatch | Shenzhen |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 300 sets per Month |
Product Details
What is counter flow square water cooling tower?
Counterflow cooling towers turn the air from horizontal to vertical flow beneath the fill media. While this gives good access to the cold water basin, the rest of the tower is more compact with lower overall height. This creates limited access to the spray system, eliminators, motor, drive system, and fan.

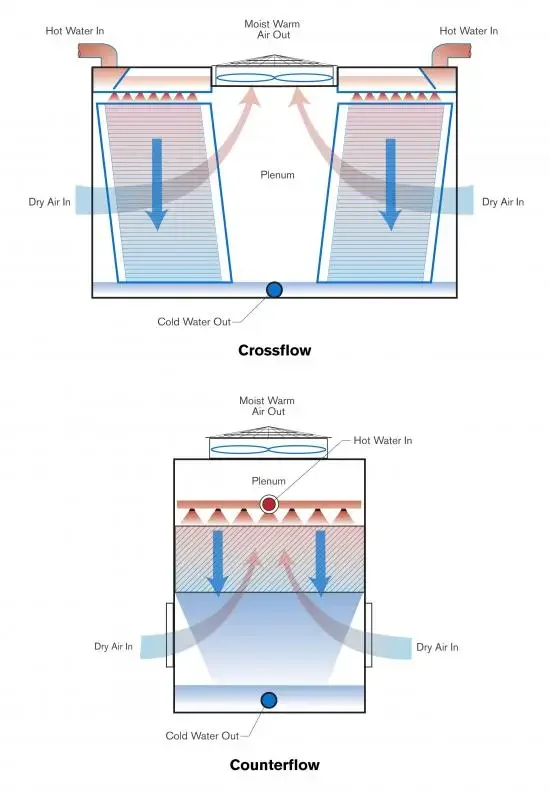

Crossflow and counterflow square cooling towers both have distinct advantages, the design requirements and conditions specific to your application determine the appropriate cooling tower for your project. The fundamental difference between crossflow and counterflow cooling towers is how the air moving through the tower interacts with the process water being cooled. In a crossflow tower, air travels horizontally across the direction of the falling water. In a counterflow tower, air travels vertically upwards in the opposite direction (counter) to the direction of the falling water.
While structural and mechanical components of crossflow and counterflow cooling towers are similar, application-specific design requirements should determine the tower type.
The fundamental difference between crossflow and counterflow cooling towers is how the air moving through the cooling tower interacts with the process water being cooled. Air travels horizontally across the direction of the falling water in a crossflow tower. In a counterflow tower air travels vertically upwards in the opposite direction (counter) to the falling water.
| Item | Content | Value | Remarks |
| Basic specs | Cooling Tower Type | Counter square type tower |
|
| Model | AYD-1200T | Low Noise | |
| Circulating Water Flow | 450 m3/h |
| |
| Inlet Temp/Outlet Temp | 43℃/34.5℃ |
| |
| DB Temp | 31.5℃ |
| |
| WB Temp | 30℃ |
| |
| Cooling Capacity | 8,000,000 kcal/h |
| |
| Noise Value | 70dB(A) |
| |
| Power Supply | 380V/3P/50Hz |
| |
| Water Requirement | PH=6-8 |
| |
| Design specs | Air Water Scale | 0.81 kg/kg |
|
| Tower Head | 60kPa |
| |
| Flying Water Loss | ≤0.001% |
| |
| Evaporation Loss | 0.83% |
| |
| Net/Running Weight | 9150 kg/22800 kg |
| |
| Motor fan specs | Fan Type | Axial-Flow |
|
| Air Volume | 180,000m3/h |
| |
| Total Static Pressure | 90Pa |
| |
| RPM | 280r/min |
| |
| Fan Dia(Φ) | 3,400 mm |
| |
| Quantity of Fan | 4pcs/set | 3 set | |
| Motor Type | All Closed Water-proof |
| |
| Driving Mode | Belt |
| |
| Motor Power | 15 kW |
| |
| Start Way | Y |
| |
| Main Dimension | L*W*H | 4500*13500*6000 mm |
|
| Inlet Pipe Size(DN) | 300mm | 3 sets | |
| Outlet Pipe Size(DN) | 300mm | 3 sets | |
| Overflow/Drain Pipe(DN) | 80mm/80mm | 3 set separately | |
| auto/manual supply(DN) | 40mm/40mm | 3 set separately | |
| Material | Orifice | Glass Fiber Reinforced Plastics | Synthesis of high quality glass fiber felt and resin |
| Sprinkler System | |||
| Boarding | |||
| Basin, Vat | |||
| Belt | Composite Material | Japan Mitsuboshi | |
| Fan | Aluminum Alloy | Big Chord Arc | |
| Motor | All Closed Water Proof | Level of Protection IP55 Insulation Grade F | |
| Film | P.V.C. | ZR | |
| Iron Frame, Motor Frame | hot-dipped galvanized steel | GB/T-13912-2002 |
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $40000 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this water cooling tower?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1year warranty. Spare parts and technical support remain available after the warranty period.
Can the water cooling tower be supplied for my local voltage?
The standard configuration is 3N-380/415V-50HZ. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
