The cooled screw water chiller listed here carries voltage 3PH~380/415V~60HZ, cooling capacity 207.9ton, documented exactly as the manufacturer publishes it. Made by Shenzhen Anyda Refrigeration Equipment Co., Ltd. (10 years on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Cooled Screw Water Chiller
- Power Input: 272.4kw
- Compressor Power: 248kw
- Fan Power: 24.2kw
- Voltage: 3PH~380/415V~60HZ
- Cooling Capacity: 207.9ton
- Warranty: 1 Year

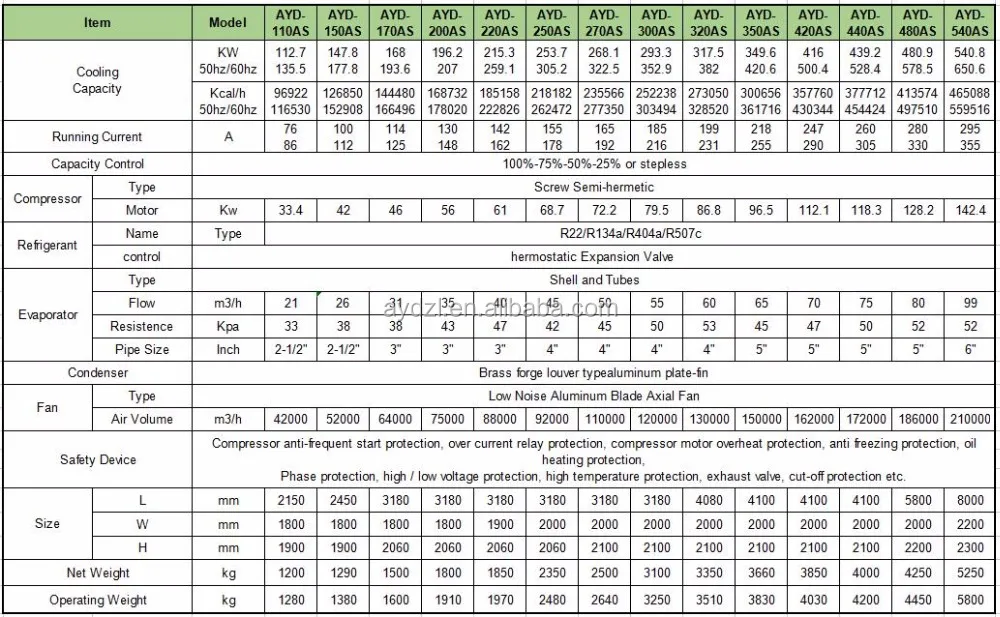

Technical Specifications
| Type | Air-Cooled |
|---|---|
| Voltage | 3PH~380/415V~60HZ |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Easy To Operate |
| Core Components | PLC, Engine, Motor |
| Place Of Origin | Guangdong, China |
| Brand Name | Anyda |
| Dimension(L*W*H) | 11500*2200*2300mm |
| Product Name | 200 Ton 700 Kw Industrial Air Cooled Screw Water Chiller |
| Cooling Capacity | 207.9ton |
| Power Input | 272.4kw |
| Compressor Power | 248kw |
| Running Current | 491A |
| Air Volume | 330000m3/h |
| Cold Water Flow | 129m3/h |
| Pipe Size | DN200 |
| Outlet Temp | 7C |
| Fan Power | 24.2kw |
| Packaging Details | wooden case |
| Port Of Dispatch | shenzhen |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 10 units per Month |
Product Details

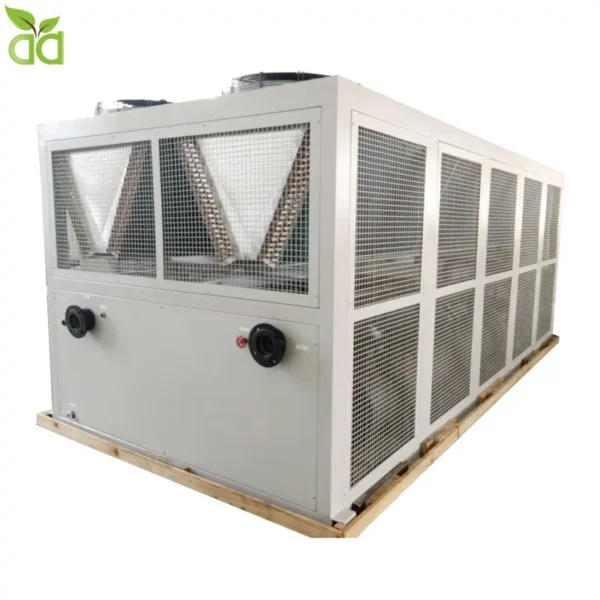

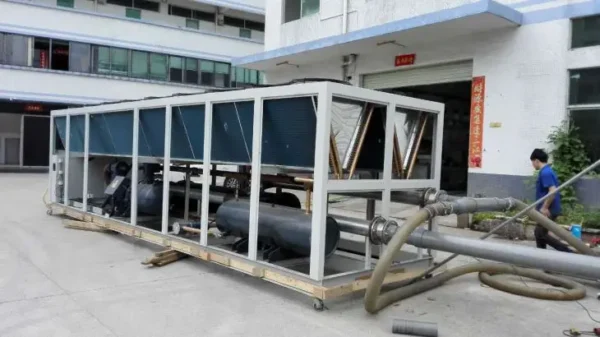

200 Ton 700 Kw Industrial Air Cooled Screw Water Chiller
Anyda as the china water chiller manufacturer, have gradually produced Industrial Chiller,Water Chiller,Screw Chiller,Air Cooler,Oil Chiller,Low Temperature Chillers,Hot Water Chiller, Heat Pumps and Central Air Conditioner which are widely applied to plastic & rubber machinery, daily-use chemical, textile, general machinery, laser machinery, LCD and PCB industry, electroplating, equipments of laboratory, food, pharmacy, etc .
250 Ton 900 Kw Industrial Air Cooled Screw Water Chiller Flow Chart:

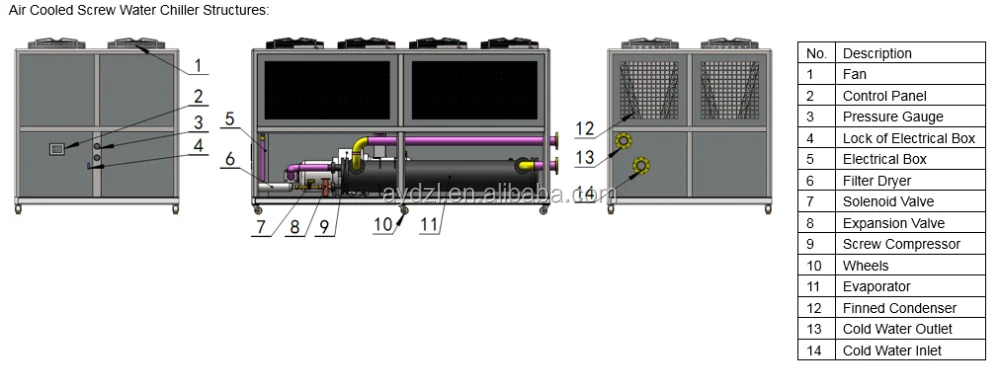

250 Ton 900 Kw Industrial Air Cooled Screw Water Chiller Structure:
Main Features
1.Packaged box type air cooled screw water chiller unit adopt the semi-hermetic screw compressor(like Habell,Bitzer), and operate credibility, high efficiency, easy to maintain, exact volume control, a wide range of application. The system adopts the latest asymmetric rotor profile. Build-in pressure drop lubricant to system with low vibrations, sound emissionshigh sealing performance.
2.Packaged box type air cooled screw water chiller unit 's human machine interface configures a full touch screen, which enables automatic control and accurate monitoring. The advantages of unit: water-proof,dust-proof, corrosion resistant, long life. Step or stepless capacity control, the unit ensure that it bring into the most energy-saving effective in any load conditions.
3.Packaged box type air cooled screw water chiller unit due to use heat copper tube and high efficiency compressor with high effective thermal expansion current-saving device, the unit will operate in stability, longer and effectively.
4.Packaged box type air cooled screw water chiller unit adopts a reliable safety protection device: to prevent compressor starting frequently, over-current protection, overheat of motor protection, prevent freezing, sight glass in liquid, oil heating protection, phase protection, HV/LV protection, discharge high-temperature protection, safety value, soluble clock, water shut-off protection, and so on.

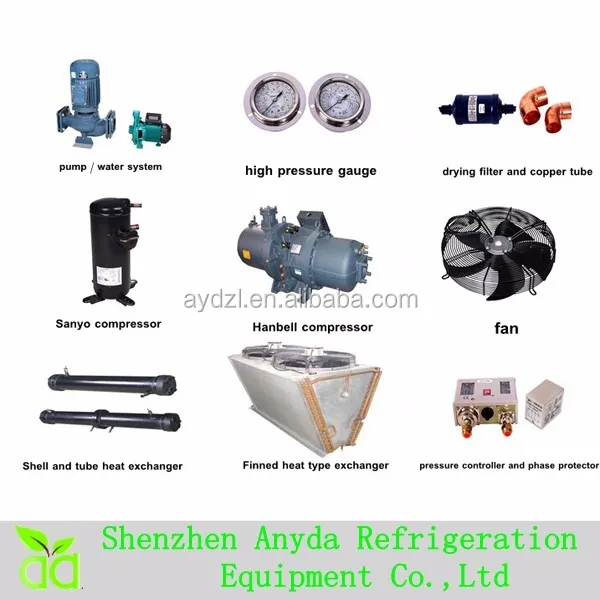

Machine Parts
Name: Compressor
Brand: Hanbell/Bitzer
Name: Condenser,Evaporator
Brand: Anyda
Name: Control Panel
Brand: Punp/Siemens
Name: Electrical Parts
Brand: LG/Schneider
Packaging | ||
Size | 10000 (L) * 2200 (W) * 2400 (H) | |
Weight | 5200kg | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
1.How does a chiller system work?
Chiller has two circulation,one is process water circulation,the other is refrigerant gas circulation.Heat picked up from the process.Heat transfers to refrigerant circulation.Heat is remove to air or water.
2.How to calculate cooling capacity for chillers
Cooling Capacity(kw)= Flow Rate(m3/h)*Temp Change(T1-t2)/0.86
Heat Load= C(specific heat)* M(quality output per hour )*Temp Change(T1-T2)
3.Types of chiller system?
Air Cooled Chiller and Water Cooled Chiller.Water cooled chiller needs a separated cooling tower and has a higher efficiency,but less easier than air cooled.
4.Cooling capacity unit conversion?
1 kcal／h ＝ 1.163W,1 W ＝ 0.8598 kcal／h；
1 Btu／h ＝ 0.2931W,1 W ＝ 3.412 Btu／h；
1 USRT ＝ 3.517 kW,1 kW ＝ 0.28434 USRT；
1 kcal／h ＝ 3.968 Btu／h,1 Btu／h ＝ 0.252 kcal／h；
1 USRT ＝ 3024 kcal／h,10000 kcal／h ＝ 3.3069 USRT；
5.This chiller could do heat recovery?
Yes,please kindly send us the temp and water volume per hour.
6.Chiller maintenance?
Step 1: Keep Tubes Clean
Step 2: Ensure a Leak-free Unit
Step 3: Sustain Proper Water Treatment(prevent scale, corrosion)
Step 4: Analyze Oil and Refrigerant
1.Reply your inquiry within 12 working hrs.
2.Strong R&D team,more than 15 years of manufacturing chiller experience. OEM&ODM is welcomed.
3.Direct factory,offer customer competitive price with high quality chiller.
4.Strict quality control system,professional QC team.
Ordering and Pricing
- Minimum order quantity: 1 unit
- Volume pricing:
- 1+ unit: US $66000 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cooled screw water chiller?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the cooled screw water chiller be supplied for my local voltage?
The standard configuration is 3PH~380/415V~60HZ. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
