Key specification for this air curtain: 220V, 145CFM. Everything below is reproduced from the factory data sheet. Made by Beijing Zihang Dahui Electronics Co., Ltd. (7 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Air Curtain
- Model Number: HCE60420A22BF
- Voltage: 220V
- Voltage Range: 220V
- Air Flow: 145CFM
- Blade Material: Cast Iron
- Speed: 1400RPM
Technical Specifications
| Voltage | 220V |
|---|---|
| Mounting | Free Standing |
| Blade Material | Cast Iron |
| Customized Support | OEM |
| After-Sales Service Provided | Online support |
| Warranty | 2 Years |
| Place Of Origin | Beijing, China |
| Brand Name | hang da hui |
| Model Number | HCE60420A22BF |
| Type | HVAC ac 230v air curtain rectangle tangential blower |
| Motor Type | AC |
| Voltage Range | 220V |
| Max Pressure | 1.7mmAq |
| Installation | Duct fan |
| Air Flow | 145CFM |
| Speed | 1400RPM |
| Selling Units | Single item |
| Single Package Size | 60X20X20 cm |
| Single Gross Weight | 2.0 kg |
Product Details

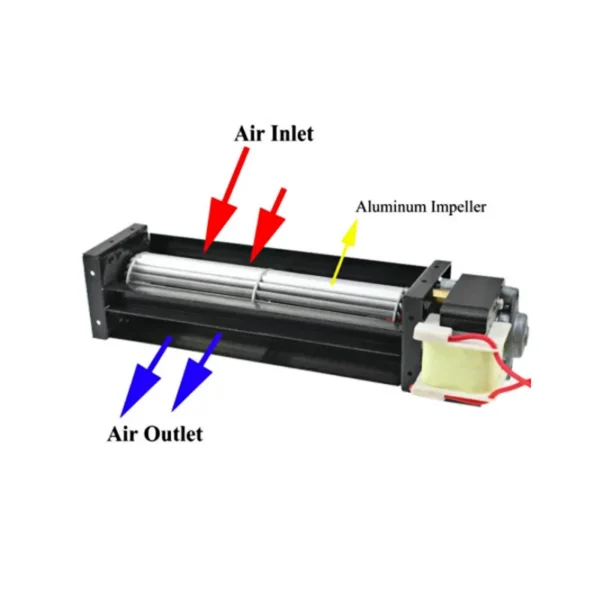

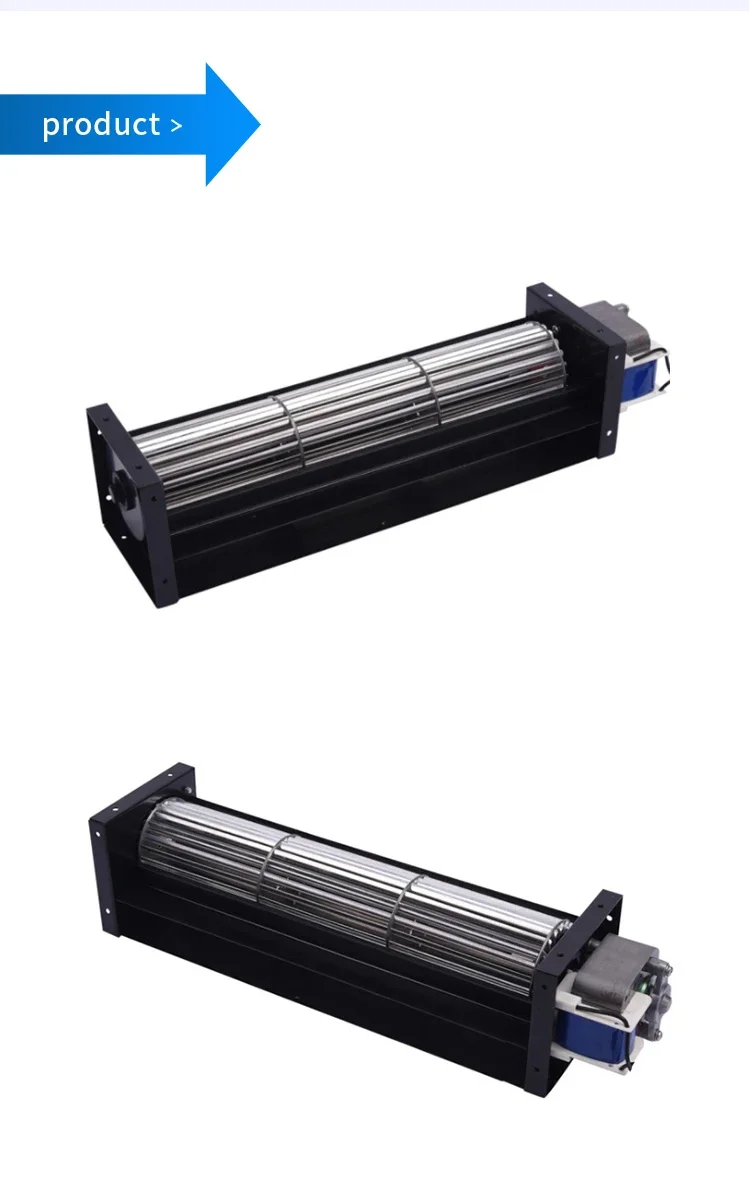

60mm 420mm cross flow fans for fireplace HVAC ac 230v air curtain rectangle tangential blower

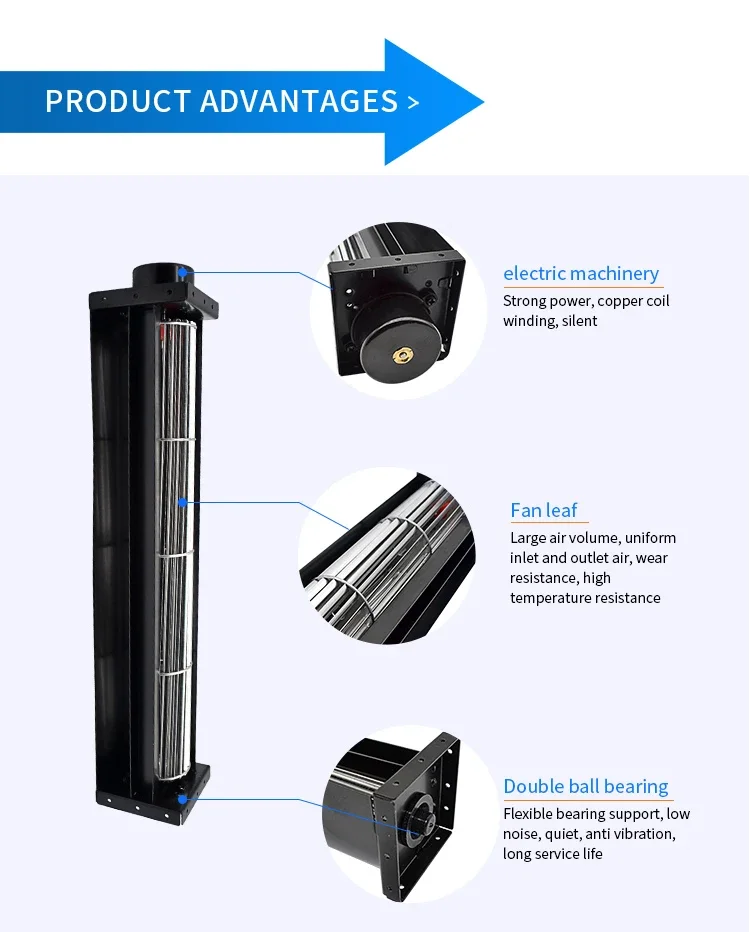

| AC cross flow fan product overview | ||
| texture of material | Impeller: aluminum alloy, large air volume, low noise, good temperature resistance and long service life | |
| Fan rotation direction | From the direction of the fan blade, it is anticlockwise | |
| Connector | EPDM anti fatigue and high temperature resistant silicone rubber parts | |
| Operating ambient temperature | -40℃~150℃ | |
| life | S (oil bearing) 40000 hours, B (ball bearing) 60000 hours | |
| The motor can choose hood motor, capacitor motor (plastic motor), EC motor The working voltage is AC110V / 60Hz or 220V / 50Hz | ||
| Insulation class | The standard is grade B (up to grade H) | |
| insulation resistance | Cold resistance ≥ 100 Ω | |
1 What are kinds of cooling fan or centrigugal fan supplied by your company?
Answer: we can provide DC cooling fan, AC cooling fan, EC cooling fan and blower fan.
2 What are kinds of information provided by the customer before inquiry?
Answer : please kindly advise the size, voltage, the type of bearing, the speed of fan , or air flow.
3 How many types bearing of our cooling fan are there in our compnay at present?
Answer : now we have two types bearing for the fan, sleeve and ball, working time of sleeve is for 30,000 hours, the ball is for 50,000 hours.
4 How to detect the data of cooing fan in your company?
Answer: the speed and voltage are detected by the tachometer, air flow is found by wind tunnel.
5 How to control the quanlity of products in your company.
Answer: 100% total testing before each of fan leaves our factory.
Ordering and Pricing
- Minimum order quantity: 500 piece
- Volume pricing:
- 500–999 piece: US $30 / piece
- 1000+ piece: US $23 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air curtain?
The standard minimum order quantity is 500 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the air curtain be supplied for my local voltage?
The standard configuration is 220V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Beijing Zihang Dahui Electronics Co., Ltd., based in China. The company 7 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Beijing Zihang Dahui Electronics Co., Ltd. range on HVACR Nexus.
