The air handling unit listed here carries air flow 3000-30000 cmh, material Stainless Steel, Aluminum Foil, documented exactly as the manufacturer publishes it. Made by Henan Abot Trading Co., Ltd. (8 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Air Handling Unit

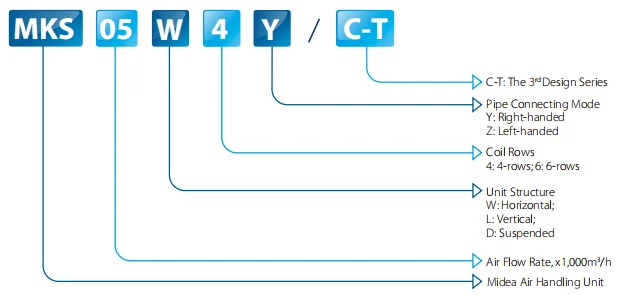

- Model Number: MKS05W4Y/C-T
- Cooling Capacity(W): 1635-200000
- Air Flow: 3000-30000 cmh
- Material: Stainless Steel, Aluminum Foil
- Warranty: 1 Year
- Place Of Origin: Zhejiang, China
Technical Specifications
| Application | Workshop, Villa, Hotel, Apartment, Office Building, Hospital, School, Mall |
|---|---|
| Material | Stainless Steel, Aluminum Foil |
| Feature | Flexible, Energy Saving, Anti-Corrosion, Easy Install |
| Design Style | Industrial |
| Warranty | 1 Year |
| After-Sale Service | Online Technical Support, Free Spare Parts |
| Project Solution Capability | graphic design, total solution for projects, Cross Categories Consolidation |
| Model Number | MKS05W4Y/C-T |
| Place Of Origin | Zhejiang, China |
| Brand Name | Midea |
| Product Name | 3000-30000m3h vertical air handling unit AHU |
| Weight | 250kg |
| Air Flow | 3000-30000 cmh |
| Type | Vertical |
| Cooling Capacity(W) | 1635-200000 |
| Certificate | EN1886 |
| Keyword | Air handling unit AHU |
| Selling Units | Single item |
Product Details

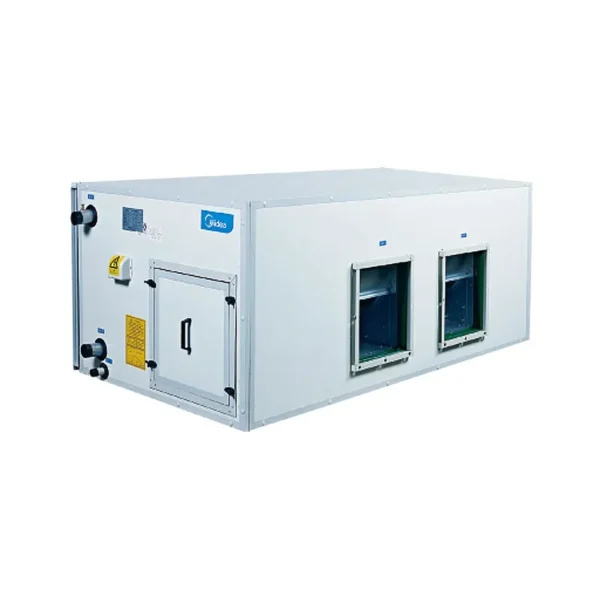

3000-30000m3h vertical air handling unit AHU

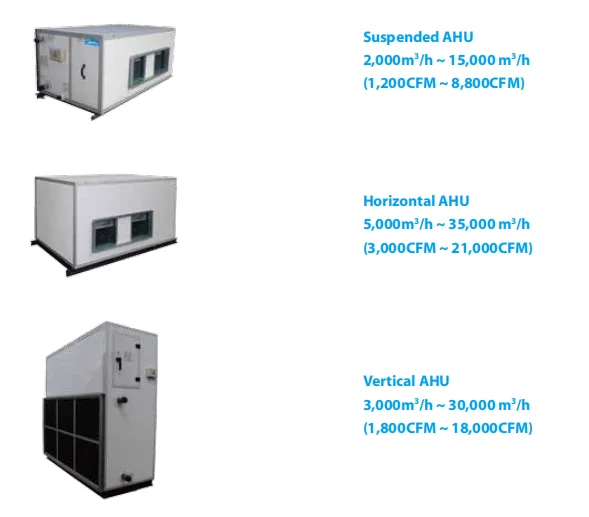

Type | Air flow CMH | Air flow CFM |
Suspended AHU | 2000-15000 | 1200-8800 |
Horizontal AHU | 5000-35000 | 3000-21000 |

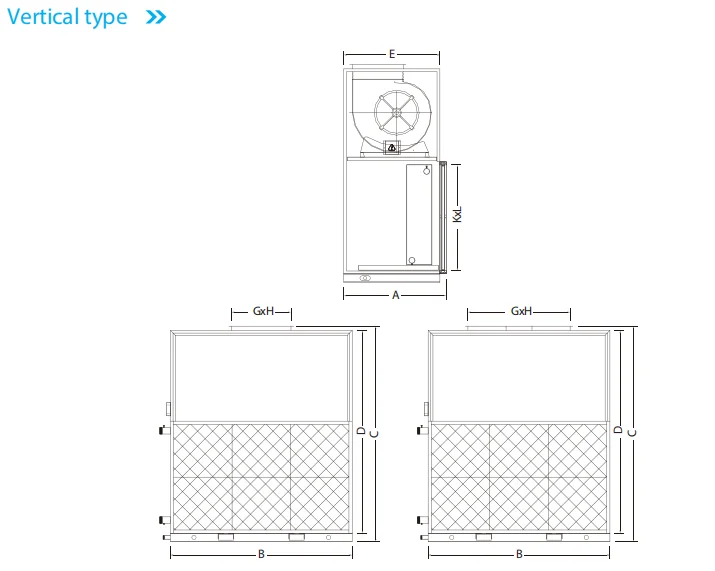

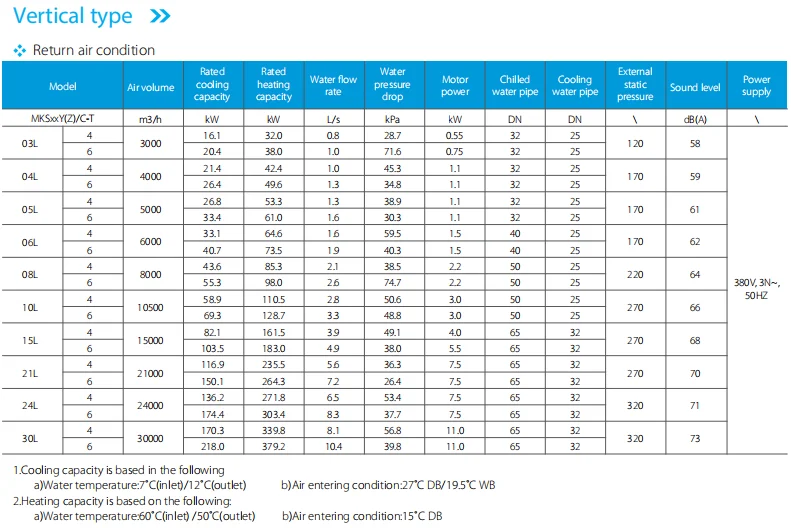

Vertical AHU | 3000-30000 | 1800-18000 |
3000-30000m3h vertical air handling unit AHU
3000-30000m3h vertical air handling unit AHU

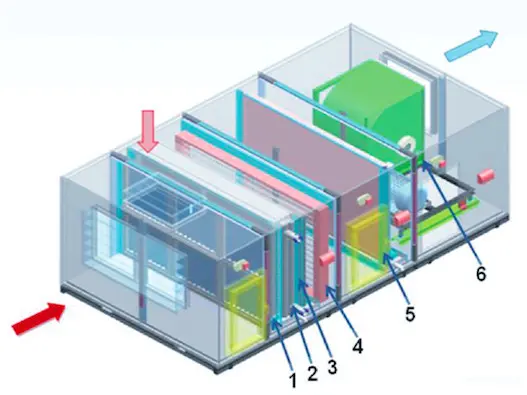

Unit sections are mounted on galvanized steel or angle steel base frame for easy shipment and handling. The galvanized steel frames provide holes for section connection, and holes for fork-lift truck. And the angle steel base frame is mounted on four wooden pallets of the four corners of base frame. However, for high static pressure application, because of drain pan’s U-trap,additional concrete plinths or other additional bases are required at site to raise the AHU.
■Double skin panelStandard panels are 25mm thickness double skin type with polyurethane foam insulation foamed under highly pressure. The external panel is anti-corrosion color-coated steel sheet with a layer of fifilm and the internal liner is galvanized steel sheet. The panel insulation is moisture proof and anti-corrosive. The insulation material is totally enclosed in the panel to avoid any possibility of insulation being exposed to air stream.
■CoilCoil is consisted of copper tubes and aluminums. The fins are sine-wave esign with slits for better heat transfer efficiency and moisture carry-over limit performance.
Coil is mounted over a drain pan. The coil resets on U-shape supporter locating over the drain pan. The drain pan extends beyond the leaving side of the coil to recover the condensate water. Coil connections always extend through out of the unit cabinet,allowing for easy connection of valves and piping. Air discharge valve is on the top of water outlet pipe and is located outside the cabinet.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $3600 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air handling unit?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this air handling unit carry?
It is supplied with EN1886 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
