This air handling unit is published with the manufacturer’s full specification — type Hepa Filter. Made by Dongguan Senbao Purifying Equipment Co., Ltd. (15 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Air Handling Unit
- Warranty: 1 Year
- Warranty Of Core Components: 3 months
- Place Of Origin: Guangdong, China
- Application: AHU System
- Type: Hepa Filter
- Business Type: Manufacturer
Technical Specifications
| Condition | New |
|---|---|
| Warranty | 1 Year |
| Place Of Origin | Guangdong, China |
| Brand Name | Senbao |
| Weight (Kg) | 35 |
| Application | AHU System |
| Efficiency | High Efficiency HEPA 99.995%@0.3um |
| Frame | Powder Coated Steel Sheet Or Stainless Steel |
| Media | Fiberglass |
| Function | Ceiling |
| Type | Hepa Filter |
| Usage | Medical Equipment |
| Business Type | Manufacturer |
| Standard | EN779-2012 , ISO9001 |
| Product Name | FFU Fan Filter |
| Applicable Industries | hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company |
| Showroom Location | None |
| Video Outgoing-Inspection | Provided |
| Machinery Test Report | Provided |
| Marketing Type | New Product 2020 |
| Warranty Of Core Components | 3 months |
| Core Components | Taiwan fan |
| Packaging Details | 1/2pcs package with plastic bag then in a carton(according to the size of the FFU Fan Filter),or according to customers requirement.. |
| Port Of Dispatch | Shenzhen |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 100000 pieces per Month fiberglass unit weight |
Product Details

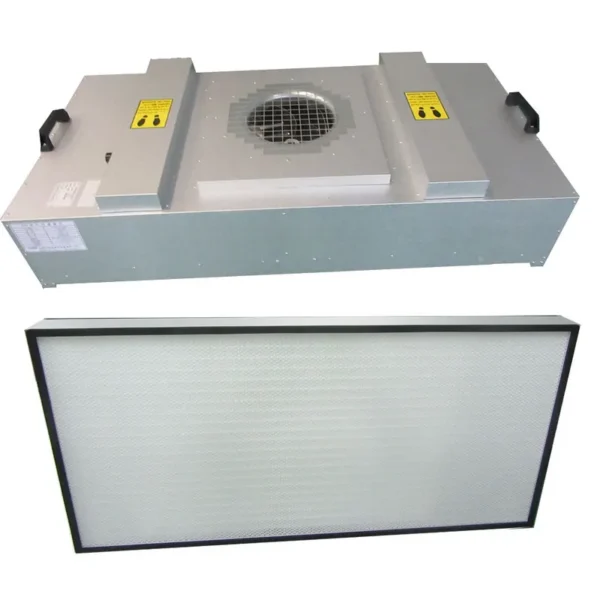

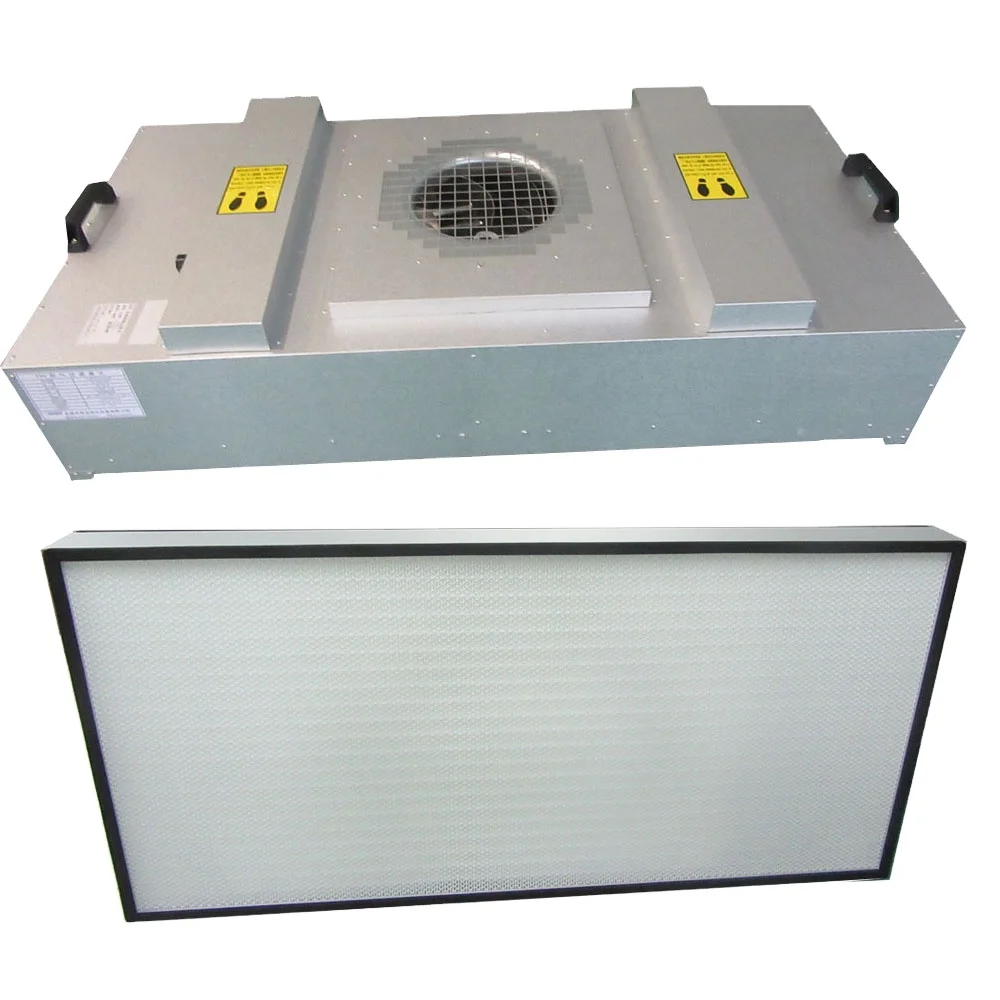

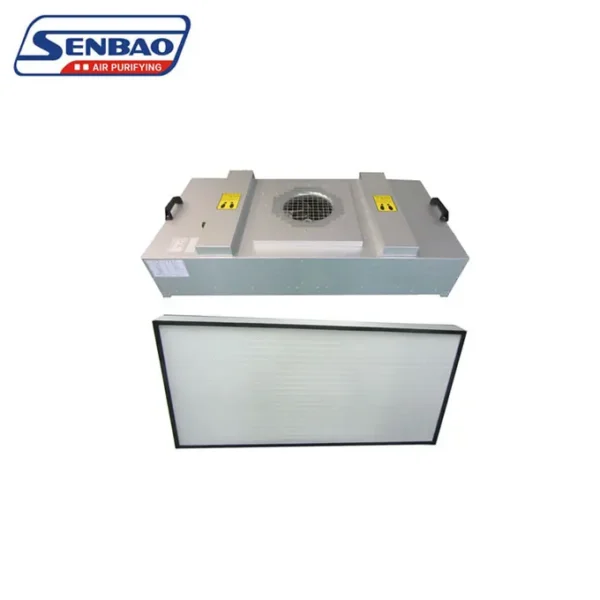

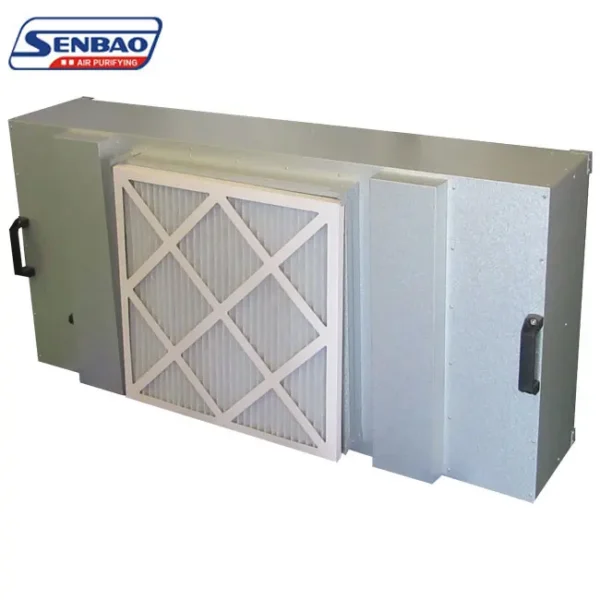

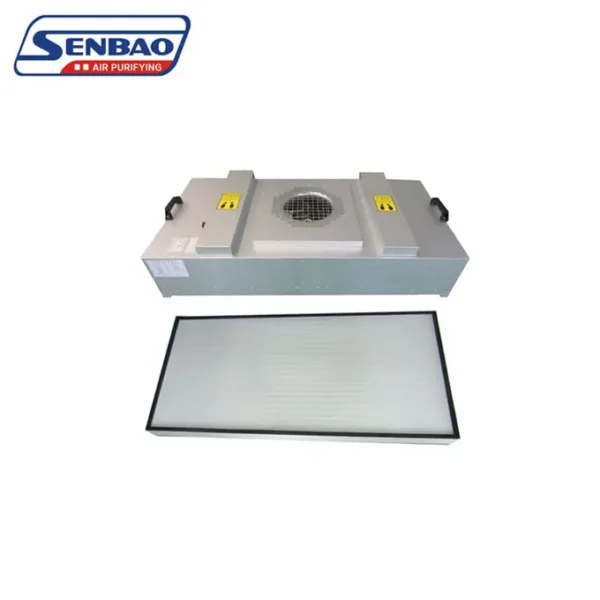

Clean Room HEPA Fan Filter FFU Unit With HEPA Filter Purifier
FFU Fan Filter which draws in contaminated air from the top of the module, and exhausts filtered clean air vertically in a unidirectional(laminar) air stream at its base, is a self-contained fan and filter module for cleanroom applications.
Application
FFU’s are commonly used in the construction of Class 100 to Class 100,000 cleanrooms, even forming ultra clean line, clean closet and etc…
Specification and technical parameters
| Model NO. | FFU-1175 | FFU-1220 | FFU-575 | FFU-610 |
| FFUsize | 575*1175*270(mm) | 610*1220*270(mm) | 575*575*270(mm) | 610*610*270(mm) |
| Filter size | 570*1170*69(mm) | 605*1215*69(mm) | 570*570*69(mm) | 605*605*69(mm) |
| Air volume | 1100-1800 | 1200-1900 | 500-900 | 600-950 |
| Speed control | 3 Speed Controller or Stepless Speed Controller for option | |||
| Voltage/current | AC,1P, 220V- 50/60Hz, 110V-50Hz/60Hz. 1P( Phase) | |||
| Output power | 100-200W | |||
| Filtration efficiency | HEPA0.3μm≥99.99% | |||
| Ontology material | SUS304 Stainless Steel or Galvanized Iron frame | |||
| Options | HEPA(99.9995%d 0.3um) Primary filter | |||
Special size can be customized.
Q:Are you really manufacturer or trading company?
A:We are indeed filter manufacturer over 19 years experiences and work with many brands for dozen years,such as Coke Cola,Pepsi,Sony,Zhongsheng Medicine and etc.
Q:Where is the air filter generally use for?
A:HAVC(Heating,air conditioning and ventilation system)Spray painting stop,chemical plant,pharmaceutical plant,cement or asphalt powder plant,clean room,power station,heavy and metal industry,Gas turbo and Co-generation utility plants, Engineering and devices plants, dry and bake room, Hospital,etc.
Q:What's your testing standard?
A:EN779:2012, ISO9001
Q:What is the international standard for air filter?
A:European and American use different name for the same standard.
Euro:Pre(G1-G4),Medium(F5-F9),HEPA(H10-H14),ULPA(U15-U17)
American:Pre(Merv1-7),Medium(Merv8-14),HEPA(Merv15-19),ULPA(Merv 20)
Save
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1+ piece: US $220 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air handling unit?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

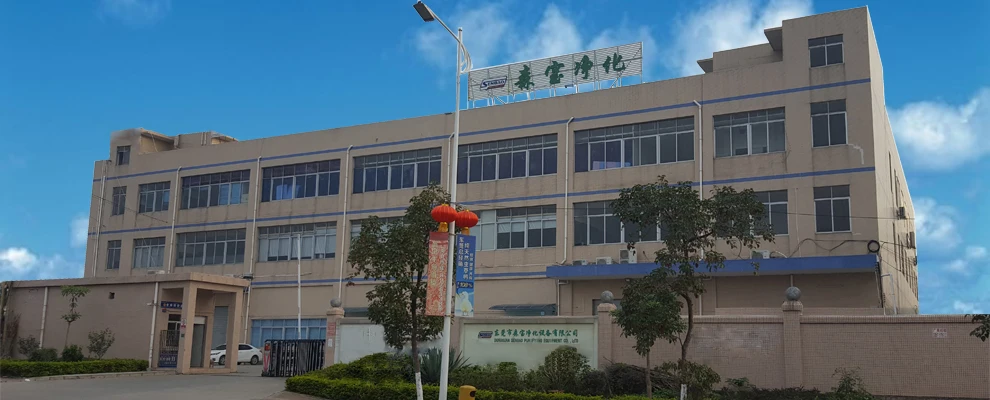

About the Manufacturer
This product is produced by Dongguan Senbao Purifying Equipment Co., Ltd., based in China. The company 15 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Dongguan Senbao Purifying Equipment Co., Ltd. range on HVACR Nexus.
