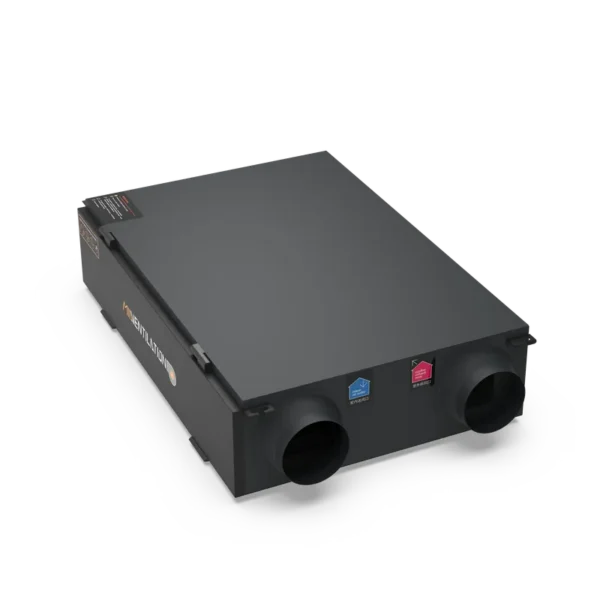

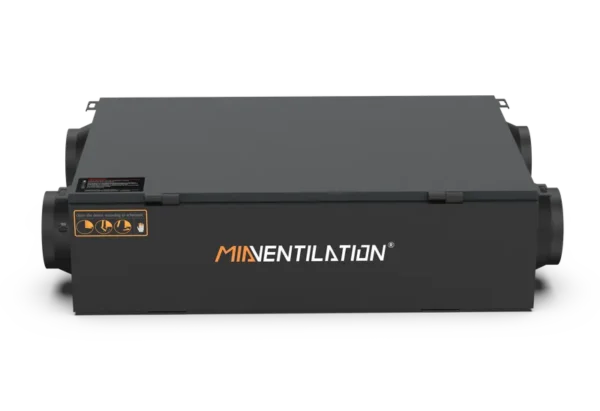

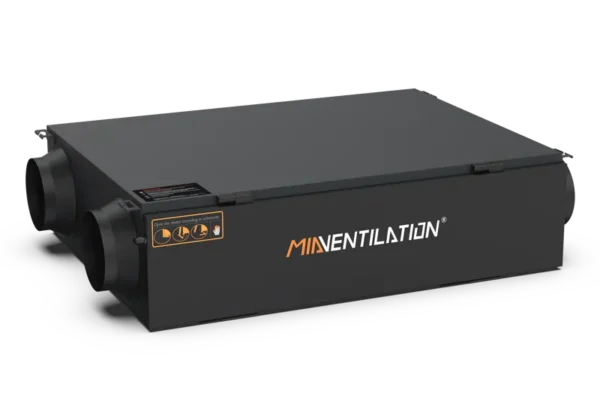

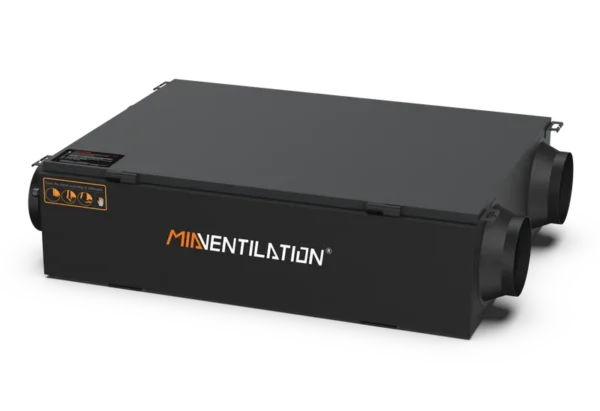

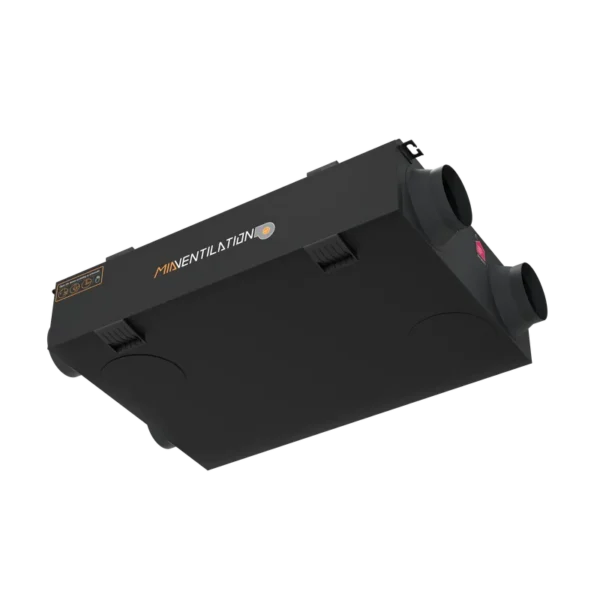

Home Hvac Systems, Ceiling, ceiling ventilator, MIA-AHE15NB

The home hvac systems listed here carries type ceiling ventilator, model number MIA-AHE15NB/C, documented exactly as the manufacturer publishes it. Made by Suzhou Mia Intelligent Technology Co., Ltd. (7 years on the platform, typical reply ≤3h). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of These Home Hvac Systems

• Model Number: MIA-AHE15NB/C
• Warranty: 1 Year
• Place Of Origin: Jiangsu, China
• Application: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket
• Feature: Flexible, Easy Installation
• Type: ceiling ventilator

Technical Specifications

Product Details

Product Details

Special Note:

The page only displays EXW price and distribution price. Please contact us to confirm the total payment (Transportation costs and other expenses) before you place the order!

Product Selling Points

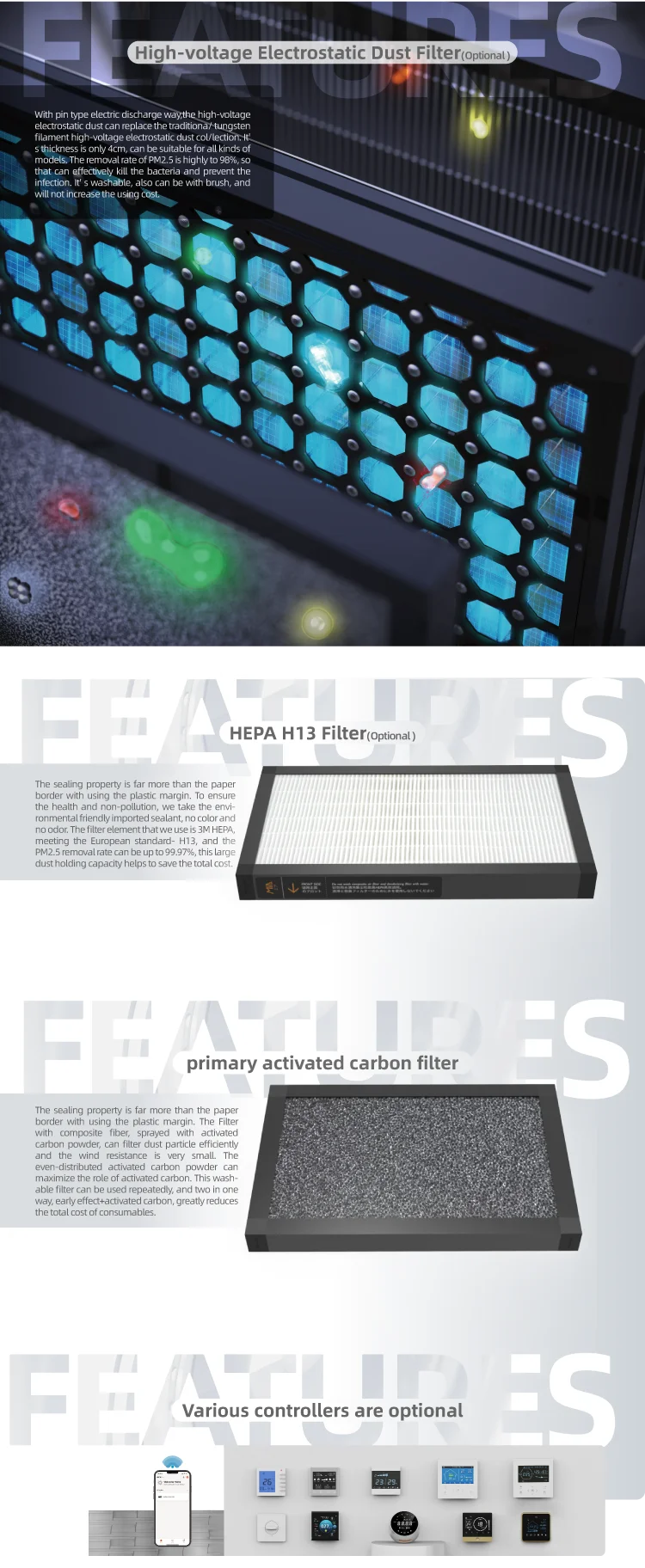

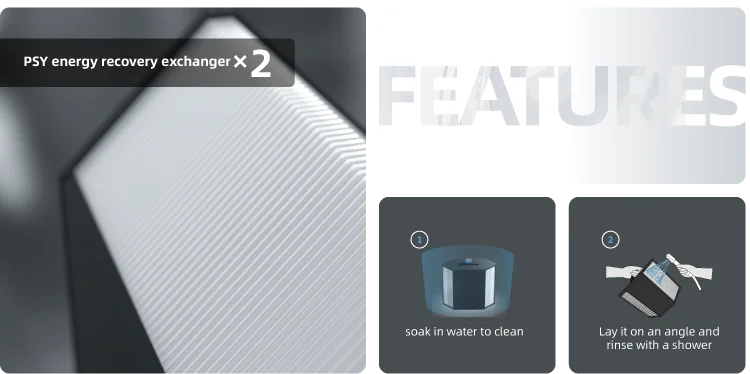

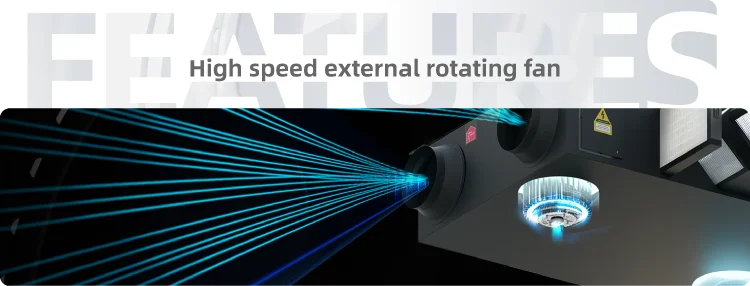

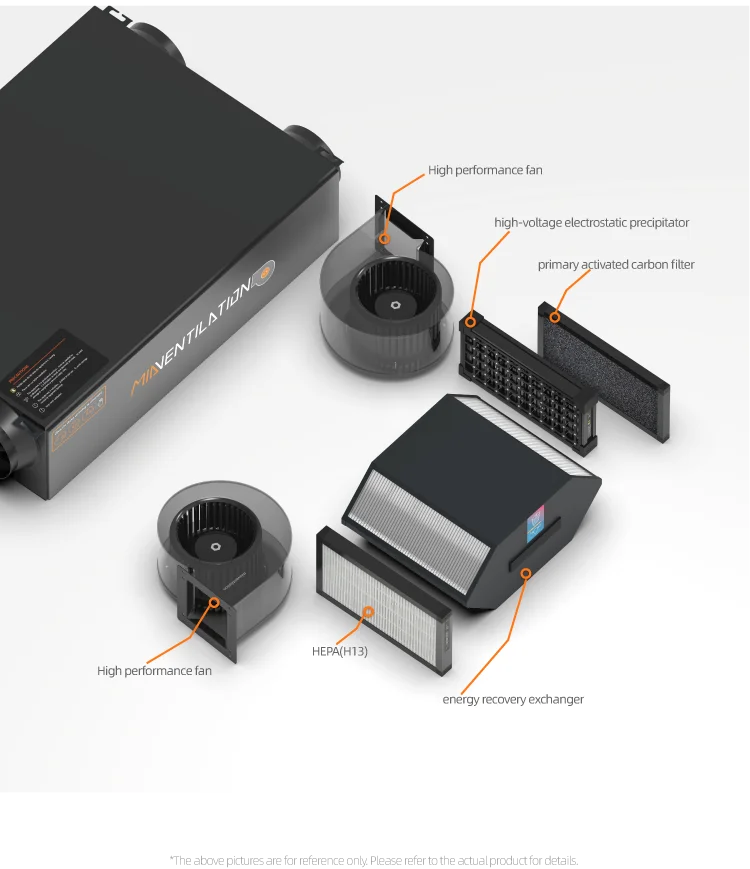

MIA Central ERV (220~240V high wind pressure series, 150~1500m³/h) Function: The outdoor air is pumped into the equipment for filtration, and then sent into the room after heat exchange. Meanwhile, the indoor air is pumped into the equipment for heat recovery and then discharged out of the room, so as to realize the purification and replacement of the whole room air while maintaining the indoor temperature and humidity. Features: Washable heat exchange core with high-performance energy exchange, highly to 92%, truly achieving energy saving and environmental protection. The PSY high thermal conductivity molecular material is washable and requires no consumables, effectively preventing the growth of bacteria due to mold. Configuration: Adopts high-speed external rotor motor with high wind pressure to meet the demand for powerful air supply and exhaust. Available in AC motor and DC motor, and the brushless DC model not only enables stepless speed regulation but also offers exceptional performance in terms of low power consumption and quiet operation. The filtration section offers optional configurations, including washable pre-filters, high-efficiency HEPA filters, and high-voltage electrostatic precipitator. Smart Control System: The ERV can be equipped with an optional MIA intelligent smart controller, which allows users to conveniently check indoor air quality and adjust ventilation; its optional supporting features cover temperature & humidity detection, PM2.5 and CO₂ monitoring, WiFi APP remote control, RS485 communication and intelligent ventilation management. Applications: DC brushless fan/AC high-speed external rotor fan, providing high wind pressure suitable for long-distance and multi-branch duct ventilation and exhaust.

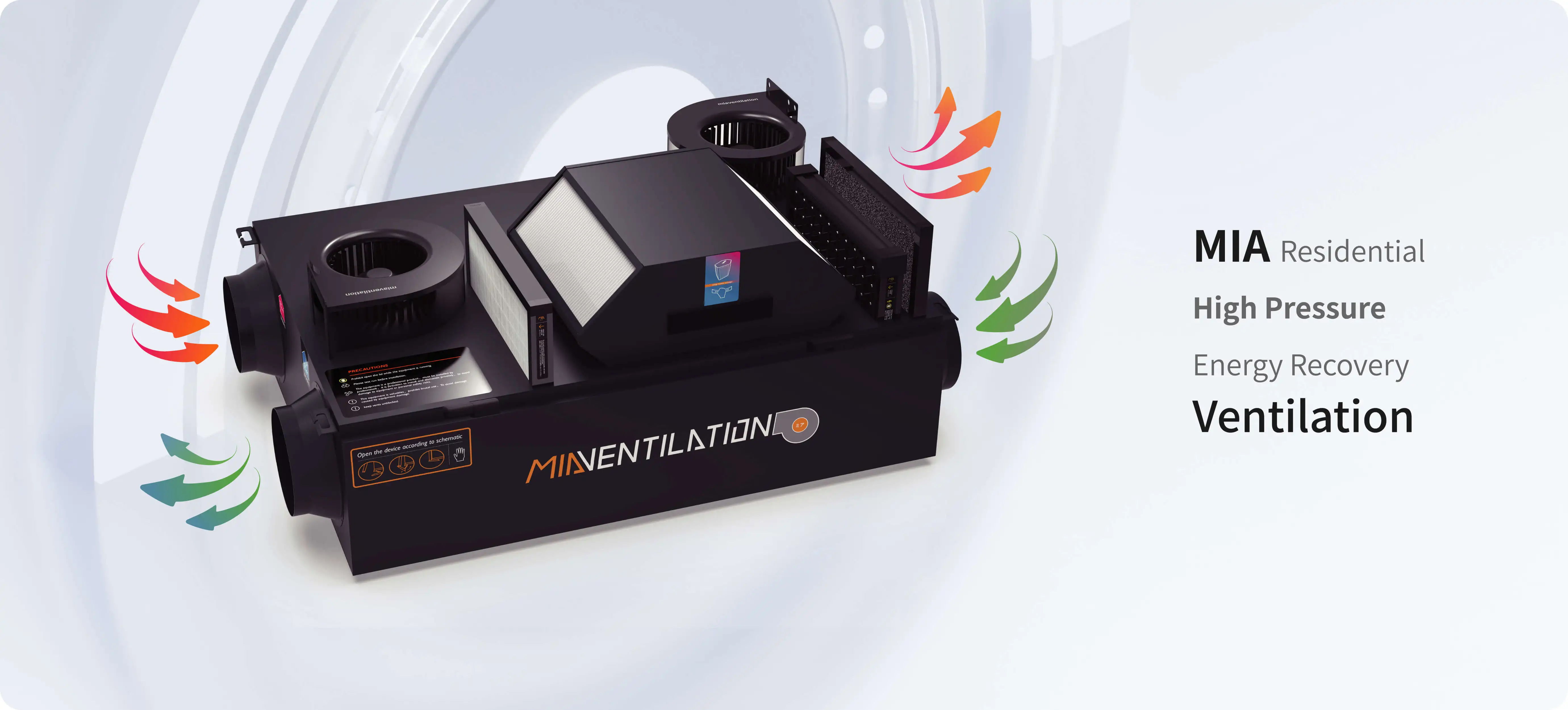

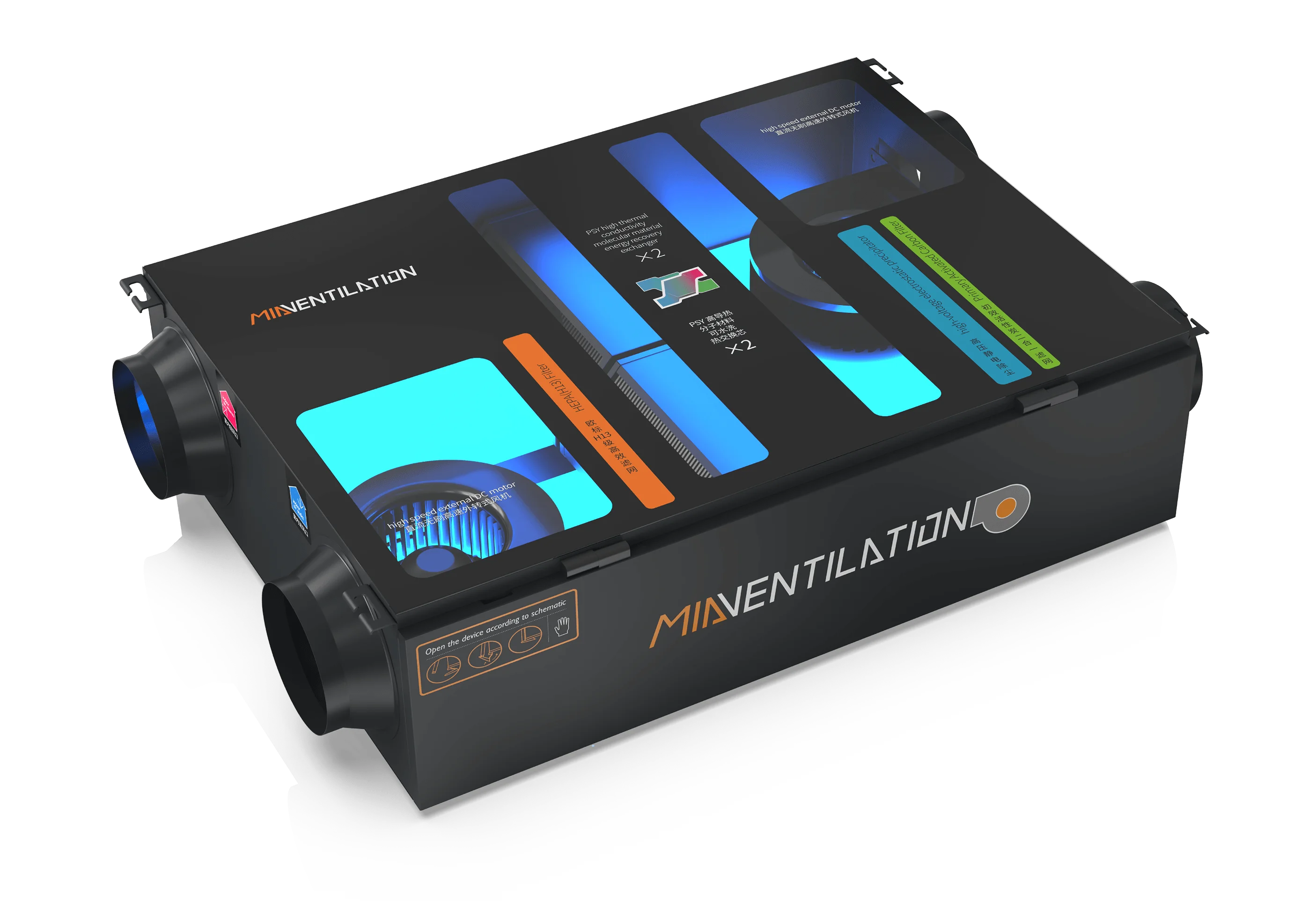

Residential High-pressure Ceiling type Energy Recovery Ventilator 150m³/h-500m³/h

Model and cooresponding configuration instructions

MIA-AHE· N:Ceiling Energy recovery ventilator equipped with activated carbon and AC inner rotor fan

MIA-AHE· NB:Ceiling Energy recovery ventilator equipped with activated carbon and AC outer rotor fan
MIA-AHE· NB/C:Ceiling Energy recovery ventilator equipped with activated carbon and DC brushless fan
MIA-AHE· GL:Ceiling Energy recovery ventilator equipped with activated carbon, HEPA filter and AC inner rotor fan
MIA-AHE· GLB:Ceiling Energy recovery ventilator equipped with activated carbon, HEPA filter and AC outer rotor fan
MIA-AHE· GLB/C:Ceiling Energy recovery ventilator equipped with activated carbon, HEPA filter and DC brushless fan
MIA-AHE· JDN:Ceiling Energy recovery ventilator equipped with activated carbon, HEPA filter, high voltage electrostatic dust filter and AC inner rotor fan
MIA-AHE· JDNB:Ceiling Energy recovery ventilator equipped with activated carbon, HEPA filter, high voltage electrostatic dust filter and AC outer rotor fan
MIA-AHE· JDNB/C:Ceiling Energy recovery ventilator equipped with activated carbon, HEPA filter, high voltage electrostatic dust filter and DC brushless fan

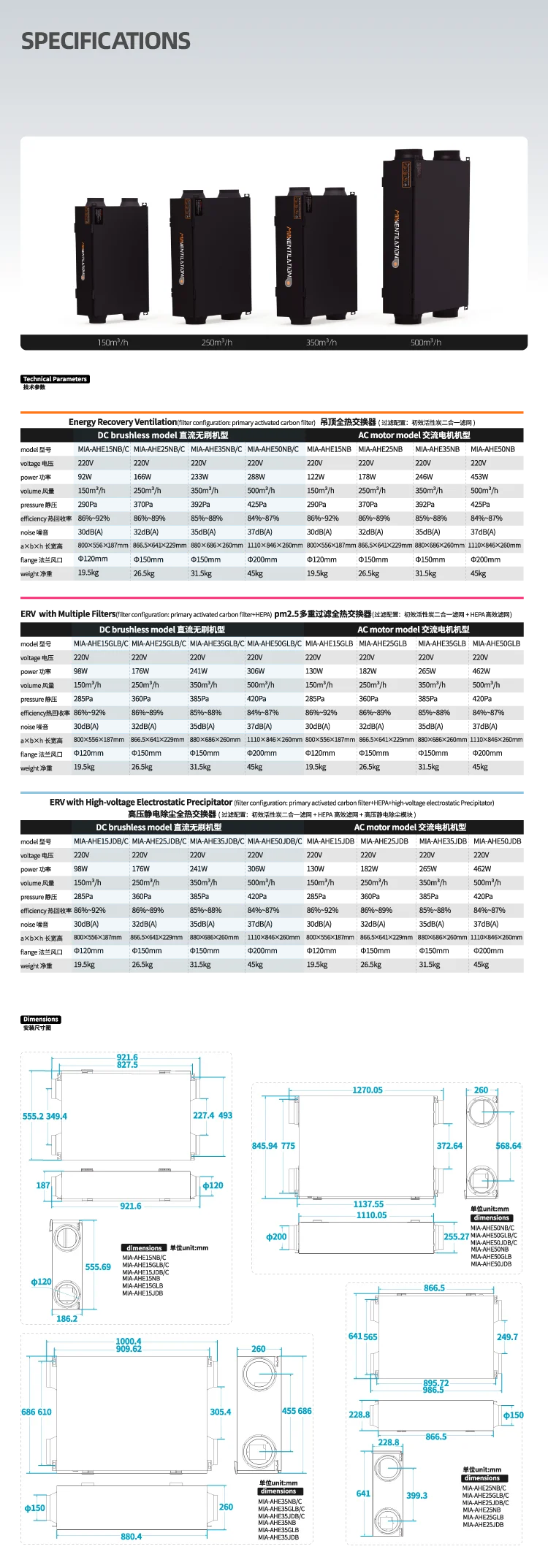

Technical Parameters

Filter Section: 1 Piece Early Effect Activated Carbon

Model

Voltage

Power

Volume

Pressure

Efficiency

Noise

Motor

MIA-AHE15NB

220V

122W

150m³/h

290Pa

86%~92%

30dB(A)

AC

MIA-AHE15NB/C

220V

92W

150m³/h

290Pa

86%~92%

30dB(A)

EC

MIA-AHE25NB

220V

178W

250m³/h

370Pa

86%~89%

32dB(A)

AC

MIA-AHE25NB/C

220V

166W

250m³/h

370Pa

86%~89%

32dB(A)

EC

MIA-AHE35NB

220V

246W

350m³/h

392Pa

85%~88%

35dB(A)

AC

MIA-AHE35NB/C

220V

233W

350m³/h

392Pa

85%~88%

35dB(A)

EC

MIA-AHE50NB

220V

453W

500m³/h

425Pa

84%~87%

37dB(A)

AC

MIA-AHE50NB/C

220V

288W

500m³/h

425Pa

84%~87%

37dB(A)

EC

Filter Section: 1 Piece Early Effect Activated Carbon + 1 Piece HEPA 13

Model

Voltage

Power

Volume

Pressure

Efficiency

Noise

Motor

MIA-AHE15GLB

220V

130W

150m³/h

285Pa

86%~92%

31dB(A)

AC

MIA-AHE15GLB/C

220V

98W

150m³/h

285Pa

86%~92%

31dB(A)

EC

MIA-AHE25GLB

220V

182W

250m³/h

360Pa

86%~89%

33dB(A)

AC

MIA-AHE25GLB/C

220V

176W

250m³/h

360Pa

86%~89%

33dB(A)

EC

MIA-AHE35GLB

220V

265W

350m³/h

385Pa

85%~88%

36dB(A)

AC

MIA-AHE35GLB/C

220V

241W

350m³/h

385Pa

85%~88%

36dB(A)

EC

MIA-AHE50GLB

220V

462W

500m³/h

420Pa

84%~87%

38dB(A)

AC

MIA-AHE50GLB/C

220V

306W

500m³/h

420Pa

84%~87%

38dB(A)

EC

Filter Section: 1 Piece Early Effect Activated Carbon + 1 Piece High-voltage Electrostatic Dust + 1 Piece HEPA 13

Model

Voltage

Power

Volume

Pressure

Efficiency

Noise

Motor

MIA-AHE15JDB

220V

130W

150m³/h

285Pa

86%~92%

31dB(A)

AC

MIA-AHE15JDB/C

220V

98W

150m³/h

285Pa

86%~92%

31dB(A)

EC

MIA-AHE25JDB

220V

182W

250m³/h

360Pa

86%~89%

33dB(A)

AC

MIA-AHE25JDB/C

220V

176W

250m³/h

360Pa

86%~89%

33dB(A)

EC

MIA-AHE35JDB

220V

265W

350m³/h

385Pa

85%~88%

36dB(A)

AC

MIA-AHE35JDB/C

220V

241W

350m³/h

385Pa

85%~88%

36dB(A)

EC

MIA-AHE50JDB

220V

462W

500m³/h

420Pa

84%~87%

38dB(A)

AC

MIA-AHE50JDB/C

220V

306W

500m³/h

420Pa

84%~87%

38dB(A)

EC

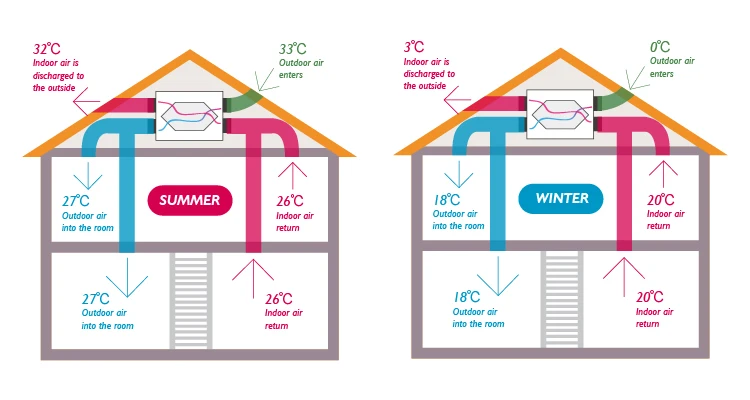

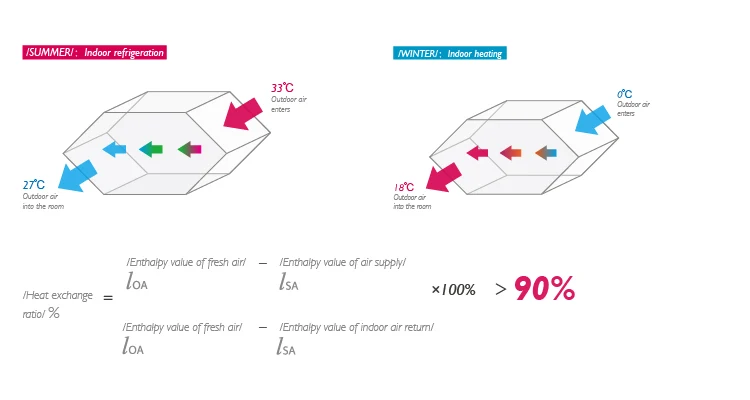

Energy Recovery Exchange Principle

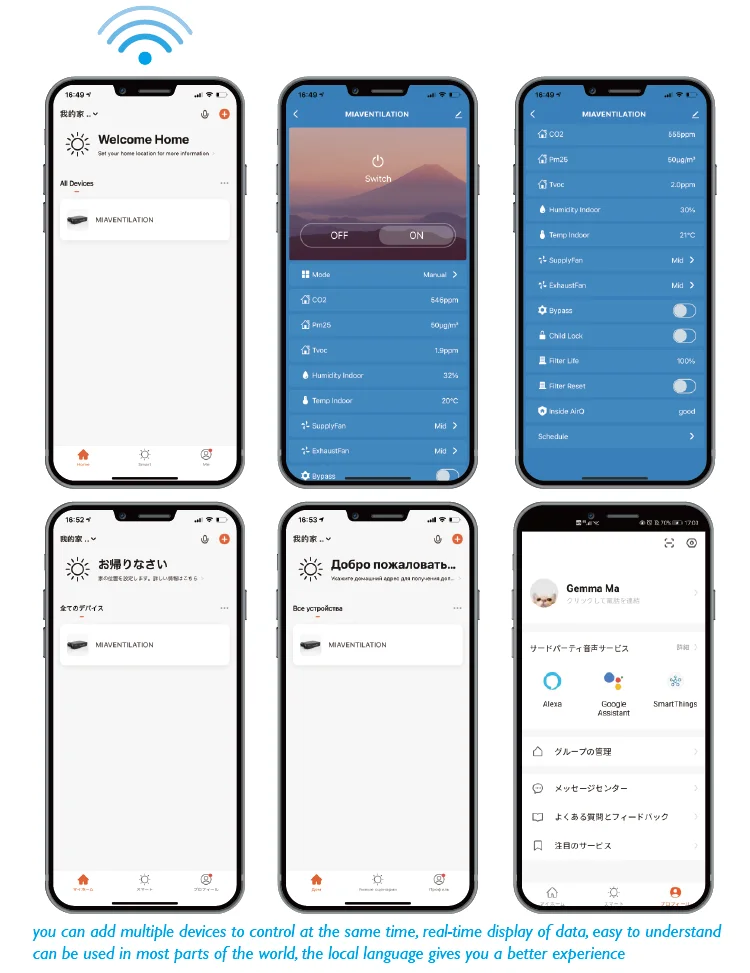

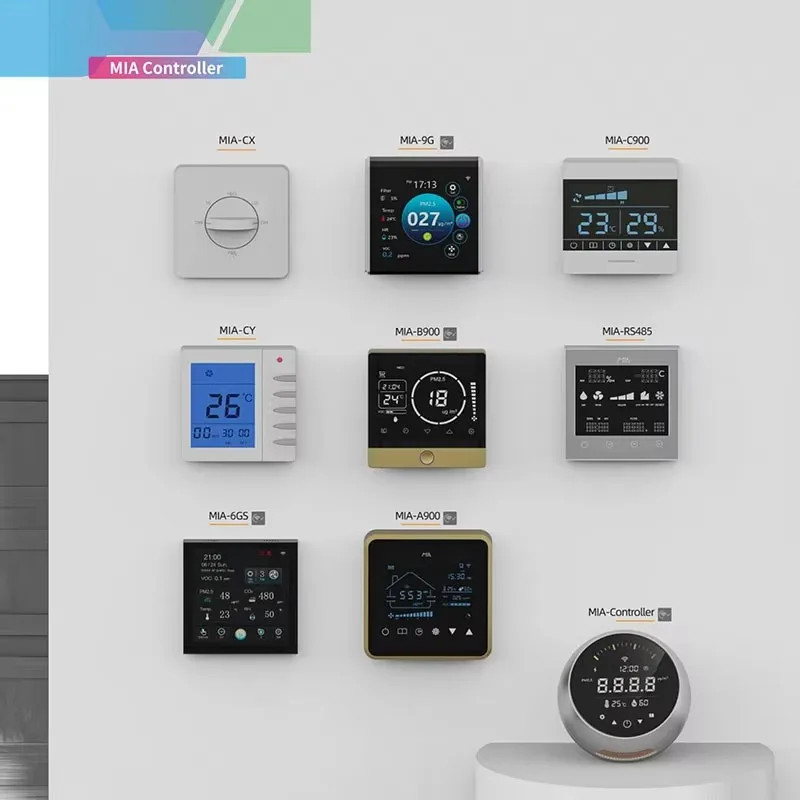

Air Ventilation System Controller

Company Profile

Ordering and Pricing

• Minimum order quantity: 1 set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this home hvac systems?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Suzhou Mia Intelligent Technology Co., Ltd., based in China. The company 7 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Suzhou Mia Intelligent Technology Co., Ltd. range on HVACR Nexus.
