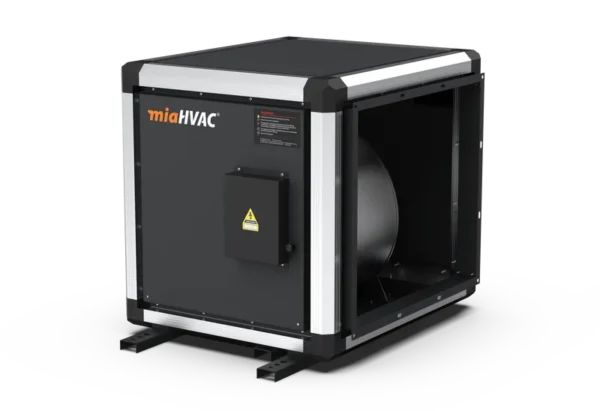

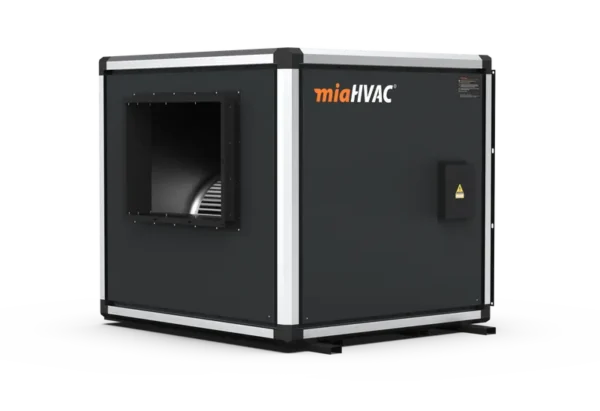

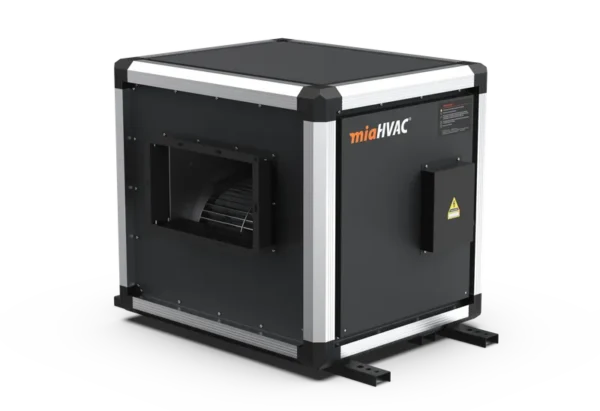

Centrifugal Fans, 380V, 7500m3/h, HVAC

The centrifugal fans listed here carries voltage AC380~415V/ 50~60Hz, 7500m3/h, documented exactly as the manufacturer publishes it. Made by Suzhou MIA Intelligent Technology Co., Ltd. (8 years on the platform, typical reply ≤2h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of These Centrifugal Fans

• Model Number: MIA-750FJX/3
• Power Supply: 1.9KW
• Voltage: AC380~415V/ 50~60Hz
• Airflow: 7500m3/h
• Material: Galvanized Steel
• Warranty: 1 Year

Technical Specifications

Product Details

Product Description

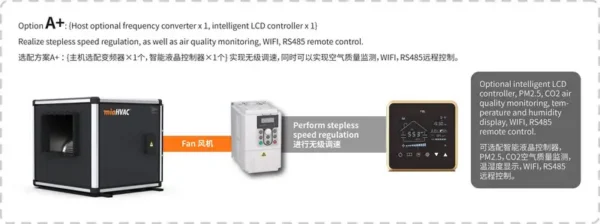

MIA Industrial Cabinet centrifugal Fan – Exhaust Fan for Factories and Warehouses (1500m3/h ~ 50000m3/h 380V bigger wind pressure) Function: Primarily designed for centralized, high-capacity indoor air exhaust, the system can also be configured for forced air supply. It supports optional filtration stages—such as primary and HEPA filters—to purify air before supplying it indoors or exhausting it outdoors, and allows for custom-engineered filtration systems tailored to the specific requirements of specialized environments. The unit utilizes a high-speed, high-static-pressure 380V fan, with options for a variable frequency drive (VFD) for stepless speed control and a smart Wi-Fi controller featuring PM2.5 and CO2 air quality monitoring alongside a Modbus RS485 communication interface. Its robust, high-pressure fan adapts to diverse installation settings and meets sophisticated commercial needs, including air quality monitoring, remote control, and centralized building management integration. Features:The 380V high wind pressure fan is suitable for commercial long-distance and multi-branch pipeline air supply or exhaust. Configuration: The devide itself does not have any filters inside,but it you want to add any filters,we can do it for you with NO MOQ requirements. Filter choices: G4,HEPAH13,HEPAH11,F7,F8 etc High pressure 380V fan can offers optional frequency converters and intelligent WIFI controller monitoring PM2.5, CO2. It enables stepless speed regulation and separate stepless speed regulation for air supply/exhaust, with optional RS485 support for centralized control in commercial buildings. The common types of control schemes are as follows: Option A:{Host optional frequency converter x 1} Realize stepless speed regulation of fans. The control panel on the frequency converter can be separated and installed separately on the wall as a handheld device for control. Option A+: {Host optional frequency converter x 1, intelligent LCD controller x 1} Realize stepless speed regulation, as well as air quality monitoring, WIFI, RS485 remote control.Optional intelligent LCD controller, PM2.5, CO2 air quality monitoring, temperature and humidity display, WIFI, RS485 remote control.

Inside Setting

Controller

MIA-A900

1. Three-speed control

2. The display of temperature and humidity indoor
3. Manual / automatic mode switching
4. The display of PM2.5 and PM10
5. VOC display
6. Filter replacement reminder
7. Bypass / Inner loop / Electrostatic interface
8. WIFI (APP) control

MIA-6GS

1. Three-speed control

2. The display of temperature and humidity indoor
3. Time setting
4. Filter replacement reminder
5. Bypass / Inner loop / Electrostatic interface
6. PM2.5 display
7. Date and time display
8. WIFI (APP) control

Technical Parameters

Model	Voltage	Power	Volume	Pressure	Noise	Motor
MIA-AHE150FJX/3	380~415V	0.18KW	1500m3/h	300Pa	55dB(A)	AC
MIA-AHE200FJX/3	380~415V	0.25KW	2000m3/h	300Pa	56dB(A)	AC
MIA-AHE250FJX/3	380~415V	0.32KW	2500m3/h	320Pa	58dB(A)	AC
MIA-AHE300FJX/3	380~415V	0.55KW	3000m3/h	400Pa	61dB(A)	AC
MIA-AHE350FJX/3	380~415V	0.6KW	3500m3/h	400Pa	61dB(A)	AC
MIA-AHE400FJX/3	380~415V	0.75KW	4000m3/h	400Pa	62dB(A)	AC
MIA-AHE450FJX/3	380~415V	0.8KW	4500m3/h	400Pa	62dB(A)	AC
MIA-AHE500FJX/3	380~415V	1.1KW	5000m3/h	500Pa	65dB(A)	AC
MIA-AHE550FJX/3	380~415V	1.2KW	5500m3/h	500Pa	65dB(A)	AC
MIA-AHE600FJX/3	380~415V	1.3KW	6000m3/h	500Pa	66dB(A)	AC
MIA-AHE650FJX/3	380~415V	1.4KW	6500m3/h	500Pa	66dB(A)	AC
MIA-AHE700FJX/3	380~415V	1.8KW	7000m3/h	600Pa	71dB(A)	AC
MIA-AHE750FJX/3	380~415V	1.9KW	7500m3/h	600Pa	71dB(A)	AC
MIA-AHE800FJX/3	380~415V	2.2KW	8000m3/h	600Pa	72dB(A)	AC
MIA-AHE850FJX/3	380~415V	2.3KW	8500m3/h	600Pa	72dB(A)	AC

Model	Voltage	Power	Volume	Pressure	Noise	Motor
MIA-AHE900FJX/3	380~415V	2.4KW	9000m3/h	600Pa	73dB(A)	AC
MIA-AHE950FJX/3	380~415V	2.5KW	9500m3/h	600Pa	7d3B(A)	AC
MIA-AHE1000FJX/3	380~415V	4KW	10000m3/h	650Pa	73dB(A)	AC
MIA-AHE1300FJX/3	380~415V	4KW	13000m3/h	650Pa	74dB(A)	AC
MIA-AHE1500FJX/3	380~415V	5.5KW	15000m3/h	650Pa	75dB(A)	AC
MIA-AHE2000FJX/3	380~415V	7.5KW	20000m3/h	650Pa	77dB(A)	AC
MIA-AHE2500FJX/3	380~415V	11KW	25000m3/h	800Pa	77dB(A)	AC

Company Profile

Ordering and Pricing

• Minimum order quantity: 1 set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this centrifugal fans?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the centrifugal fans be supplied for my local voltage?

The standard configuration is AC380~415V/ 50~60Hz. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Suzhou MIA Intelligent Technology Co., Ltd., based in China. The company 8 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Suzhou MIA Intelligent Technology Co., Ltd. range on HVACR Nexus.
