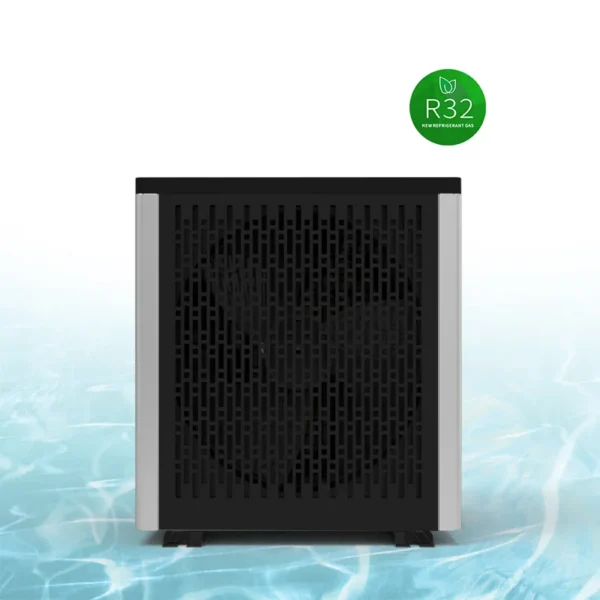

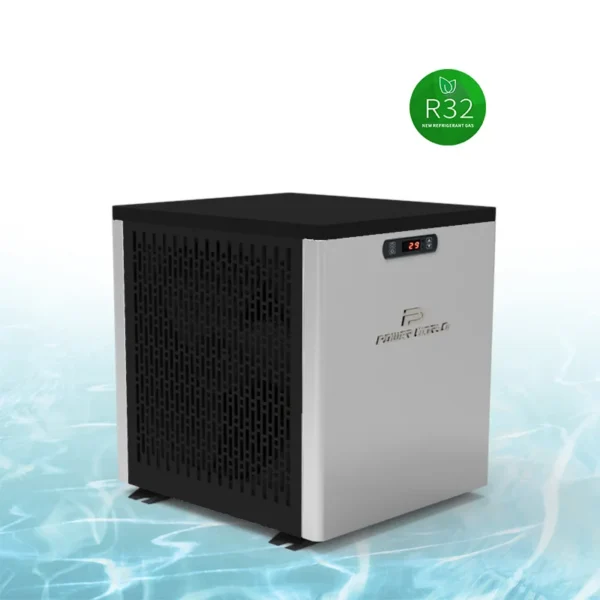

Air source heat pump — power source Electric, refrigerant R32. The complete factory specification follows. Made by Power World Machinery Equipment Co., Ltd (7 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Air Source Heat Pump
- Model Number: PW008-KZXYC-F
- Power Source: Electric
- Housing Material: Stainless Steel
- Refrigerant: R32
- Warranty: 2 Years
- Place Of Origin: Guangdong, China
Technical Specifications
| Type | Air Source Heat Pump |
|---|---|
| Energy Efficiency Rating | Class A |
| Application | Household |
| Storage / Tankless | Instant / Tankless |
| Installation | Freestanding |
| App-Controlled | Yes |
| Housing Material | Stainless Steel |
| Power Source | Electric |
| Warranty | 2 Years |
| After-Sales Service Provided | Free Spare Parts, Field Maintenance and Repair Service, Overseas Call Centers |
| Operating Language | English, German, French, Dutch, Spanish |
| Private Mold | Yes |
| Place Of Origin | Guangdong, China |
| Brand | Power World |
| Model Number | PW008-KZXYC-F |
| Function | Swimming Pool Heating |
| Compressor | Gree |
| Heat Exchanger | Titanium Heat Exchanger |
| Refrigerant | R32 |
| Heat Source | Air Source 75%+ity25% |
| Sound Level | 45dB(1m) |
| Controller | Digital LCD and wifi |
| Keyword | heat pump water heaters |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

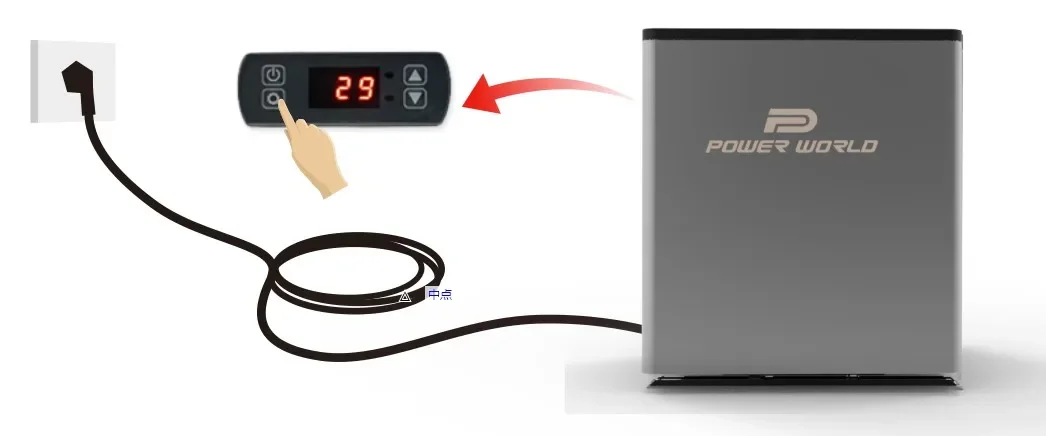

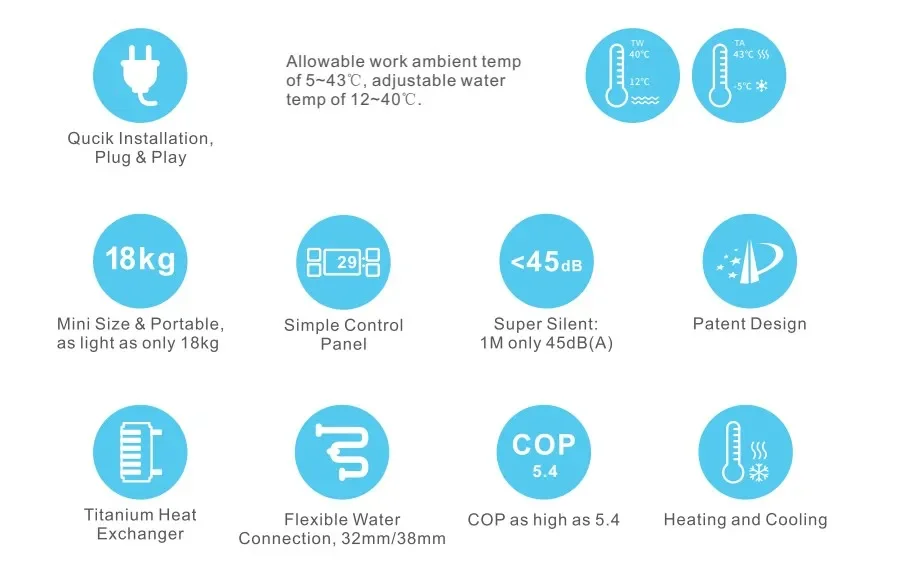

SIMPLE INSTALLATION & OPERATION
Model | PW005-KZXYC-F | PW008-KZXYC-F | PW012-KZXYC-F | PW015-KZXYC-F | ||||
Advised pool volume (m3) | 5~15 | 10~20 | 12~22 | 15~25 | ||||
Operating air temperature (℃) | -5 ~43 | |||||||
Performance Condition: Air 27°C, Water 26°C, Humidity 80% | ||||||||
Heating capacity (kW) | 2.8 | 3.5 | 4.5 | 5.5 | ||||
Heating Capacity(Btu) | 9520 | 11900 | 15300 | 18700 | ||||
Consumed power (kW) | 0.56 | 0.65 | 0.83 | 1.02 | ||||
COP | 5.0 | 5.4 | 5.4 | 5.4 | ||||
Performance Condition: Air 15°C, Water 26°C, Humidity 70% | ||||||||
Heating capacity (kW) | 2.0 | 2.5 | 3.3 | 3.9 | ||||
Heating Capacity(Btu) | 6800 | 8500 | 11050 | 13328 | ||||
Consumed power (kW) | 0.53 | 0.63 | 0.81 | 0.98 | ||||
COP | 3.8 | 4.0 | 4.0 | 4.0 | ||||
Performance Condition: Air 35℃,Water 28℃, Humidity 80% | ||||||||
Cooling capacity (kW) | 1.5 | 2.0 | 2.6 | 3.3 | ||||
Sound pressure at 1m dB(A) | 45 | 46 | 47 | 48 | ||||
Sound pressure at 10m dB(A) | 28 | 30 | 31 | 32 | ||||
Heat exchanger | Spiral titanium tube in PVC | |||||||
Casing | Metal Casing | |||||||
Power supply | 220 ~240V/1 Ph/50Hz | |||||||
Water Connection (mm) | Φ32 | |||||||
Rated input current at air 15℃（A） | 2.42 | 2.88 | 3.50 | 4.30 | ||||
Advised water flux (m³/h) | 1.0-1.5 | 1.5-2.0 | 1.7-2.2 | 2.0-2.5 | ||||
Water Pressure Drop (max) kPa | 2 | 2 | 4 | 4 | ||||
Net weight/Gross weight（kg) | 25/27 | 26/28 | 33/36 | 34/37 | ||||
Carton size（mm） | 394*444*435mm | 498*499*500mm | ||||||
Package size（mm）（carton） | 420*510*485 | 555*576*542 | ||||||
Package size（mm）（Polywood） | 437*510*475 | 572*576*545 | ||||||
Loading quantity (20GP/40GP/40HQ) | 208/416/520 | 144/288/288 | ||||||
Refrigerant consumption（g） | 200g | 265g | 320g | 380g | ||||
Refrigerant | R32 | |||||||
Compressor | Gree | |||||||
Four-way valve | Sanhua | |||||||
Expansion valve | Sanhua | |||||||
Operating water temperature (℃) heating | 9 ~43 | |||||||
Operating water temperature (℃) cooling | 9 ~35 | |||||||
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–9 set: US $358 / set
- 10–49 set: US $326 / set
- 50+ set: US $275 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air source heat pump?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Power World Machinery Equipment Co., Ltd, based in China. The company 7 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Power World Machinery Equipment Co., Ltd range on HVACR Nexus.
