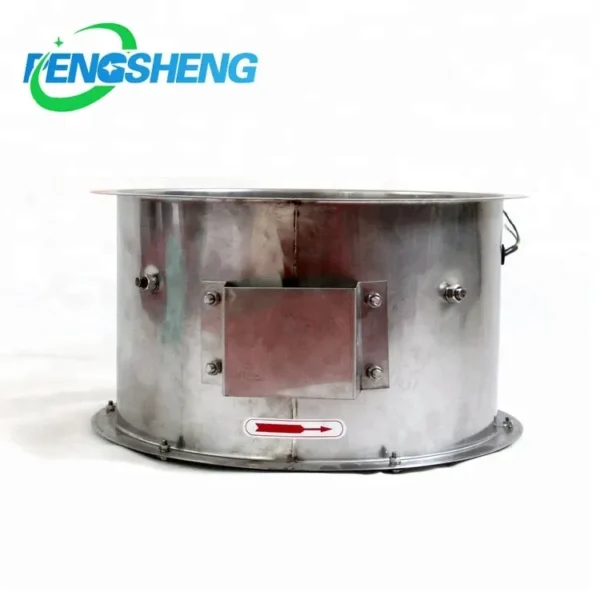

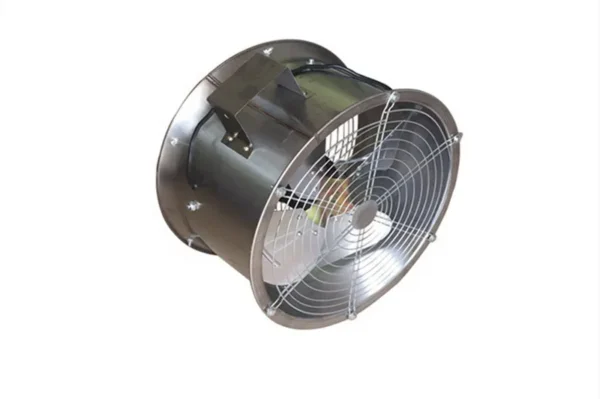

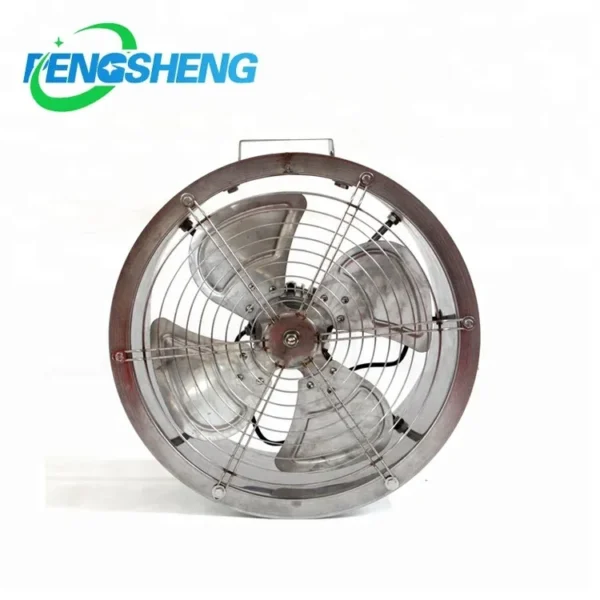

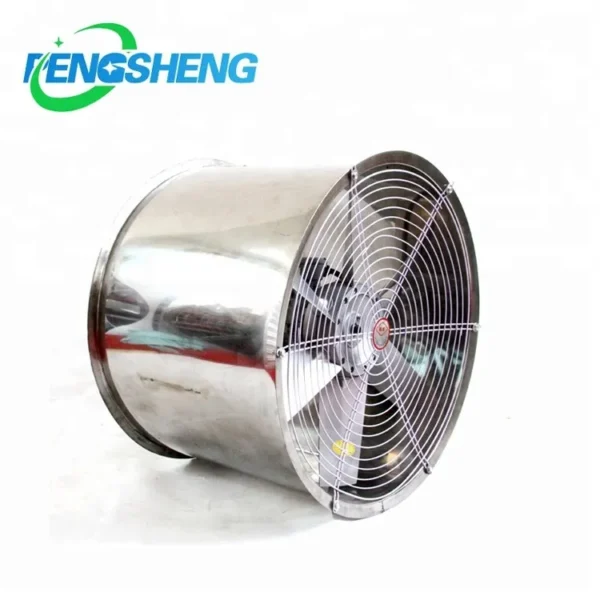

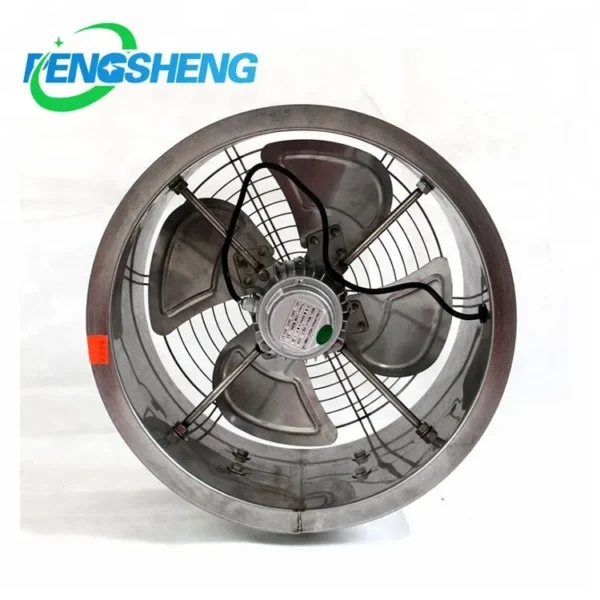

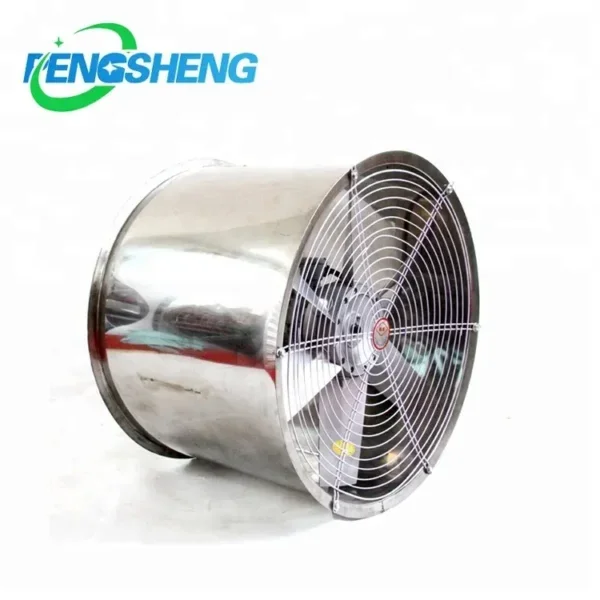

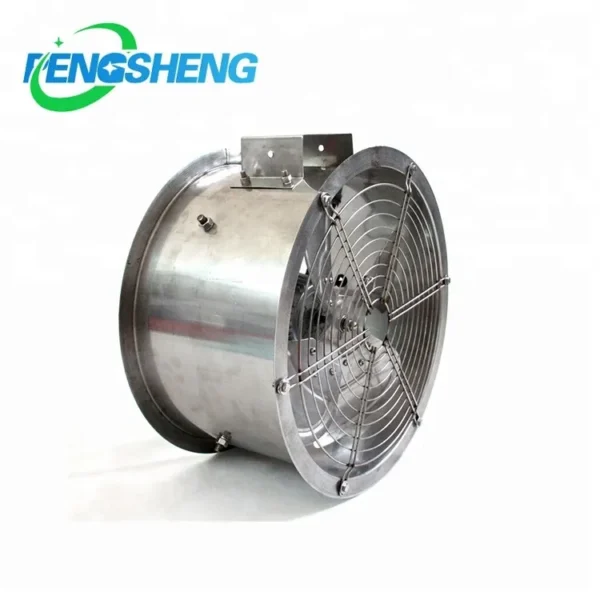

Aluminum Alloy Fan, 500mm, Explosion-Proof, Stainless, Steel

The aluminum alloy fan listed here carries voltage 380/220V, power source Electric, documented exactly as the manufacturer publishes it. Made by Qingdao Pengsheng Electric Appliance Co., Ltd. (12 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Aluminum Alloy Fan

• Model Number: ZCHL400/500
• Power Source: Electric
• Voltage: 380/220V
• Blade Material: Stainless Steel
• Warranty: 1 Year
• Certification: CE

Technical Specifications

Product Details

Product Overview

Explosion-proof axis flow fans are mainly composed by electric machinery, blades and ram. fans are suitable for explosive environment with temperature class T1 to T4. They are applicable to explosive dangerous places like oil refining, storage, chemistry, medicine and military industry for air exchanging and refreshing.

With width and tilting shades, fans could achieve the needed blast capacity and pressure under low drive. Blades are adjustable and symmetrical, they are capable of ventilation from the front and the back side.

With low noise, low energy consuming and high explosion-proof quality, have man installation ways like wall mounted type, dusted type, post type and fixed type.

FEATURES AT A GLANCE

Explosion-proof

Moisture – proof

Anti- corrosion

Alkali prevention

Acid proof

SF series axial fan

External motor axial fan

T35-11 Series

PRODUCT SPECIFICATIONS

The Technical data
Model	Rrotation speed (rpm)	Air volume (m³/h)	Total pressure (pa)	Static pressure (pa)	Power (kw)
250mm	2900	2100-1400	90-126	50-81	0.18
		1450	1100-700	23-33	13-25	0.12
300mm	2900	3000-2000	120-150	60-120	0.37
		1450	1900-1200	40-50	20-30	0.18
350mm	2900	4600-3000	140-210	60-160	0.37
				5500-3500	160-220	60-170	0.55
		1450	2900-1800	50-65	20-40	0.25
400mm	2900	5000-3000	110-200	60-180	0.55
				6500-4000	160-250	70-200	0.75
				7000-4500	200-280	80-210	1.1
		1450	3500-2000	60-70	30-60	0.25
				4000-2500	70-78	35-52	0.37
				4300-2800	72-80	26-47	0.55
500mm	1450	6500-5300	125-135	60-90	0.37
				7000-5500	130-145	70-105	0.55
				8500-6000	138-150	80-100	0.75
		960	4600-3600	57-61	40-50	0.18
				5600-4000	60-66	40-48	0.25
550mm	1450	9000-6000	138-150	80-116	0.75
		960	6500-4600	61-75	42-50	0.37
600mm	1450	11500-7500	140-160	80-130	1.1
				13500-8000	160-180	80-130	1.5
				14500-8500	165-200	80-135	2.2
		960	8500-5000	57-85	45-55	0.37
				9600-5600	72-100	45-58	0.55
700mm	1450	17500-10000	180-220	140-175	1.5
				20000-12000	200-250	145-180	2.2
				21000-13000	220-300	150-185	3
		960	13000-8000	88-110	63-80	0.75
				14000-8600	96-130	65-82	1.1
800mm	1450	25000-15000	180-270	100-260	2.2
				27000-17000	210-300	120-260	3
				30000-20000	240-330	125-265	4
				33000-23000	270-350	125-270	5.5
		960	20000-13000	110-145	53-105	1.5
				22000-15000	120-155	50-100	2.2
900mm	1450	34000-20000	240-340	160-320	4
				36000-22000	250-350	150-310	5.5
				40000-24000	320-380	155-320	7.5
		960	22000-13000	100-140	70-120	2.2
				24000-15000	120-160	70-136	3
				28000-18000	140-180	75-140	4
1000mm	1450	36000-23000	250-400	160-370	5.5
				40000-28000	270-420	165-380	7.5
		960	31500-20000	150-220	90-170	4
				33000-21000	160-230	90-176	5.5

PRODUCT CONFIGURATION

Frame

SS304 Blades

100% copper wire motor

SALES AND SERVICE NETWORK

Successful Project

Project in Thailand

Project in India

Project in Russia

SIMILAR PRODUCTS

FAQ

Why choose Qingdao Peng Sheng Electrical Appliance Co., Ltd.?

1.Good quality, Competitive price, Fast delivery.

2. We have a R&D team who have average 10 years experience in designing and producing fans, we can OEM different kinds of products according to your requirement, in order to produce the products more suitable to your market !

3. We have a lot of customers from overseas. A lot of our customers has established long term business relationship with us.

4. All the products have 1 year warranty. All products are conducted strict QC and inspection before shipping.

5. If you have any problems or suggestions about our products or service, you can contact me or our sales manager whenever you want. We will give you a satisfying reply.

Qingdao Peng Sheng Electrical Appliance Co., Ltd

Name: Ivy Lee

Wechat: 13370862510 Whatsapp: +86 13370862510 Email: qdpsfan@163.com Contact with me~

Ordering and Pricing

• Minimum order quantity: 2 piece
• Volume pricing:
  • 2–49 piece: US $180 / piece
  • 50+ piece: US $170 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this aluminum alloy fan?

The standard minimum order quantity is 2 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this aluminum alloy fan carry?

It is supplied with CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Can the aluminum alloy fan be supplied for my local voltage?

The standard configuration is 380/220V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
