The axial fan listed here carries voltage 12/24/48V, blade material Stainless Steel, documented exactly as the manufacturer publishes it. Made by Shenzhen Topfan Technology Development Co., Ltd. (17 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Axial Fan
- Model Number: MX17251ABH1, 6318/2 TDH4P-007
- Voltage: 12/24/48V
- Rated Voltage: 12V/24V/48V
- Blade Material: Stainless Steel
- Material: Frame: Aluminum, Impeller: Plastic
- Warranty: 1 Year
Technical Specifications
| Voltage | 12/24/48V |
|---|---|
| Blade Material | Stainless Steel |
| Mounting Type | cooling fan |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Place Of Origin | Guangdong, China |
| Brand Name | MX/ODM/OEM |
| Model Number | MX17251ABH1, 6318/2 TDH4P-007 |
| Product Name | DC Brussless Fan |
| Bearing Type | Ball bearing |
| Usage | Cooling System |
| Material | Frame: Aluminum, Impeller: Plastic |
| Application | Industrial Equipment |

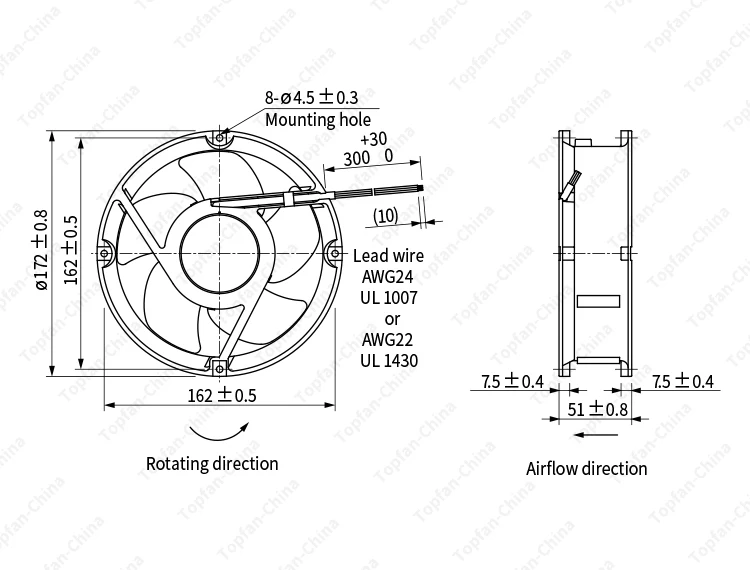

| Size | 172x51mm |
| Motor | Brushless DC Motor |
| Keyword | Exhaust Cooling Fan |
| Type | DC Axail Cooling Fan |
| Rated Voltage | 12V/24V/48V |
| Applicable Industries | hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Other |
| Core Components | motor, Pressure vessel |
| Selling Units | Single item |
| Single Package Size | 30X40X30 cm |
| Single Gross Weight | 3.0 kg |
Product Details
Model | Bearing Type | Rated Volt | Operating Volt | Rated Current | Input Power | Speed | Max. Airflow | Max. Airflow | Noise Level | ||||||||
Part No. | S B Y | VDC | VDC | AMP | Watt | RPM | CFM | m³/h | dB-A | ||||||||
MX17251ABU4 | B | 48 | 36.8-60.5 | 5.35 | 257 | 9000 | 712 | 1210 | 80 | ||||||||
MX17251ABH4 | B | 48 | 36.8-60.5 | 3.33 | 160 | 7500 | 606 | 1030 | 76 | ||||||||
MX17251ABM2 | B | 24 | 13.8-26.8 | 6.5 | 156 | 7200 | 583 | 990 | 75 | ||||||||
MX17251ABL4 | B | 48 | 36.8-60.5 | 1.97 | 95 | 6000 | 473 | 805 | 71 | ||||||||
MX17251ABH2 | B | 24 | 13.8-26.8 | 1.33 | 32 | 4000 | 318 | 540 | – | ||||||||
MX17251ABM1 | B | 12 | 6.0-13.8 | 2 | 24 | 3500 | 277 | 470 | – | ||||||||
MX17251ABL1 | B | 12 | 6.0-13.8 | 0.66 | 8 | 2500 | 200 | 340 | – | ||||||||
MX17251ABD4 | B | 48 | 36.8-60.5 | 0.06 | 3 | 1500 | 118 | 200 | – | ||||||||
More Models | Other RPM/CFM/Voltage/Current…please contact us see the specification for more details. | ||||||||||||||||
Product Name | DC Axial Fan |
Brand | MX topfan/OEM/ODM |
Frame and Impeller | Frame: Aluminum, Impeller: Plastic |
Bearing Type | Sleeve bearing&Ball Bearing |
Function Range | PWM FG RD IP58 IP68 |
Leadwire | Red Wire Positive(+)，Black Wire Negative(-) |
Rated Voltage | 12V 24V 48V … |
Operating Tempetature | -30℃ to +80℃ |
Product Applications | Household Appliances/Machine/Aeronautical/Power equipment, etc |
Ordering and Pricing
- Minimum order quantity: 2 piece
- Volume pricing:
- 2–99999 piece: US $58.8 / piece
- 100000+ piece: US $45.6 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this axial fan?
The standard minimum order quantity is 2 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the axial fan be supplied for my local voltage?
The standard configuration is 12/24/48V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Topfan Technology Development Co., Ltd., based in China. The company 17 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Shenzhen Topfan Technology Development Co., Ltd. range on HVACR Nexus.
