Axial flow cyclone fan — 380 V, 220V oth, power source Electric. The complete factory specification follows. Made by Qingzhou Huayi Temperature Control Equipment Co., Ltd. (5 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Axial Flow Cyclone Fan
- Model Number: 55inch, 72inch
- Power Source: Electric
- Voltage: 380 V, 220V oth
- Material: FRP
- Blade Material: Stainless Steel
- Speed: 20m/s
Technical Specifications
| Voltage | 380 V, 220V oth |
|---|---|
| Speed | 20m/s |
| Type | Roof Axial Fan |
| Material | FRP |
| Blade Material | Stainless Steel |
| Mounting Type | Ceiling Fan |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM, OBM |
| Place Of Origin | Shandong, China |
| Brand Name | HUAYI |
| Model Number | 55inch, 72inch |
| Products Name | COW COhouse fan 72inch 55inch |
| Fan Diameter | 2M ventilation fan |
| Air Volume | 93000m m³/h |
| Protection | IP55 |
| Max Rotating Speed | 1400R/Min |
| Number Of Blade | 6PCS |
| Noise | 50db |
| Effective Area | 360㎡ |
| Long Distance | 20-30m |
| Selling Units | Single item |
| Single Package Size | 210X210X100 cm |
| Single Gross Weight | 200.0 kg |
Product Details
Product Description

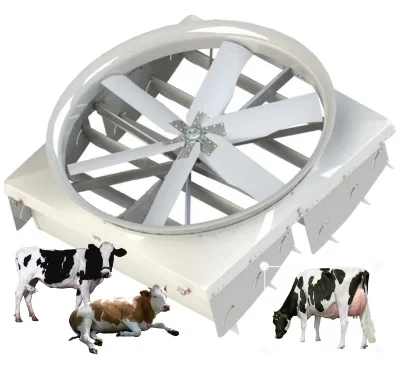

72inch & 55inch Cyclone Fan
Spec | 72inch | 55inch |
Blade Diameter | 1830mm | 1398mm |
Fan Blade Material | Aluminum alloy | Nylon |
Fan speed | 320r/min | 700r/min |
Rated Power | 2200w | 1500w |
Noise | ≤70dB | ≤70dB |
Voltage | 380V/50Hz/Oth | 380V/50Hz/Oth |
Material of Case,deflector | FRP/GFRP | FRP/GFRP |
Protection Degree | IP55 | IP55 |
Num Fan Blades | 6 | 3 |
Insulation Class | F | F |
Size | 2015*2015*455mm | 1630*1630*1050mm |
Weight | 156KG | 95kg |
Details Images
Motor
Adopt energy-saving and high-efficiency permanent magnet brushless motor. Permanent magnet brushless motor has the advantages of high efficiency, low energy consumption, long life, low noise, and stepless speed regulation
Professional Deflector
The deflector specially designed according to fluid mechanics can adjust the wind direction and angle according to the needs, so that the fresh air can cover a larger and farther area
Alloy fan blade
All-alloy fan blades provide strong and uniform airflow while ensuring the strength of the fan blades.
High strength shell
Corrosion-resistant, high-strength FRP housing.
Accessories&Options
*All motors configurations 1 or 3 phases IE3,and IE4are available
*The entire fan can meet the electrec regulation of CE and CSA certification
*Nylon or Aluminum nlades
*Available in Belt-drive and Direct-drive version
*Fully controllable by VFD controls
*Add High-Pressure-Misting units on the deflectors

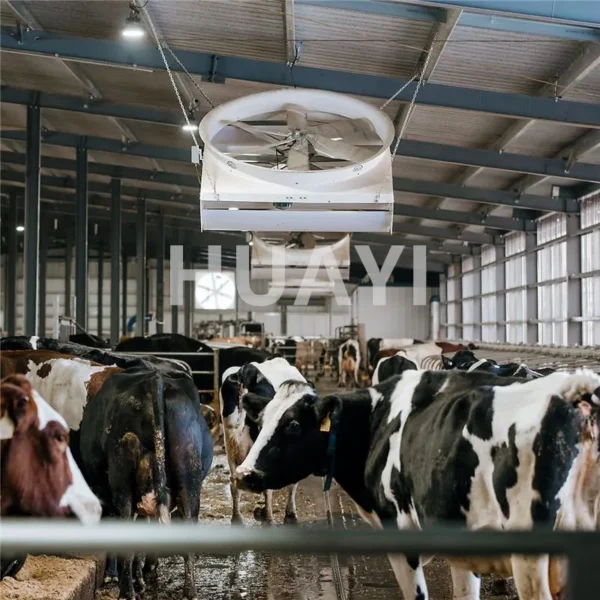

Case Display
Company Information
Qingzhou Huayi Temperature Control Equipment Co., Ltd. is a company specializing in the design and development of temperature control equipment. We are committed to the scientific and technological development of ventilation and refrigeration equipment, heating equipment and livestock machinery. We produce six series of "Huayi" brand products with more than 20 specifications, including evaporative cooling pads, poultry and greenhouse exhaust fans, circulating fans,axial flow fans, etc.which are widely used in agriculture, greenhouse, animal husbandry and other industries. Huayi has a professional international trade team, complete testing equipment and strong technical advantages, integrating R&D, production, sales and maintenance services. Huayi provide customers with high-quality, affordable temperature control equipment. Each machine has been adjusted and accurately tested before leaving the factory, making it easier for customers to install and achieve the best use effect. At the same time, we can also provide OEM or ODM services for customers,All products have passed strict quality control and certifications.Huayi has laid the foundation for cooperation with customers with excellent products, low prices and considerate services. The series of products have served all walks of life in the world, and have been exported to Asia, Africa, North America, including the United States, India, Vietnam, the Philippines,Thailand and other countries. We will recommend our best products to more countries and develop more distributors in many countries around the world. We are honored to with more international friends develop our glorious business.
Why Choose Us
Long Standing History
15 years' OEM experience of industrial exhaust fans, over 200 skilled employees.
Well Equipped
Equipped with over 50 automatic machines and 10 production lines, lower product cost for our customers.
Fully Customizable
Full customization on voltage, materials, dimensions, design and private labeling to meet your unique request.
Most Complete Fan Sizes
15years' OEM experience of industrial exhaust fans. Exhaust fans sizes range from 400mm to 1530mm, ventilation capacity ranges from 1000CFM to 40000CFM.
Fast Delivery
The production efficiency is high. Our daily output is 1000 pieces. Most of our customers can deliver within 7 days, and some can deliver within one day or three days.
Complete Product Line
95% of the fan parts are produced in our own facility, we handle from coil sliding and folding, laser welding, CNC machining and assembly to ensure high precision of each part and higher performance of the exhaust fans.
Our Certificate
Professional Trustworthy
The products of our company have been granted certificates such as CE,ISO and the company has been passed the approved mark and test reports. We have authoritative and well-known brands''HUAYI''
FAQ
Q1. Are you a factory or trading company?
A1:We are a professional and acomprehensive poultry farm equpment supplier integrating R&D, production and sales founded on 2015. OEM and ODM are welcomed.
Q2. What payment methods do you accept?
A2:We accept T/T,Paypal, LC,Western Union and we will try our best to meet your needs If you have special requirements.
Q3:What about the delivery time?
A3: Usually for sample order 3-5 days, for mass order 15-20 days,but If you need it urgently, it can be completed within 15 days after receiving your payment.
Q4:Do you provide free sample?
A4:Yes, we can provide free sample . You only need to take the express fee. If you are satisfied with our samples and order again,we will return the last sample freight.
Q5.May I visit your factory?
A5:Sure, welcome any time. We can also pick you up at airport and station. We welcome partners both at home and abroad contact and visit us.
Q6: Can you guarantee your quality?
A6: Of course. We have more than 10 years experiences in this filed. We have powerful team, special design, skillful production,fastidious materials ,exquisite workmanship as well as strict QC. we puta high value on our reputation.
Q7: How do you ensure my right if I’m going to place the order?
A7: Customers are recommended to place the order online through Alibaba to ensure your side of right as much as possible.Besides,12 months FREE GUARANTEE,never need to worry about the after-sale service,we will always be here to support your business!
Q2. What payment methods do you accept?
A2:We accept T/T,Paypal, LC,Western Union and we will try our best to meet your needs If you have special requirements.
Q3:What about the delivery time?
A3: Usually for sample order 3-5 days, for mass order 15-20 days,but If you need it urgently, it can be completed within 15 days after receiving your payment.
Q4:Do you provide free sample?
A4:Yes, we can provide free sample . You only need to take the express fee. If you are satisfied with our samples and order again,we will return the last sample freight.
Q5.May I visit your factory?
A5:Sure, welcome any time. We can also pick you up at airport and station. We welcome partners both at home and abroad contact and visit us.
Q6: Can you guarantee your quality?
A6: Of course. We have more than 10 years experiences in this filed. We have powerful team, special design, skillful production,fastidious materials ,exquisite workmanship as well as strict QC. we puta high value on our reputation.
Q7: How do you ensure my right if I’m going to place the order?
A7: Customers are recommended to place the order online through Alibaba to ensure your side of right as much as possible.Besides,12 months FREE GUARANTEE,never need to worry about the after-sale service,we will always be here to support your business!
Ordering and Pricing
- Minimum order quantity: 10 set
- Volume pricing:
- 10–49 set: US $600 / set
- 50+ set: US $570 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this axial flow cyclone fan?
The standard minimum order quantity is 10 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the axial flow cyclone fan be supplied for my local voltage?
The standard configuration is 380 V, 220V oth. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
