This axial flow fan is published with the manufacturer’s full specification — voltage 380/660/1140V, power source Electric. Made by Yuncheng Anjie Fan Electric Co., Ltd. (2 years on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Axial Flow Fan
- Model Number: FBCDZNo15(2x55kw)
- Power Source: Electric
- Rated Power: 2x55kw
- Voltage: 380/660/1140V
- Material: Carbon Steel
- Blade Material: Carbon Steel
Technical Specifications
| Blade Diameter | 1500mm |
|---|---|
| Voltage | 380/660/1140V |
| Type | Explosion-Proof Axial Fan |
| Material | Carbon Steel |
| Blade Material | Carbon Steel |
| Bearing Type | Oil Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Place Of Origin | Shanxi, China |
| Brand Name | AnJieXiaoLei |
| Model Number | FBCDZNo15(2x55kw) |
| Wind Pressure | 660-2300Pa |
| Air Volume | 23-51m³/s |
| Rated Power | 2x55kw |
| Rated Speed | 980r/min |
| Selling Units | Single item |
Product Details
Model number | Rated power（kw） | Rated air volume（m³/S） | Rated air pressure（Pa） | Rated speed（r/min） |
FBCDZ№15/2×55kw | 2×55kw | 23-51 | 660-2300 | 980 |

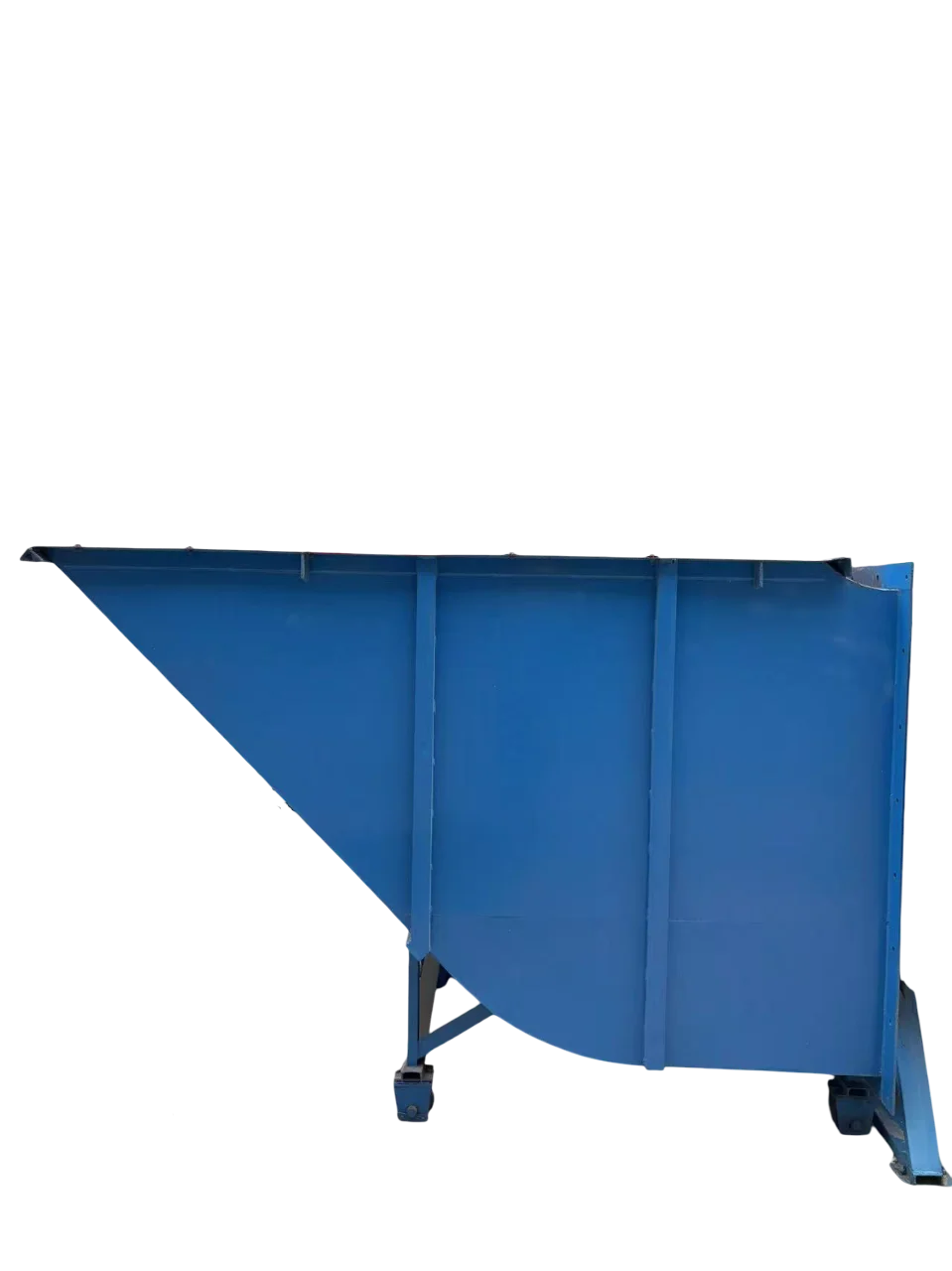

Diffuser tower
A conical cylinder installed at the outlet of the fan, which is gradually enlarged. The function is to convert the dynamic pressure of the high-speed airflow at the outlet of the fan into static pressure effectively,improve the efficiency of the fan, and at the same time reduce the outlet wind speed, reduce noise and energy loss.

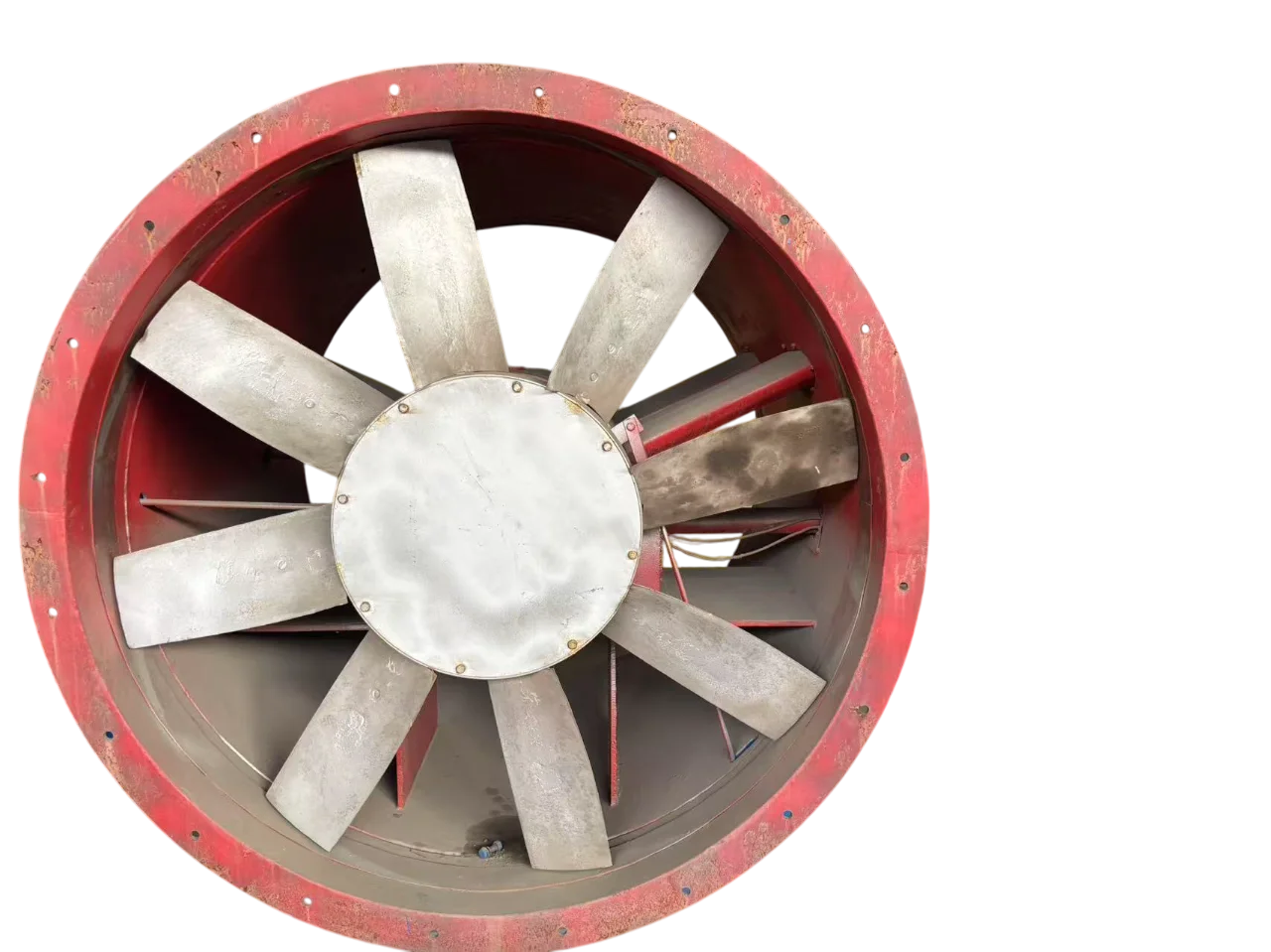

Impeller
The core component, consisting of a hub and a number of twisted blades mounted on it. The blades are usually made of high-performance aerospace aluminium or high-strength steel with a specific aerodynamic airfoil shape.
When the impeller rotates, it does work on the air, generating wind pressure and air volume. They are classified into movable blade adjustable type and fixed type.
When the impeller rotates, it does work on the air, generating wind pressure and air volume. They are classified into movable blade adjustable type and fixed type.
The main shaft
connects the drive and the impeller and transmits the torque. It requires high strength,
high rigidity and good dynamic balance performance.
high rigidity and good dynamic balance performance.
Structure, benefits and features

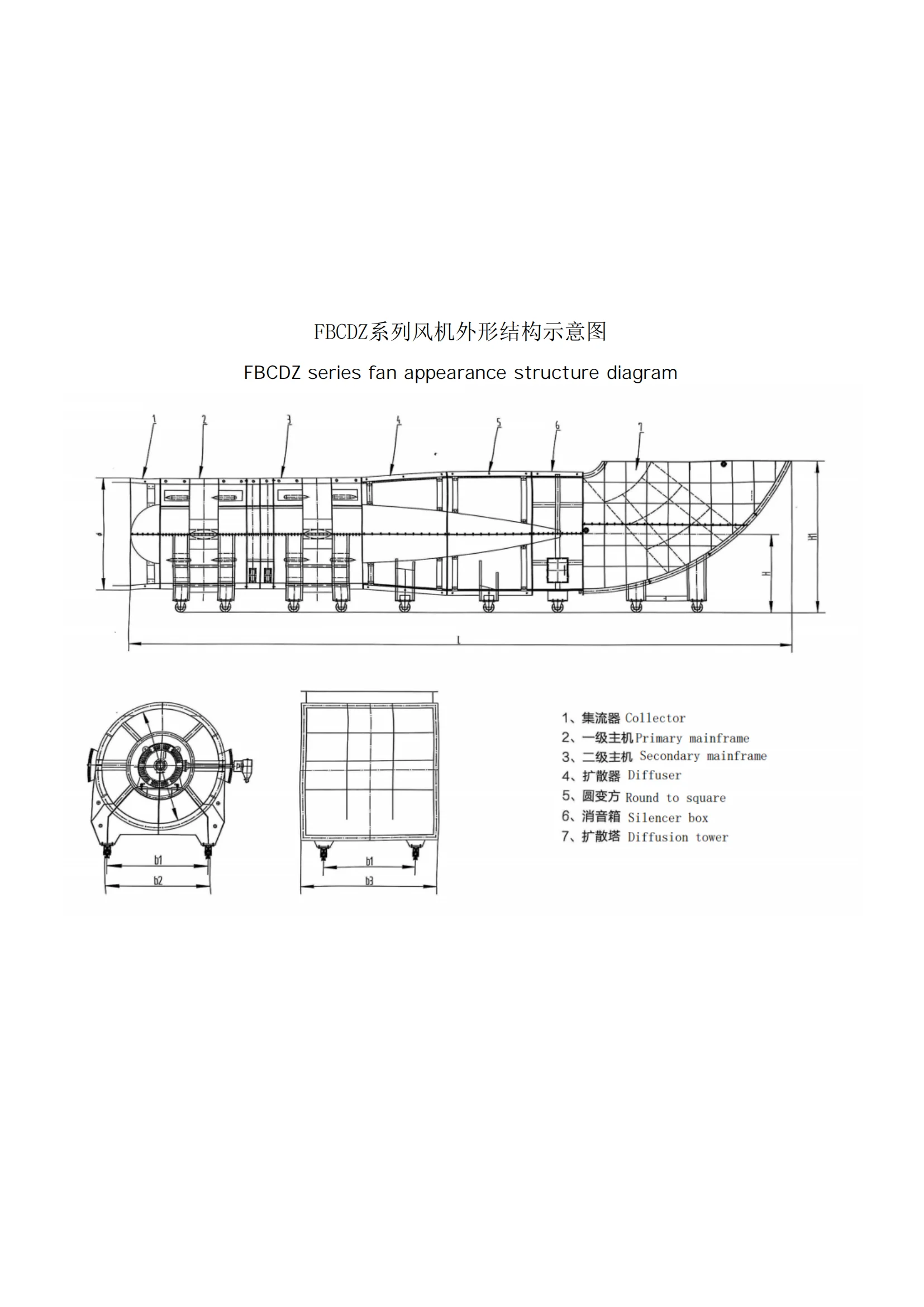

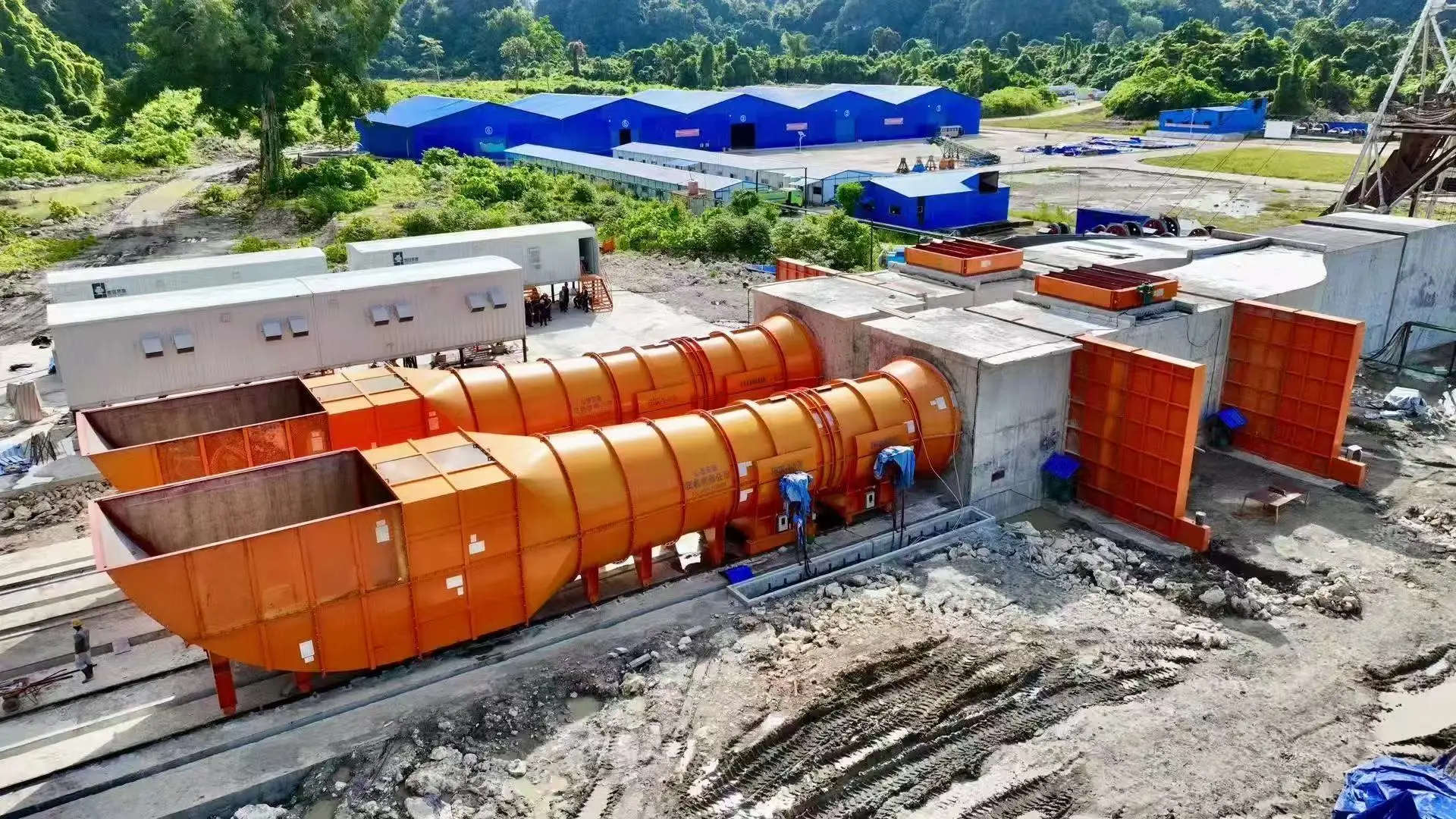

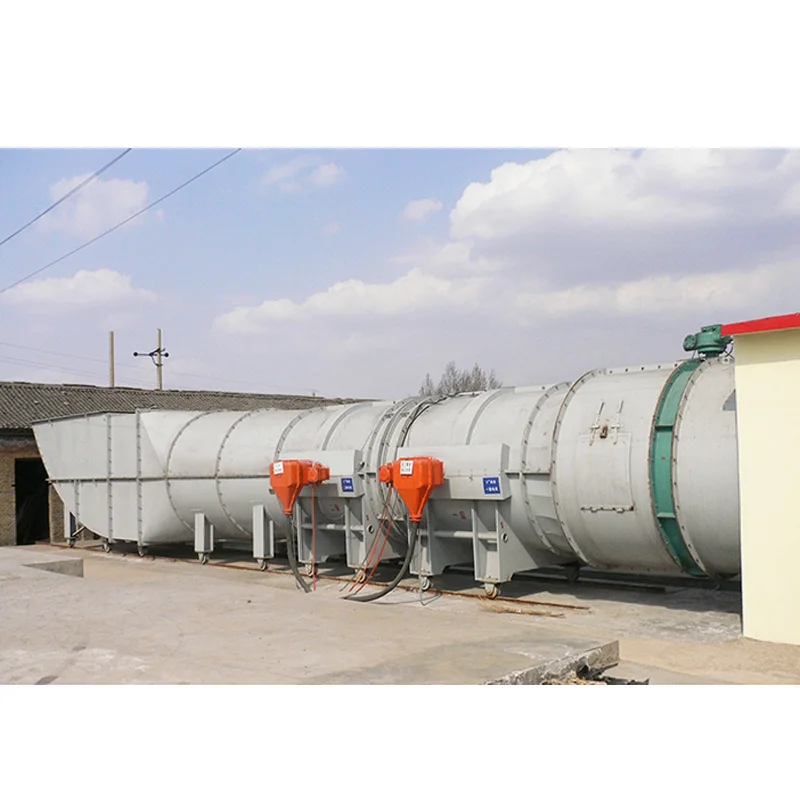

Mining main fan is a large mechanical equipment used for the ventilation of the whole mine or one of its wings, which operates day and night. It provides fresh air to the mine and exhausts harmful gases to ensure the safety of the mine and the health of the personnel.It mainly consists of impeller, casing, motor, diffuser and electric control cabinet.
Features:
1, high reliability
adopts double motor system and other designs, two motors running alternately, a single failure can still maintain 50% of the air volume, improve the reliability of the fan operation.
2, energy-saving effect is remarkable
Through the optimal design and the adoption of advanced technology, the mine main fan adopts rare earth permanent magnet motor and hydrodynamic optimisation, the comprehensive efficiency reaches 92%, which is 12 percentage points higher than that of the ordinary products, and reduces the energy consumption and operating costs.
3、Strong adaptability
can be adjusted according to the different working conditions and needs of the mine, such as adjustable blade angle, which can adapt to different ventilation resistance and air volume requirements; some fans also have variable frequency characteristics,which can cope with complex ventilation resistance.
4, good safety performance
with explosion-proof, fire prevention, corrosion and other functions, such as explosion-proof junction box design in line with GB3836 standards, suitable for high gas mine environment; impeller made of strong impact resistance, the fan can be a direct counter-air, counter-air rate of more than 60%, without the need to build counter-air ducts, improve the safety of the mine.
Selection basis:
1, mine air volume
According to the mining area of the mine, the number of people working, the number of equipment working at the same time and other factors, calculate the ventilation required by the mine, in order to determine the specifications of the fan's air volume. 2,ventilation resistance Through the measurement of the roadway, the ventilation resistance is measured.
2、Ventilation resistance
The resistance of the mine ventilation system is calculated by measuring the length of the roadway, changes in section,
ventilation facilities, etc., so as to select a fan that can provide sufficient wind pressure to overcome the ventilation
resistance and ensure the normal flow of wind.
3、Installation conditions
Evaluate the size of the chamber, space layout, power supply capacity and other conditions in the mine where the fan is to be installed to ensure that the fan can be installed and operated smoothly, and that it meets the relevant safety specifications and requirements.
1. who are we?
We are based in Shanxi, China, start from 2019,sell to Southeast Asia(35.00%),South Asia(35.00%),South America(30.00%). There are
total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Local ventilation fan for mining,Electric motors,Main Fan Machine,Tunnel fan,Electric machinery
4. why should you buy from us not from other suppliers?
With 10 years of design and development experience, 0 returns, first-class quality and service
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Shanxi, China, start from 2019,sell to Southeast Asia(35.00%),South Asia(35.00%),South America(30.00%). There are
total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Local ventilation fan for mining,Electric motors,Main Fan Machine,Tunnel fan,Electric machinery
4. why should you buy from us not from other suppliers?
With 10 years of design and development experience, 0 returns, first-class quality and service
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this axial flow fan?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the axial flow fan be supplied for my local voltage?
The standard configuration is 380/660/1140V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
