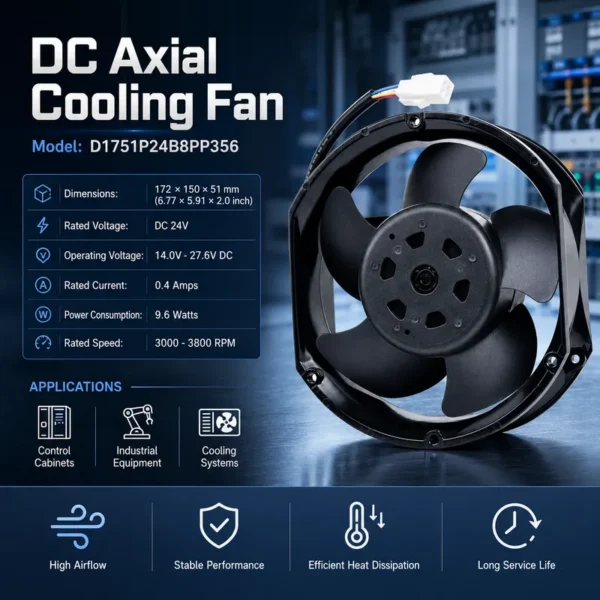

The axial flow fan listed here carries 24v, power source Electric, documented exactly as the manufacturer publishes it. Made by Guangzhou Yuexiu District Weikeheng Electronic Firm (2 years on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Axial Flow Fan

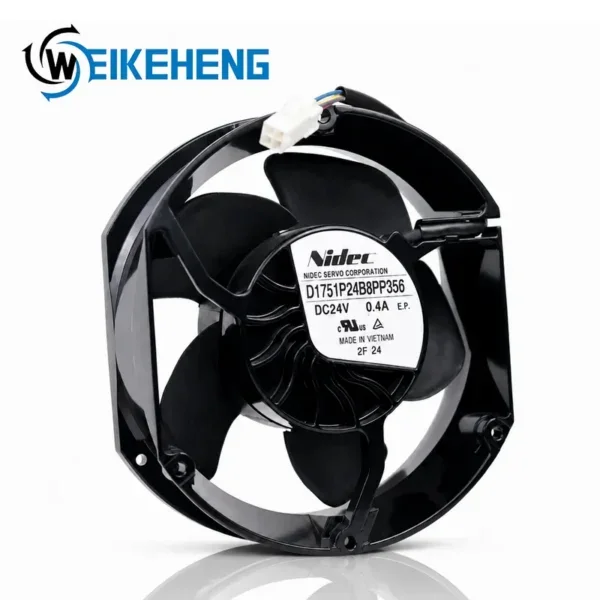

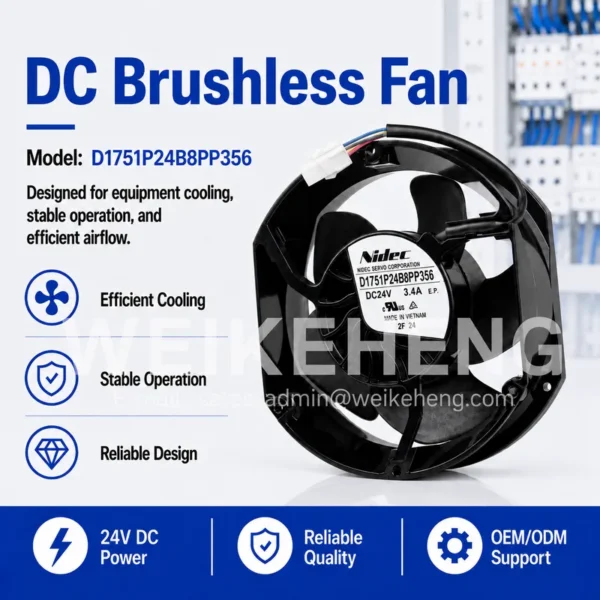

- Model Number: D1751P24B8PP356
- Power Source: Electric
- Voltage: 24v
- Material: Aluminum Alloy
- Blade Material: PBT
- Speed: 3000 – 3800 RPM
Technical Specifications
| Voltage | 24v |
|---|---|
| Speed | 3000 – 3800 RPM |
| Type | dc cooling fan |
| Material | Aluminum Alloy |
| Blade Material | PBT |
| Mounting Type | Free Standing |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM, OBM |
| Place Of Origin | China |
| Brand Name | Nidec |
| Model Number | D1751P24B8PP356 |
| Color | Black |
| Dimensions | 72 x 150 x 51 mm (6.77 x 5.91 x 2.0 inch) |
| Max. Static Pressure | 100 – 160 Pa |
| Insulation Class | Class A |
| Operating Temp. | 10°C to +70°C |
| Life Expectancy | 70,000 Hours |
| Weight | Approx. 800g (1.76 lbs) |
| Control Signal | 4-Wire (Red+, Black-, Blue-PWM, Yellow-FG) |
| Selling Units | Single item |
| Single Package Size | 26X15X18 cm |
| Single Gross Weight | 0.764 kg |
Product Details
- 81.6W Extreme Power: Driven by 3.4A high current for industry-leading airflow performance.
- Engineered to protect high-load AI servers and UPS systems from overheating.
- 4-wire interface supports intelligent speed adjustment to balance noise and performance.
- Balanced motor architecture reduces mechanical noise even at ultra-high rotational speeds.
- Die-cast aluminum housing for high-impact durability in extreme industrial environments.
Parameters | Detailed Specifications (Industrial Grade) |

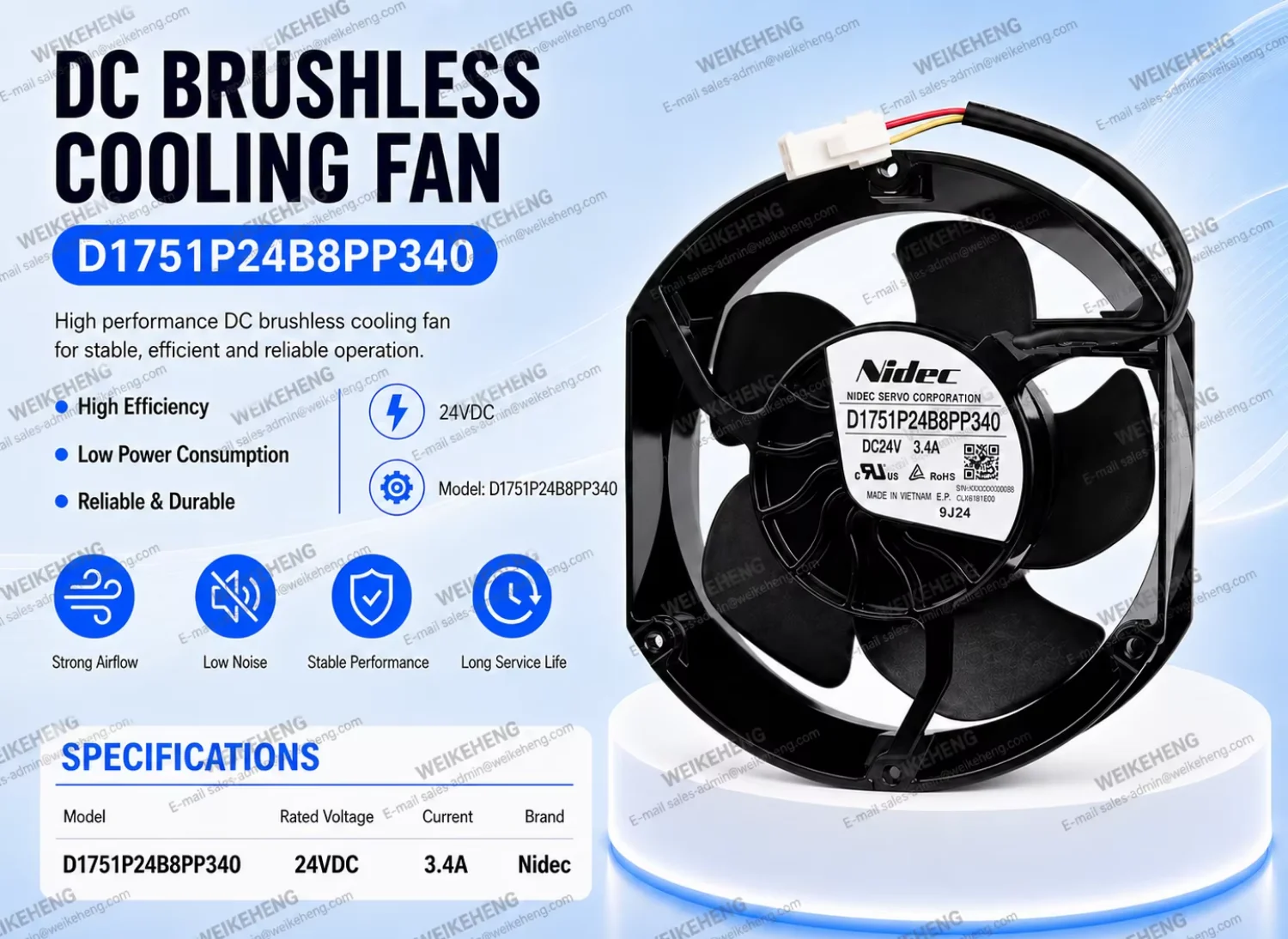

Model Number | D1751P24B8PP340 (Nidec Servo) |
Dimensions | 172 x 150 x 51 mm (6.77 x 5.91 x 2.0 inch) |
Rated Voltage | DC 24V |
Operating Voltage | 14.0V – 27.6V DC |
Rated Current | 3.4 Amps (Ultra-High Output) |
Power Consumption | 81.6 Watts |
Rated Speed (RPM) | 4500 – 6500 RPM (Super High Speed) |
Max. Airflow | 300.0 – 350.0 CFM (Hurricane Level) |
Max. Static Pressure | 650 – 850 Pa (Extreme Pressure) |
Application | Brushless DC Fan, Ball Bearing Fan, 24V DC Fan, Customizable Fans |
Server, distribution box, industrial control cabinet heat dissipation & ventilation Frequency converter, welding machine, charging pile, air compressor cooling Workshop & warehouse ventilation, smoke exhaust Oven, disinfection cabinet, dehumidifier, air cooler Energy storage cabinet, photovoltaic inverter, power battery heat dissipation Printer, injection molding machine, machine tool equipment cooling Communication base station, outdoor power cabinet dustproof & heat dissipation Ventilation, temperature and humidity control |
Louver Vent Cover ZL-801~ZL-806
cabinet cooling fan ventilation and heat dissipation. Multiple sizes available.
Custom Protective Cover
sizes:15/17/18/20/25/30/35/36/38/40/45/50/52/60/70/80/92/120/125/127/136/140/150/160/172/200/220/280mm
Custom Dust Cover
efficiency, simple to mount and clean.
separately. We will keep you updated with the exact delivery schedule once confirmed.
appoint your preferred freight forwarder for shipment.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–199 piece: US $45 / piece
- 200–499 piece: US $40 / piece
- 500–9999 piece: US $37 / piece
- 10000+ piece: US $35 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this axial flow fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the axial flow fan be supplied for my local voltage?
The standard configuration is 24v. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Guangzhou Yuexiu District Weikeheng Electronic Firm, based in China. The company 2 years as a verified Alibaba.com supplier, Trading Company. Browse the full Guangzhou Yuexiu District Weikeheng Electronic Firm range on HVACR Nexus.
