The axial industrial roof extractor listed here carries 380V 50Hz, blade material aluminium alloy or frp, documented exactly as the manufacturer publishes it. Made by SHENZHEN ZOUWEY EQUIPMENT CO., LTD. (13 years on the platform, typical reply ≤5h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Axial Industrial Roof Extractor
- Voltage: 380V 50Hz
- Blade Material: aluminium alloy or frp
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
- Mounting Type: Roof Fan
- Type: axial flow fan
Technical Specifications
| Voltage | 380V 50Hz |
|---|---|
| Blade Material | aluminium alloy or frp |
| Mounting Type | Roof Fan |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Place Of Origin | Guangdong, China |
| Brand Name | FW |
| Type | axial flow fan |
| Air Volume | 1900 ~ 48470 M3/H |
| Mounting | roof mounted |
| Housing Life Time | 10 years |
| Cap Life Time | 10 years |
| Base Life Time | 10 years |
| Base | srong FRP |
| Product Name | industrial roof extractor fan |
| Packaging Details | industrial roof extractor fan export package: metal box or according to you. |
| Port Of Dispatch | Foshan or Shenzhen |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 500 sets per Month industrial roof extractor fan supplying capacity |
Product Details
37500 m3/h mushroom high temperature roof mounted fresh air axial industrial roof extractor fan
SHELL CAN BE USED 20YEARS
Main Parameter of Industrial Roof Extractor Fan
| product no.: | FW-R22FH3F/6F | FW-R36FH6A/6F | FW-R48FH6A/6F |
| diameter of fan | 530mm | 950mm | 1219mm |
| materials of blade | FRP | aluminum alloy or FRP | aluminum alloy or FRP |
| rotation speed | 530rpm | 520rpm | 430rpm |
| air volume | 12500 m³/h | 35000 m³/h | 46500 m³/h |
| noise | ≤68dB | ≤68dB | ≤68dB |
| motor | 1.1KW IP54 8pole aluminum alloy shell | 0.55KW IP54 8pole aluminum alloy shell | 1.1KW IP54 12pole aluminum alloy shell |
| voltage | 3phase 380V 50Hz | 3phase 380V 50Hz | 3phase 380V 50Hz |
| product size | 92*73*35/33cm | 150*120*58/55cm | 239*160*94/70cm |
| weight | 51kgs | 75kgs | 91kgs |
Specifications of Industrial Roof Extractor Fan
1.material: made of high- class fiberglass, attractive appearance, no rust, rainproof and high efficiency ventilation, it can be used more than 10 years.
2. good motor: cast iron motor bottom cover can be used very long time.
scientific three layer designed roof exhaust fan cap, rain water easily flow down
vertical cone cap of roof exhaust fan can be let air well-distributed and easily flow out
frame for housing and cap of roof mounted exhaust fan

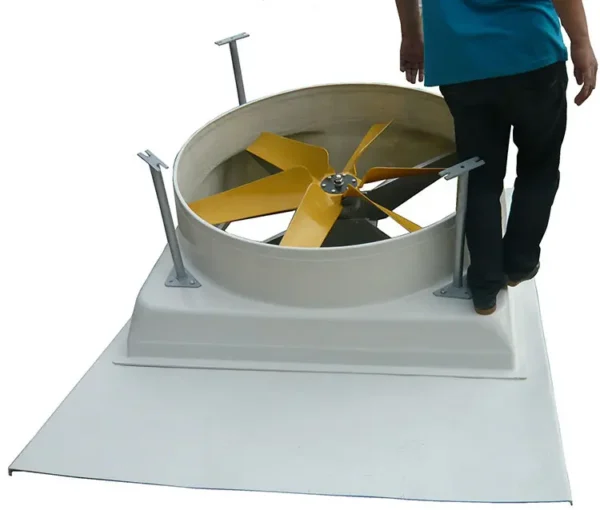

very strong roof exhaust fan housing, one 75kgs person stands on it, no deformation
very good quality motor of roof exhaust fan

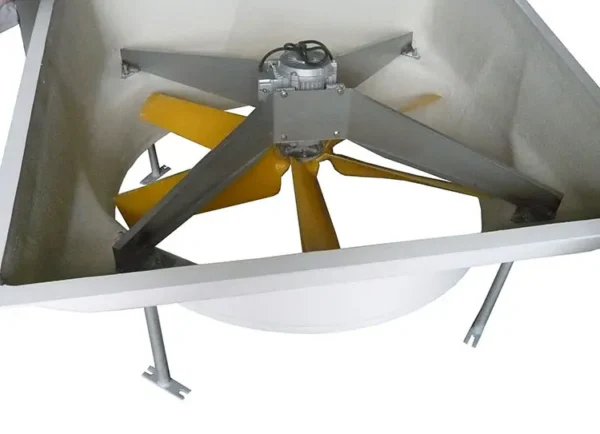

stamped iron plate motor frame of roof mounted exhaust fan
strong aluminum alloy blades & SMC blades of roof mounted exhaust fan
iron wire satety net of roof mounted exhaust fan
Certificate of Industrial Roof Extractor Fan
Loading of Industrial Roof Extractor Fan
Application of Industrial Roof Extractor Fan
This fiberglass exhaust fan are widely used in agriculture, industry and other busy or closed places for cooling, such as greenhouse (flower, vegetable and plant), poultry house(animal husbandry, livestock breeding, cow/ chicken/sheep house),factory workshop(textile, chemical, medicine, tea, vegetable storage)restaurant and supermarket
Our Markets
FAQ
1. Q : What are your main products ?
A : Our mainly produce desiccant rotor, dehumidifer, energy wheel heat recovery unit etc.
2 .Q: May I get free sample?
A:Normally, our samples for charger are not free. However, the sample fee will be refunded when customer place bulk orders for that item.
3 .How to got the order?
4. Q: Can you supply OEM or ODM service?
A:We can supply OEM/ODM service of any charger or cable, power bank absolutely!
5. Q: Which shipment available?
A:Normally, we ship goods by sea, air and express. Special requirement also acceptable.
By sea to your nearest sea port
By air to your nearest air port
By express(UPS,DHL.FEDEX,TNT…) to your door
6. Q : How to guarantee after sale ?
A : We supply 1 year products warranty. If the item is found to be defective in warranty,please
contact us as soon sa possible, so that we can help to solve the problem at fastest rate;
send back to our factory for repairing, or we send new one for you.
To save time for business, please contact us via,
Jack Peng
E-mail: info @ fwventilators.com
fwventilators @ yeah.net
QQ: 2955 6037 65
Skype: fwventilators
WeChat: ForeverWin168
Tel: +86-755-3284 8588
MP: +86-180 6293 2755
Http://www.fwventilators.com
Thanks for your visiting our products. For more detailed information, please send us inquiry. Thank You.
Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this axial industrial roof extractor?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the axial industrial roof extractor be supplied for my local voltage?
The standard configuration is 380V 50Hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
