This beverage chiller is published with the manufacturer’s full specification — 380v/3phase/50hz, 18KW~4000KW. Made by Qingzhou Huanli Refrigeration Equipment Co., Ltd. (8 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Beverage Chiller
- Power: 9.5kw
- Voltage: 380v/3phase/50hz
- Cooling Capacity: 18KW~4000KW
- Refrigerant: R134a/R407c/R410a/R404A
- Warranty: 1 Year
- After Warranty Service: 1 Year Service
Technical Specifications
| Voltage | 380v/3phase/50hz |
|---|---|
| Power | 9.5kw |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | High Productivity |
| Core Components | PLC, Motor, Pump |
| Place Of Origin | Shandong, China |
| Brand Name | Hone |
| Dimension(L*W*H) | 1250*800*1400MM |
| Working Temperature Range | 7 to 50 ℃ |
| Product Name | Industrial Screw |
| Application | Industrial Cooling Solutions |
| Function | Circulating Cooling Water |
| Keyword | Air Cold Water Chiller |
| Name | Air Cooler Water Chiller Industrial Chiller |
| Cooling Capacity | 18KW~4000KW |
| Refrigerant | R134a/R407c/R410a/R404A |
| Compressor Brand | Copeland/Bitzer/Danforth |
| After Warranty Service | 1 Year Service |
| Selling Units | Single item |
| Single Package Size | 125X100X180 cm |
| Single Gross Weight | 149.000 kg |
Product Details
Product Overview

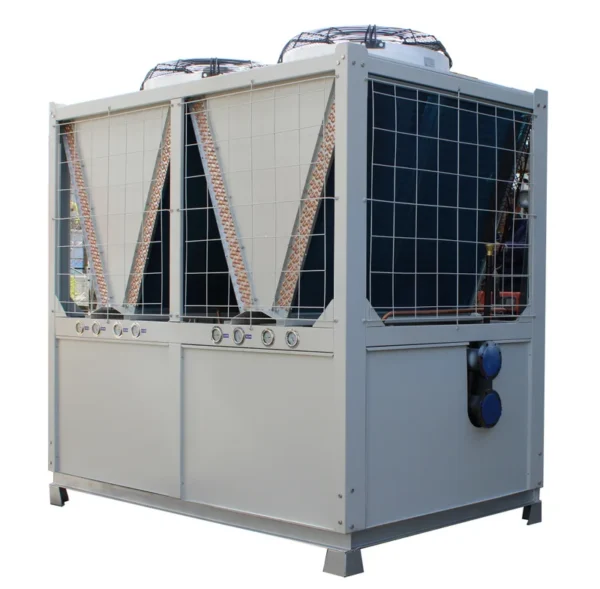

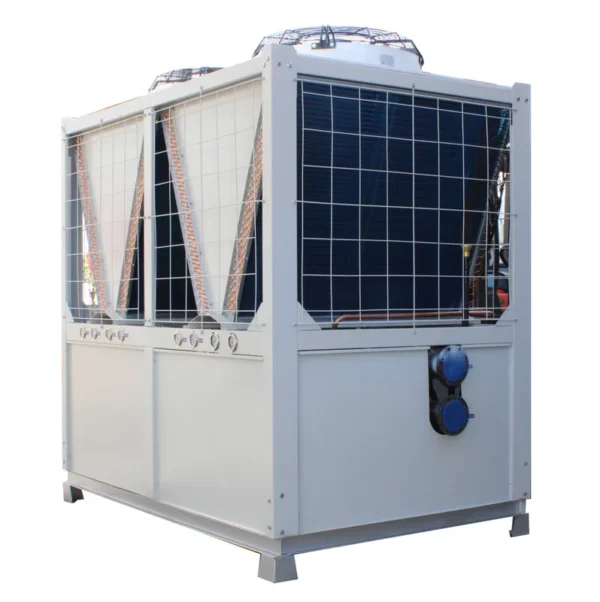

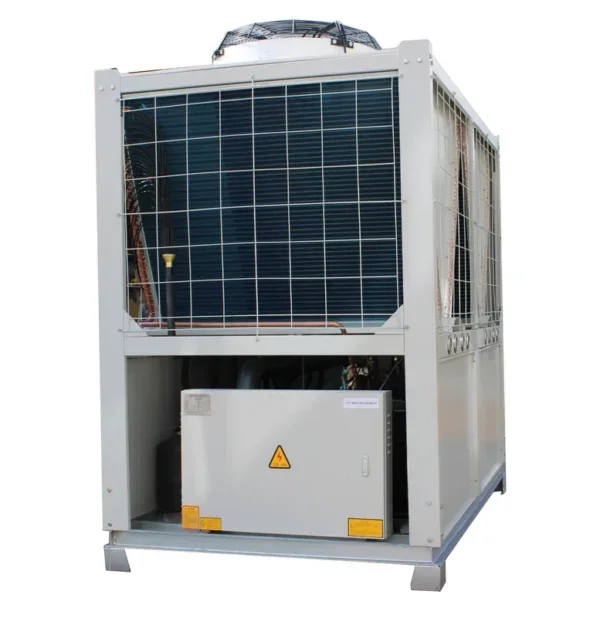

Air Cooled Water Chiller
The air cooled chiller, also known as an air-cooled box-type industrial chiller unit, utilizes a air-cooled heat dissipation design. It draws surrounding air into the equipment using built-in fans and dissipates heat through a condenser, thereby reducing the system temperature. It does not require an additional water cooling system and is relatively easy to install and maintain.
Air cooled chiller is suitable for places with limited space or where sufficient cooling water cannot be provided. However, the cooling efficiency is affected by ambient temperature and humidity, so it is typically used in applications with lower heat loads. Each model is equipped with a range of safety features, including motor overload protection, phase loss and phase reversal alarms, anti-freeze thermostats, pressure gauges, and more. These chiller units demonstrate excellent performance and have a longer lifespan. Throughout the entire operating cycle, a series of steps based on the fundamental principles of heat exchange are followed. They are particularly suitable for industries that require precise control and regulation of chilled water temperature, allowing for precise control within the range of 3°C to 50°C, making them an important player in the modern industrial sector.
Air-cooled scroll compressor chiller
1.LONG SERVICE LIFE
2.LOW NOISE LEVEL
3.ENERGY SAVING
4.LOW MAINTENANCE
5.ACCURATE TEMPERATURE CONTROL
6.R410a
7.REMOTE CONTROL Remote Control 8.PATENTED PRODUCT Patented Product 9.FAMOUS BRAND MOTOR 10.MULTIFUNCTIONAL 11.FAMOUS BRAND PLC 12.LOW MAIN
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
No | Item | Data | Item | Data |
1 | Model | HL30SBX | Compressor Rated load current | 11.9A |
2 | Cooling capacity | 29.4KW | Compressor form | Semi-hermetic screw compressor |
3 | Input power | 3PH-380V/50HZ | Condenser form | Shell and tube |
4 | Freezing medium | R134a | Condenser Water Temperature | 30-35℃ |
5 | Compressor input power | 6.8KW | Evaporator form | Shell and tube |
6 | Condenser Cooling water flow | 8.1m³/h | Evaporator Water Temperature | 20-22℃ |
7 | Evaporator Tank liquid flow | 10.1m³/h | Pipe connection Cooling water inlet and outlet | DN40 |
8 | Dimensions (L*W*H) | 1500*710*1325mm | Weight | 288KG |
If you want more sizes, please contact us for details
PRODUCT CONFIGURATION

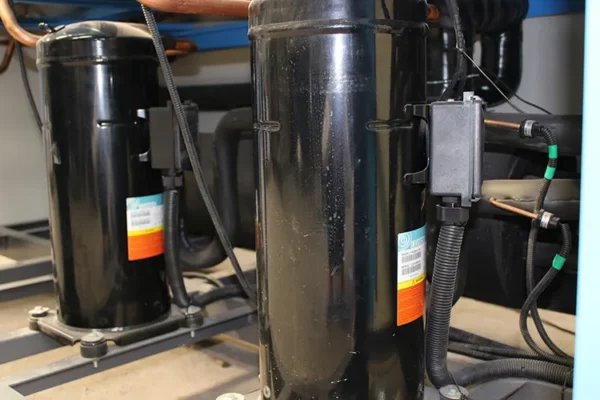

compressor
Evaporator
condenser
SALES AND SERVICE NETWORK
Successful Project
Project in Thailand
Project in India
Project in Russia
Company Profile
Qingzhou Huanli Refrigeration Equipment Co., Ltd. is a professional manufacturer of refrigeration and air treatment equipment in Mainland China. Founded in 2008, the company is a high-tech enterprise integrating science, industry and trade, creating a natural living space and subtle exquisiteness. The production environment is our responsibility. We are committed to the R&D and production of refrigeration and air treatment equipment required by industries, businesses and other industries. It is a high-tech enterprise integrating research, production and trade.At the end of 2013,in order to further improve the technical level of the company's products and meet the requirements of energy conservation and environmental protection in the international community, the company invested in the production of production equipment,mainly producing heat recovery series energy-saving products, new working medium series environmental protection products, high-temperature pure water units, and stacking high.
SIMILAR PRODUCTS
FAQ
Q1：Are you manufacturer or Trade Company?
A1：We are professional factory, founded in 1998. OEM available!
Q1：What's the order process?
A1：Inquiry—provide us all clear requirements. Quotation—official quotation form with all detail specifications. Contract confirmation—provide correct contract details. Terms of payment— By T/T 30% downpayment, balance before shipment. Production—mass production Testing—8hours, to ensure the quality of the machine Shipping— by sea, train. Detailed picture of package will be provided.
Q1：What terms of payment you use?
A1：T/T, L/C, etc. Installation—install video/install manual
Q1：How to get a prompt quotation?
A1：When you send the inquiry to us, please kindly send it with below technical information. 1). Application: 2). Cooling capacity: _____KW or _____ Kcal/hr or _____RT. 3). Outlet temperature: 4). Power supply: 3PH 380V/50HZ or 3PH 230V/60HZ or 3PH 440V/60HZ. 5). Location of your factory, we have to know the weather condition. 6). Any other special requirements: 5. Any technical support need or purchase need please contact to us!
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–4 piece: US $3000 / piece
- 5+ piece: US $2600 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this beverage chiller?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the beverage chiller be supplied for my local voltage?
The standard configuration is 380v/3phase/50hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
