This blade centrifugal ventilation blower is published with the manufacturer’s full specification — 220 V, blade material Plastic. Made by Hangzhou Meansoon Ventilation Co., Ltd. (5 years on the platform, typical reply ≤1h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Blade Centrifugal Ventilation Blower
- Model Number: MPCF-200-F2S-FL
- Voltage: 220 V
- Blade Material: Plastic
- Speed: 2800 RPM
- Warranty: 1 Year
- Place Of Origin: Zhejiang, China

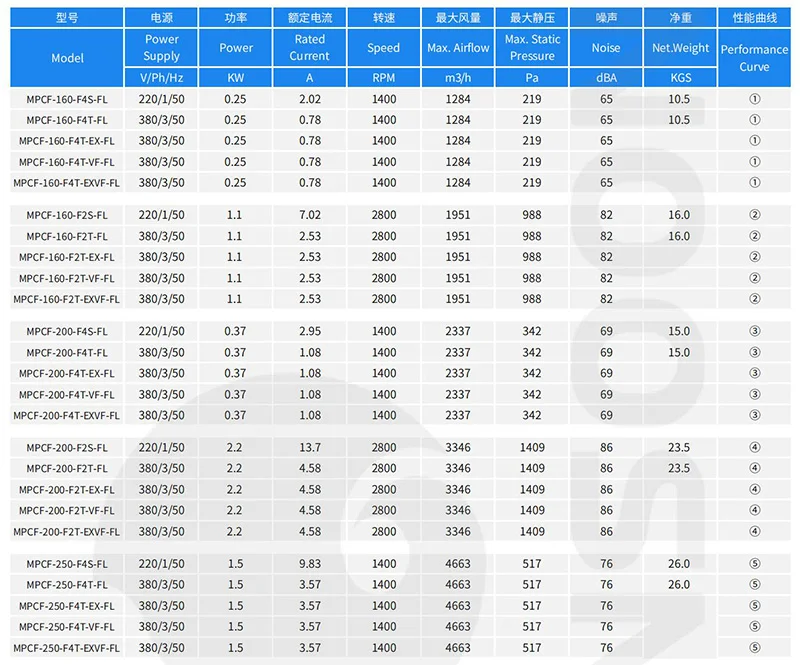

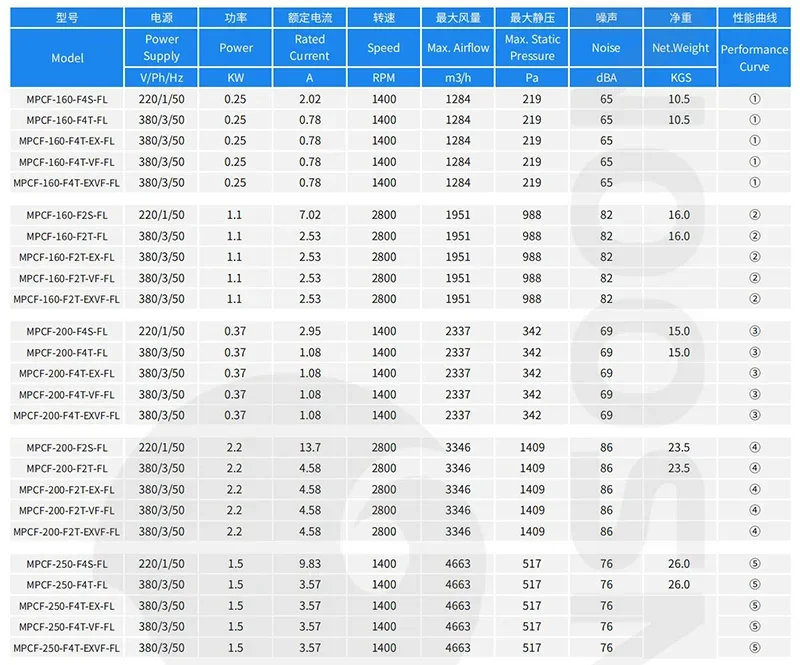

Technical Specifications
| Type | Forward Curved Blade Radial Fan |
|---|---|
| Voltage | 220 V |
| Speed | 2800 RPM |
| Blade Material | Plastic |
| Mounting | Duct Fan |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM |
| Place Of Origin | Zhejiang, China |
| Brand Name | MEANSOON |
| Model Number | MPCF-200-F2S-FL |
| Volute | PE plastic |
| Motor | 100% Copper |
| Selling Units | Single item |
| Single Package Size | 60X48X70 cm |
| Single Gross Weight | 40.0 kg |
Product Details

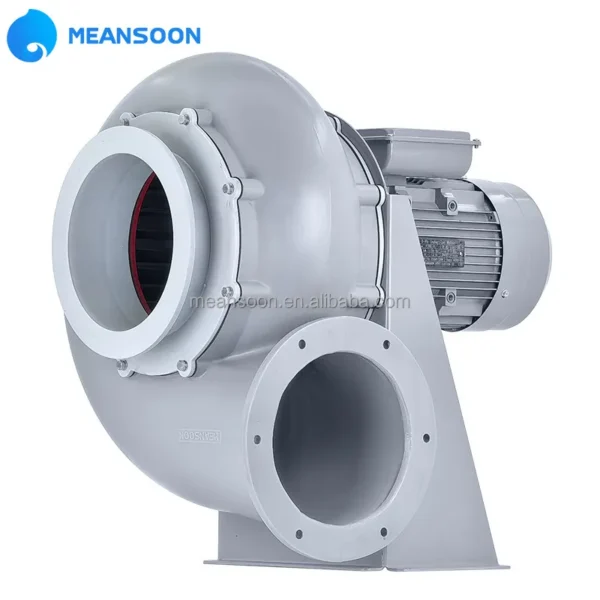

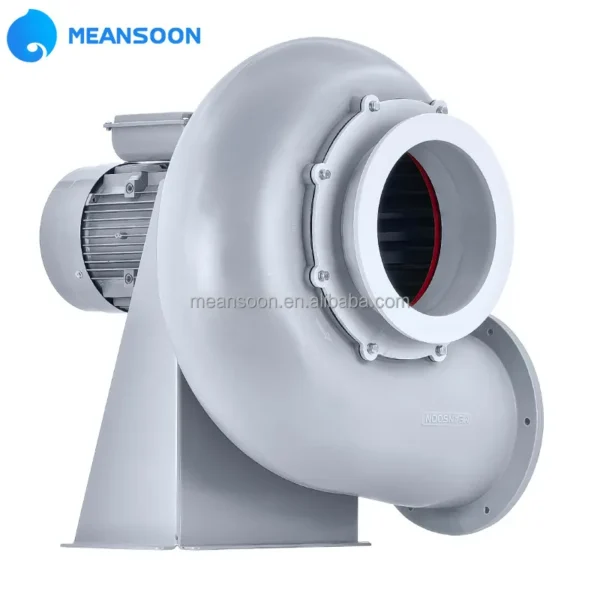

Corrosion Resistant PP Plastic Centrifugal Ventilation Fan Blower with Flange MPCF-200-F2S-FL
General Description
The MPCF Series (Flange Type) are developed by further optimizing the aerodynamics of the impeller and volutes based on the old MPCF and MACF series . Viton gaskets was used to seal all the gaps to prevent acid and alkali leakage.
Suitable for applications where the extraction of corrosive fumes and gases:
Sulphuric acid , Sulphurous acid , Nitric acid , Nitrous acid , Hydrofluoric Acid , Boris Acid , Hydrocyanic Acid , Ammonia , Soda , Ethanol , Potassium hydroxide , Methanol , Propane , Formol , Benzene , Formaldehyde .
Application
The MPCF series (Flange Type) of Plastic Centrifugal Fan provides good characteristics of low noise and high
efficiency, which often are applied in laboratory, fume hood , fume cupboard , chemical storehouse , electroplating
factory, medicine factory, mold factory, Electronic workshop and metallurgy for exhaust ventilation .

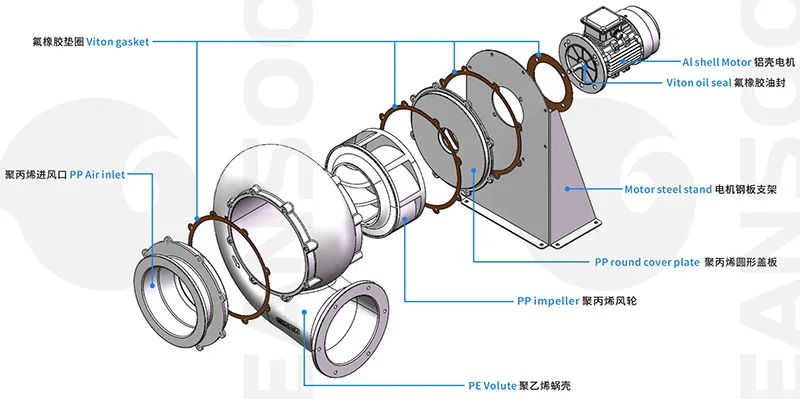

Volute
UV resistance level UV8 ,Flame retardant level HB, anti- static level 10-10.

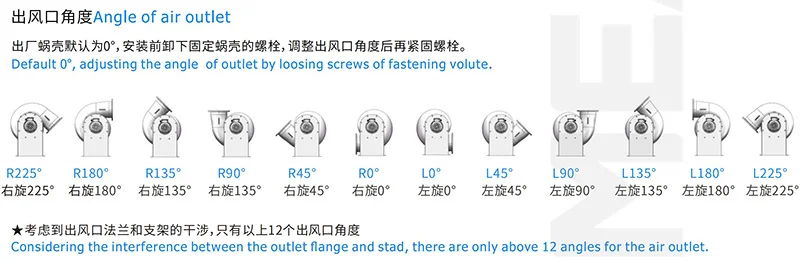

The volute is made of polyethylene (PE) , integrated molding , without welding points ; The default air outlet position is 0°, There are 8 angle positions , one every 45 degrees . All fan is with mounting bolts and nuts in 304 stainless steel.

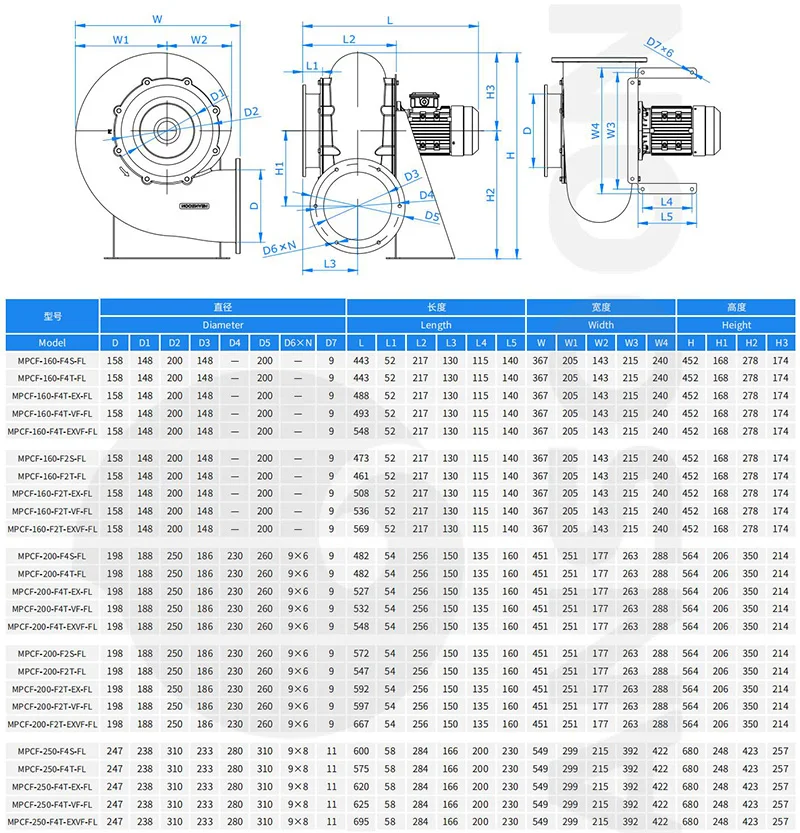

Inlet/outlet are round with standard size: 160 , 200 , 250 , which are good for plastic duct connection .
Impeller
The forward/backward curved impeller is efficiently made of
fibreglass reinforced polypropylene plastic are dynamically balanced.

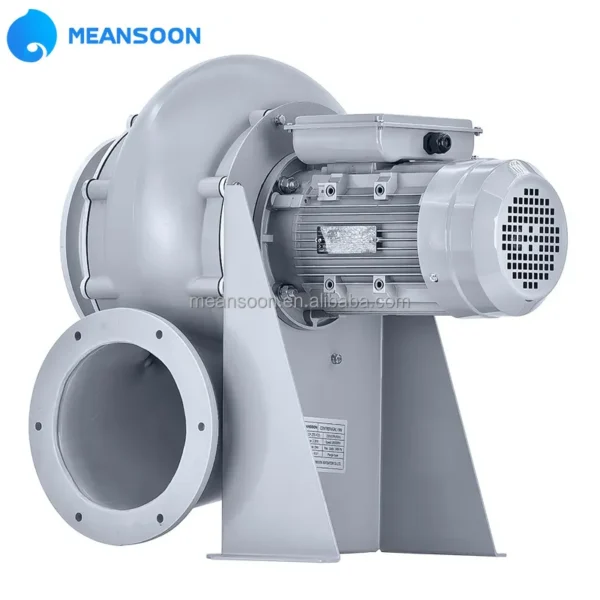

Motor
The Al shell motor is equipped with viton oil seal for better corrosion resistance .
For better motor lifespan , we choose NSK bearings . And
the motors are all equipped with copper wire windings , with a protection level of IP55 , insulation Class F, and B5 Flange .
Explosion proof versions in accordance with CNEX
Directive for three-phase models is available. Motor is
outside the airstream. we can provide Variable-frequency motors , driving by VDF.
Motor stand
Motor stand is made of Q234 steel in 3mm thickness , powder coated in gray by epoxy.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1+ piece: US $341.3 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this blade centrifugal ventilation blower?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the blade centrifugal ventilation blower be supplied for my local voltage?
The standard configuration is 220 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Hangzhou Meansoon Ventilation Co., Ltd., based in China. The company 5 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Hangzhou Meansoon Ventilation Co., Ltd. range on HVACR Nexus.
